Heaven and Hell

This bundle is marked as pending. It has not been reviewed by a staff member yet.
Heaven and Hell


(This video is slightly outdated).


This is only intended for SD.
This is my entry for the 1st Level Design contest.

The map features two arenas, in contrasting style. It is my depiction of heaven and hell, and a direct portal/link between the two. There are over 180 freshly ripped doodads from World of Warcraft in the map (not all of them are in use), many of which I have animated specifically for this contest.

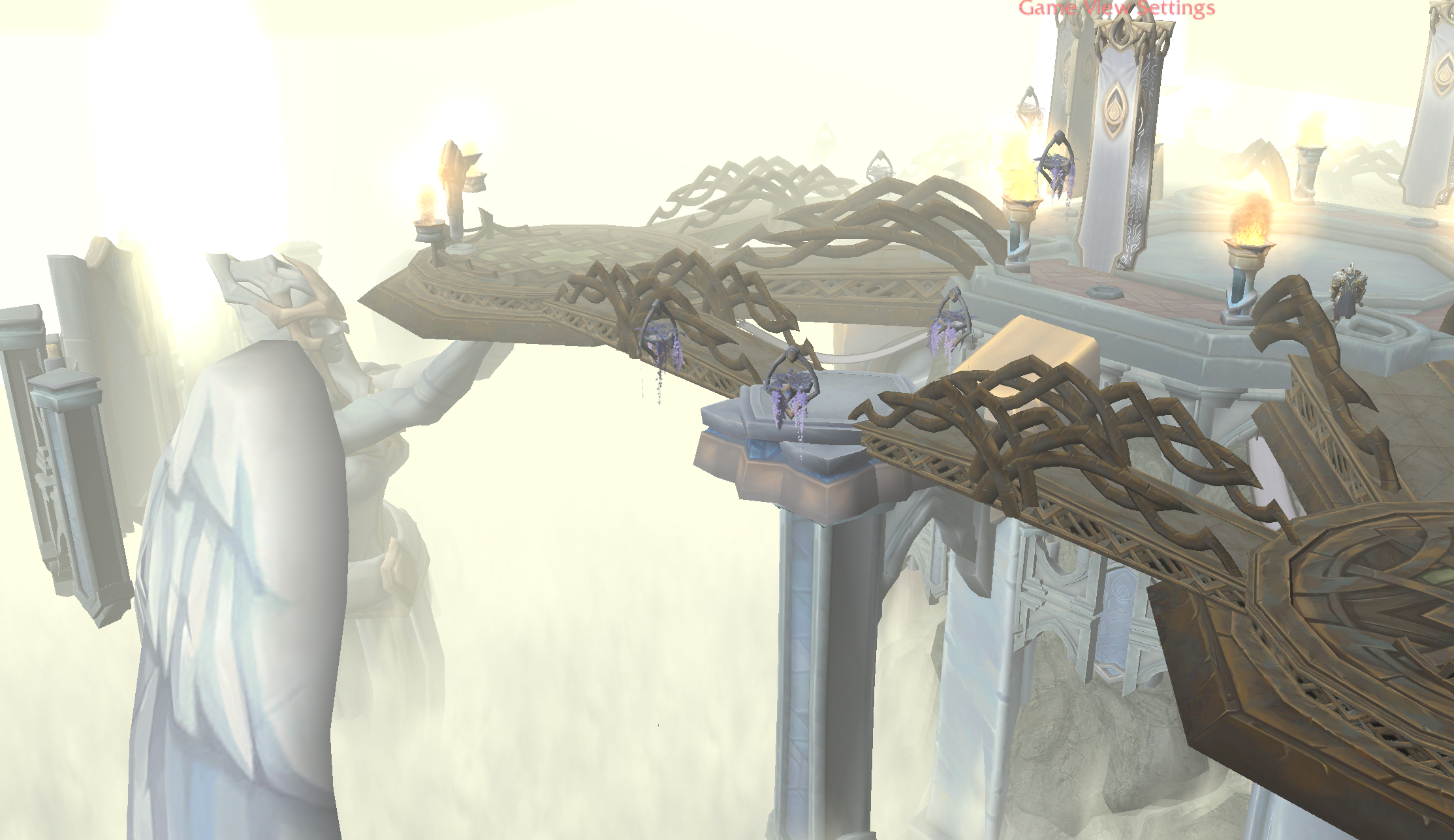

In heaven you will find bright lights far up in the clouds, on grand platforms held up by giant angel statues.
In hell you will find blood, gore, metal, bones and death.

Recommended settings are as follows:
  • Time of day 12.
  • Time of day speed 0%.
  • Camera distance 1900.
  • Far Z at max.
  • Always visible.
  • Disable fog and black mask.
  • Locked camera to unit OR set camera bounds to appropriate regions.
  • In heaven the fog settings should be Linear, z-start 0.00, z-end 4300 (only the most recent patch requires such a low number. Use a higher number on earlier game versions), density 0.5 color (100%, 100%, 90.2%).
  • In hell the fog settings should be Linear, z-start 0.00, z-end 2800 (only the most recent patch requires such a low number. Use a higher number on earlier game versions), density 0.5 color (39.22%, 19.61%, 19.61%).

There are several mechanics that can be utilized in this map, and you will find them listed below:
(I haven't bothered with leak cleaning simply due to readability).

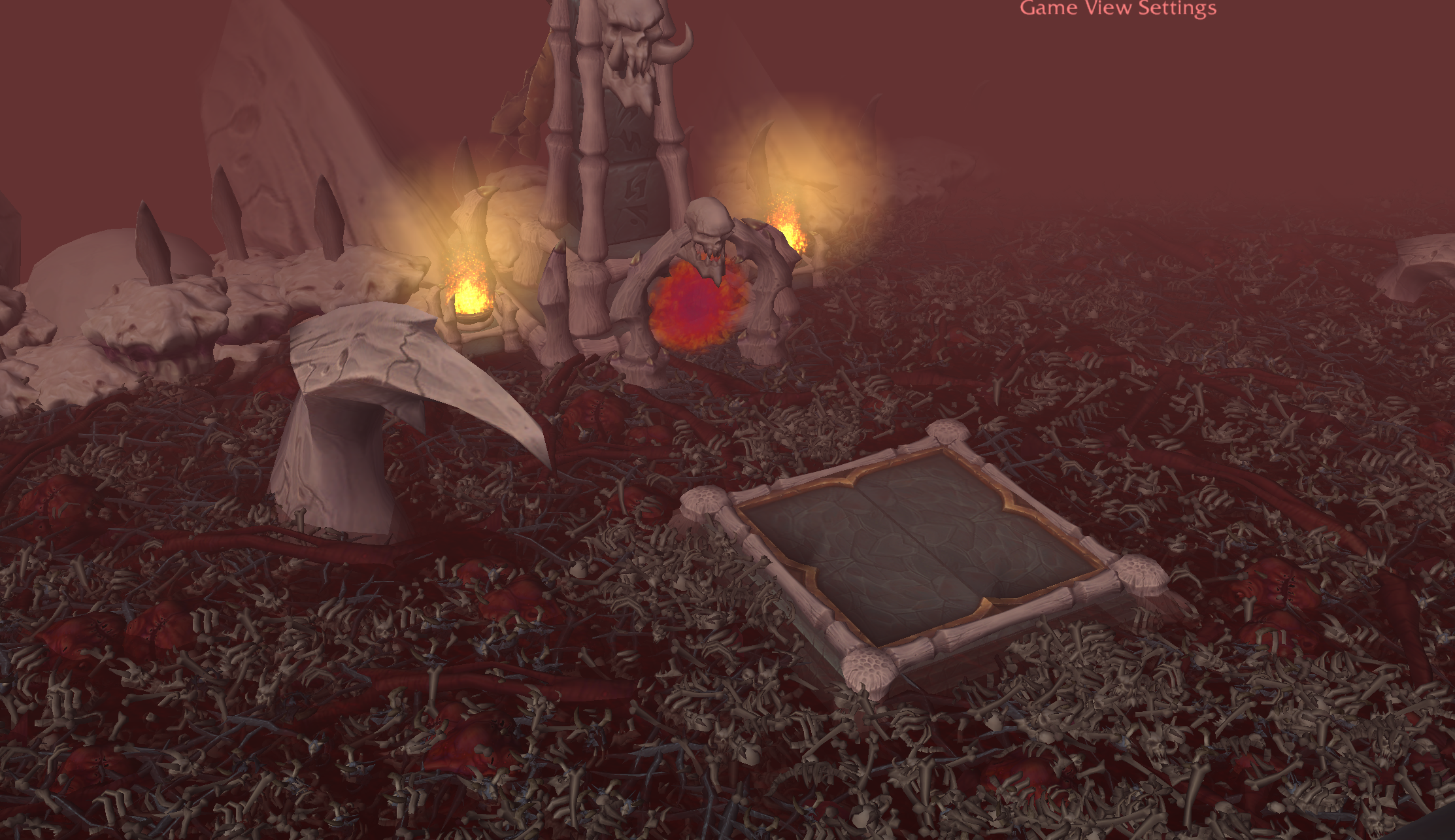

This is the link between heaven and hell. There is an invisible destructible on top of the gates that enables you to walk across lowered terrain. To use the gates you have to play the Spell animation of the invisible destructible on top of the portals to lower it under the ground so you can walk down the stairs into the portal. There are pre-placed dead pathing blockers on top of the portals that needs to be resurrected when the gates are opened. This is what my triggers looks like;

  • Open Door To Hell
    • Events
      • Player - Player 1 (Red) types a chat message containing Openhell as An exact match
    • Conditions
    • Actions
      • Set VariableSet DoorToHellOpen = True
      • Destructible - Pick every destructible in Region 000 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
              • Animation - Play Walkable Destructible 0010 <gen>'s spell animation
      • Animation - Play the Morph animation for all doodads of type CD - 1 within Region 000 <gen>.
      • Wait 2.00 seconds
      • Animation - Play the Morph animation for all doodads of type CD - Aether Gate within Region 000 <gen>.
      • Wait 2.00 seconds
      • Animation - Play the Morph animation for all doodads of type CD - Stairs within Region 000 <gen>.
  • Close Door To Hell
    • Events
      • Player - Player 1 (Red) types a chat message containing Closehell as An exact match
    • Conditions
    • Actions
      • Set VariableSet DoorToHellOpen = False
      • Destructible - Pick every destructible in Region 000 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Animation - Play the Morph Alternate animation for all doodads of type CD - Stairs within Region 000 <gen>.
      • Wait 2.00 seconds
      • Animation - Play the Morph Alternate animation for all doodads of type CD - Aether Gate within Region 000 <gen>.
      • Animation - Play Walkable Destructible 0010 <gen>'s stand animation
      • Wait 2.00 seconds
      • Animation - Play the Morph Alternate animation for all doodads of type CD - 1 within Region 000 <gen>.
  • Open Door To Heaven
    • Events
      • Player - Player 1 (Red) types a chat message containing Openheaven as An exact match
    • Conditions
    • Actions
      • Set VariableSet DoorToHeavenOpen = True
      • Destructible - Pick every destructible in Region 002 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
              • Animation - Play Walkable Destructible 5645 <gen>'s spell animation
      • Animation - Play the Morph animation for all doodads of type CD - Hell - Skull Center Platform within Region 002 <gen>.
  • Close Door To Heaven
    • Events
      • Player - Player 1 (Red) types a chat message containing Closeheaven as An exact match
    • Conditions
    • Actions
      • Set VariableSet DoorToHeavenOpen = False
      • Destructible - Pick every destructible in Region 002 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Animation - Play the Morph Alternate animation for all doodads of type CD - Hell - Skull Center Platform within Region 002 <gen>.
      • Wait 3.00 seconds
      • Animation - Play Walkable Destructible 5645 <gen>'s stand animation

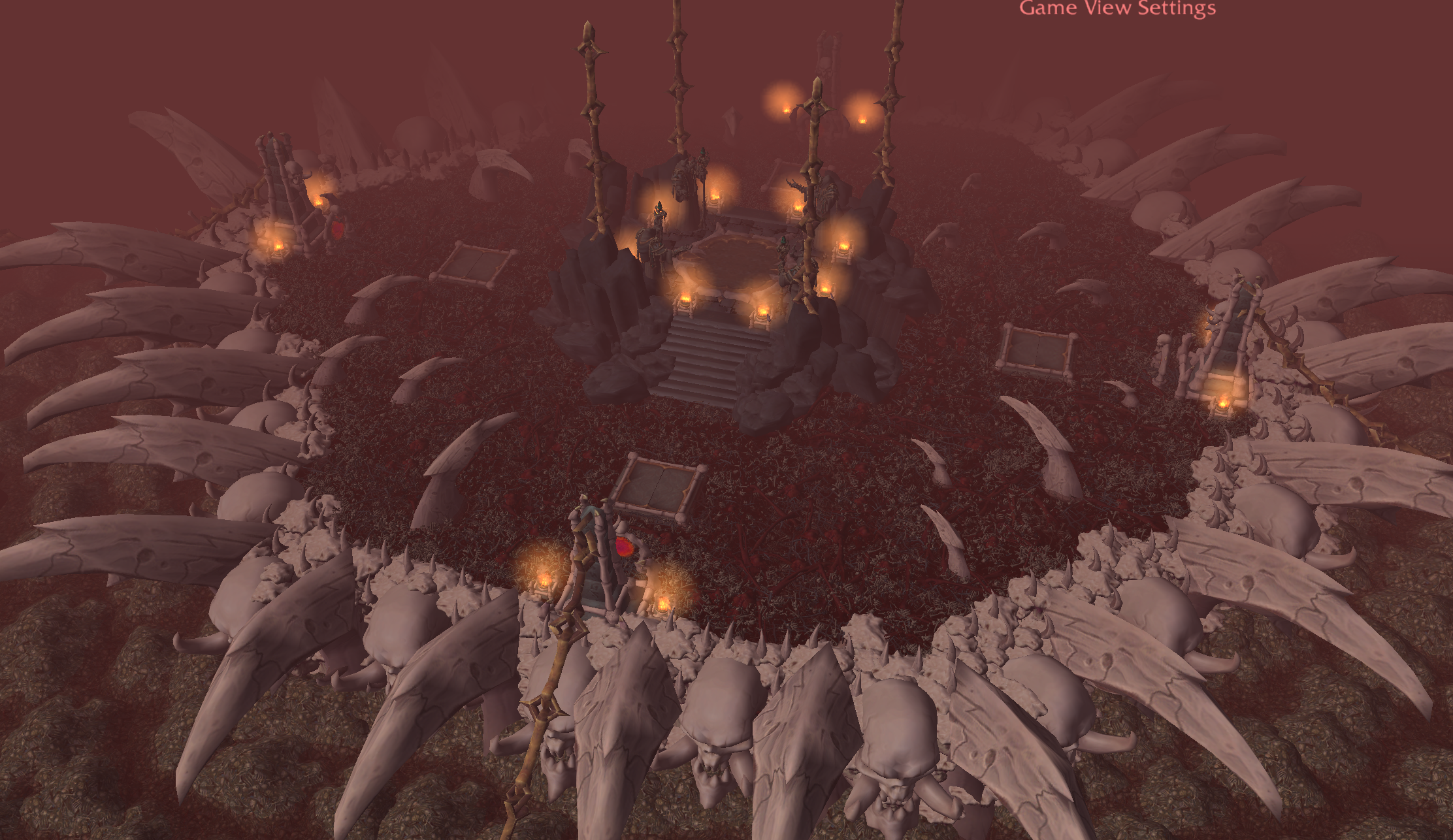

screenshot_9-png.379304

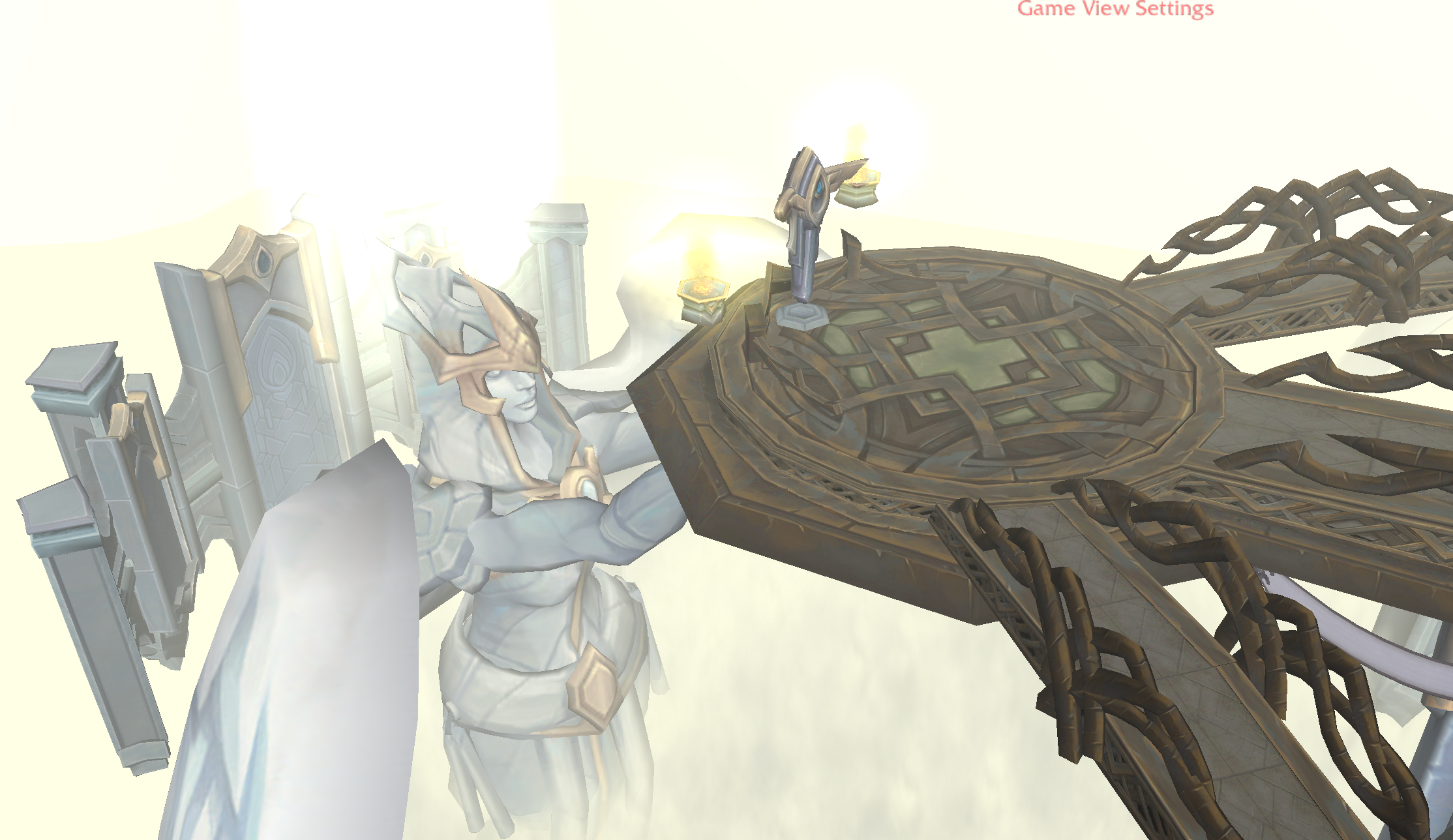

screenshot_11-png.379305


These turrets are meant to shoot stuff. What they shoot is entirely up to you. Their base is separate from the actual tower, so they can face the hero without the base moving. Use a periodic trigger to move it to its own location, constantly facing towards the hero. Use them as follows:

  • Towers Activate
    • Events
      • Player - Player 1 (Red) types a chat message containing activatetowers as An exact match
    • Conditions
    • Actions
      • Destructible - Pick every destructible in Region 013 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Tower
            • Then - Actions
              • Animation - Play (Picked destructible)'s Morph animation
              • Animation - Queue (Picked destructible)'s Stand Alternate animation
            • Else - Actions
  • Towers Shoot
    • Events
      • Player - Player 1 (Red) types a chat message containing shoot as An exact match
    • Conditions
    • Actions
      • Destructible - Pick every destructible in Region 013 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Tower
            • Then - Actions
              • Animation - Play (Picked destructible)'s Spell animation
              • Animation - Queue (Picked destructible)'s Stand Alternate animation
            • Else - Actions
  • Towers Deactivate
    • Events
      • Player - Player 1 (Red) types a chat message containing towersdeactivate as An exact match
    • Conditions
    • Actions
      • Destructible - Pick every destructible in Region 013 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Tower
            • Then - Actions
              • Animation - Play (Picked destructible)'s Morph Alternate animation
              • Animation - Queue (Picked destructible)'s Stand animation
            • Else - Actions
screenshot_8-png.379307

These guillotines will chop stuff if you get too close. There are pre-placed dead pathing blockers to shut off pathing when they're active. Make sure you don't get stuck inside the pathing blockers when you resurrect them. Use the guillotine as shown;

  • Activate Guillotine Spin Thing
    • Events
      • Player - Player 1 (Red) types a chat message containing Activateguillotine as An exact match
    • Conditions
    • Actions
      • Destructible - Pick every destructible in Region 006 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
      • Destructible - Pick every destructible in Region 003 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
      • Destructible - Pick every destructible in Region 004 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
      • Destructible - Pick every destructible in Region 005 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Resurrect (Picked destructible) with (Max life of (Picked destructible)) life and Hide birth animation
            • Else - Actions
      • Animation - Play the Morph animation for all doodads of type CD - Hell - Skull Platform within Region 001 <gen>.
      • Wait 3.00 seconds
      • Animation - Play the Morph animation for all doodads of type CD - Hell - Guillotine Ring within Region 001 <gen>.
      • Wait 4.00 seconds
      • Animation - Play the Stand Alternate animation for all doodads of type CD - Hell - Guillotine Ring within Region 001 <gen>.
  • Deactivate Guillotine Spin Thing
    • Events
      • Player - Player 1 (Red) types a chat message containing Deactivateguillotine as An exact match
    • Conditions
    • Actions
      • Destructible - Pick every destructible in Region 005 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Destructible - Pick every destructible in Region 006 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Destructible - Pick every destructible in Region 003 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Destructible - Pick every destructible in Region 004 <gen> and do (Actions)
        • Loop - Actions
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Destructible-type of (Picked destructible)) Equal to Pathing Blocker (Ground)
            • Then - Actions
              • Destructible - Kill (Picked destructible)
            • Else - Actions
      • Animation - Play the Morph Alternate animation for all doodads of type CD - Hell - Guillotine Ring within Region 001 <gen>.
      • Wait 4.00 seconds
      • Animation - Play the Morph Alternate animation for all doodads of type CD - Hell - Skull Platform within Region 001 <gen>.

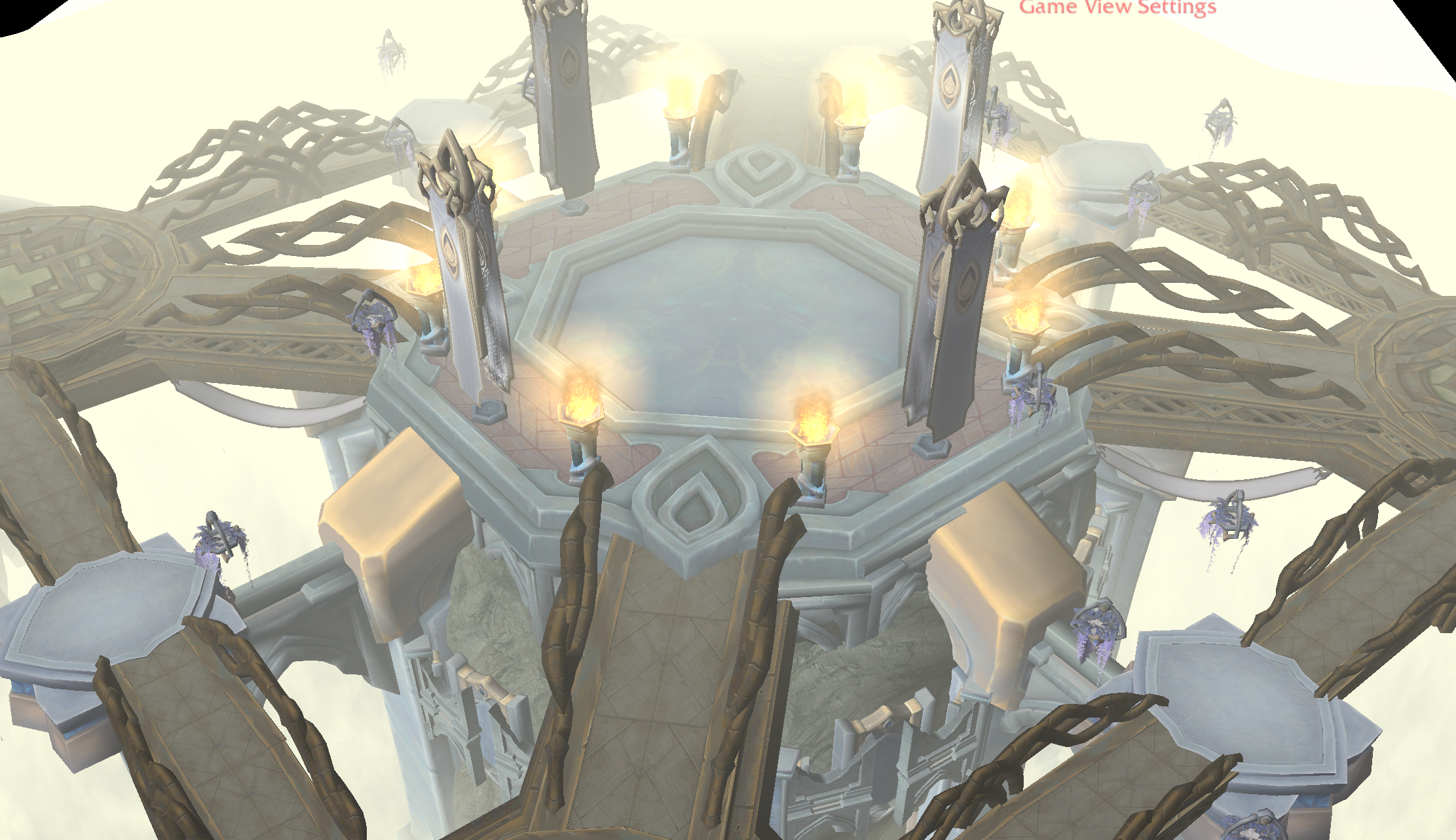

screenshot_10-png.379306

I haven't really thought up anything for these. They aren't animated, and serve no function. Use however it suits you.

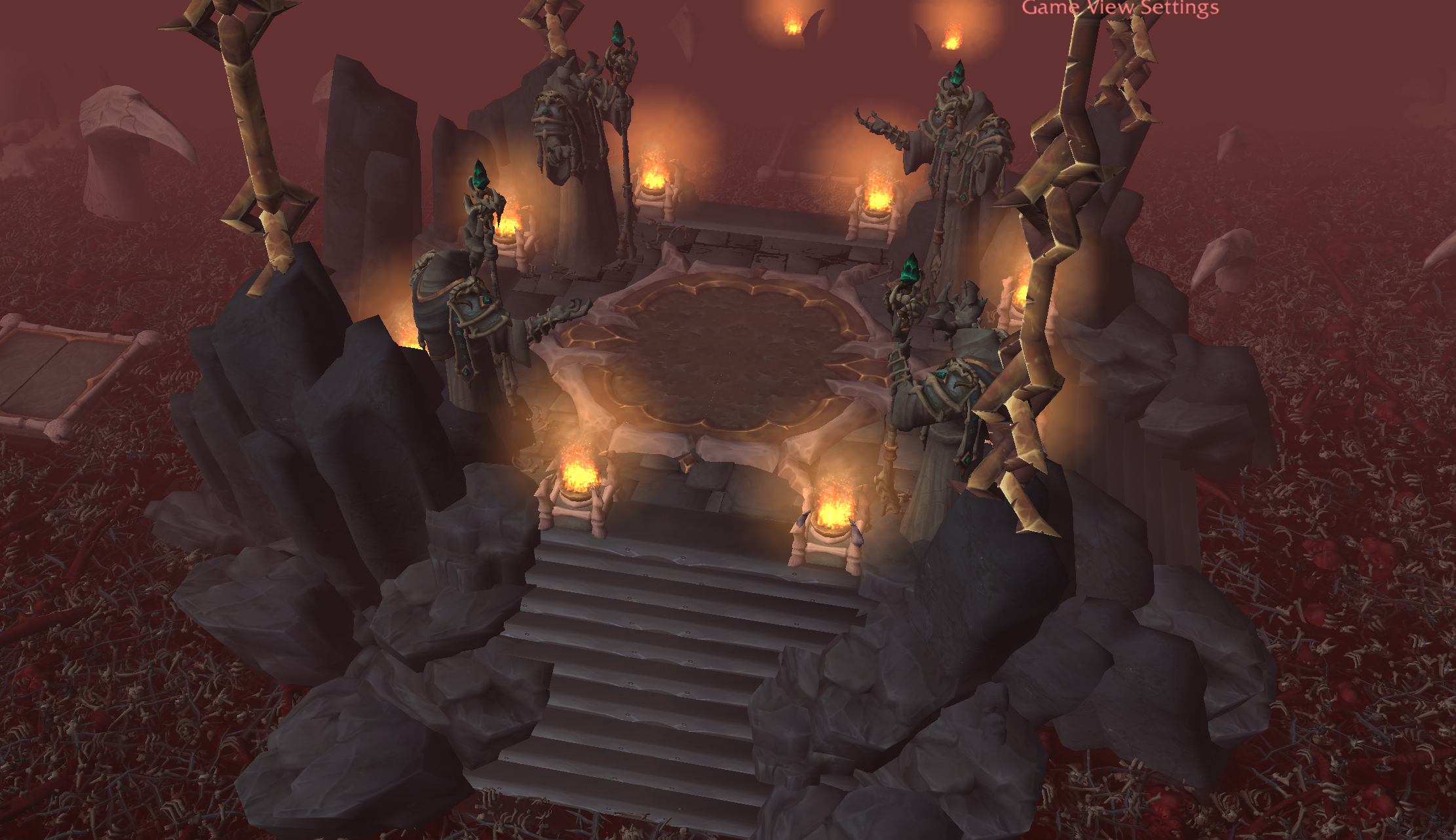

screenshot_12-png.379312

Here is a demo map with some useful triggers.

  • LongBowMan from XGM.
  • YourArthas.
  • The dude who made the water plane model.
  • The dude who made the glow model.
  • The dude who made the cloud model.
  • Blizzard / World of Warcraft for their models.
  • Retera for his model editor.
  • Magos for his model editor.
  • The creator of Mdlvis.
  • The team behind wow export tool.
If I have forgotten you please let me know, I will add your name asap.

14.05.2021 - Uploaded.
