Basic Animation Transfers

[PurgeandFire]

Follow this guide:
http://windowsxp.mvps.org/comdlg32.htm



[Azoth]

I gave an grunt all the animations of our famous 255 animation villager

In the model editor everything looks nice, it works ... but when i start the game, i get a fatal error ... now i spend many hours to find the problem, by removing useless geosets, geosets animation and materials ... but nothing works ...

Any ideas?



[PurgeandFire]

I gave an grunt all the animations of our famous 255 animation villager

In the model editor everything looks nice, it works ... but when i start the game, i get a fatal error ... now i spend many hours to find the problem, by removing useless geosets, geosets animation and materials ... but nothing works ...

Any ideas?

Start off by transferring just one animation and see if it works in-game. Keep adding more and testing every now and then until it causes a fatal error. Then you should post in the modeling & animation forum with that information and perhaps someone will be able to help you.



[Kyrbi0]

Start off by transferring just one animation and see if it works in-game. Keep adding more and testing every now and then until it causes a fatal error. Then you should post in the modeling & animation forum with that information and perhaps someone will be able to help you.

127 down, 128 to go...



[PurgeandFire]

127 down, 128 to go...

Haha. I recommend doing it in batches, e.g. 5 animations, check in editor, if it works, keep going. If it doesn't work, backtrack.



[maxxxus]

i founded this post. but i don't understand what it says, could someone say me how is that and if it works?? http://www.hiveworkshop.com/forums/3d-modeling-tutorials-282/geosetanims-fix-those-randomly-appearing-corpses-8930/



[PurgeandFire]

i founded this post. but i don't understand what it says, could someone say me how is that and if it works?? http://www.hiveworkshop.com/forums/3d-modeling-tutorials-282/geosetanims-fix-those-randomly-appearing-corpses-8930/

Can you explain your problem a bit more? Is your issue related to this tutorial or is it related to "randomly appearing corpses"?



[PrinceYaser]

In this section: Add a new animation to a model:

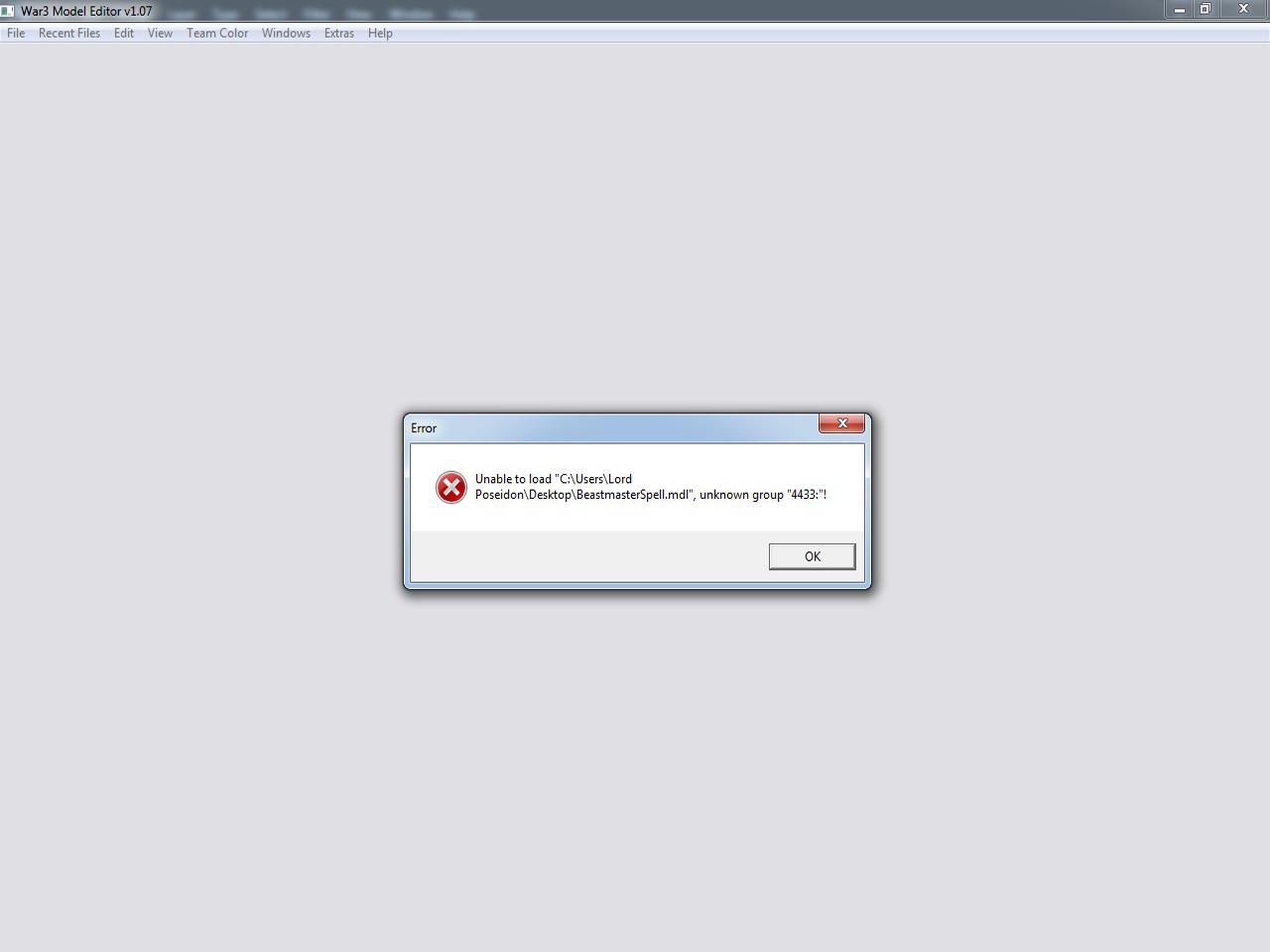

I cannot add animations! When I transfered a single animation, I was faced with this error:

What must I do?? Please help me!!



[HelloFlighty]

i get this error my model is from a different game though, it showed up in the model editor perfectly when it was mdx, after converting to mdl and transferring animations, it doesn't open it, just gives this error

EDIT: never mind, it was a dud sequence, got rid of it, works fine now



[Alok]

Any way to transfer global sequences with this, or is there any other way to do it? I tried typing in the numerical name of the global sequence (for example, "667") in the single-animation transfer field, but nothing gets transfered, the global sequences aren't there after the transfer.



[Atasha JG]

for advances how can i run the animation file from the base file?



[loboproto]

It was very useful, thank you! I can do things the way I wanted.



[carcanosc]

How change my mdl file into mdx?



[SonsOfSami]

How change my mdl file into mdx?

MDLX Converter
Or use War3 Model Editor , open the model and then save its extension as .mdx



[carcanosc]

MDLX Converter
Or use War3 Model Editor , open the model and then save its extension as .mdx

sorry I found solution with mdlx converter

edit:

Attention! A new step here,
Select the "Transfer single animation" and fill in the Animation to transfer field with your chosen animation name. In this case, it would be
Spell - Channel.

doesnt work. In animation to transfer appears like black and not appears options

Warcraft 3 Model Editor is useful to view your model!
Double click on your file, and open it with the Warcraft 3 Model editor or simply load it into the program.
You might see your model in it, then press:
1) Windows
2) Animation Controller
A window pops up with some options.
Select the arrow (to the right of Unanimated) and pick the animation that you would like to see on your model!

Name animation appears but not work, and then in game appears with black wall behind and not work



[strongwill]

Dude, that converter doesn't work once you get an error from anim transfer. I clicked it to see if its something new. Guess what it's the converter that I've been using and it would say fine but once you load it to magos be it .mdx or .mdl its dead.



[berkoax]

Instead of transferring a single anim, couldn't you transfer all of them and delete them? (then again, the AnimRemover tool never worked right for me...)

dude, if we do that, our main character's animations will be deleted



[berkoax]

I used to forward this mail all the time, but it doesn't help at all, at least if you quit



[Fugrim]

Hello. I am trying to learn how to add/remove animation from the warcraft models.
I want to learn this because while inspecting multiple models with similar skeleton are missing animations that others have and I want to add more animations too all the model
Is there a latest good tutorial for the warcraft reforge models which I can look into to learn the steps?



[Kyrbi0]

Hello. I am trying to learn how to add/remove animation from the warcraft models.
I want to learn this because while inspecting multiple models with similar skeleton are missing animations that others have and I want to add more animations too all the model
Is there a latest good tutorial for the warcraft reforge models which I can look into to learn the steps?

If it hasn't already been said, I would highly suggest checking out "RMS" (Retera Modeling Suite, IIRC); it has these capabilities & more. Very powerful.



[Vertigo2604]

Basic Animation Transfer Tutorial

Hello all. In this tutorial I will explain how to edit a model covering the following basic subjects:

- Transferring animation from one model (warcraft) to another (warcraft).

- Adding a new animation to a model (warcraft).

- Removing a useless animation (warcraft).

Tools we need :

- Warcraft 3 Viewer
-> Download here.
- MDLX Converter
-> Download here.
- Oinkerwinkle's Animation Transfer
-> Download here.
- Warcraft 3 Model Editor
-> Download here.

Tutorial Start

Getting your model

First of all, you must get your model that you want to edit.
For this step we will use the Warcraft 3 Viewer.
Open Your Warcraft 3 Viewer and browse to the Treeview (If you can not see this window, press CONTROL+H).
Select the model/unit you prefer and right-click on it to extract it.
View attachment 3768

Extract it to a known location, so you can find it again quickly.
Hint: Can't find your model? Press Control+F and try to search for it by name.

Converting your model into mdl

You will need to convert your model into .mdl format because Oinkerwinkle's Animation Transfer does not support mdx formats!

Now, Open the MDLX Converter and load your model.
View attachment 4484

Be sure you selected the model you wanted, and that the type of the file is MDX 3D FILES. Open up your file and it will automatically convert your mdx model into mdl.

There: you have finished exporting the model you wish to edit!
Lets go to the next steps.

Transferring an animation from one model to another

If you followed the previous steps correctly, you already have the model file you want to change animations with.
In order to transfer your model's animation to other animations, you will need to first search for a suitable model with fitting animations. (An example would be taking the footman animations for the priest.)
Export the model with the animation you want again as I explained in the previous steps.

There, now you should have two models:

-> The model (your model which will receive the new animations).
-> Animation Model (this model's animations will be transfered upon your model, The model).

Now open Oinkerwinkle's Animation Transfer and do the following steps:
View attachment 3836

Fill in the Base field The model you want to change animations with.

Fill in the Animation file the Animation Model which animations will be transfered to your model (The Model).


Fill in the Output file the location of where you want to save the model. Also change the name (if you want).

(Notice that there are three buttons, one behind each that is named ... . I selected them with a blue color, press here to select the models, and choose the save location.)

Press Transfer and wait a few seconds until the program gives the response : Done.
When done, you can find your model at the location you saved it with the name you gave it!

Warcraft 3 Model Editor is useful to view your model!
Double click on your file, and open it with the Warcraft 3 Model editor or simply load it into the program.
You might see your model in it, then press:
1) Windows
2) Animation Controller
A window pops up with some options.
Select the arrow (to the right of Unanimated) and pick the animation that you would like to see on your model!
View attachment 3837

View attachment 3838

Adding a new animation to a model

There are three ways (or more) to actually do this.
I will explain here the easiest way to do it.

Check the previous steps, and get again

two models:

-> [color=red]The model[/color] (your model which will receive the new animations).
-> [color=royalblue]Animation Model[/color] (this model its animations will be transfered upon your model, [color=red]The model[/color]).

Open the model (with the animation you want to transfer) in the Warcraft 3 Model Editor and enter the animation screen.
View attachment 3837
View attachment 3838

You may see a lot of animations, select the one you want to transfer to your model and write (or keep in mind) the animation name. I will use as example:
Spell - Channel.
View attachment 3839

If you have your models then you may open Oinkerwinkle's Animation Transfer and:

Fill in the Base field of the model you want to add a new animation to.

Fill in the Animation file of the Animation Model where the animation(s) will be taken from.

Fill in the Output file the location of where you want to save the model. Also again, change the name if you want.

Attention! A new step here,
Select the "Transfer single animation" and fill in the Animation to transfer field with your chosen animation name. In this case, it would be
Spell - Channel.
View attachment 3840

Press "Transfer" and wait a few seconds until Done pops up.
There, You just added a new animation to your model!


Removing a useless animation

The last subject of this tutorial.
Again, there are several options to remove animations from a model but I will show the easiest way for beginners.

Export again a model, the one you would like to remove one or several animations from.
(This model does not have to be converted into .mdl format, since it works with both file types *mdx & *mdl).

Open your model with the Warcraft 3 Model Editor.
Go to :
1) Windows
2) Sequence Manager

View attachment 3841

A window pops up again and you may see several animation names like walk, death, attack -1, ... and so on.
To remove an animation, simply right click at it and press remove.
View attachment 3842

The animation gets removed now. Save the file and you're done!

If you don't remember the animation name you wanted to remove, you may also view it again by using the Animation Controller.
View attachment 3837
View attachment 3838

--------------------------------------------------------------------------

Thats it! I hope you enjoyed it!

Hints:

• Not all animations can be transfered and will show wrong animations.
• Is your model giving randomly corpses? visit this link then.
• Sometimes you are unable to open converted mdl files with the Warcraft 3 Model Editor. Simply open the mdl file with the MDLX Converter and it will be converted back to a mdx file.

~- Xarwin

Great! But will it work in Reforged? I want to add a whirling animation such ast Blademaster ultimate to my character
