Windcutter v 1.5
- Author(s)
- Marsal
- Tags
- Target Ground, GUI / Triggers, Spell
- Size
- 49.92 KB
- Rating
- Downloads
- 3163
- Created
- Feb 12, 2011
- Updated
- Jun 16, 2011
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
Level 1: Summons 3 magically enchanted blades spinning around the target point dealing 33 damage per second to the units in the circle lasts for 3 seconds.
Level 2: Summons 4 magically enchanted blades spinning around the target point dealing 66 damage per second to the units in the circle lasts for 4 seconds.
Level 3: Summons 5 magically enchanted blades spinning around the target point dealing 99 damage per second to the units in the circle lasts for 5 seconds.
Keywords:
magic, blade, damage, bleed, spinning, aoe
Level 2: Summons 4 magically enchanted blades spinning around the target point dealing 66 damage per second to the units in the circle lasts for 4 seconds.
Level 3: Summons 5 magically enchanted blades spinning around the target point dealing 99 damage per second to the units in the circle lasts for 5 seconds.
-
Init
-
Events
-
Map initialization
-
-
Conditions
-
Actions
-
Visibility - Disable fog of war
-
Visibility - Disable black mask
-
Set WMax = 2
-
Set WRecycledList[0] = WLastRecycled
-
For each (Integer A) from 1 to WMax, do (Actions)
-
Loop - Actions
-
Custom script: set udg_WDummyGroup[GetForLoopIndexA()] = CreateGroup()
-
-
-
-------- Configurables on each level --------
-
-------- Damage is dealt by every 0.03 second interval --------
-
-------- If you set the blades to a high value, it could make massive lag --------
-
-------- Level 1 --------
-
Set Damage[1] = 1.00
-
Set Duration[1] = 3.00
-
Set Blades[1] = 3
-
-------- Level 2 --------
-
Set Damage[2] = 2.00
-
Set Duration[2] = 4.00
-
Set Blades[2] = 4
-
-------- Level 3 --------
-
Set Damage[3] = 3.00
-
Set Duration[3] = 5.00
-
Set Blades[3] = 5
-
-
-
Windcutter
-
Events
-
Unit - A unit Starts the effect of an ability
-
-
Conditions
-
(Ability being cast) Equal to Windcutter
-
-
Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
WHas[WLastRecycled] Equal to True
-
-
Then - Actions
-
Set WMax = (WMax + 1)
-
Set WLastRecycled = WMax
-
Set WIndex = WLastRecycled
-
Set WLastRecycled = WRecycledList[WLastRecycled]
-
Custom script: set udg_WDummyGroup[udg_WIndex] = CreateGroup()
-
-
Else - Actions
-
Set WIndex = WLastRecycled
-
Set WLastRecycled = WRecycledList[WLastRecycled]
-
-
-
Set WCaster[WIndex] = (Triggering unit)
-
Set WTargetPoint[WIndex] = (Target point of ability being cast)
-
Set WDamage[WIndex] = Damage[(Level of Windcutter for WCaster[WIndex])]
-
Set WTimer[WIndex] = Duration[(Level of Windcutter for WCaster[WIndex])]
-
Set WBlades = Blades[(Level of Windcutter for WCaster[WIndex])]
-
For each (Integer A) from 1 to WBlades, do (Actions)
-
Loop - Actions
-
Set TempPoint = (WTargetPoint[WIndex] offset by 150.00 towards ((360.00 / (Real(WBlades))) x (Real((Integer A)))) degrees)
-
Unit - Create 1 Wind for (Owner of WCaster[WIndex]) at TempPoint facing ((Angle from WTargetPoint[WIndex] to TempPoint) + 90.00) degrees
-
Unit Group - Add (Last created unit) to WDummyGroup[WIndex]
-
Animation - Change (Last created unit)'s animation speed to (Random real number between 25.00 and 50.00)% of its original speed
-
Unit - Create 1 Windcutter for (Owner of WCaster[WIndex]) at TempPoint facing ((Angle from WTargetPoint[WIndex] to TempPoint) + 90.00) degrees
-
Unit Group - Add (Last created unit) to WDummyGroup[WIndex]
-
Custom script: call RemoveLocation (udg_TempPoint)
-
-
-
Set WHas[WIndex] = True
-
Set WCount = (WCount + 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
(Windcutter Loop <gen> is on) Equal to False
-
-
Then - Actions
-
Trigger - Turn on Windcutter Loop <gen>
-
Trigger - Turn on Crush Effect <gen>
-
-
Else - Actions
-
-
-
-
Windcutter Loop
-
Events
-
Time - Every 0.03 seconds of game time
-
-
Conditions
-
Actions
-
For each (Integer WInteger) from 0 to WMax, do (Actions)
-
Loop - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
WHas[WInteger] Equal to True
-
-
Then - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
WTimer[WInteger] Greater than 0.00
-
-
Then - Actions
-
Set WTimer[WInteger] = (WTimer[WInteger] - 0.03)
-
Custom script: set bj_wantDestroyGroup = true
-
Unit Group - Pick every unit in (Units within 400.00 of WTargetPoint[WInteger] matching ((((Matching unit) is A structure) Equal to False) and ((((Matching unit) is Magic Immune) Equal to False) and ((((Matching unit) is alive) Equal to True) and (((Matching unit) belongs to an enemy of (Ow and do (Actions)
-
Loop - Actions
-
Unit - Cause WCaster[WInteger] to damage (Picked unit), dealing WDamage[WInteger] damage of attack type Spells and damage type Normal
-
-
-
Unit Group - Pick every unit in WDummyGroup[WInteger] and do (Actions)
-
Loop - Actions
-
Set TempPoint = (Position of (Picked unit))
-
Set TempPoint2 = (WTargetPoint[WInteger] offset by 150.00 towards ((Angle from WTargetPoint[WInteger] to TempPoint) + 10.00) degrees)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
(Unit-type of (Picked unit)) Equal to Wind
-
-
Then - Actions
-
Set TempPoint3 = (WTargetPoint[WInteger] offset by (Random real number between 300.00 and 350.00) towards ((Angle from WTargetPoint[WInteger] to TempPoint) + 10.00) degrees)
-
Unit - Move (Picked unit) instantly to TempPoint3, facing ((Angle from WTargetPoint[WInteger] to TempPoint) + 90.00) degrees
-
Custom script: call RemoveLocation (udg_TempPoint3)
-
-
Else - Actions
-
Unit - Move (Picked unit) instantly to TempPoint2, facing ((Angle from WTargetPoint[WInteger] to TempPoint2) + 90.00) degrees
-
-
-
Custom script: call RemoveLocation (udg_TempPoint)
-
Custom script: call RemoveLocation (udg_TempPoint2)
-
-
-
-
Else - Actions
-
Unit Group - Pick every unit in WDummyGroup[WInteger] and do (Unit - Kill (Picked unit))
-
Set WHas[WInteger] = False
-
Set WCount = (WCount - 1)
-
Custom script: call RemoveLocation (udg_WTargetPoint[udg_WInteger])
-
Unit Group - Remove all units from WDummyGroup[WInteger]
-
Set WRecycledList[WInteger] = WLastRecycled
-
Set WLastRecycled = WInteger
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
WCount Equal to 0
-
-
Then - Actions
-
Trigger - Turn off (This trigger)
-
Trigger - Turn off Crush Effect <gen>
-
-
Else - Actions
-
-
-
-
-
Else - Actions
-
-
-
-
-
-
Crush Effect
-
Events
-
Time - Every 0.50 seconds of game time
-
-
Conditions
-
Actions
-
For each (Integer WInteger) from 1 to WMax, do (Actions)
-
Loop - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
WHas[WInteger] Equal to True
-
-
Then - Actions
-
Custom script: set bj_wantDestroyGroup = true
-
Unit Group - Pick every unit in (Units within 400.00 of WTargetPoint[WInteger] matching ((((Matching unit) belongs to an enemy of (Owner of WCaster[WInteger])) Equal to True) and ((((Matching unit) is alive) Equal to True) and ((((Matching unit) is A structure) Equal to False) and (((Matchi and do (Actions)
-
Loop - Actions
-
Special Effect - Create a special effect attached to the origin of (Picked unit) using Abilities\Spells\Other\CrushingWave\CrushingWaveDamage.mdl
-
Special Effect - Destroy (Last created special effect)
-
-
-
-
Else - Actions
-
-
-
-
-
v1.5
got rid of the arrayed temp point variables
modified trigger part mentioned at other spells
v1.4
added init trigger configurables:
v1.3
made a much more better recycling system
added extra configurable: number of blades
v1.2
uses less dummy
leaks cleared
v1.1
Changed the hit effect
Reduced lagg
Fixed hotkey
Added extra wind effect
v1.0
Made the spell
got rid of the arrayed temp point variables
modified trigger part mentioned at other spells
v1.4
added init trigger configurables:
- number of blades
- damage
- duration
v1.3
made a much more better recycling system
added extra configurable: number of blades
v1.2
uses less dummy
leaks cleared
v1.1
Changed the hit effect
Reduced lagg
Fixed hotkey
Added extra wind effect
v1.0
Made the spell
Keywords:
magic, blade, damage, bleed, spinning, aoe
Contents
Reviews
- Joined
- Jul 12, 2009
- Messages
- 321
Neat effect, though the blood splashes are too bold; maybe use a different blood model and create them less frequently?
I haven't reviewed the code.
I haven't reviewed the code.
- Joined
- Jun 24, 2009
- Messages
- 1,409
now it looks a little differ from the screen because some reason it don't let me upload a new screenshot :S
edit: oh finally
edit: oh finally
Last edited:
- Joined
- Aug 31, 2008
- Messages
- 1,780

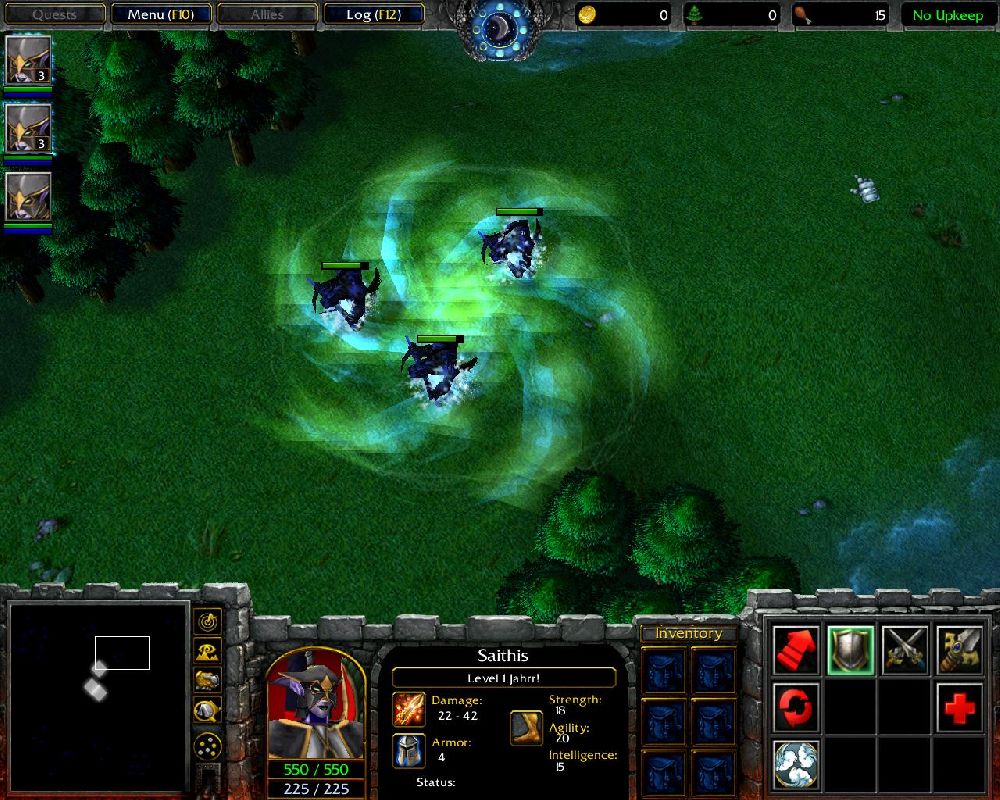

Basing from the screenshot given, the effects is cool and the spell is overall awesome and unique.
Downloaded, I'll check the triggers later.
Downloaded, I'll check the triggers later.
- Joined
- Nov 20, 2007
- Messages
- 660
it is not recycling right ?
- Joined
- Jun 24, 2009
- Messages
- 1,409
it does, when it reaches the maximum array value it starts again from one, if you worry about that it could exceed an other running instance then just increase the WMax in the init trigger
- Joined
- Nov 20, 2007
- Messages
- 660
that's not the best recycling, becose if you cast it without pause it will be laggy
- Joined
- Jun 24, 2009
- Messages
- 1,409
I know it's not the best but hey, it works and now the only lagg causing thing is that I used 24 dummy per cast ~.~ 6 blade and 18 wind dummies
reduced it to 12 per cast
reduced it to 12 per cast
Last edited:
- Joined
- Jun 24, 2009
- Messages
- 1,409
hey if you think the spell is okay then pls vote for approval ~.~
- Joined
- Mar 19, 2008
- Messages
- 800
Here to back you up, marsal, spell looked good. I think ill use it at shonen wars.
+Rep
+Approval
+Rep
+Approval
- Joined
- Dec 31, 2006
- Messages
- 2,216
Moderator review:
The triggering looks ok, but there's no need to destroy WDummyGroup. Just clear it. Your recycling could be better too, but it's ok. Btw, in the loop in your Init trigger, just do this:
The triggering looks ok, but there's no need to destroy WDummyGroup. Just clear it. Your recycling could be better too, but it's ok. Btw, in the loop in your Init trigger, just do this:
-
Custom script: set udg_WDummyGroup[GetForLoopIndexA()] = CreateGroup()
- Joined
- Jun 24, 2009
- Messages
- 1,409
Thanks, I'll modify some of these little things ~.~
- Joined
- Nov 14, 2008
- Messages
- 3,256
In the Init trigger the Integer A loop should loop from 1 to WMax
As said the indexing is kind of meh, looping 100 times even if only one instance is on. And yes I know that you can lower that value but then the safety will be reduced too when you think about it.
It should be mentioned that the damage value is damaged to the units for 1/0.03 times every second.
Else it looks good enough to get approved I guess.
As said the indexing is kind of meh, looping 100 times even if only one instance is on. And yes I know that you can lower that value but then the safety will be reduced too when you think about it.
It should be mentioned that the damage value is damaged to the units for 1/0.03 times every second.
Else it looks good enough to get approved I guess.
- Joined
- Jun 24, 2009
- Messages
- 1,409
Heh I was a little lazy ~.~ My other spells counts to the max.
It's easy to calculate what number would be the best for a map.
The damage is okay, I think. Now it deals the damage constantly and it looks nice.
- Joined
- Mar 26, 2011
- Messages
- 1,280
Very impressive.
- Joined
- Jan 28, 2011
- Messages
- 7
nice xD
- Joined
- Jun 24, 2009
- Messages
- 1,409
New version. Got rid the arrayed TempPoint variable and changes a part of the system mentioned at other spells.
- Joined
- Jul 29, 2010
- Messages
- 262
Wo that looks really cool, good job.
- Joined
- Jun 10, 2011
- Messages
- 20
very nice spell and very cool effect. +rep
- Joined
- Aug 11, 2009
- Messages
- 605
I was just wondering if this spell works if more than one Hero casts it at the same time? Thanks for any response
- Joined
- Jun 24, 2009
- Messages
- 1,409
Of course. If not, it wouldn't be approved ~.~
- Joined
- Aug 11, 2009
- Messages
- 605
Oh, ok, great
- Joined
- Nov 28, 2009
- Messages
- 1,538
awesome effect, but the damage is way too high and not everyone knows how to decrease it
- Joined
- Jun 24, 2009
- Messages
- 1,409
jk right? in the init you just have to modify the damage variables' values....
- Joined
- Nov 24, 2013
- Messages
- 24
Awesome spell, I'm going to use it for wind-themed hero...
+rep
+rep
