Traps

Made these two for a project long time ago. Maybe someone can use them.

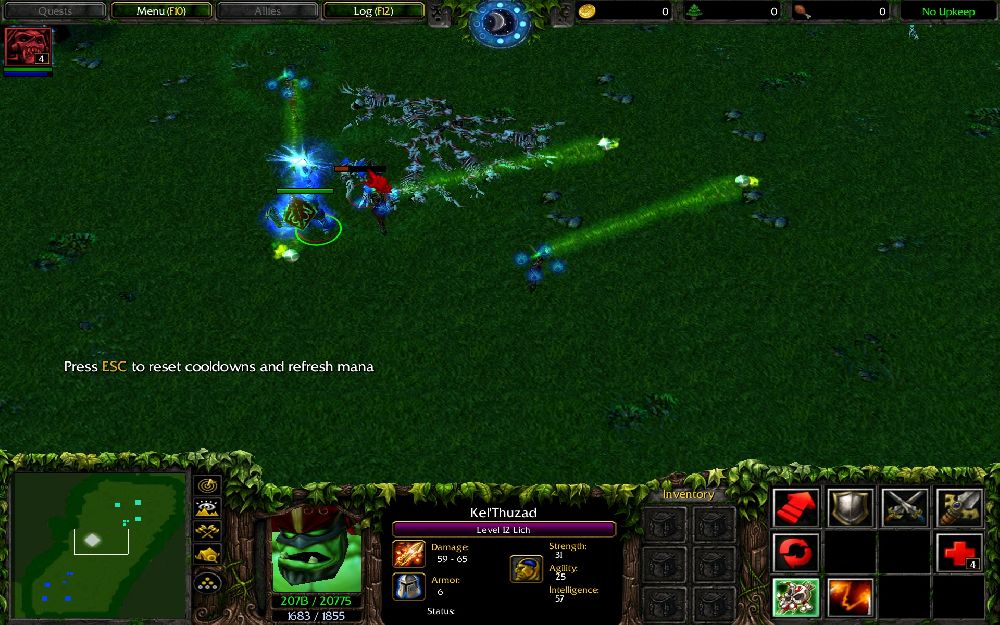

The demo map:
  • Arcane and lightning trap with all required resources
  • A small demo map
Requires:
  • Dummy
  • optional TimerUtils

Credits:

  • Dummy

The spells use native UnitAlive

JASS:
library_once IsPointInRectangle
    //determins if point P is in rectangle ABCD
    function IsPointInRectangle takes real ax, real ay, real bx, real by, real cx, real cy, real dx, real dy, real px, real py returns boolean
        local real cross0 = (py-ay)*(bx-ax)-(px-ax)*(by-ay)
        local real cross1 = (py-cy)*(ax-cx)-(px-cx)*(ay-cy)
        local real cross4 = (py-dy)*(ax-dx)-(px-dx)*(ay-dy)

        return ((cross0*cross1 >= 0) and (((py-by)*(cx-bx)-(px-bx)*(cy-by))*cross1 >= 0)) or ((cross0*cross4 >= 0) and (((py-by)*(dx-bx)-(px-bx)*(dy-by))*cross4 >= 0))
    endfunction
endlibrary

library ArcaneTrap /* v1.0.0.0
*************************************************************************************
*
*   Creates a trap which creates a lighting moving in a circle.
*   Units hit by the lightning will be damaged each interval.
*
*************************************************************************************
*
*   Credits
*
*       To Nestharus
*       -----------------------
*
*           For Alloc
*
*       To Vexorian
*       -----------------------
*
*           For TimerUtils
*
*
*************************************************************************************
*
*   */ uses /*
*
*       */ Dummy                /*
*       */ optional TimerUtils  /*         [url]http://www.wc3c.net/showthread.php?t=101322[/url]
*       */ optional Alloc       /*         -
*
************************************************************************************
*
*   2. API
*   ¯¯¯¯¯¯
*       struct ArcaneTrap extends array
*
*           static method create takes player who, real createX, real createY, real degree, integer level returns thistype
*           method destroy takes nothing returns nothing
*
*           method operator owner= takes player who returns nothing
*               Not really changes the controller, but the player for the player struct member "own"
*
*   SETTINGS
*
*/
    globals
        /*
        *   Trap models may be curved, which can look weird. A symmetrical model probably will fit best.
        */
        private constant integer TRAP_ID              = 'o001'
        private constant real RED                     = 0.2
        private constant real GREEN                   = 1.0
        private constant real BLUE                    = 0.2
        /*
        *   Define the variance in which units are damaged.
        */
        private constant real VARIANCE                = 20.
        /*
        *   The trap can only be invulnerable
        *   if it's selectable. Otherwise the code
        *   below will ignore IS_TRAP_INVULNERABLE.
        */
        private constant boolean IS_TRAP_SELECTABLE   = false
        private constant boolean IS_TRAP_INVULNERABLE = false
        /*
        *   Fly height of dummy representing the head of the lightning.
        */
        private constant real DUMMY_FLY_HEIGHT        = 50.
        /*
        *   Fly height of the origin of the lighting.
        */
        private constant real TRAP_HEIGHT             = 125.00
        private constant real ANGLE_PER_TICK          = 0.5
        private constant real TIMER_TIMEOUT           = 0.031250000
        private constant string LIGHTNING             = "LEAS"
        private constant string EFFECT_ON_DUMMY       = "Abilities\\Weapons\\BloodElfMissile\\BloodElfMissile.mdl"
        private constant real SCALE                   = 1.8
        private constant attacktype ATTACK_TYPE       = ATTACK_TYPE_NORMAL
        private constant damagetype DAMAGE_TYPE       = DAMAGE_TYPE_NORMAL
    endglobals

    //native UnitAlive takes unit id returns boolean

    private function TargetFilter takes unit target, player who returns boolean
        return UnitAlive(target) and IsUnitEnemy(target, who) and not IsUnitType(target, UNIT_TYPE_STRUCTURE)
    endfunction

    //The duration the trap lasts.
    private constant function GetDuration takes integer level returns real
        return 40. + (2.*level)
    endfunction

    private constant function GetRange takes integer level returns real
        return 450 + 0.*level
    endfunction

    private constant function GetDamage takes integer level returns real
        return 10.*level
    endfunction

    struct ArcaneTrap extends array
        implement optional Alloc

        static if not LIBRARY_Alloc then
            private static integer array recycler
            static method allocate takes nothing returns thistype
                local thistype this = recycler[0]

                debug if (0 == this) then
                    debug call BJDebugMsg("this == 0, Arcane Trap, allocate Overflow")
                debug endif

                set recycler[0] = recycler[this]

                debug set recycler[this] = -1

                return this
            endmethod
            method deallocate takes nothing returns nothing

                debug if (recycler[this] != -1) then
                    debug call BJDebugMsg("this == 0, Arcane Trap, deallocate, Attempted To Deallocate Null Instance.")
                debug endif

                set recycler[this] = recycler[0]
                set recycler[0] = this
            endmethod
            private static method onInit takes nothing returns nothing
                local integer i = 0
                set recycler[8191] = 0
                loop
                    set recycler[i] = i + 1
                    exitwhen i == 8190
                    set i = i + 1
                endloop
            endmethod
        endif

        readonly static constant integer TIMED_LIFE = 'BTLF'
        readonly unit trap
        readonly Dummy dum

        private static constant real v       = bj_PI/2
        private static constant real radians = ANGLE_PER_TICK*bj_DEGTORAD
        private static location loc = Location(0,0)
        private lightning light
        private effect sfx
        private player own
        private real damage
        private real range
        private real angle
        private real x
        private real y
        private real x0
        private real y0

        private static group enu   = CreateGroup()

        static if not LIBRARY_TimerUtils then
            private static timer clock = CreateTimer()
        endif

        private static integer array n
        private static integer array p

        method operator owner= takes player p returns nothing
            set own = p
        endmethod

        method destroy takes nothing returns nothing
            set n[p[this]] = n[this]
            set p[n[this]] = p[this]

            call deallocate()
            call DestroyEffect(sfx)
            call dum.destroy()
            call DestroyLightning(light)
            call UnitApplyTimedLife(trap, TIMED_LIFE, 0.01)
            set trap  = null
            set light = null
            set sfx   = null
        endmethod

        private static method callback takes nothing returns nothing
            local thistype this = n[0]
            local unit u
            local real z
            local real z2
            local real s//sinus
            local real c//cosinus
            loop
                if UnitAlive(trap) then
                    set angle = angle + radians
                    set x = GetUnitX(trap)
                    set y = GetUnitY(trap)
                    call SetUnitFacing(trap, angle*bj_RADTODEG)

                    set x0 = x + range*Cos(angle)
                    set y0 = y + range*Sin(angle)

                    set s = VARIANCE*Sin(angle + v)
                    set c = VARIANCE*Cos(angle + v)

                    call GroupEnumUnitsInRange(enu, x, y, range, null)
                    loop
                        set u = FirstOfGroup(enu)
                        exitwhen u == null
                        call GroupRemoveUnit(enu, u)
                        if TargetFilter(u, own) then
                            //Requires library IsPointInRectangle
                            //Detects if a point p is within ABCD.
                            if (IsPointInRectangle(x + c, y + s, x - c, y - s, x0 - c, y0 - s, x0 + c , y0 + s, GetUnitX(u), GetUnitY(u))) then
                                call UnitDamageTarget(trap, u, damage, false, false, ATTACK_TYPE, DAMAGE_TYPE, null)
                                //Add a special effect on hit here.
                            endif
                        endif
                    endloop

                    call SetUnitX(dum.unit, x0)
                    call SetUnitY(dum.unit, y0)
                    call MoveLocation(thistype.loc, x0, y0)
                    set z = GetLocationZ(thistype.loc)
                    call MoveLocation(thistype.loc, x, y)
                    set z2 = GetLocationZ(thistype.loc)
                    call MoveLightningEx(light, true, x, y, z2 + TRAP_HEIGHT, x0, y0, z + GetUnitFlyHeight(dum.unit))
                else
                    call destroy()
                    if (0 == n[0]) then
                        static if LIBRARY_TimerUtils then
                            call ReleaseTimer(GetExpiredTimer())
                        else
                            call PauseTimer(clock)
                        endif
                    endif
                endif
                set this = n[this]
                exitwhen 0 == this
            endloop
        endmethod

        static method create takes player who, real createX, real createY, real degree, integer level returns thistype
            local thistype this = allocate()
            //Linked List
            set n[this] = 0
            set p[this] = p[0]
            set n[p[0]] = this
            set p[0]    = this

            set trap   = CreateUnit(who, TRAP_ID, createX, createY, degree)
            call UnitApplyTimedLife(trap, TIMED_LIFE, GetDuration(level))

            set x      = GetUnitX(trap)
            set y      = GetUnitY(trap)
            set own    = who
            set range  = GetRange(level)
            set damage = GetDamage(level)
            set angle  = degree*bj_DEGTORAD
            set x0     = x + range*Cos(angle)
            set y0     = y + range*Sin(angle)

            set dum = Dummy.create(x0, y0 , degree)
            call SetUnitFlyHeight(dum.unit, DUMMY_FLY_HEIGHT, 0.)
            set sfx = AddSpecialEffectTarget(EFFECT_ON_DUMMY, dum.unit, "origin")
            call SetUnitScale(dum.unit, SCALE, 0., 0.)

            set light  = AddLightningEx(LIGHTNING, true, x, y , TRAP_HEIGHT, x0, y0, GetUnitFlyHeight(dum.unit))
            call SetLightningColor(light, RED, GREEN, BLUE, 1)

            static if IS_TRAP_SELECTABLE then
                static if IS_TRAP_INVULNERABLE then
                    call UnitAddAbility(trap, 'Avul')
                endif
            else
                call UnitAddAbility(trap, 'Aloc')
            endif

            if (0 == p[this]) then
                static if LIBRARY_TimerUtils then
                    call TimerStart(NewTimer(), TIMER_TIMEOUT, true, function thistype.callback)
                else
                    call TimerStart(clock, TIMER_TIMEOUT, true, function thistype.callback)
                endif
            endif

            return this
        endmethod

    endstruct
endlibrary
JASS:
library LightningTrap/* v1.0.0.0
*************************************************************************************
*
*   Creates a trap which focuses enemies within 500 range.
*   Nearby corpses will explode and deal damage relative to their maximum life.
*
*************************************************************************************
*
*   Credits
*
*       To Nestharus
*       -----------------------
*
*           For Alloc
*
*       To Vexorian
*       -----------------------
*
*           For TimerUtils
*
*
*************************************************************************************
*
*   */ uses /*
*
*       */ optional TimerUtils  /*         [url]http://www.wc3c.net/showthread.php?t=101322[/url]
*       */ optional Alloc       /*         -
*
************************************************************************************
*
*   SETTINGS
*
*/
    globals
        /*
        *   It is not required to set the timer timeout to a really small
        *   value for this spell. 0.1 is a recommended value here.
        */
        private constant real TIMEOUT    = 0.1
        /*
        *   The trap can only be invulnerable
        *   if it is selectable. Otherwise the code
        *   below will ignore IS_TRAP_INVULNERABLE.
        */
        private constant boolean IS_TRAP_SELECTABLE       = true
        private constant boolean IS_TRAP_INVULNERABLE     = false
        /*
        *   Explosions fire with a cooldown in between.
        */
        private constant real COOLDOWN_BETWEEN_EXPLOSIONS = 1.7
        private constant damagetype DAMAGE_TYPE       = DAMAGE_TYPE_NORMAL
        private constant attacktype ATTACK_TYPE       = ATTACK_TYPE_NORMAL
        /*
        *   The effect on the trap each time a explosion takes place.
        */
        private constant string EXPLOSION_ON_TRAP     = "Abilities\\Weapons\\ChimaeraLightningMissile\\ChimaeraLightningMissile.mdl"
        private constant string ATTACH_ON_TRAP        = "origin"
        /*
        *   The effect on living affected units.
        */
        private constant string EXPLOSION_ON_UNIT     = "Abilities\\Weapons\\AvengerMissile\\AvengerMissile.mdl"
        private constant string ATTACH_ON_UNIT        = "chest"
        /*
        *   The effect displayed on the corpse.
        */
        private constant string EXPLOSION_ON_CORPSE   = "Objects\\Spawnmodels\\Undead\\UndeadLargeDeathExplode\\UndeadLargeDeathExplode.mdl"
    endglobals

    native UnitAlive takes unit id returns boolean

    //Place in the corresponding raw-code, based on the passed integer level
    private function GetTrapByLevel takes integer level returns integer
        if level == 1 then
            return 'o000'
        elseif level == 2 then
            return 'o000'
        else
            return 'o000'
        endif
    endfunction

    //The duration the trap lasts.
    private constant function GetDuration takes integer level returns real
        return 8. + (2.*level)
    endfunction

    //The aoe the trap searches for corpses
    private constant function GetDetectionRange takes integer level returns real
        return 400. + (50.*level)
    endfunction

    //The explosion aoe. Within this aoe units take damage.
    private constant function GetExplosionRange takes integer level returns real
        return 200. + (50.*level)
    endfunction

    //Each trap can fire a maximum number of explosions.
    private constant function GetExplosions takes integer level returns integer
        return 4 + (1*level)
    endfunction

    //Filter which corpses should be considered. Heroes are filtered out by default.
    private constant function ExplosionFilter takes unit target returns boolean
        return not IsUnitType(target, UNIT_TYPE_MECHANICAL)
    endfunction

    //The percent of maximum damage, which will be dealt as damage
    //i.e: Footman has 100 maximum life --> 100*0.2 = 20.
    private constant function GetDamageFactor takes integer level returns real
        return 0.2 + (0.2*level)
    endfunction

    //Which units around the corpse should take damage
    private function DamageFilter takes unit target, player who returns boolean
        return UnitAlive(target) and IsUnitEnemy(target, who)
    endfunction

    struct LightningTrap extends array
        implement optional Alloc

        static if not LIBRARY_Alloc then
            private static integer array recycler
        endif

        static if not LIBRARY_TimerUtils then
            private static timer tmr = CreateTimer()
        endif

        private unit trap
        private player owner
        private real range
        private real factor
        private real radius
        private real x
        private real y
        private integer counter
        private real cooldown

        private static group pick = CreateGroup()
        private static group expl = CreateGroup()

        private static integer array next
        private static integer array prev
        /*
        *   Heroes aren't considered as corpses,
        *   because they shouldn't be removed from the game.
        */
        private static method basicFilter takes unit u returns boolean
            return not UnitAlive(u) and (not IsUnitType(u, UNIT_TYPE_HERO))
        endmethod

        method destroy takes nothing returns nothing
            static if LIBRARY_Alloc then
                call this.deallocate()
            else
                set recycler[this] = recycler[0]
                set recycler[0] = this
            endif

            call UnitApplyTimedLife(.trap, 'BTLF', 0.01)
            set this.trap  = null
            set this.owner = null
        endmethod

        private static method callback takes nothing returns nothing
            local thistype this = next[0]
            local unit u
            local unit c
            local real x
            local real y
            local real damage
            local boolean b = false
            loop
                /*
                *   Each trap can fire a maximum of
                *   corpse explosions.
                */
                if UnitAlive(.trap) and (0 < .counter) then
                    /*
                    *   There is a cooldown between two
                    *   corpse explosions.
                    */
                    if (0 >= .cooldown) then

                        call GroupEnumUnitsInRange(pick, .x, .y , .range, null)
                        loop
                            set u = FirstOfGroup(pick)
                            exitwhen u == null
                            call GroupRemoveUnit(pick, u)

                            if ExplosionFilter(u) and thistype.basicFilter(u) then
                                call GroupAddUnit(expl, u)
                            endif

                        endloop

                        call ForGroup(expl, function GroupPickRandomUnitEnum)
                        set c = FirstOfGroup(expl)
                        call GroupClear(expl)

                        if (c != null) then
                            set x = GetUnitX(c)
                            set y = GetUnitY(c)

                            set damage = GetUnitState(c, UNIT_STATE_MAX_LIFE)*factor

                            call GroupEnumUnitsInRange(pick, x, y, .radius, null)
                            loop
                                set u = FirstOfGroup(pick)
                                exitwhen u == null
                                call GroupRemoveUnit(pick, u)
                                if (DamageFilter(u, .owner)) then
                                    call UnitDamageTarget(.trap, u, damage, false, false, ATTACK_TYPE, DAMAGE_TYPE, null)
                                    call DestroyEffect(AddSpecialEffectTarget(EXPLOSION_ON_UNIT, u, ATTACH_ON_UNIT))
                                    set b = true
                                endif
                            endloop
                            /*
                            *   b confirms if the trap has hit any enemies.
                            *   if not neither the corpse is removed nor the cooldown goes off.
                            */
                            if b then
                                call RemoveUnit(c)
                                call DestroyEffect(AddSpecialEffect(EXPLOSION_ON_CORPSE, x, y))
                                call DestroyEffect(AddSpecialEffectTarget(EXPLOSION_ON_TRAP, .trap, ATTACH_ON_TRAP))
                                /*
                                *   Decrease the maximum explosion counter
                                *   and set the cooldown.
                                */
                                set .counter = .counter - 1
                                set .cooldown = COOLDOWN_BETWEEN_EXPLOSIONS
                                set b = not b
                            endif
                            set c = null
                        endif
                    else
                        set .cooldown = .cooldown - TIMEOUT
                    endif
                else
                    call this.destroy()

                    set next[prev[this]] = next[this]
                    set prev[next[this]] = prev[this]
                    if (0 == next[0]) then
                        static if LIBRARY_TimerUtils then
                            call ReleaseTimer(GetExpiredTimer())
                        else
                            call PauseTimer(tmr)
                        endif
                    endif
                endif

                set this = next[this]
                exitwhen 0 == this
            endloop
        endmethod

        static method create takes player who, real x, real y, real angle, integer level returns thistype
            static if LIBRARY_Alloc then
                local thistype this = allocate()
            else
                local thistype this = recycler[0]
                set recycler[0] = recycler[this]
            endif

            set next[this] = 0
            set prev[this] = prev[0]
            set next[prev[0]] = this
            set prev[0] = this

            set .owner = who
            set .trap  = CreateUnit(who, GetTrapByLevel(level), x, y, angle)
            call UnitApplyTimedLife(.trap, 'BTLF', GetDuration(level))

            set .range    = GetDetectionRange(level)
            set .radius   = GetExplosionRange(level)
            set .factor   = GetDamageFactor(level)
            set .counter  = GetExplosions(level)
            set .cooldown = COOLDOWN_BETWEEN_EXPLOSIONS
            /*
            *   May not be passed in x and y due to pathing.
            */
            set .x = GetUnitX(this.trap)
            set .y = GetUnitY(this.trap)

            static if IS_TRAP_SELECTABLE then
                static if IS_TRAP_INVULNERABLE then
                    call UnitAddAbility(this.trap, 'Avul')
                endif
            else
                call UnitAddAbility(this.trap, 'Aloc')
            endif

            if (0 ==  prev[this]) then
                static if LIBRARY_TimerUtils then
                    call TimerStart(NewTimer(), TIMEOUT, true, function thistype.callback)
                else
                    call TimerStart(tmr, TIMEOUT, true, function thistype.callback)
                endif
            endif

            return this
        endmethod

        //Full credits to Nestharus
        static if not LIBRARY_Alloc then
            private static method onInit takes nothing returns nothing
                local integer i = 0
                set recycler[8191] = 0
                loop
                    set recycler[i] = i + 1
                    exitwhen i == 8190
                    set i = i + 1
                endloop
            endmethod
        endif

    endstruct
endlibrary

Keywords:
Trap, Traps, ArcaneTrap, Lightning, BPower
Contents

Trap Pack (Map)

Reviews
Traps v1.0.0 | Reviewed by Maker | 02.01.15 Concept[/COLOR]] There are two spells, both create a trap when cast. One trap preriodically electrocutes nearby enemies and explodes corpses, the other links the traps and an orbiting particle with...

Moderator

M

Moderator


Traps v1.0.0 | Reviewed by Maker | 02.01.15

[COLOR="gray"

[COLOR="gray"

[COLOR="gray"

[COLOR="gray"

[COLOR="gray"

Concept[/COLOR]]

There are two spells, both create a trap when cast. One trap
preriodically electrocutes nearby enemies and explodes corpses,
the other links the traps and an orbiting particle with
a lightning that damages enemies.
Triggers[/COLOR]]
  • The triggering is very good. No leaks, lag or noticeable bugs.
    Clean code.
  • Arcane trap could factor in flying height of targets, filter them out
  • You could use GetLocationZ when you create the arcane lightning
Objects[/COLOR]]

Solid work in this department. The only flaw I noticed is that there is a wrong
hotkey for learning Arcane Trap.
Effects[/COLOR]]
  • The effects fit the spells and are not over the top.
  • There could be a sound when the spell is cast.
Rating[/COLOR]]
CONCEPTTRIGGERSOBJECTSEFFECTSRATINGSTATUS
APPROVED

Level 37
Joined
Mar 6, 2006
Messages
9,242
The coding looks impressive as expected. I might have one improvement but it needs to be tested.

Check the hotkeys ;)

Set pitch and roll angles to 0 for the dummies so they are not tilted when placed on uneven ground. It helps the top of the trap to be positioned where the lightning is.

Level 19
Joined
Mar 18, 2012
Messages
1,717
i like how you handled the damage for arcane trap how does that work? does it just create a very small rectangle and move it paralell with the lighting ?
I picked every unit in a square around the center with a radius r= lenght of the lightning. Then I filtered those units who are close to the lightning using IsUnitInRectangle.


Bannar

Code Reviewer
Level 26
Joined
Mar 19, 2008
Messages
3,138
readonly static constant integer TIMED_LIFE = 'BTLF' <3 bold words.
I've always prefered constant globals instead of constant static, yet it's just a personal choice :p

Btw, positions of those spells are switched after you learn them (i.e one to the left in hero skill menu ends up being ability on the right side in skill panel) xd.

Level 37
Joined
Mar 6, 2006
Messages
9,242
I omitted it from the review, but I'd like to know why did you go with TimerUtils when the period is 0.03125. I know it is easy to attach the data to the timer. However personally I go with a single timer that handles all instances with that kind of time interval.

Level 19
Joined
Mar 18, 2012
Messages
1,717
I used a single timer with a linked list. In case the map contains TimerUtils the single timer
is replaced by a NewTimerEx(0). Actually this is a slight performance loss, but negligible I my eyes.

I seldom use CTL lately, only for projectiles, texttags, lightnings and a jump system ( yours).


Kazeon

Hosted Project: EC
Level 33
Joined
Oct 12, 2011
Messages
3,445
Hmm.. This is nice:
JASS:
library_once IsPointInRectangle
    //determins if point P is in rectangle ABCD
    function IsPointInRectangle takes real ax, real ay, real bx, real by, real cx, real cy, real dx, real dy, real px, real py returns boolean
        local real cross0 = (py-ay)*(bx-ax)-(px-ax)*(by-ay)
        local real cross1 = (py-cy)*(ax-cx)-(px-cx)*(ay-cy)
        local real cross4 = (py-dy)*(ax-dx)-(px-dx)*(ay-dy)

        return ((cross0*cross1 >= 0) and (((py-by)*(cx-bx)-(px-bx)*(cy-by))*cross1 >= 0)) or ((cross0*cross4 >= 0) and (((py-by)*(dx-bx)-(px-bx)*(dy-by))*cross4 >= 0))
    endfunction
endlibrary
:grin:

Top
