Hiding Extended UI Panels

Discussion in 'General Mapping Tutorials' started by Mayday, Jul 3, 2020.

  1. Mayday

    Mayday

    Joined:
    May 1, 2018
    Messages:
    55
    Resources:
    6
    Maps:
    3
    Tutorials:
    3
    Resources:
    6
    [​IMG]
    • Within this tutorial, you'll find how to remove the extended interface panels on Classic Graphics.

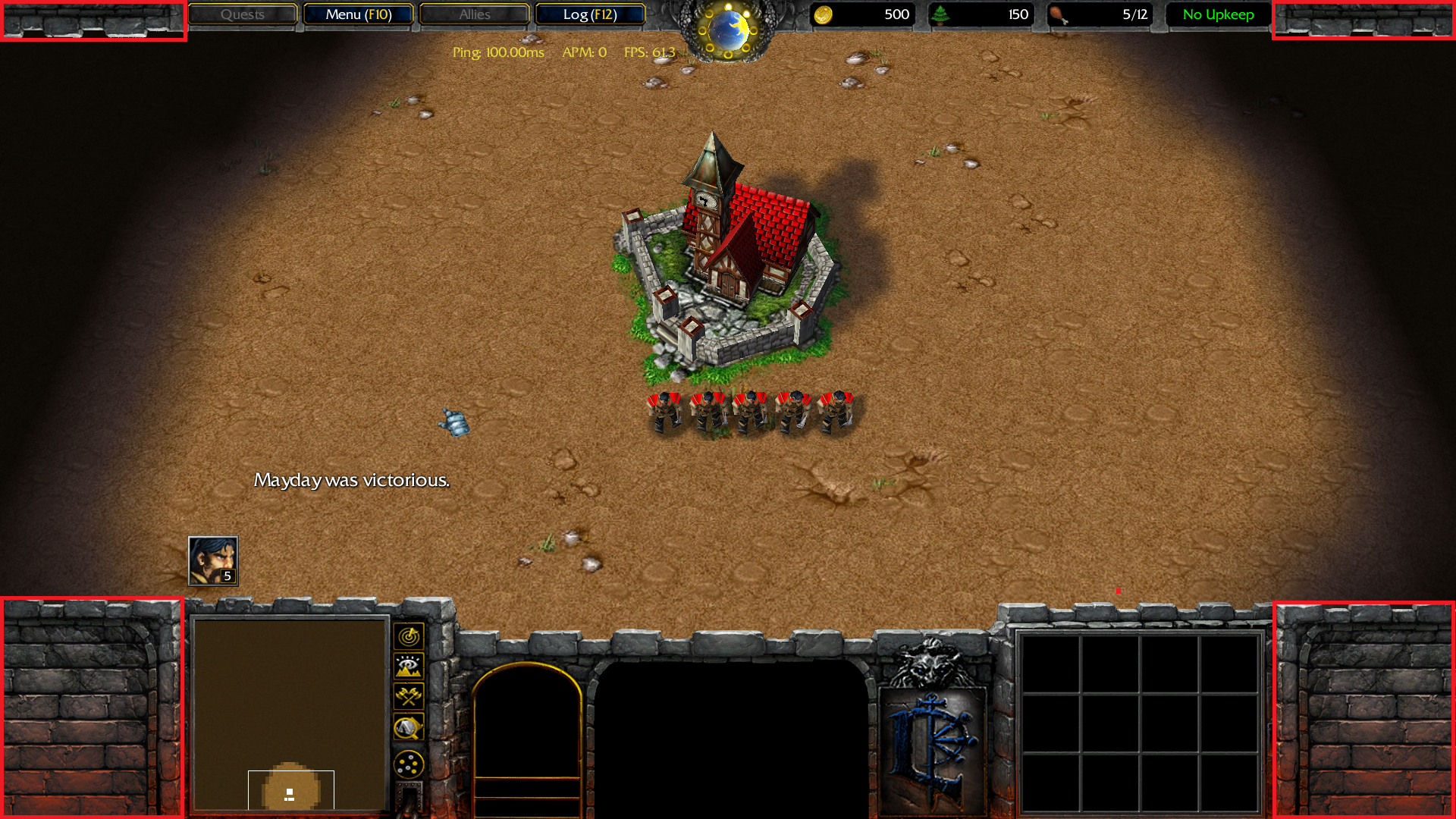

      • To clarify, we're talking about what is displayed in the image below.
    [​IMG]
    • To remove these panels, only two imports are required, depending on the amount of races you're looking to remove the panels for.
      • NOTE: These imports are dependent on the race selected by the user, as they overwrite Human/Orc/Undead/Night Elf interface individually.
    • If you're looking to only remove one races interface, you only need to import one set of the two files. However, if you're looking to remove it from every race, you'll need to import the set multiple times under different paths.
    Download Here!
    Tile05.dds
    Tile06.dds

    Human Path:
    UI\Console\Human\HumanUITile05.dds
    UI\Console\Human\HumanUITile06.dds

    Orc Path:

    UI\Console\Orc\OrcUITile05.dds
    UI\Console\Orc\OrcUITile06.dds

    Undead Path:

    UI\Console\Undead\UndeadUITile05.dds
    UI\Console\Undead\UndeadUITile06.dds

    Night Elf Path:

    UI\Console\NightElf\NightElfUITile05.dds
    UI\Console\NightElf\NightElfUITile06.dds

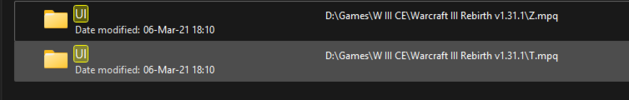

    • NOTE: There may be a path that allows one import to cover all races - I have not been able to find it though; please comment below if you know!
    • Once you have the files imported under these paths, save your map and then launch it to discover there is no longer any extended panels, with no side effects such as Hit Point bars displaying underneath the main frame.

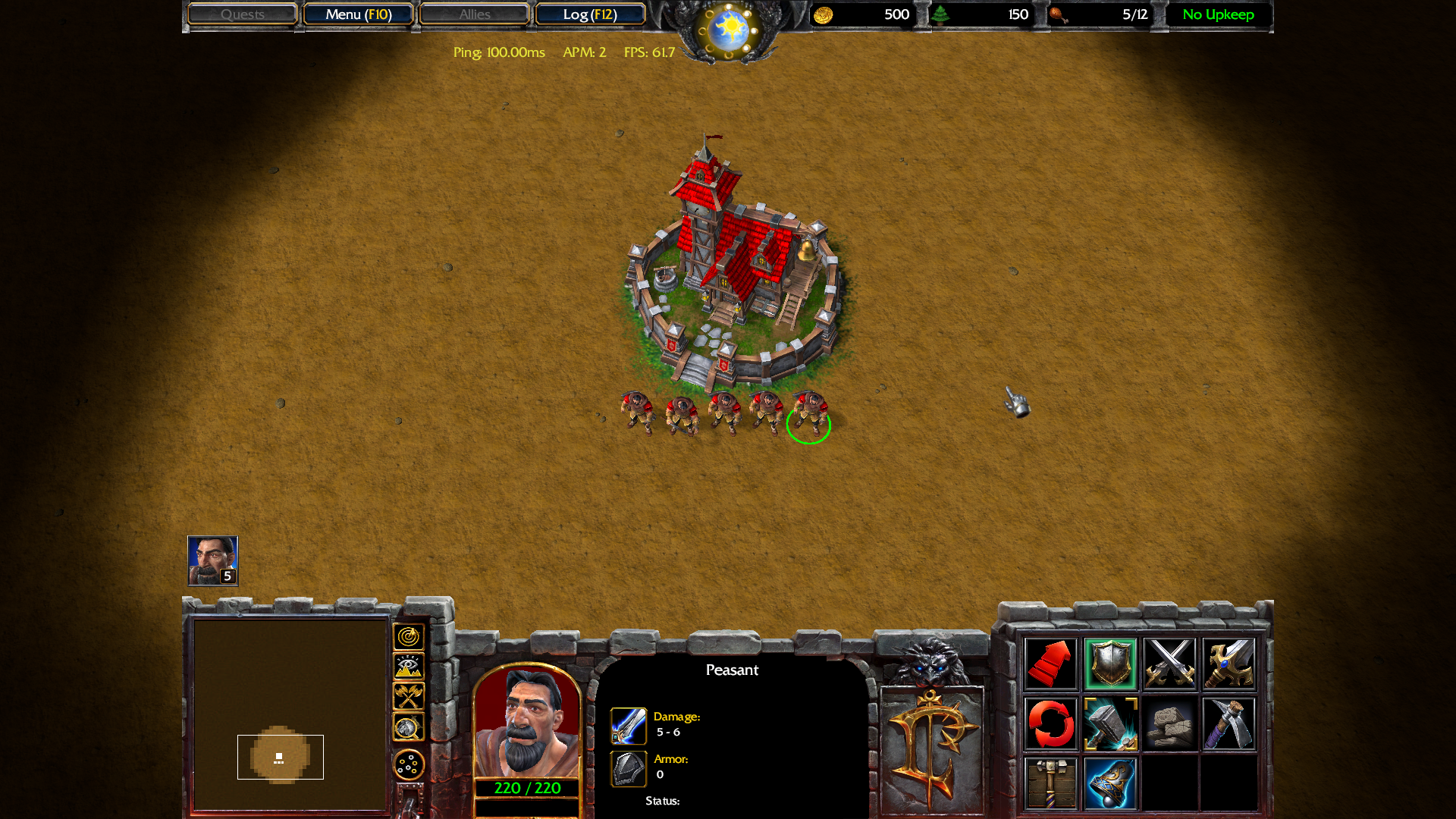

      [​IMG]

    • We're now finished with removing the extended panels, enjoy!
    • NOTE: If you wish to keep only the bottom or top half of the extended interface as shown in the first image you'll need to retrieve the specific races interface you want from CascView and only erase the part desired. An example is shown below where I've began to only erase the bottom half.
    [​IMG]
    • Once the desired removed part is gone, simply overwrite the original and import with the paths listed above. In order to match what I have done, you'll want to use the settings listed above.
    • If you're curious how this works with Reforged enabled, it will slightly cut off a portion of what looks to be the main frame, but is actually reaching into Tile05 & Tile06.
    [​IMG]



    7/16/20 - Update
    Reduced file size of imports from 350kb to 0kb
