[Tutorial #1] Starting off with Unity

Discussion in 'Unity 3D' started by Statharas, Sep 10, 2012.

  1. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    Launching Unity3D for the first time is too confusing for most people. This thread's purpose is to explain the interface for you, and how stuff work.


    Before launching Unity


    Before we get into Unity, I want to point out some things.

    Synonyms:
    Game - Project
    Projects are your game.

    Definitions:
    Scene:
    Think of it as a level. Objects are saved on scenes. Since many of you have played the TFT Orc campaign, think of this like that. Projects are a compilation of scenes, as that campaign is a compilation of maps.

    Launching Unity

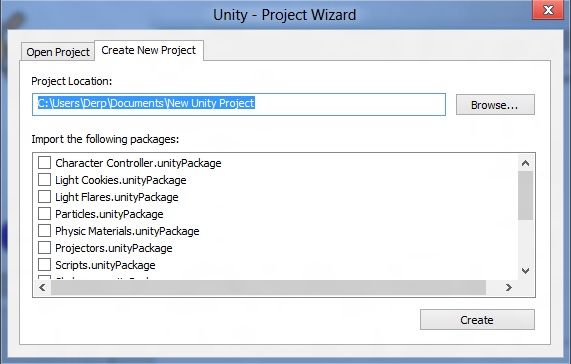

    When launching Unity for the first time, it should ask you for a project. Simply click on "Create new Project", and then select a directory where your game's assets will be put in. My advice is to put it in your Documents folder.

    Skip everything there, and directly click the "Create" button.
    [​IMG]

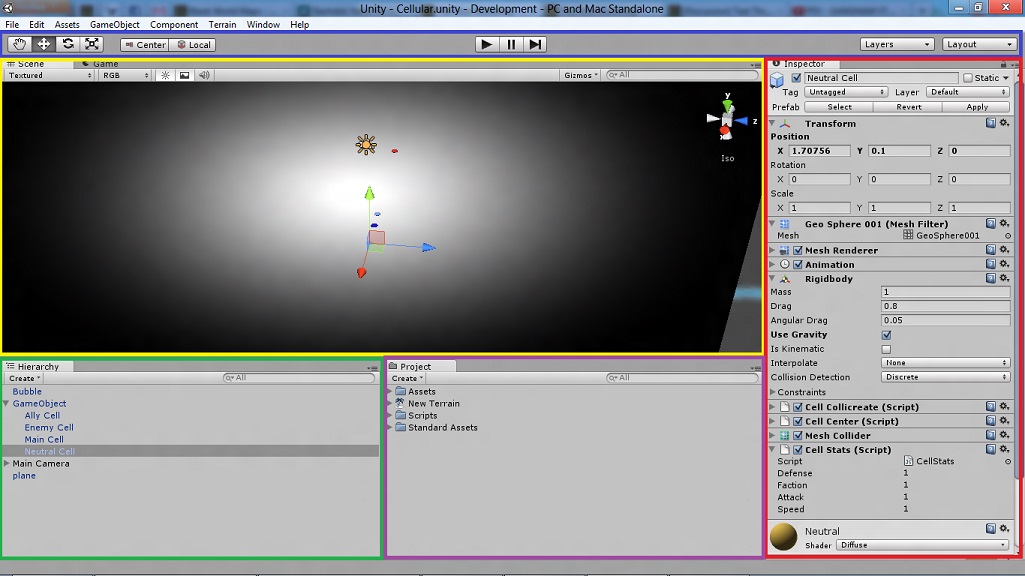

    Getting to know the interface

    [​IMG]
    Unity's interface is simple.


    The BLUE part is your Toolbar.
    It has your basic tools there, such as Grab, Move, Rotate and Scale, in this order.

    Past that, the next two buttons are the Transform Gizmo Toggles. You will learn to use them later on.

    Next set of buttons are the Play/Pause/Step buttons. You should only use the first two for now.
    The Play button launches your game inside unity, allowing you to test scripts and such, while the Pause button pauses the game simulation so that you can modify certain variables.

    Next two are the Layer and Layout dropdown menus. The first one is for advanced users, and the second one controls how your Unity layout will look like.
    The YELLOW part is your Scene. Here, you may view and alter your scene's looks.
    Navigating through your scene is easy.
    • Hold the right mouse button to enter Flythrough mode. This turns your mouse and WASD keys (plus Q and E for up and down) into quick first-person view navigation.
    • Select any GameObject and press the F key. This will center the Scene View and pivot point on the selection.
    • Use the arrow keys to move around on the X/Z plane.
    • Hold Alt and click-drag to orbit the camera around the current pivot point.
    • Hold Alt and middle click-drag to drag the Scene View camera around.
    • Hold Alt and right click-drag to zoom the Scene View. This is the same as scrolling with your mouse wheel.
    You may also consider using the Hand tool to drag through the scene (Shortcut Q).



    On the top right is the Gizmo tool.
    [​IMG]
    You may use it to quickly move to a certain viewpoint.

    You should ignore everything else for now.
    The RED part is your Inspector. Here you may edit your objects.
    The GREEN part is your Hierarchy.


    Unity uses a parent-child system.
    Whatever you do to a parent affects the child. Scale parent, scales child. Scale child, parent stays the same.


    In the main picture, you can see "Gameobject" and four cells listed under it.
    "Gameobject" is the parent, and the cells are children.



    The PURPLE part is your Assets.

    Everything that's located inside the Assets folder of your project.
    WARNING: DO NOT MOVE STUFF OUTSIDE THE UNITY EDITOR. METADATA ASSOCIATED WITH THE ASSETS WILL BE LOST.


    This thread is under construction. If you want some explanation on something from the above, I will be happy to include it.

  2. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    Getting to know how stuff works


    Right now, you should be viewing a blank scene.

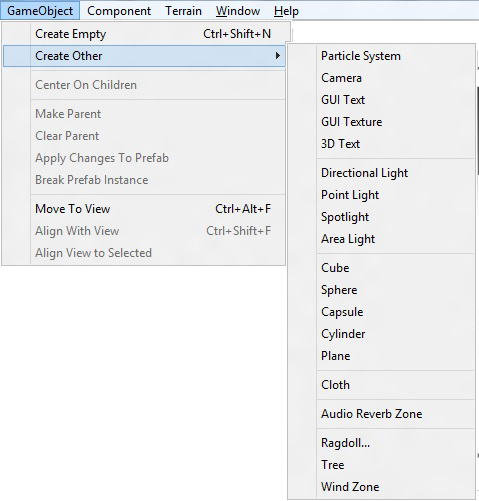

    Start off by placing an empty Object.
    [​IMG]
    Click on Create Empty.



    This should create an empty Gameobject in your Hierarchy.

    [​IMG]

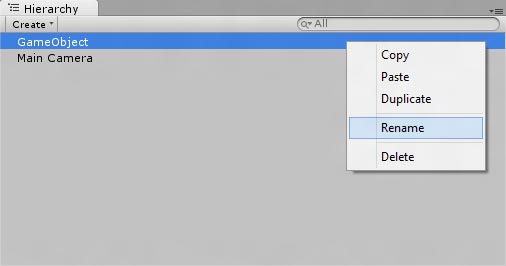

    You should rename it to whatever you want.

    (You should also notice the existence of Main Camera. We'll get to it later)

    Now, all you have is an empty Game Object with a fancy name.
    Let's spice things up.

    Select your gameobject.

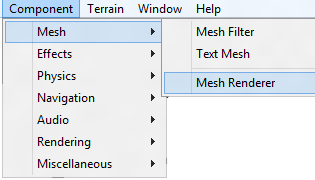

    Then navigate to Component/Mesh/ and click on Mesh Filter.

    [​IMG]

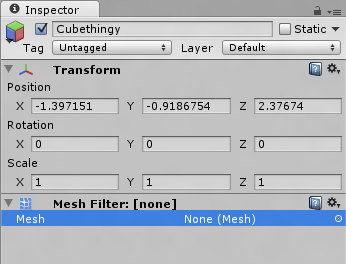

    You should notice a few changes in the inspector.
    [​IMG]

    When clicked, the object is shown on the inspector.
    You will now see components. These are all objects on their own, but unlike your gameobject, those don't exist in your scene, but in your objects themselves.

    Before adding a Mesh Filter to your object, Transform showed up.
    Transform is a core component. Transform contains the position, rotation and scale of your object.
    Position is the location of your object in the game world.
    Rotation and Scale do not really matter (special exceptions) unless you have visuals in your object, which we will be doing.

    Let's take a look at the Mesh Filter component.

    You will see the line "Mesh - None (Mesh)" and a circle with a dot in the middle.

    That line means that no mesh is applied to the mesh filter. *damn*.

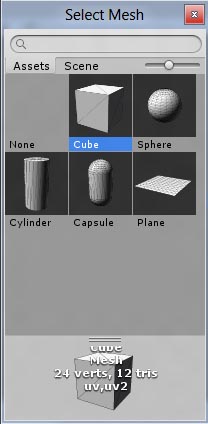

    I call the circle thingy "The Target". Clicking on it will show you all the available meshes you can use for your Mesh Filter. Unfortunately, we only have primitives right now!
    [​IMG]
    Click on the Cube for now.


    You'll notice that the visuals of your game object haven't changed. *sadface*.
    You only defined what mesh you want it to use. Not if you want it to render or not.

    You will have to add the Mesh Renderer component under "Components/Mesh".

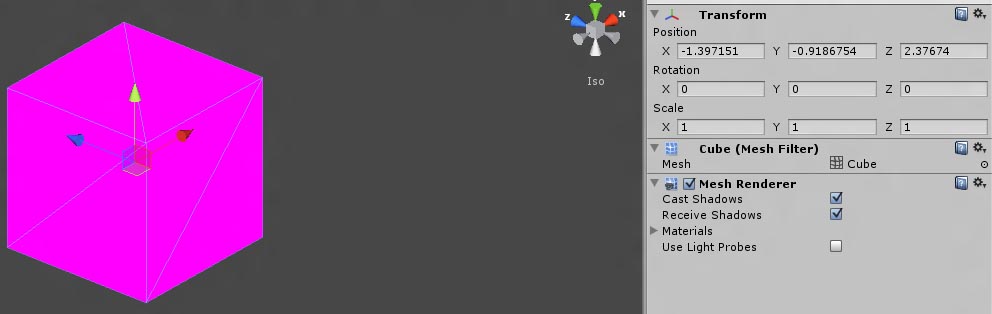

    Doing so, will get you the following
    [​IMG]
    Sadly, it's pink. That's because there are no materials assigned to it!

    Click on the arrow on Mesh Renderer, then the arrow on Materials.
    You could use a default one.

    [​IMG]

    Go to Project. Remember? The thing that handles all your assets? That.

    Click on Create and pick Material.
    A material should pop up below. Select it.
    [​IMG]

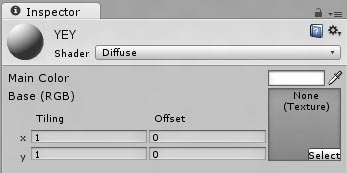

    This is your material.
    Now, let's give it some visuals!

    Right click your Material in the Project view, and click "Show in Explorer".
    You should be in a folder called "Assets".
    Now, drag a texture, any texture, into the folder. Make sure it's in JPG, DDS, PNG or TGA. Preferably PNG, as we'll have no problem with it.

    You will notice them appearing in your Project view.

    Now, see the part of the inspector that says "None (texture)" and has a button that says "Select"? Click it, and select your texture from the popup window.

    You're not done. Go back to your Gameobject, Mesh Renderer, Material, and assign the material we just created.
    [​IMG]

    Wooohooo! We now have a cube with a texture!
    Let's not stop here.

    If you're unfamiliar with it, "Normals" are a way to add definition without altering a model. Let's do that.

    I already have a normal created, so I'm good!

    Go back to your material.

    [​IMG]

    See the part that says "Shader" and has a dropdown list with "Diffuse" selected?

    Shaders are what actually decides the material's properties. In other words, Materials are what give Shaders the variables to handle how your object is rendered. Toony? Shiny? Whatever you want. You can create your own.

    Click on the dropdown list, and go to "Bumped Diffuse".

    In your material list, another material slot will pop up.
    [​IMG]
    You know how to do that. You really do.

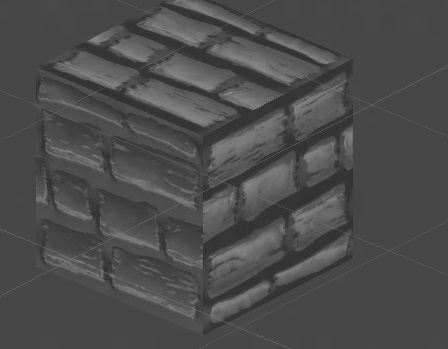

    [​IMG]
    Woohoo! Our texture now has detail!

    On the scene view, on the top left, you will see "Scene" and "Game".
    Scene is where you edit stuff, and Game where you see how they look under a camera.
    Click on Game.

    You probably don't see anything, or a bit of your cube. Let's fix that!

    Select your main camera in the hierarchy.
    This should pop up on the bottom right of your Scene view
    [​IMG]
    That's the Camera preview. In other word, what the camera sees.
    Now, time for you to use the toolbar's tools for the first time!

    Click on Move tool (shortcut W), and double click in the Hierarchy. It should take you to the camera's location.

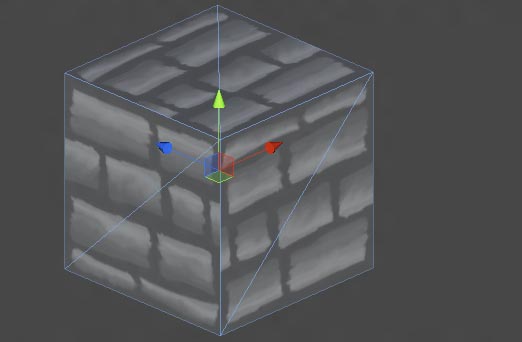

    An axis like this should appear on your camera's location
    [​IMG]

    Now, clicking on an axis will allow you to move it on that plane.
    Red is for X, Blue for Z and Green for Y.

    You will also notice the small squares near the root of the arrows. Those allow you to manipulate your gameobject in the OTHER two planes.
    If you click on the blue square, you can move on X and Y, if you click on the red, ZY, and green XZ.

    Now, move your camera near your box. If it's already visible, you should skip that.

    Now, click the Rotate tool (shortcut E).
    [​IMG]

    The rotate tool allows you to manipulate the rotation of a gameobject. So with this, you can change the direction the camera is looking at.

    You should ALWAYS use the red blue green lines to rotate your object.
    When clicking on one, it means you will rotate your object on that axis. If someone were to look from East to West, he would turn around his height axis, which in Unity is Y.

    Now, rotate your camera towards the GameObject (cube).

    Your gameobject might be far from the camera... Let's scale it up... or down!

    Click the Scale tool (Shortcut R)
    [​IMG]
    Let's go through with this quickly. You can stretch an object by pulling the boxes. RGB, XYZ. You should have adapted to that already.

    The gray box in the middle scales the object. In other words, stretches it to all directions.



    Now your gameobject should be viewable. Click on Game!
    [​IMG]

    Oh damn, your normals don't show!

    That's because "Scene View" has a directional light that is attached to the your field of view. Game view doesn't have any lights!

    Go to Hierarchy, Create, then click Directional Light.

    Now, rotate and move it so that it's facing your GameObject!

    Et voila!

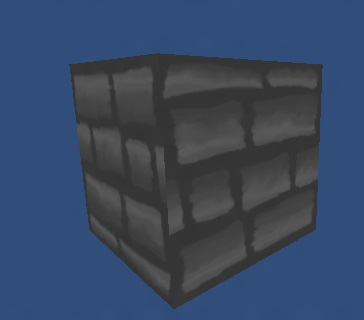

    [​IMG]

    You have created a cube with a texture!

    Now, don't forget, click on File, and click on Save Scene, then click Save Project, and you're done!


    Please post comments below and tell me your questions or if you have problems with a certain part of the tutorial!

    Last edited: Sep 10, 2012
  3. Zelda.Alex

    Zelda.Alex

    Joined:
    Dec 7, 2008
    Messages:
    778
    Resources:
    0
    Resources:
    0
    Followed the two and that was nice. I had followed some videos earlier but this was somewhat better. Now I am going to ask a dumb question. Sorry for that.

    I didn't understand that part after bumped diffuse. So I just added the texture I had used earlier. After that there was something about that being incorrect and a button for fix. I clicked that and that made it kind of 3D. What actually needed to be done at that point?

  4. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    The Bumped Diffuse uses a Blue-red texture that is used to add definition to your object. I use Crazybump for it.

  5. Tr!KzZ

    Tr!KzZ

    Joined:
    Mar 7, 2005
    Messages:
    800
    Resources:
    29
    Models:
    18
    Icons:
    2
    Maps:
    9
    Resources:
    29
    First of all normal maps are based on RGB, while every single color stands for an axis. blue is the main-color because it's the axis you look at (like Z). Those axis, stored in RGB will help the engine calculate shadows and light stuff to simulate more 3d details on your object. This allows you to simply use a plane and simulate pebbles on it without any 3d-deformations. You can create normal maps within the most 3D programs you're working with, like 3dsmax, blender, etc. or also from normal diffuse/greyscale textures with some plugins for example the nvidia tools for photoshop.

    The "correct map" button can convert old "black-white" maps into the normal maps to make use of them. If you already created a normal-map and it still asks for correction, then the maps is not marked as "normal map" and instead as "texture map" for example. just go to the texture itself and manually correct it, while uncheck the box that says "use greyscale map". this will correct the info message for u without changing anything..

  6. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    How would green work?

  7. Zelda.Alex

    Zelda.Alex

    Joined:
    Dec 7, 2008
    Messages:
    778
    Resources:
    0
    Resources:
    0
    I understood the first paragraph but I am not so sure about the second paragraph. "black-white" maps? Do you mean the older 2D games with the 2-axes? I don't understand about what you are saying regarding "texture map" and "use greyscale map". Are you talking about the scenes in unity or the properties of the texture images that I am using?

  8. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    I've no experience in B&W normal maps. Texture Maps are your Diffuse textures. Greyscale maps, as I believe, were a way to add shading on a model through textures.

  9. Zelda.Alex

    Zelda.Alex

    Joined:
    Dec 7, 2008
    Messages:
    778
    Resources:
    0
    Resources:
    0
    Normal textures are what I used in the beginning. Then to add details I used the conversion to make it into texture map. Greyscale maps are outdated.

    Did I get it correct?

  10. Tr!KzZ

    Tr!KzZ

    Joined:
    Mar 7, 2005
    Messages:
    800
    Resources:
    29
    Models:
    18
    Icons:
    2
    Maps:
    9
    Resources:
    29
    "normal" maps are the colored maps that define the heights and depths. "bump" maps are the black-white maps, they are simply modified greyscale versions of the origional diffuse while black is full height and white 0 height (or was it the other way round?) means grey would be a middle height. today they are still used as "heightmaps" for terraining. You can also use them with unity. Just save them as ".raw" file and load them into the terrain as heightmap.

    @Statharas
    as said before normal maps are full RGB maps, while each color stands for an axis and stores height information of the high-detail model and simulates shadow and light onto the low-poly model. you could for example use X as red, Y as green and Z as blue color. so from bottom to up and left to right might be red color, and the other way round green, while blue fills the height and the rest of the map.

    @Zelda.Alex
    Diffuse = normal textured RGB color that gives textures and color to the model
    Normal = Currently used heightmaps for models to simulate high details without 3d-deformation on the model. normally you get those maps from high-poly models or from textures
    Bump = old heightmaps, where 1 color stands for 100% height and the other for 0%. Neutral grey would be 50%
    heightmap = similar to bump maps, but they are still used. for example for terrains, to create mountains etc.

    There are still a lot other maps to use: Decal, Detail, Specular, Color-Specular, Vertex, etc.

    Normal maps are way more then the old greyscale bumbmaps, cause the only show heights. normal maps are way more complicated. Hope this brings some light into it ^^


    *EDIT*

    exmaple plane with normal applied
    a simple plane with 2 faces. same plane with normal map applied
    [​IMG] [​IMG]


    And here are the maps I used. I simply created a black box and blurred it a bit so i get a better normal map
    (never use straight heights, like walls (when u look from top to bottom) do it more like hills with smooth steps)
    greyscale and normal
    [​IMG][​IMG]


    as you can see the normal map has red colors for upper right corners and green colors for the bottom left corners. blue fills the rest of the map.

    Last edited: Oct 26, 2012
  11. Zelda.Alex

    Zelda.Alex

    Joined:
    Dec 7, 2008
    Messages:
    778
    Resources:
    0
    Resources:
    0
    Normal maps are the ones that we make in unity normally when we are making any game. They are the 3D part that we design in unity GUI. bump maps are pictures with illusion of height added. The starting map that I made is "normal map" and the bumped texture that the tutorial had is the "bump map". Am I correct this time?

    I am having confusion regarding what is the word "map" being used for?
    1. When we are talking about maps are we talking about maps such as the map of a nation but in this case it is the landscape of the game that we are designing.
    2. Or when we are talking about maps we are talking about colormaps representing the details of the landscape. These colormaps are being simulated by the unity engine to make the 3D illusion.

    I read your explanation 2 times and it seems the actual thing that you are saying is somewhere between these two. The confusion is because we are talking about heights which is a feature related to landscapes or any 3D thing and we are talking about RGB maps. Also the pictures shown are maps? How?

    Too many questions and confusion? I am totally new.

  12. Statharas

    Statharas

    Joined:
    Jul 9, 2008
    Messages:
    2,337
    Resources:
    14
    Tools:
    1
    StarCraft II Resources:
    5
    Tutorials:
    8
    Resources:
    14
    Nono, "Texture Maps" are what you might know simply as "Textures".

    And yes, they are used in making a 3D illusion.
    Which are also used in terrains sometimes.

  13. Zelda.Alex

    Zelda.Alex

    Joined:
    Dec 7, 2008
    Messages:
    778
    Resources:
    0
    Resources:
    0
    I think I finally got it. :goblin_yeah:

    Thanks

  14. Tr!KzZ

    Tr!KzZ

    Joined:
    Mar 7, 2005
    Messages:
    800
    Resources:
    29
    Models:
    18
    Icons:
    2
    Maps:
    9
    Resources:
    29
    yeah basically it's just a "trick" so illusion or simulate heights and depths on something. So you can save faces and just show some more details with just having a simple plane. So maps in combination with normals or bumps are texture maps. just the colors vary as they extract different values from them.

    Sorry when I'm confusing you, I'm not that good in explaining stuff ^^
