[System] Timed Lightnings v1.0.1.1

Submitted by Maker
This bundle is marked as approved. It works and satisfies the submission rules.

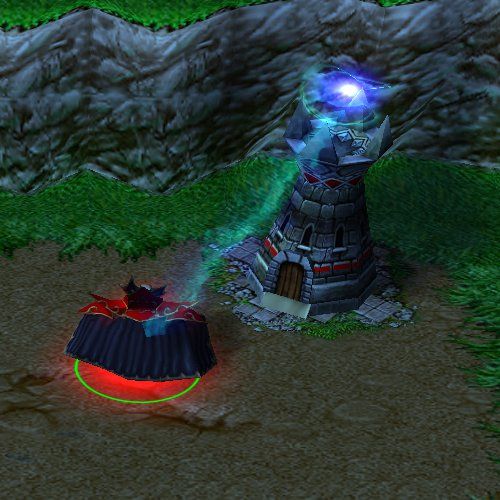

A lightning system that allows easy creation of timed lightnings.

Create lightnings from
*point to point
*point to unit
*unit to point
*unit to unit

Supports moving points/units.

Code (vJASS):

/******************************************************************************
 *
 *  TIMED LIGHTNINGS by Maker v1.0.1.1
 *
 *  Allows the creation of lightnings with expiration timer.
 *  Supports:
 *      o Fading lightnings in and out
 *      o Attaching to units
 *      o Attaching to points
 *      o Linear movement in x-, y- and z-axes
 *
 *
 *  Methods
 *
 *      P2U
 *          From a static point attached to a unit
 *          static method P2U takes lightning l, unit t, real time, real x1, real y1, real z1, real z2, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, target unit, duration, origin x, origin y, origin z, end z
 *
 *
 *      P2UEx
 *          From a moving point attached to a unit
 *          static method P2UEx takes lightning l, unit a, real t, real zu, real x1, real y1, real z1, real x2, real y2, real z2, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, target unit, duration, target z, origin start x, origin start y, origin start z, origin end x, origin end y, origin end z
 *
 *      U2P
 *          From attached to a unit to a static point
 *          static method U2P takes lightning l, unit s, real t, real x1, real y1, real x2, real y2, real z1, real z2, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, source unit, duration, origin x, origin y, point x , point y, source z, point z
 *
 *      U2PEx
 *          From attached to a unit to a moving point
 *          static method U2PEx takes lightning l, unit a, real t, real zu, real x1, real y1, real z1, real x2, real y2, real z2, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, source unit, duration, source z, point start x, point start y, point start z, point end x, point end y, point end z
 *
 *      U2U
 *          From attached to a unit to attached to a unit
 *          static method U2U takes lightning l, unit s, unit t, real time, real z1, real z2, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, source unit, target unit, duration, source z, target z
 *
 *      P2P
 *          From a static point to a static point
 *          static method P2P takes lightning l, real t, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, duration
 *
 *      P2PEx
 *          From a moving point to a moving point
 *          static method P2PEx takes lightning l, real t, real x1, real y1, real z1, real x2, real y2, real z2, real x3, real y3, real z3, real x4, real y4, real z4, real startAlpha, real endAlpha returns nothing
 *
 *          The lightning, duration, origin start x, origin start y, origin start z, origin end x, origin end y, origin end z, target start x, target start y, target start z, target end x, target end y, target end z
 *
 *
 *      Alpha values are between 1 and 0. 1 is fully visible, 0 is transparent.
 *
 *******************************************************************************/

library TimedLightnings

    globals
        private constant    real        TO      = 0.03125000    // Update interval

        private             integer     CT      = 0             // Lightning count
        private             timer       TMR     = CreateTimer()
        private             location    loc     = Location(0,0)
    endglobals

    struct TimedL extends array

        lightning l
        real av        // aplha value
        real da        // transparency change rate
        real x1
        real x2
        real y1
        real y2
        real z1
        real z2
        real dx1
        real dy1
        real dz1
        real dx2
        real dy2
        real dz2
        unit s          // source
        unit t          // target
        integer time    // how many ticks, time
        integer next    // next node
        integer prev    // previous node
        boolean moves

        private static integer rlast = 0    // previous created
        private static thistype first       // first node

        private static integer ic = 0
        private static integer ir = 0
        private thistype rn

        private static thistype dat
        private static thistype dat2
        private static thistype dat3

        private static method destroyL takes nothing returns nothing
        /*-Link previous node with next one-*/
            set dat3 = dat2.prev
            set dat3.next = dat2.next
        /*-----Set new last created node----*/
            if dat2 == rlast then
                set rlast = dat3
            endif

        /*-Link next node with previous one-*/
            set dat3 = dat2.next
            set dat3.prev = dat2.prev
        /*--------Set new first node--------*/
            if dat2 == first then
                set first = dat3
            endif

            call DestroyLightning(dat2.l)
            set CT = CT - 1
            if CT == 0 then
                call PauseTimer(TMR)
            endif
            set dat2.rn=ir
            set ir=dat2
        endmethod

        private static method looping takes nothing returns nothing
            local real z1
            local real z2
            set dat = first
            loop
                set z1 = 0
                set z2 = 0
                set dat.time = dat.time - 1
                if dat.da != 0 then
                    set dat.av = dat.av - dat.da
                    call SetLightningColor(dat.l, 1, 1, 1, dat.av)
                endif
                if dat.s == null then
                    if dat.dx1 != 0 then
                        set dat.x1 = dat.x1 + dat.dx1
                    endif
                    if dat.dy1 != 0 then
                        set dat.y1 = dat.y1 + dat.dy1
                    endif
                    if dat.dz1 != 0 then
                        set dat.z1 = dat.z1 + dat.dz1
                    endif
                else
                    set dat.x1 = GetUnitX(dat.s)
                    set dat.y1 = GetUnitY(dat.s)
                    set z1 = GetUnitFlyHeight(dat.s)
                endif
                if dat.t == null then
                    if dat.dx2 != 0 then
                        set dat.x2 = dat.x2 + dat.dx2
                    endif
                    if dat.dy2 != 0 then
                        set dat.y2 = dat.y2 + dat.dy2
                    endif
                    if dat.dz2 != 0 then
                        set dat.z2 = dat.z2 + dat.dz2
                    endif
                else
                    set dat.x2 = GetUnitX(dat.t)
                    set dat.y2 = GetUnitY(dat.t)
                    set z2 = GetUnitFlyHeight(dat.t)
                endif
                if dat.moves then
                    call MoveLocation(loc, dat.x1, dat.y1)
                    set z1 = GetLocationZ(loc) + dat.z1 + z1
                    call MoveLocation(loc, dat.x2, dat.y2)
                    set z2 = GetLocationZ(loc) + dat.z2 + z2
                    call MoveLightningEx(dat.l, true, dat.x1, dat.y1, z1, dat.x2, dat.y2, z2)
                endif
                if dat.time == 0 then
                    set dat2 = dat
                    set dat = dat.next
                    call destroyL()
                else
                    set dat = dat.next
                endif
                exitwhen dat == 0
            endloop
        endmethod

        private static method InitAdd takes nothing returns nothing
            /* Add node to list, make this the last on list */
            if rlast != 0 then
                set dat2 = rlast
                set dat2.next = dat
            endif

            /* Link this with previous node                 */
            set dat.prev = rlast
            /* Make this the last created node              */
            set rlast = dat

            set CT = CT + 1
            if CT == 1 then
                /* Make this the first node                 */
                set first = dat
                call TimerStart(TMR, TO, true, function thistype.looping)
            endif
        endmethod

        private static method Recycle takes nothing returns nothing
            if 0==ir then
                set ic=ic+1
                set dat=ic
            else
                set dat=ir
                set ir=dat.rn
            endif
        endmethod

        static method P2U takes lightning l, unit t, real time, real x1, real y1, real z1, real z2, real startAlpha, real endAlpha returns nothing
            local thistype this

            call Recycle()
            set this = dat

            set .x1 = x1
            set .y1 = y1
            set .z1 = z1
            set .z2 = z2
            set .s = null
            set .t = t
            set .next = 0   // Nodes are added to the end of the list, there is no next node
            set .l = l
            set .time = R2I(time/TO)   // Calculates how many loops does the lightning lasts
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*TO/time    // Transparency change speed
            set .moves = true

            call InitAdd()
        endmethod

        static method U2P takes lightning l, unit s, real t, real x1, real y1, real x2, real y2, real z1, real z2, real startAlpha, real endAlpha returns nothing
            local thistype this

            call Recycle()
            set this = dat

            set .x1 = x1
            set .y1 = y1
            set .x2 = x2
            set .y2 = y2
            set .z1 = z1
            set .z2 = z2
            set .s = s
            set .t = null
            set .next = 0
            set .l = l
            set .time = R2I(t/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*TO/t
            set .moves = true

            call InitAdd()
        endmethod

        static method U2U takes lightning l, unit s, unit t, real time, real z1, real z2, real startAlpha, real endAlpha returns nothing
            local thistype this

            call Recycle()
            set this = dat

            set .z1 = z1
            set .z2 = z2
            set .s = s
            set .t = t
            set .next = 0
            set .l = l
            set .time = R2I(time/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*TO/time
            set .moves = true

            call InitAdd()
        endmethod

        static method P2P takes lightning l, real t, real startAlpha, real endAlpha returns nothing
            local thistype this

            call Recycle()
            set this = dat

            set .s = null
            set .t = null
            set .next = 0
            set .l = l
            set .time = R2I(t/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*TO/t
            set .moves = false

            call InitAdd()
        endmethod

        static method P2UEx takes lightning l, unit a, real t, real zu, real x1, real y1, real z1, real x2, real y2, real z2, real startAlpha, real endAlpha returns nothing
            local thistype this
            local real n = TO/t

            call Recycle()
            set this = dat

            set .x1 = x1
            set dx1 = (x2-x1)*n
            set .y1 = y1
            set dy1 = (y2-y1)*n
            set .z1 = z1
            set dz1 = (z2-z1)*n
            set .z2 = zu
            set .s = null
            set .t = a
            set .next = 0
            set .l = l
            set .time = R2I(t/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*n
            set .moves = true

            call InitAdd()
        endmethod

        static method U2PEx takes lightning l, unit a, real t, real zu, real x1, real y1, real z1, real x2, real y2, real z2, real startAlpha, real endAlpha returns nothing
            local thistype this
            local real n = TO/t

            call Recycle()
            set this = dat

            set .x2 = x1
            set .dx2 = (x2-x1)*n
            set .y2 = y1
            set .dy2 = (y2-y1)*n
            set .z2 = z1
            set .dz2 = (z2-z1)*n
            set .z1 = zu
            set .s = a
            set .t = null
            set .next = 0
            set .l = l
            set .time = R2I(t/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*n
            set .moves = true

            call thistype.InitAdd()
        endmethod

        static method P2PEx takes lightning l, real t, real x1, real y1, real z1, real x2, real y2, real z2, real x3, real y3, real z3, real x4, real y4, real z4, real startAlpha, real endAlpha returns nothing
            local thistype this
            local real n = TO/t

            call Recycle()
            set this = dat

            set .x1 = x1
            set .x2 = x3
            set .y1 = y1
            set .y2 = y3
            set .z1 = z1
            set .z2 = z3
            set .dx1 = (x2-x1)*n
            set .dy1 = (y2-y1)*n
            set .dz1 = (z2-z1)*n
            set .dx2 = (x4-x3)*n
            set .dy2 = (y4-y3)*n
            set .dz2 = (z4-z3)*n
            set .s = null
            set .t = null
            set .next = 0
            set .l = l
            set .time = R2I(t/TO)
            set .av = startAlpha
            set .da = (startAlpha-endAlpha)*n
            set .moves = true

            call InitAdd()
        endmethod
    endstruct

endlibrary





ChangeLog

v1.0.0.0 uploded 10.10.11
v1.0.1.0 uploaded 10.10.11
-Combined structs
-Now runs on one timer
-Factors in flying height
v1.0.1.1
-Now uses Nestharus' instance recycling


Keywords:
lightning, timed, maker
Contents

Just another Warcraft III map (Map)

Reviews
Moderator
19th Oct 2011 Bribe: Highly recommended as a system to handle your lightning needs. It can handle as many lightnings as you want without lagging.
  1. 19th Oct 2011
    Bribe: Highly recommended as a system to handle your lightning needs. It can handle as many lightnings as you want without lagging.

  2. maddeem

    maddeem

    Joined:
    Jan 1, 2011
    Messages:
    1,267
    Resources:
    5
    Maps:
    2
    Spells:
    3
    Resources:
    5
    Very useful... =p
    Will be good for those people who are afraid of using lightning effects in their spells
    5/5 for sure.

  3. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,030
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    You could use CTL32 by Nestharus or Timer32 by Jesus4Lyf here, to
    avoid needing to create so many different timers.

    It would make more sense to compress this into one struct and use
    booleans to determine the type of source/origin.

    I am not sure what you are using to check a "moving point". Shouldn't
    it take a location in such a case? Also maybe instead of a unit it should
    take a widget, for example if you wanted to attach to an item. And
    the lightning should take into effect the flying height of the unit.

  4. Windu

    Windu

    Joined:
    Nov 26, 2005
    Messages:
    706
    Resources:
    0
    Resources:
    0
    Why do i get this error when I attemt to save my map with the copied system ?

    Perhaps there's a new version of JNPG ? Or ?


    Attached Files:

  5. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,030
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    You need to have JassHelper 0.A.2.B to compile this.

    Some older JassHelpers don't let you reference static members without the dot as a prefix.

  6. Luorax

    Luorax

    Joined:
    Aug 7, 2009
    Messages:
    1,301
    Resources:
    1
    Maps:
    1
    Resources:
    1
  7. Windu

    Windu

    Joined:
    Nov 26, 2005
    Messages:
    706
    Resources:
    0
    Resources:
    0
    I am almost 99.9% sure I have it ... though how can I check which version it is ? I am sure I downloaded http://www.wc3c.net/showthread.php?t=88142 that and copy/pasted the folders. But still it shows that error. Any idea on fixing ?


    ::
    Fixed.
    ::

  8. Cihparg

    Cihparg

    Joined:
    Jul 4, 2008
    Messages:
    958
    Resources:
    1
    Models:
    1
    Resources:
    1
    The point of this system is not to use other peoples systems, and the another thing with
    this system was to keep it as minimal JNGP use as possible. It could've been created in
    Jass instead of vJass, but if I remember right; The only reason he made this in vJass is
    because he did not want to use udg_* variables, as they would just take space for other
    systems. I have yet to discover the reason for the Library, Structs and Methods that he
    seemed to require judging by the script. ~ Now I shall take a quick review on the
    performance of this system, and give my opinion on that.

    The system seems to be creating smooth transition on the lightnings, enough to give it a 4/5 status.

  9. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,030
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    OffGraphic, minimal JNGP as possible? Maker, tell me it isn't so!

    He doesn't need a timer system if he crunches it all into one struct handler,
    but if he wants to synchronize a bunch of 0.03125 timers it is the best way.

  10. Cihparg

    Cihparg

    Joined:
    Jul 4, 2008
    Messages:
    958
    Resources:
    1
    Models:
    1
    Resources:
    1
    Bribe, that is only what I had heard, or what I discussed with him.

  11. Maker

    Maker

    Joined:
    Mar 6, 2006
    Messages:
    9,193
    Resources:
    17
    Maps:
    2
    Spells:
    14
    Tutorials:
    1
    Resources:
    17
    Now uses only one timer and one struct, but not an external timer system. Flying height added.

    If I used a widget, how would I determine whether it is a unit or not, for flying height?

    Moving point as in one can make the lightning travel from (x1,y1,z1) to (x2, y2,z2) during the life time. Handy for sweeping beams.

    Yeah, I've read that before. I might update this to follow that guide.

    I just originally tried to make it not require external libraries.

  12. baassee

    baassee

    Joined:
    Nov 14, 2008
    Messages:
    3,220
    Resources:
    17
    Spells:
    14
    Tutorials:
    3
    Resources:
    17
    Would have been cool making either CTL32 or T32 optional yet it would be a pain in the arse to optionalize both. Either way this is great, better than the Lightning library at TH.

    And I don't find it bad to require a library (either CTL or T32) as they're both way too common and heavily used (if you're not stupid when mapmaking) by mapmakers.

    Just a simple question, why is .time member not integer in the first place if you want to use integers? :p

    @OG

    Creating the structs in vanilla JASS is way harder than downloading JNGP and typing struct name / endstruct (yeah no need for the latest JH to compile structs).

    There are nothing as "minimal JNGP" usage. Either you use JNGP and its features or you don't. And you know that don't you?

    It's not the variables that are difficult, it's the struct creation as said above.

    Methods are functions with an extra integer parameter (hidden to the eye of course) and static methods are basic functions.

    Libraries just put the code into the map header although it gives you the oppertunity to sort functions by typing "needs libraryname" by auto than doing it yourself.

  13. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,030
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    Ah right, so you define the offsetted points based on those coordinates. Not bad.

  14. Magtheridon96

    Magtheridon96

    Joined:
    Dec 12, 2008
    Messages:
    6,006
    Resources:
    26
    Maps:
    1
    Spells:
    8
    Tutorials:
    7
    JASS:
    10
    Resources:
    26
    CTL would be a better choice.
    I still like the fact that you managed to get this to run on one timer without any requirements :)

    And so you don't have to read that tutorial by Nes:

    Code (vJASS):
    struct YourStruct extends array
        private static integer ic = 0
        private static integer ir = 0
        private thistype rn

        // allocate like this:
        local thistype this
        if 0==ir then
            set ic=ic+1
            return ic
        else
            set this=ir
            set ir=.rn
        endif
        return this

        // deallocate like this
        set .rn=ir
        set ir=this



    Pretty straight-forward :p

  15. Maker

    Maker

    Joined:
    Mar 6, 2006
    Messages:
    9,193
    Resources:
    17
    Maps:
    2
    Spells:
    14
    Tutorials:
    1
    Resources:
    17
    Updated to use the Nestharus' method.

  16. Almia

    Almia

    Joined:
    Apr 24, 2012
    Messages:
    4,861
    Resources:
    35
    Spells:
    30
    Tutorials:
    4
    JASS:
    1
    Resources:
    35
    Code (vJASS):
    native GetLightningColorA           takes lightning whichBolt returns real

    native GetLightningColorR           takes lightning whichBolt returns real

    native GetLightningColorG           takes lightning whichBolt returns real

    native GetLightningColorB           takes lightning whichBolt returns real


    Because your lightning does not support lightning color,use these :D

  17. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,030
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    Any chance you update this to include manual destruction?
