Stasis Cube v2.2

Submitted by Phantawalker
This bundle is marked as awaiting update. A staff member has requested changes to it before it can be approved.
Spell description

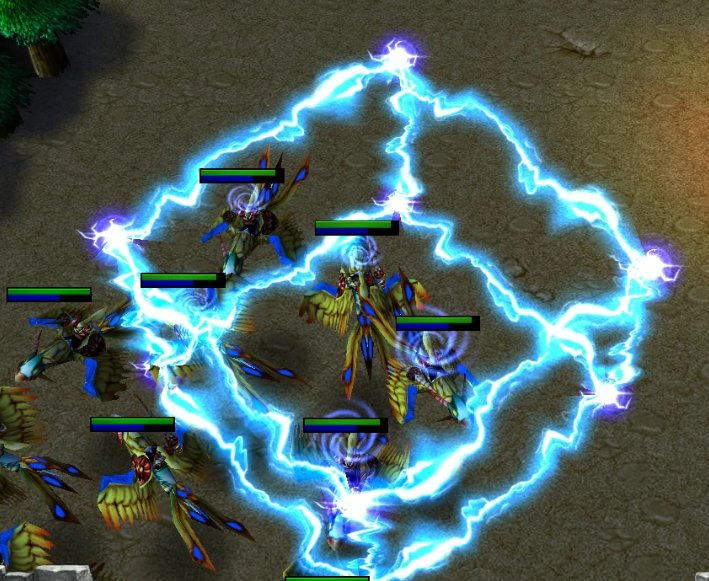

Hello hiveworkshop (and please sorry for my English). I have reworked my previous cube spell, reworked BJ's and leaks so now its a new version. This spell is AoE(MUI of course) and a little bit futuristic. Check the video below to see how it works.

  • Copy all global variables and all three triggers to your map (also dont forget to copy stun ability and dummy unit). "Stazis Cube" - main trigger, all spell actions and conditions there. "Spell Values" - here you can adjust spell parameters (see next tab). "Remove" trigger will delete all dead dummies (to prevent leaks).
  • In "Spell Values" you can adjust damage, radius(AoE), duration of the spell(in seconds), effect model and lightning type(sides of cube) for each level of ability
  • The first version was not good, so this is reworked second one. 01.05.2019 - version 2.0
    06.05.2019 - version 2.1(more customization, levels added and code was optimized.
    03.06.2019 - version 2.2 BlzPauseUnitEx was added instead of dummies.
Contents

Stazis Cube v2.2 (Map)

Reviews
MyPad
Imprisoning your enemies in a cage not good enough for you? Then do it with style.. lightning style Guaranteed to halt your enemies in fear and awe, the lightning rods' connection release such energy that they uplift your enemies from the ground. For...
  1. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5
    This is a new version of Stasis Cube, right? In your previous thread (if it would be open by then), you can click the Edit option on the bottom left of your resource, before any posts/messages.

    Back to the post, I could see this being an example of when the (possibly) new native in the PTR,
    BlzPauseUnitEx
    can be used.

    Edit:

    Sorry about my previous suggestion (I forgot that thread was deleted). Next time, if you wish to update any resource in the future, do what is suggested above.

    Last edited: May 4, 2019
  2. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    I deleted the previos one because it wasnt good at all. I guess I will edit this one.
    BlzPauseUnitEx - is this new one? What does it do?

  3. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5
    Yes, but it's still on the PTR. It does the same thing as PauseUnit, but at least keeps the command card. It does not update IsUnitPaused though.

  4. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    So its almost stun effect (without attached special visual effect overhead). I guess its good command to use it here (and no need to create dummies), but as I understand it would appear in next patch? I will reworked my spell as soon as it will be avaliable)

    BTW, in blizzard.j I found that PlayerRegisterUnitEvent use integer 16 (as number of players). But in last patches all 24 players are avaliable (I cant see blizzard.j in last patch, because there no MPQ archives in my directory, only data files). In new version should I use 24 instead of 16 in the loop?

  5. Aeryn

    Aeryn

    Joined:
    Apr 17, 2017
    Messages:
    265
    Resources:
    0
    Resources:
    0
    Use bj_MAX_PLAYERS it will return the max players allowed as an integer

  6. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5
    Try 28 instead. Ensure that it is castable by every player.

  7. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    I have tried BlzPauseUnitEx, but its not working yet. Will be waitnig for next patch. I have fixed number of playes) Also I wanted to ask, is there any program for detecting BJ functions? (Here in hive you have amazing feature to preview triggers and see orange text).

  8. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5
    Well, as far as I know, no.

  9. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    I have found!) JASS SHOP PRO shows BJ's with other color!)

  10. nhocklanhox6

    nhocklanhox6

    Joined:
    Feb 12, 2012
    Messages:
    343
    Resources:
    29
    Models:
    6
    Spells:
    22
    Tutorials:
    1
    Resources:
    29
    Love the lightning :D

  11. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5

    Review:



    The spell mechanics behind this are quite simple, yet they deliver in appearance and eye-candy. Lofty as the wind, dazzling as lightning, perfect as a cube, such a strange spell catches enemies in awe. Their minds too foolish to understand, they are slowly brought up into the sky, with the fury of the elements tearing the very tethers of their bodies apart.

    Code:



    Optimization:

    Try to avoid Filter functions and For Group callback actions whenever possible. There are a lot of For Group callbacks in the spell. For the callback function
    EndCube
    , you can use a
    FirstOfGroup
    loop instead.

    Avoid destroying boolexprs if they are only generated once, like this boolexpr:
    Condition(function GroupCon)


    Use one global dummy unit instead of creating a new dummy unit per target.

    If multi-leveled, you can make these variables into arrays: (Add a prefix so that these variables can be easily identified, their names are too generic right now).

    • Set Damage = 350.00
    • Set Radius = 300.00
    • Set Duration = 4
    • Set LType = Chain Lightning - Primary


    Try to replace
    GetUnitState
    with
    GetWidgetLife


    The filter function
    GroupCon
    can be made into a customizable function like this:

    Code (vJASS):

    //---Conditions for units when we add them to cube (unit must be alive, not building, not in other cube and an enemy of caster)---
    function GroupCon takes unit u returns boolean
        return            (GetWidgetLife(u) >= 0.405) /*
                   */
    and (not IsUnitType(u, UNIT_TYPE_STRUCTURE)) /*
                   */
    and (not IsUnitInGroup(u, udg_StunGroup)) /*
                   */
    and (IsUnitEnemy(u, GetOwningPlayer(udg_Caster[udg_N])))
    endfunction



    Add more customizable fields, such as the model art of the stun, and model art of the lightning ball.
    I can see a lot of room for improvement of the spell, such as added customizability, and optimizable functions.

    For now, this shall be Awaiting Update

  12. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    Thank You for the review, I will try to fix all those things)

  13. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    I have reworked all those things)

  14. Phantawalker

    Phantawalker

    Joined:
    Jan 7, 2019
    Messages:
    19
    Resources:
    1
    Maps:
    1
    Resources:
    1
    Updated with:

    BlzPauseUnitEx

    No more dummies and stun abilities needed.

  15. MyPad

    MyPad

    Spell Reviewer

    Joined:
    May 9, 2014
    Messages:
    1,243
    Resources:
    5
    Models:
    1
    Icons:
    1
    Spells:
    2
    JASS:
    1
    Resources:
    5
    Imprisoning your enemies in a cage not good enough for you? Then do it with style.. lightning style
    Guaranteed to halt your enemies in fear and awe, the lightning rods' connection release such energy that they uplift your enemies from the ground. For some reason, it doesn't do the same to your allies
    but what the heck?

    Notes:


    • Variable names are too generic. I suggest adding a prefix to them (like "StasisCube_") so as to prevent variable name collisions.

    • To reduce overhead, pass null as a filterfunc to the
      GroupEnumUnitsInRangeOfLoc
      parameter. Then, apply the filter function GroupCon within callback function StunTarget instead (from ForGroup call).
    • Modifying the Learn Ability Hotkey to Q would be welcome here, since attempting to learn the skill in-game via hotkey might take some time (trial and error).

    Suggestions:


    • I still find the allocation scheme quite perplexing (going on a cyclic queue scheme), though I find the maximum index of 100 quite restrictive. I suggest setting the maximum index to be
      JASS_MAX_ARRAY_SIZE - 1
      just for convention.
    • Why not map out the (timer) trigger handle
      udg_T
      to the specific index used to contain it? Using a hashtable at least for mapping the (timer) trigger handle will make search time in function CubeCast O(1) as opposed to O(n) in the current scheme of things. Moreover, making it a timer handle instead will reduce handle count, since there would be no need of an additional trigger, save for callback upon timer expiration.

    • Adding some eye candy on those who are currently affected by the Stasis Cube would be welcome.
    The points made in the Notes portion of the review are to be resolved in order to be approved. For now, this shall be set to Awaiting Update
