Shadow Trail System v1.1.1.7
- Author(s)
- Maker
- Size
- 83.72 KB
- Rating
- Downloads
- 521
- Created
- Feb 21, 2013
- Updated
- Feb 26, 2013
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
JASS:
/**********************************************************
*
* Shadow Trail System v 1.1.1.7 by Maker
*

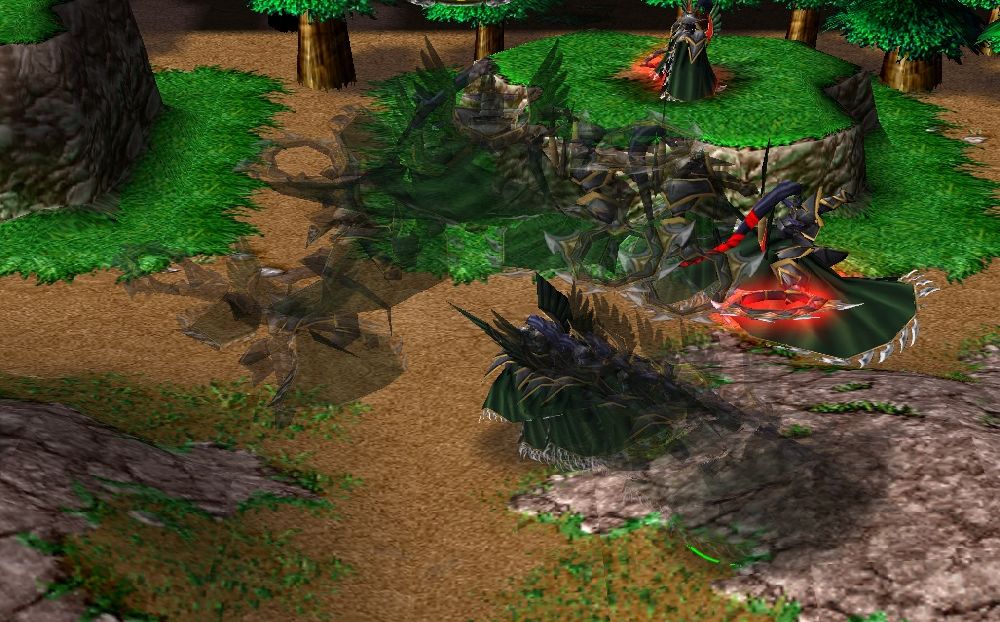

* Creates a trail of units behind the caster
*
* To use this system, copy this library,
* and then Table and CTL from Resources folder into your map.
*
* struct ShadowTrail
* static method add takes unit target, integer trailType, real duration returns thistype
* - target is the unit to attach the trail to
* - trailType, 0 = units are created repeatedly, 1 = uses the same units. Test which suits your spell better
* - duration is how long the trail lasts in seconds. 0 = lasts until the unit dies
*
* method setupMovingTrail takes integer count, real separation, real alphaFactor returns nothing
* - use this only if the trail type is 1, TRAIL_TYPE_MOTION
* - must be used if trail type is 1
* - count is how many units are in the trail. More units -> longer trail
* - separation is the distance between units.
* - alphaFactor is the transparency multiplier between units. The further away the trail unit is from the main unit,
* the more transparent it will be. Use values between 0 and 1.
*
* method setInterval takes real timee returns nothing
* - only affects trail type 0, TRAIL_TYPE_STATIC
* - must be used with trail type 0
* - timee is how often new units are created
*
* method setFadeRate takes real rate, boolean flatMode returns nothing
* - rate is how quickly the units fade out after the trail is terminated
* - flatMode == true, units fade at a constant rate. Transparency = transparency - rate. Try values around 10. Higher value, faster fading.
* - flatMode == false, units fade out at multiplicative rate. Transparency = transparency*(1-rate). Use values around 0.9. Lower value, faster fading-
*
* method setAnimationSpeed takes real r returns nothing
* - how quickly the animations of the trail units are played. Default value is 1.
*
* method setAnimationIndex takes integer k returns nothing
* - what animation index the trail units play
*
* method setColor takes integer red, integer grn, integer blu, integer alpha returns nothing
* - sets the colouring of the trail units. Use values between 0 and 255.
* - if alpha is 0, the unit is completely transparent, 255 means it is fully visible
*
* method setEffect takes string model, string attachPoint, boolean attachToShadows returns nothing
* - attaches a special effect to the trail units and the main unit
* - model = the path of a effect to attach
* - attachPoint is the attachment point
* - attachToShadows, if set to true will attach the effect to the trail units and the main unit, if
* set to false then the effect is only attached to the main unit
*
* method remove takes nothing returns nothing
* - destroys/removes/ends the trail
* - you can use this to remove the trail before the duration ends.
* - trails are automatically detroyed when the duration ends so there is no need to use this
*
* method setPlayerColor takes playercolor pColor returns nothing
* - Sets the player color of the dummy units
*
*
* Examples
*
* / --------- Moving Shadow Trail ----------
* local ShadowTrail ST = ShadowTrail.add(GetTriggerUnit(), TRAIL_TYPE_MOTION, 8) // Lasts 8 seconds
* call ST.setupMovingTrail(5, 20, 0.85) // This method affects only trail type 1, must use
* call ST.setAnimationIndex(2) // Recommended to set
* call ST.setFadeRate(10, true) // Optional method call, recommended
* call ST.setAnimationSpeed(1.0) // Optional method call
* call ST.setColor(200, 200, 200, 200) // Optional method call
* call ST.setEffect(EFF, "chest", false) // Optional, EFF = variable holding the model path
*
* ---------------------------------------- /
*
*
* /--------- Static Shadow Trail ----------
* local ShadowTrail ST = ShadowTrail.add(GetTriggerUnit(), TRAIL_TYPE_STAITC, 8) // Lasts 8 seconds
* call ST.setInterval(0.06250) // This method affects only trail type 0, must use
* call ST.setAnimationIndex(6) // Recommended to set
* call ST.setFadeRate(7, true) // Optional method call, recommended
* call ST.setAnimationSpeed(1.0) // Optional method call
* call ST.setColor(200, 200, 200, 200) // Optional method call
* call ST.setEffect(EFF, "chest", false) // Optional, EFF = variable holding the model path
* ----------------------------------------/
*
*
* Credits
* Bribe : Table
* Nestharus : CTL
*
***********************************************************/
library ShadowTrail requires Table, CTL
globals
// Does it use the team color of the owner of the main unit
private constant boolean COLOUR_OWNER = true
// Default player colour for shadows, used if COLOUR_OWNER is false
private constant playercolor PCOL = GetPlayerColor(Player(15))
// Dummies are created here and then isntantly placed at the hero's position
private constant real CREATE_X = 0
private constant real CREATE_Y = 0
constant integer TRAIL_TYPE_STATIC = 0
constant integer TRAIL_TYPE_MOTION = 1
// The image to use as shadows for the dummies. No need to change this as the image will be hidden
private constant string SHADOWPATH = "Textures\\white.blp"
private Table tab
private integer dc = 0 // Dummy count
private unit u
endglobals
// Credit to Deaod, edited by Maker
private function CreateUnitWithoutShadow takes player owner, integer uid, real facing, string shadowfile returns unit
local image i = CreateImage(shadowfile, 1, 1, 0, 0, 0, 0, 1, 1, 0, 3) // creates a dummy image
if GetHandleId(i) == -1 then // if the new shadow is invalid, abort, it can screw up the game
debug call BJDebugMsg("CreateUnitWithShadow: Invalid path for new shadow!") // it could also be caused by an imageType of 0, but thats a less common cause
return null // since the image is invalid, we dont need to destroy it
endif
call DestroyImage(i) // destroy the dummy.
set u = CreateUnit(owner, uid, CREATE_X, CREATE_Y, facing) // create the unit. this also creates a new image which functions as the shadow of the unit. The shadow will use the ID of the dummy image.
call DestroyImage(i) // destroy the shadow of the unit
call CreateImage(shadowfile, 1, 1, 0, 0, 0, 0, 1, 1, 0, 3) // this creates the new shadow for the unit, note that i dont need to overwrite "i" as the id this image will get is predictable
call SetImageRenderAlways(i, false) // Hides the shadow
call SetImageColor(i, 0, 0, 0, 0) // Makes the shadow invisible
// no need to null "i", as images dont use ref-counting
return u
endfunction
// Fades out units over time
private struct Alpha extends array
private static unit array u // The unit
private static unit array hero // The hero
private static integer array aMax // Maximum alpha value
private static integer array a // Current alpha value
private static integer array r // Red
private static integer array g // Green
private static integer array b // Blue
private static integer array rf // Flat alpha rate
private static real array rs // Multiplicative alpha rate
private static boolean array bl // Is fading flat
private static boolean array rem // Is the unit removed in the end
private static boolean array sync // Prevents overlapping fade in and fade out
private static effect array e // Effect
implement CTLExpire
if tab.boolean[GetHandleId(u[this])] == sync[this] then
if bl[this] then
set a[this] = a[this] + rf[this]
else
set a[this] = R2I(a[this] +rs[this]*50 + (aMax[this] - a[this]) * rs[this])
endif
if a[this] > 0 and a[this] < aMax[this] then
if IsUnitInvisible(hero[this], GetLocalPlayer()) then
call SetUnitVertexColor(u[this], r[this], g[this], b[this], 0)
else
call SetUnitVertexColor(u[this], r[this], g[this], b[this], a[this])
endif
else
if rem[this] then
if e[this] != null then
call DestroyEffect(e[this])
set e[this] = null
endif
call RemoveUnit(u[this])
set dc = dc - 1
if dc == 0 then
call tab.flush()
endif
elseif a[this] <= 0 then
call SetUnitVertexColor(u[this], r[this], g[this], b[this], 0)
call ShowUnit(u[this], false)
else
if IsUnitInvisible(hero[this], GetLocalPlayer()) then
call SetUnitVertexColor(u[this], r[this], g[this], b[this], 0)
else
call SetUnitVertexColor(u[this], r[this], g[this], b[this], aMax[this])
endif
endif
set e[this] = null
set u[this] = null
set hero[this] = null
call destroy()
endif
else
set e[this] = null
set u[this] = null
set hero[this] = null
call destroy()
endif
implement CTLEnd
static method start takes unit un, unit caster, integer rate1, real rate2, integer maxAlpha, integer red, integer grn, integer blu, integer alpha, boolean flatFade, boolean remove, boolean synch, effect eff returns nothing
local thistype this = create()
set u[this] = un
set hero[this] = caster
set a[this] = alpha
set aMax[this] = maxAlpha
set r[this] = red
set g[this] = grn
set b[this] = blu
set rf[this] = rate1
set rs[this] = rate2
set bl[this] = flatFade
set rem[this] = remove
set sync[this] = synch
set e[this] = eff
endmethod
endstruct
struct ShadowTrail extends array
private static unit array main // The unit with the trail
private static real array dur // How long the trail lasts
private static real array xm // X of main during the previous loop
private static real array ym // Y of main during the previous loop
private static real array ts // Animation speed, time scale
private static real array fd // follow distance
private static real array fp // How quickly the shadow fades, multiplicative
private static real array time // Calculates the interval time
private static real array interval // How often a new shadow is created
private static real array af // Alpha factor between moving shadows
private static real array d // Distance between moving shadows
private static integer array tc // Number of moving shadows
private static integer array fr // How quickly the shadow fades, flat
private static integer array r // Red of shadows
private static integer array g // Green of shadows
private static integer array b // Blue of shadows
private static integer array a // Transparency of shadows
private static integer array uid // Unit type if of shadows
private static integer array anim // Animation index to play for the shadows
private static integer array id // Shadow Trail type
private static string array eff // Special effect on copies
private static string array att // Special effect attach point
private static boolean array bo1 // True = flat fading time, false = multiplicative fading time
private static boolean array bo2 // Is the specified effect created on dummies also
private static boolean array h // Are moving trail units hidden
private static boolean array perm // Is the trail permanent
private static Table array ta // For shadow copy units
private static Table array tb // For shadow copy effects
private static playercolor array pc // Player colour of the shadows
implement CTL
local real x
local real y
local real an
local real f
local unit u
local unit s
local effect e = null // Passing unitialized variable to Alpha.start causes problems, null is good.
local integer i
local integer j
implement CTLExpire
if not IsUnitType(main[this], UNIT_TYPE_DEAD) and (dur[this] >= 0 or perm[this]) and GetUnitTypeId(main[this]) != 0 then
if not perm[this] then
set dur[this] = dur[this] - 0.031250
endif
set x = GetUnitX(main[this])
set y = GetUnitY(main[this])
if x != xm[this] or y != ym[this] then
if id[this] == TRAIL_TYPE_STATIC then // Is moving, static trail
set time[this] = time[this] + 0.031250
if time[this] >= interval[this] then
set u = CreateUnitWithoutShadow(Player(15), uid[this], GetUnitFacing(main[this]), SHADOWPATH)
set dc = dc + 1
call SetUnitTurnSpeed(u, 1000)
call UnitAddAbility(u, 'Arav')
call UnitAddAbility(u, 'Aloc')
call PauseUnit(u, true)
call SetUnitUseFood(u, false)
call SetUnitX(u, x)
call SetUnitY(u, y)
call SetUnitTimeScale(u, ts[this])
call SetUnitColor(u, pc[this])
call SetUnitVertexColor(u, r[this], g[this], b[this], 0)
call SetUnitAnimationByIndex(u, anim[this])
call SetUnitFlyHeight(u, GetUnitFlyHeight(main[this]), 0)
if bo2[this] then
set e = AddSpecialEffectTarget(eff[this], u, att[this])
endif
set tab.boolean[GetHandleId(u)] = false
call Alpha.start(u, main[this], -fr[this], -fp[this], 255, r[this], g[this], b[this], a[this], bo1[this], true, false, e)
set time[this] = 0
set u = null
set e = null
endif
else // Is moving, moving trail (type 1)
set i = tc[this]
loop
exitwhen i == 0
set s = ta[this].unit[i]
set u = ta[this].unit[i-1]
set f = GetUnitFacing(u)
set an = (f+180)*bj_DEGTORAD
if IsUnitHidden(s) then // If units are hidden, they should be set to visible
set tab.boolean[GetHandleId(s)] = true
call Alpha.start(s, main[this], fr[this], fp[this], R2I(a[this]*Pow(af[this], i-1)), r[this], g[this], b[this], 0, bo1[this], false, true, e)
call ShowUnit(s, true)
call UnitRemoveAbility(s, 'Aloc') // Showing unit makes units with Locust selectable
call UnitAddAbility(s, 'Aloc') // Must apply Locust again
call SetUnitAnimationByIndex(s, anim[this])
endif
call SetUnitX(s, GetUnitX(u) + d[this] * Cos(an))
call SetUnitY(s, GetUnitY(u) + d[this] * Sin(an))
call SetUnitFacing(s, f)
call SetUnitFlyHeight(s, GetUnitFlyHeight(u), 0)
set i = i - 1
endloop
if h[this] then
set h[this] = false
endif
set s = null
set u = null
endif
elseif not h[this] and id[this] == TRAIL_TYPE_MOTION then // Is not moving, trail is visible, trail type 1
set i = tc[this]
loop
exitwhen i == 0
set j = R2I(a[this]*Pow(af[this], i-1))
set tab.boolean[GetHandleId(ta[this].unit[i])] = false
call Alpha.start(ta[this].unit[i], main[this], -fr[this], -fp[this], j, r[this], g[this], b[this], j, bo1[this], false, false, null)
set i = i - 1
endloop
set h[this] = true
endif
set xm[this] = x
set ym[this] = y
else
set i = tc[this]
loop
exitwhen i == 0
if tb[this].effect[i] != null then
call DestroyEffect(tb[this].effect[i])
endif
set j = R2I(a[this]*Pow(af[this], i-1)) - 1
set tab.boolean[GetHandleId(ta[this].unit[i])] = false
call Alpha.start(ta[this].unit[i], main[this], -fr[this], -fp[this], j, r[this], g[this], b[this], j, bo1[this], true, false, null)
set i = i - 1
endloop
if tb[this].effect[0] != null then
call DestroyEffect(tb[this].effect[0])
endif
set main[this] = null
call ta[this].flush()
call tb[this].flush()
call destroy()
endif
implement CTLEnd
method remove takes nothing returns nothing
set dur[this] = 0
set perm[this] = false
endmethod
method setEffect takes string model, string attachPoint, boolean attachToShadows returns nothing
local integer i = 1
set eff[this] = model
set att[this] = attachPoint
set bo2[this] = attachToShadows
if attachToShadows then
loop
exitwhen ta[this].unit[i] == null
if tb[this].effect[i] != null then
call DestroyEffect(tb[this].effect[i])
endif
set tb[this].effect[i] = AddSpecialEffectTarget(model, ta[this].unit[i], attachPoint)
set i = i + 1
endloop
endif
if tb[this].effect[i] != null then
call DestroyEffect(tb[this].effect[i])
endif
set tb[this].effect[0] = AddSpecialEffectTarget(model, main[this], attachPoint)
endmethod
method setPlayerColor takes playercolor pColor returns nothing
local integer i = 1
set pc[this] = pColor
loop
exitwhen ta[this].unit[i] == null
call SetUnitColor(ta[this].unit[i], pc[this])
set i = i + 1
endloop
endmethod
method setColor takes integer red, integer grn, integer blu, integer alpha returns nothing
local integer i = 1
set r[this] = red
set g[this] = grn
set b[this] = blu
set a[this] = alpha
loop
exitwhen ta[this].unit[i] == null
if id[this] == TRAIL_TYPE_STATIC or not h[this] then
call SetUnitVertexColor(ta[this].unit[i], red, grn, blu, R2I(a[this]*Pow(af[this], i-1)))
else
call SetUnitVertexColor(ta[this].unit[i], red, grn, blu, 0)
endif
set i = i + 1
endloop
endmethod
method setAnimationIndex takes integer k returns nothing
local integer i = 1
set anim[this] = k
loop
exitwhen ta[this].unit[i] == null
call SetUnitAnimationByIndex(ta[this].unit[i], k)
set i = i + 1
endloop
endmethod
method setAnimationSpeed takes real r returns nothing
local integer i = 1
set ts[this] = r
loop
exitwhen ta[this].unit[i] == null
call SetUnitTimeScale(ta[this].unit[i], r)
set i = i + 1
endloop
endmethod
method setFadeRate takes real rate, boolean flatMode returns nothing
if flatMode then
set fr[this] = R2I(rate)
else
set fp[this] = 1-rate
endif
set bo1[this] = flatMode
endmethod
method setInterval takes real timee returns nothing
set time[this] = 0
set interval[this] = timee
endmethod
method setupMovingTrail takes integer count, real separation, real alphaFactor returns nothing
local integer i
local unit u
local real x = GetUnitX(main[this])
local real y = GetUnitY(main[this])
local real f = GetUnitFacing(main[this])
if id[this] == TRAIL_TYPE_MOTION then
if count > 0 then
set d[this] = separation
set tc[this] = count
set h[this] = false
set af[this] = alphaFactor
set xm[this] = GetUnitX(main[this])
set ym[this] = GetUnitY(main[this])
set ta[this] = Table.create()
set i = 1
loop
set u = CreateUnitWithoutShadow(Player(15), uid[this], f, SHADOWPATH)
call ShowUnit(u, false)
call SetUnitVertexColor(u, r[this], g[this], b[this], 0)
set dc = dc + 1
call SetUnitColor(u, pc[this])
call UnitAddAbility(u, 'Arav')
call UnitAddAbility(u, 'Aloc')
call SetUnitUseFood(u, false)
call SetUnitX(u, x)
call SetUnitY(u, y)
call PauseUnit(u, true)
set ta[this].unit[i] = u
exitwhen i == count
set i = i + 1
endloop
set h[this] = true
set ta[this].unit[0] = main[this]
set u = null
else
debug call BJDebugMsg("Tried to use setupMovingTrail method with invalid dummy unit count. (Less than 1)")
endif
debug else
debug call BJDebugMsg("Tried to use setupMovingTrail method with instance that has a wrong shadow trail type.")
endif
endmethod
static method add takes unit target, integer trailType, real duration returns thistype
local thistype this = 0
if trailType == TRAIL_TYPE_MOTION or trailType == TRAIL_TYPE_STATIC then
set this = create()
set main[this] = target
set uid[this] = GetUnitTypeId(target)
set id[this] = trailType
set dur[this] = duration
set tc[this] = 0
set perm[this] = duration == 0
call this.setColor(255, 255, 255, 255)
call this.setAnimationIndex(0)
call this.setAnimationSpeed(1)
call this.setFadeRate(0, true)
call this.setFadeRate(0, false)
call this.setInterval(0.2)
call this.setEffect(null, null, false)
static if COLOUR_OWNER then
set pc[this] = GetPlayerColor(GetOwningPlayer(target))
else
set pc[this] = PCOL
endif
debug else
debug call BJDebugMsg("Invalid shadow trail type.")
endif
return this
endmethod
private static method onInit takes nothing returns nothing
set tab = Table.create()
endmethod
endstruct
endlibraryv1.0.0.0 @ 22.02.2013 - Uploaded v1.0.0.1 @ 22.02.2013 -Fixed a bug that caused permanent trails not be terminated with remove method. -Using setEffect method now destroys the old effect. v1.0.1.1 @ 23.02.2013 -Trail type 1 now fades out if the unit stops moving instead of instantly disappearing -Now correctly removes the trail if the main unit is removed from the game -Added global variables for trail types -Using setEffect method now destroys the old effect and applies a new one v1.0.1.2 @ 23.02.2013 -The dummies are now set to ignore their guard position so the AI won't try to move them if they go to far from where they were created v1.1.1.2 @ 23.02.2013 -Now doesn't require dummy units to be created in object editor -Users can configure the dummies to use the team colour of the owner of the main unit or alternatively neutral passive v1.1.1.3 @ 23.02.2013 -Removed the dummy unit id parameter from the add method since it is not needed anymore v1.1.1.4 @ 24.02.2013 -Various small code improvements v1.1.1.5 @ 25.02.2013 -Shadows now fade in and fade out more smoothly in motion trail type -Removed unnecessary code -Added setPlayerColor method which sets the player color of the dummies v1.1.1.6 @ 26.02.2013 -Units are now created at an offset location to avoid pathing issues v1.1.1.7 @ 27.02.2013 -The trail units are now invisible to players who can't see the main unit (due to invisibility ability) |
Keywords:
shadow trail system maker
Contents
Reviews
- Joined
- Jul 6, 2009
- Messages
- 889
Always liked these things.
Hmm, what do you know? I have to spread rep before giving you some. I really don't visit this site often o_o
Hmm, what do you know? I have to spread rep before giving you some. I really don't visit this site often o_o
- Joined
- Aug 7, 2009
- Messages
- 380
Hmm.. interesting
But i have a question
could this cause some lags?
And.. While the unit's trail is being created, could we change the trail in the middle of it (using different model or different animation,colors,..etc)?
But i have a question
could this cause some lags?
And.. While the unit's trail is being created, could we change the trail in the middle of it (using different model or different animation,colors,..etc)?
- Joined
- Apr 24, 2012
- Messages
- 5,113
You have been extracting some brain juices now huh
The fading is a bit not smooth,or perhaps its just me
anyways, I LIKED IT
edit
Because of that,I have some dilemmas forming if im going to make footprint system or just ignore it
edit edit
Map name is wrong
The fading is a bit not smooth,or perhaps its just me
anyways, I LIKED IT
edit
Because of that,I have some dilemmas forming if im going to make footprint system or just ignore it
edit edit
Map name is wrong
Last edited:
- Joined
- Dec 19, 2009
- Messages
- 226
When a pro making a spell...
- Joined
- Mar 6, 2006
- Messages
- 9,243
Update
v1.0.0.1 @ 22.02.2013
-Fixed a bug that caused permanent trails not be terminated with remove method.
-Using setEffect method now destroys the old effect.
I had 6 units running with the trail and saw no FPS drop at all.
You can change the colour and animation on the fly, but if you have to change the model then destroy the existing trail and create another.
Did you test the map or only look at the video? The video is only 30 FPS.
You can configure the fading speed with setFadeRate method and you can configure the number of trail units/how often they spawn, how far away they are from the caster and each other, and how transparent they initially are. All these affect the fading effect.
v1.0.0.1 @ 22.02.2013
-Fixed a bug that caused permanent trails not be terminated with remove method.
-Using setEffect method now destroys the old effect.
I had 6 units running with the trail and saw no FPS drop at all.
You can change the colour and animation on the fly, but if you have to change the model then destroy the existing trail and create another.
Did you test the map or only look at the video? The video is only 30 FPS.
You can configure the fading speed with setFadeRate method and you can configure the number of trail units/how often they spawn, how far away they are from the caster and each other, and how transparent they initially are. All these affect the fading effect.
- Joined
- Jul 6, 2009
- Messages
- 889
Recompile the map, you've got vJass still in the script so it doesn't run.
• It looks odd when you suddenly stop moving with a 'moving trail' and your trails instantly become invisible. Especially when turning. It'd look better to fade it out over a small duration or have the trail approach back in to the source.
• You can't configure the playercolor of the units in the trail?
• I might have missed it since I can't stand to read code using CTL, but it doesn't seem to check for when a unit is removed (unit type id == 0).
• I reckon you should set those
• You could probably assign the shadow trail types to constant keys such as TRAIL_TYPE_STATIC or TRAIL_TYPE_MOTION.
• Typo in this part with 'time':
• Out of curiosity, how do you spell colour/color where you are from? I spell it as 'colour' but I usually just name things 'color' in public codes.
• I think 'attachToShadows' or 'attachToTrail' would probably be more descriptive than 'toShadows'
• I don't think you really need SAFE_X or SAFE_Y options, you can just hide the units and store them anywhere really.
• Perhaps allow the option of which player the units are created for.
• Also allow modifying the unit trail so you can apply things to them. For example, adding abilities or effects. You could then not have to use dummy units for hero trails. You can create trails using the hero id under a neutral player and just add 'Aloc'. But that would look weird with the shadows on the units. Just an idea.
Although I'm not sure whether doing something like is going a bit too far on such a system like this whose purpose is quite basic.
• It looks odd when you suddenly stop moving with a 'moving trail' and your trails instantly become invisible. Especially when turning. It'd look better to fade it out over a small duration or have the trail approach back in to the source.
• You can't configure the playercolor of the units in the trail?
• I might have missed it since I can't stand to read code using CTL, but it doesn't seem to check for when a unit is removed (unit type id == 0).
• I reckon you should set those
BJDebugMsg calls to show when debug mode is on only.• You could probably assign the shadow trail types to constant keys such as TRAIL_TYPE_STATIC or TRAIL_TYPE_MOTION.
• Typo in this part with 'time':
JASS:
.
* method setInterval takes real timee returns nothing
* - only affects trail type 0
* - must be used with trail type 0
* - timee is how often new units are created
JASS:
.
* method setColor takes integer red, integer grn, integer blu, integer alpha returns nothing
* - sets the colouring of the trail units. Use values between 0 and 255.method setEffect takes string model, string attachPoint, boolean toShadows returns nothing• I don't think you really need SAFE_X or SAFE_Y options, you can just hide the units and store them anywhere really.
• Perhaps allow the option of which player the units are created for.
• Also allow modifying the unit trail so you can apply things to them. For example, adding abilities or effects. You could then not have to use dummy units for hero trails. You can create trails using the hero id under a neutral player and just add 'Aloc'. But that would look weird with the shadows on the units. Just an idea.
Although I'm not sure whether doing something like is going a bit too far on such a system like this whose purpose is quite basic.
Last edited:
- Joined
- Mar 6, 2006
- Messages
- 9,243
Re-uploaded the v1.0.0.1.
- Joined
- Jul 6, 2009
- Messages
- 889
Sorry, I have a habit of editing things after I post. I posted my comments in the above post.
- Joined
- Mar 6, 2006
- Messages
- 9,243
Update
v1.0.1.1
-Trail type 1 now fades out if the unit stops moving instead of instantly disappearing
-Now correctly removes the trail if the main unit is removed from the game
-Added global variables for trail types
-Using setEffect method now destroys the old effect and applies a new one
It now fades out.
No. I set it to default to neutral passive. I might add something so it is configurable.
You are correct, UNIT_TYPE_DEAD doesn't cover a situation where the unit is removed from the map. Added unit type id check.
I did have them but they were taken away at some point. Added them back.
Good idea, added.
Not a typo, there's a struct member called time set in the method, I used timee in the parameter to circumvent overlapping names.
I live in Finland and have been schooled by teachers who taught British English.
Yeah, changed.
Actually hiding/unhiding makes units with locust selectable. That is why I tried to avoid those, and used safe coordinates. But I just realized that I can always add Locust again. I got rid of safe coordinates.
Maybe, but not for now.
I want to avoid having shadows on units. But I know a way to create units without shadows. Hmm, going to test a bit.
Also if the units are created for neutral passive then they will start to run back at the point they were created at after 10 seconds, I'll try to get around that.
v1.0.1.1
-Trail type 1 now fades out if the unit stops moving instead of instantly disappearing
-Now correctly removes the trail if the main unit is removed from the game
-Added global variables for trail types
-Using setEffect method now destroys the old effect and applies a new one
It now fades out.
No. I set it to default to neutral passive. I might add something so it is configurable.
You are correct, UNIT_TYPE_DEAD doesn't cover a situation where the unit is removed from the map. Added unit type id check.
I did have them but they were taken away at some point. Added them back.
Good idea, added.
Not a typo, there's a struct member called time set in the method, I used timee in the parameter to circumvent overlapping names.
I live in Finland and have been schooled by teachers who taught British English.
Yeah, changed.
Actually hiding/unhiding makes units with locust selectable. That is why I tried to avoid those, and used safe coordinates. But I just realized that I can always add Locust again. I got rid of safe coordinates.
Maybe, but not for now.
I want to avoid having shadows on units. But I know a way to create units without shadows. Hmm, going to test a bit.
Also if the units are created for neutral passive then they will start to run back at the point they were created at after 10 seconds, I'll try to get around that.
- Joined
- Mar 15, 2012
- Messages
- 2,878
- Joined
- Jul 6, 2009
- Messages
- 889
Try again with the latest JassHelper.
Fair enough.
Then I think perhaps it'd be for the better to use safe coordinates. Or perhaps set the scaling to 0. Apparently hiding/unhiding/adding locust would be costly compared to simply SetUnitX/Y.
Can you pause them so they don't?
- Joined
- Mar 6, 2006
- Messages
- 9,243
@Dat-C3
Did you try saving my map, did that work? Is the problem only in the map you imported the system to?
Did you copy CTL and Table libraries?
Did you try saving my map, did that work? Is the problem only in the map you imported the system to?
Did you copy CTL and Table libraries?
- Joined
- Mar 15, 2012
- Messages
- 2,878
Oh hey I can't save your map either... Hm...
I also dont know how to replace the jasshelper... feel so useless.
I also dont know how to replace the jasshelper... feel so useless.
- Joined
- Mar 6, 2006
- Messages
- 9,243
- Joined
- Mar 15, 2012
- Messages
- 2,878
Thank you.
- Joined
- Mar 6, 2006
- Messages
- 9,243
v1.0.1.2 @ 23.02.2013
-The dummies are now set to ignore their guard position so the AI won't try to move them if they go to far from where they were created
The dummies are now created for neutral passive. I tried creating them with GetUnitTypeId(caster) but then they are still considered as obstacles even with locust and collision turned off. So a dummy unit type is needed.
-The dummies are now set to ignore their guard position so the AI won't try to move them if they go to far from where they were created
RemoveGuardPosition did the trick.The dummies are now created for neutral passive. I tried creating them with GetUnitTypeId(caster) but then they are still considered as obstacles even with locust and collision turned off. So a dummy unit type is needed.
- Joined
- Jul 6, 2009
- Messages
- 889
How about ghost (visible)?
- Joined
- Mar 6, 2006
- Messages
- 9,243
v1.1.1.2 @ 23.02.2013
-Now doesn't require dummy units to be created in object editor
-Users can configure the dummies to use the team colour of the owner of the main unit or alternatively neutral passive
I was an idiot. When creating a unit based on the unit type id of the main unit, pathing is checked. Only after that Locust is added. The solution is to set the x and y of the unit after adding Locust.
I also managed to make the shadows of the dummies not to show. Ignoring guard point doesn't work for heroes, so I pause the dummy instead. It will still play animations correctly.
No need to create extra dummy units now in object editor, which is great.
Now the only issue is the extra foot prints created by the dummies, but I can live with that.
-Now doesn't require dummy units to be created in object editor
-Users can configure the dummies to use the team colour of the owner of the main unit or alternatively neutral passive
I was an idiot. When creating a unit based on the unit type id of the main unit, pathing is checked. Only after that Locust is added. The solution is to set the x and y of the unit after adding Locust.
I also managed to make the shadows of the dummies not to show. Ignoring guard point doesn't work for heroes, so I pause the dummy instead. It will still play animations correctly.
No need to create extra dummy units now in object editor, which is great.
Now the only issue is the extra foot prints created by the dummies, but I can live with that.
- Joined
- Jul 6, 2009
- Messages
- 889
Wow. That's pretty cool. I knew you could somehow access shadows and missiles with JASS, but didn't know exact details.
- Joined
- Mar 6, 2006
- Messages
- 9,243
v1.1.1.3 @ 23.02.2013
-Removed the dummy unit id parameter from the add method since it is not needed anymore
-v1.1.1.4 @ 24.02.2013
-Various small code improvements
-Removed the dummy unit id parameter from the add method since it is not needed anymore
-v1.1.1.4 @ 24.02.2013
-Various small code improvements
Last edited:
- Joined
- Jul 6, 2009
- Messages
- 889
It looks odd when the moving trail is faded out from the set alpha value instead of the alpha value they're currently at.
Also, your map needs to be recompiled and reuploaded (again).
Also, your map needs to be recompiled and reuploaded (again).
- Joined
- Mar 6, 2006
- Messages
- 9,243
v1.1.1.5 @ 25.02.2013
-Shadows now fade in and fade out more smoothly in motion trail type
-Removed unnecessary code
-Added setPlayerColor method which sets the player color of the dummies
Thanks, should be fixed now, both issues.
-Shadows now fade in and fade out more smoothly in motion trail type
-Removed unnecessary code
-Added setPlayerColor method which sets the player color of the dummies
Thanks, should be fixed now, both issues.
- Joined
- Mar 6, 2006
- Messages
- 9,243
Set the duration parameter to 0:
set ST = ShadowTrail.add(targetUnit, TRAIL_TYPE_STATIC, 0)Being transported makes the trail to not show up so no issues there. Teleporting causes no issues either.
This got me to realize that the trail will reveal the location of hidden units. I'll do something about that.
- Joined
- Jul 6, 2009
- Messages
- 889
Looks good now except for one more thing which I'm not sure is a result of the shadow trail system or the jump system. Using jump seems to screw up the unit pathing calculation. If you use jump and make a 180 degree turn (so move behind you) the unit will do a little circular turn. The normal case is that the unit will simply turn on the spot and move.
- Joined
- Mar 6, 2006
- Messages
- 9,243
That is due to the units created not having locust when they are created. The solution is to create them at some other location, add locust and then instantly move to where they should be. Thanks for reporting, I might not have noticed that myself.
Updated.
- Joined
- Jul 6, 2009
- Messages
- 889
Adding the links should be the last thing (hopefully) that I have to say about this. I post them here for your convenience.
CTL
Table
[URL="http://www.hiveworkshop.com/forums/jass-resources-412/snippet-constant-timer-loop-32-a-201381/"]CTL[/URL]
[URL="http://www.hiveworkshop.com/forums/jass-resources-412/snippet-new-table-188084/"]Table[/URL]
http://www.hiveworkshop.com/forums/jass-resources-412/snippet-constant-timer-loop-32-a-201381
http://www.hiveworkshop.com/forums/jass-resources-412/snippet-new-table-188084/
CTL
Table
[URL="http://www.hiveworkshop.com/forums/jass-resources-412/snippet-constant-timer-loop-32-a-201381/"]CTL[/URL]
[URL="http://www.hiveworkshop.com/forums/jass-resources-412/snippet-new-table-188084/"]Table[/URL]
http://www.hiveworkshop.com/forums/jass-resources-412/snippet-constant-timer-loop-32-a-201381
http://www.hiveworkshop.com/forums/jass-resources-412/snippet-new-table-188084/
- Joined
- Mar 6, 2006
- Messages
- 9,243
v1.1.1.7 @ 27.02.2013
-The trail units are now invisible to players who can't see the main unit (due to invisibility ability)
I achieved this with
Sadly units with Locust and Ghost ability won't be revealed by detectors. The trail units still leave footprints in any case.
-The trail units are now invisible to players who can't see the main unit (due to invisibility ability)
I achieved this with
JASS:
if IsUnitInvisible(hero[this], GetLocalPlayer()) then
call SetUnitVertexColor(u[this], r[this], g[this], b[this], 0)
else
call SetUnitVertexColor(u[this], r[this], g[this], b[this], a[this])
endifSadly units with Locust and Ghost ability won't be revealed by detectors. The trail units still leave footprints in any case.
- Joined
- Oct 16, 2008
- Messages
- 10,454
ooh, shadows... this is really cool and useful...
- Joined
- Mar 23, 2008
- Messages
- 1,214
If possible you should remove the footprints from the trail units in any case
- Joined
- Mar 6, 2006
- Messages
- 9,243
If possible you should remove the footprints from the trail units in any case
It is a bit problematic. Adding Ghost ability removes footprints, but then other players can't see the trail units. I could use a dummy unit type in object editor, but I don't want to
- Joined
- Jul 15, 2012
- Messages
- 194
Maker u are EPIC im so using this on my map u are doing things what i thought they are IMPOSSIBLE
- Joined
- Jun 13, 2010
- Messages
- 43
Footprints are created by the model itself . either you uses a dummy which its not relevant with this system or you just remove the sfx animation from magos.
Owner
- Joined
- Oct 6, 2004
- Messages
- 10,183
Maker! I found a leak. Not a very important one, but I have to test my leak finder on something.
Never mind. This is just your example code...
Trigger: Map Initialization
Line:
GetRectCenter and PolarProjectionBJ leak
Never mind. This is just your example code...
Trigger: Map Initialization
Line:
call CreateNUnitsAtLocFacingLocBJ( 1, 'hfoo', Player(1), PolarProjectionBJ(GetRectCenter(gg_rct_R__gion_000), 500.00, udg_Angle), GetRectCenter(gg_rct_R__gion_000) )GetRectCenter and PolarProjectionBJ leak
- Joined
- Apr 19, 2013
- Messages
- 86
Hey Maker,
Quick question about this cool system. My model has special effects attached, say armor, helm and weapons, ect. These obviously are not part of the original model file. Can you provide a method of linking any special effects via external triggers to the dummy trail units?
Maybe a hashtable?
thanks
Quick question about this cool system. My model has special effects attached, say armor, helm and weapons, ect. These obviously are not part of the original model file. Can you provide a method of linking any special effects via external triggers to the dummy trail units?
Maybe a hashtable?
thanks
- Joined
- Mar 6, 2006
- Messages
- 9,243
Luckily there already is the seEffect method, that allows to attach effecs to the trail units. Unfortunately currently you can only create one effect on them, and the effect is created on the main hero also. But with some modifications, it could work like you want to. I'll see if I have the ime and motivation to make this change.
- Joined
- Apr 19, 2013
- Messages
- 86
Oh I see, well that's good to know.
No pressure man, whatever you have time for, you've already done so much for this place.
No pressure man, whatever you have time for, you've already done so much for this place.
- Joined
- Mar 6, 2006
- Messages
- 9,243
Look at the examples in the documentation part. Change
You should also destroy the trail when the unit dies (if it will not be revived) or is removed from the map. You can store the trail as an integer.
GetTriggerUnit to GetTrainedUnitYou should also destroy the trail when the unit dies (if it will not be revived) or is removed from the map. You can store the trail as an integer.
- Joined
- Mar 6, 2006
- Messages
- 9,243
|
- Joined
- Nov 24, 2013
- Messages
- 24
What an awesome spell you got there, but I completely don't understand how it works, I'm kind of noob in triggering, but I want this one so much, can you make it in GUI...? I'll really appreciate it...
- Joined
- Mar 6, 2006
- Messages
- 9,243
I'm sorry but I will not be making this in GUI.
- Joined
- Mar 6, 2006
- Messages
- 9,243
You can PM me the trigger you are using.
- Joined
- Jul 4, 2016
- Messages
- 628
Is there a way to make this apply also when your attacking rather just moving or is that impossible?
