library IcyShards requires optional DummyCaster, TreeDestruction, Preload
//---------------------------------------------------------------
// Icy Shards v1.1
// Author: Blightsower
//

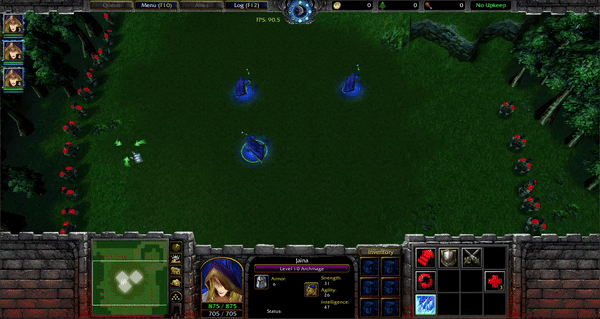

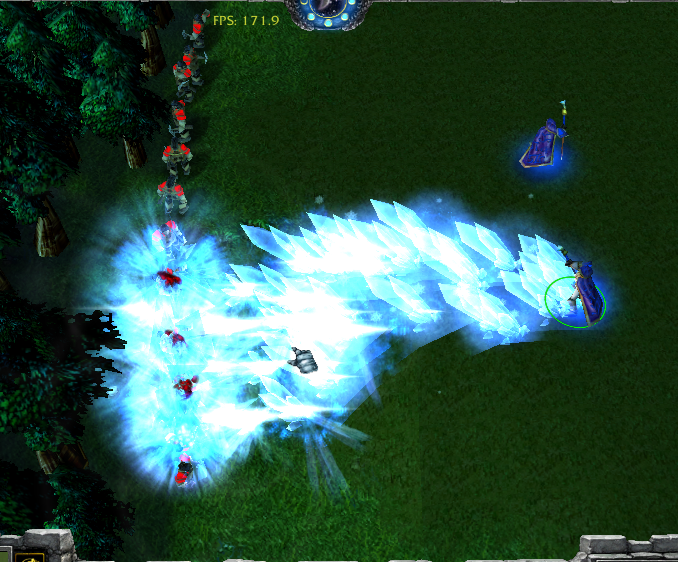

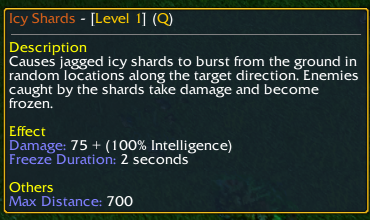

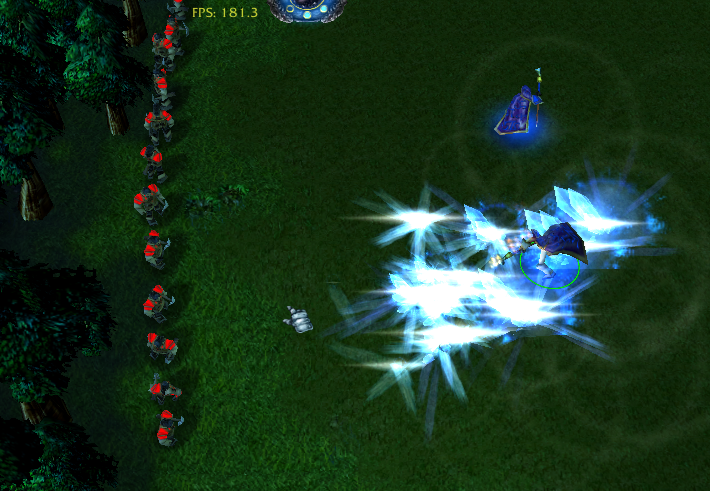

// Description - Causes jagged icy shards to burst from the ground in random
// locations along the target direction. Enemies caught by the shards take damage
// and become frozen.
//---------------------------------------------------------------
// Requirements:
// * Enable JassHelper
//
// How to enable JassHelper
// * In the Trigger Editor window, look for the menu labeled JassHelper
// and click Enable JassHelper
//-------------------------------------------------------------------------
// How to Import:
// 1. Copy and paste the objects from this map to your map namely:
// * Icy Shards
// * Icy Shards - (Freeze)
// * DummyCaster
// 2. Also export the imported models by opening the Asset Manager (F12)
// * Import the dummy.mdx to your map
// * Import the Ice Shard.mdx to your map
// 3. Copy and paste the Icy Shards Category into your map
// 4. Configure the spell so that everything points to the correct
// variables. Additional information about the variables are
// provided for clarity.
//-------------------------------------------------------------------------
// Note:
// This spell includes some optional libraries to handle tree destruction, dummy casting
// and preloading. The spell is arranged so that you can easily get rid of those libraries without
// going into the code. You might want to get rid of those libraries if you already have a system
// that handles those functionalities or you just feel like writing your own. Should you choose to keep
// the libraries, there are a few things that you need to configure to fit your needs. Check the libraries
// individually to have the variables point to the correct objects.
//
// How to remove optional libraries:
// To remove DummyCaster:
// Remove DummyCaster from the requires and delete whats inside the onDummyCast function found
// at the bottom of configurables. Delete DummyCaster script
// To remove TreeDestruction:
// Remove TreeDestrcution from the requires and delete whats inside the onDestroyTree
// function found at the bottom of configurables. Delete TreeDestruction script
// To remove Preload:
// Remove Preload from the requires and delete whats inside the onPreload function found
// at the bottom of configurables. Delete Preload script
//-------------------------------------------------------------------------
// Credits:
// Vexorian - dummy.mdx
// Vinz - Ice Shard.mdx
//-------------------------------------------------------------------------
//-------------------------------------------------------------------------
// CONFIGURABLES
//-------------------------------------------------------------------------
globals
private constant real TIMER_SPEED = 0.03
endglobals
native UnitAlive takes unit id returns boolean
private module IcyShardsConfiguration
static constant integer ABILITY_ID = 'A000'
//-------------------------------------------------------------
// DAMAGE
// Hint:
// 1.0 = 100% of the attribute
//-------------------------------------------------------------
static constant attacktype ATTACK_TYPE = ATTACK_TYPE_NORMAL
static constant damagetype DAMAGE_TYPE = DAMAGE_TYPE_NORMAL
static constant weapontype WEAPON_TYPE = null

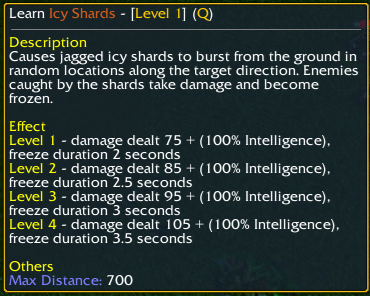

static method GET_ABSOLUTE_DAMAGE takes integer level returns real
return 65. + (10*level)
endmethod
static method GET_STRENGTH_DAMAGE takes integer level returns real
return 0.
endmethod
static method GET_AGILITY_DAMAGE takes integer level returns real
return 0.
endmethod
static method GET_INTELLIGENCE_DAMAGE takes integer level returns real
return 1.
endmethod
static method GET_DAMAGE_AOE takes integer level returns real
return 150.
endmethod
//-------------------------------------------------------------
// BEHAVIOR
//-------------------------------------------------------------
// Shard model and its behaviors
static constant string SHARD_MODEL = "war3mapImported\\Ice Shard.mdl"
// Shard model pitch angle
static constant real SHARD_PITCH_ANGLE = 400. * bj_DEGTORAD
// Shard model duration before it disappears
static constant real SHARD_DURATION = 2.
static method GET_SHARD_MODEL_SIZE takes integer level returns real
return 1.
endmethod
// The duration before the shard reaches maximum distance
static method GET_SHARD_MOVEMENT_SPEED_DURATION takes integer level returns real
return 1.
endmethod
// Model used when the shard spawns
static constant string BIRTH_MODEL = "Abilities\\Spells\\Other\\FrostBolt\\FrostBoltMissile.mdl"
static method GET_BIRTH_MODEL_SIZE takes integer level returns real
return 1.75
endmethod
// Max distance of the spell
static method GET_MAX_DISTANCE takes integer level returns real
return 700.
endmethod
// Determines the girth of the spell
static method GET_SPREAD_AOE takes integer level returns real
return 100.
endmethod
// HIT MODEL
static constant string HIT_MODEL = "Abilities\\Spells\\Undead\\FrostNova\\FrostNovaTarget.mdl"
static constant string HIT_ATTACHMENT = "origin"
static method GET_HIT_MODEL_SIZE takes integer level returns real
return 1.
endmethod
// How far will the shards appear in front of the caster
static method GET_SHARD_CAST_OFFSET takes integer level returns real
return 75.
endmethod
// How often shards are created by the spell
// Note: The minimum value returned by this function should not be less than the TIMER_SPEED
static method GET_SHARD_SPAWN_INTERVAL takes integer level returns real
return 0.03
endmethod
//-------------------------------------------------------------
// API
//-------------------------------------------------------------
//-------------------------------------------------------------
// onDamage - is the damage event of the spell.
// unit caster - is the caster of the spell
// unit target - is the enemy about to get damaged by the spell
// real damage - is the amount of damage about to be dealt
// attacktype attackType - attacktype of the spell
// damagetype damageType - damagetype of the spell
// weapontype weaponType - weapontype of the spell
//-------------------------------------------------------------
static method onDamage takes unit caster, unit target, real damage, attacktype attackType, damagetype damageType, weapontype weaponType returns nothing
call UnitDamageTarget(caster, target, damage, true, false, attackType, damageType, weaponType)
endmethod
//-------------------------------------------------------------
// isShardable - is the damage filter of the spell.
// unit u - is the unit in question
// player p - is the owner of the spell
// Original Conditions:
// - u is alive
// - u is not a structure
// - u is not magic immune
// - u is is an enemy of player p
//-------------------------------------------------------------
static method isShardable takes unit u, player p returns boolean
return UnitAlive(u) and not(IsUnitType(u, UNIT_TYPE_STRUCTURE)) and not(IsUnitType(u, UNIT_TYPE_MAGIC_IMMUNE)) and IsUnitEnemy(u,p)
endmethod
//-------------------------------------------------------------
// onDestroyTree - function called by the spell when destroying trees
// (x, y) - spawn point of the shard
// aoe - radius of the destruction
// uses the ClearTrees function from the optional library
//-------------------------------------------------------------
static constant boolean DESTROYS_TREES = true
static method onDestroyTree takes real x, real y, real aoe returns nothing
call ClearTrees(x, y, aoe)
endmethod
//-------------------------------------------------------------
// onDummyCast - is the ministun event of the spell
// unit u - target of the ministun
// integer l - level of the ministun
// uses the OrderCaster function from the optional library
//-------------------------------------------------------------
static constant boolean USES_DUMMY_CASTER = true
static constant integer DUMMY_ABILITY_ID = 'A001' // must point to Icy Shards - (Freeze)
static constant integer DUMMY_ABILITY_ORDER = 852095 // storm bolt
static method onDummyCast takes unit u, integer l returns nothing
call OrderCaster(u, l, DUMMY_ABILITY_ID, DUMMY_ABILITY_ORDER)
endmethod
//-------------------------------------------------------------
// onPreload - runs at map initialization
// uses the preload function from the optional library
//-------------------------------------------------------------
static method onPreload takes nothing returns nothing
call Initialize.preloadAbility(ABILITY_ID)
call Initialize.preloadAbility(DUMMY_ABILITY_ID)
call Initialize.preloadEffect(SHARD_MODEL)
call Initialize.preloadEffect(BIRTH_MODEL)
call Initialize.preloadEffect(HIT_MODEL)
endmethod
endmodule
//-------------------------------------------------------------------------
// END OF CONFIGURABLES
//-------------------------------------------------------------------------
private module SinglyLinkedList
thistype next
thistype prev
static method insertAtHead takes thistype this returns nothing
set this.next = 0
set this.prev = thistype(0).prev
set thistype(0).prev.next = this
set thistype(0).prev = this
endmethod
static method pop takes thistype this returns nothing
set this.next.prev = this.prev
set this.prev.next = this.next
endmethod
endmodule
scope Shards
struct Shard
implement SinglyLinkedList
private static timer shardsTimer = CreateTimer()
private static integer index = 0
private effect shardEffect
private real duration
private method clean takes nothing returns nothing
call this.deallocate()
call pop(this)
call DestroyEffect(.shardEffect)
set index = index - 1
if index == 0 then
call PauseTimer(shardsTimer)
endif
endmethod
private static method onCountdown takes nothing returns nothing
local thistype this = thistype(0).next
loop
exitwhen this == 0
if .duration > 0 then
set .duration = .duration - TIMER_SPEED
else
call clean()
endif
set this = this.next
endloop
endmethod
static method createShard takes real x, real y, real duration, real z, IcyShards instance returns nothing
local thistype this = thistype.allocate()
local effect birthEffect
call insertAtHead(this)
set .duration = duration
set .shardEffect = AddSpecialEffect(IcyShards.SHARD_MODEL, x, y)
call BlzSetSpecialEffectZ(.shardEffect, z)
call BlzSetSpecialEffectScale(.shardEffect, IcyShards.GET_SHARD_MODEL_SIZE(instance.level))
call BlzSetSpecialEffectYaw(.shardEffect, instance.angle)
call BlzSetSpecialEffectPitch(.shardEffect, IcyShards.SHARD_PITCH_ANGLE)
set birthEffect = AddSpecialEffect(IcyShards.BIRTH_MODEL, x, y)
call BlzSetSpecialEffectZ(birthEffect, z)
call BlzSetSpecialEffectScale(birthEffect, IcyShards.GET_BIRTH_MODEL_SIZE(instance.level))
call DestroyEffect(birthEffect)
set index = index + 1
if index == 1 then
call TimerStart(shardsTimer, TIMER_SPEED, true, function thistype.onCountdown)
endif
endmethod
endstruct
endscope
scope IcyShards
struct IcyShards
implement IcyShardsConfiguration
implement SinglyLinkedList
private group damagedGroup = CreateGroup()
private static group damageGroup = CreateGroup()
private static timer shardTimer = CreateTimer()
private static location loc = Location(0,0)
private static integer index = 0
private real x
private real y
private real t=0
private real speed
private real damage
private unit caster
private real velocityX
private real velocityY
private real shardSpawnTimeLeft
private player owner
readonly integer level
readonly real angle
private static method getDamageFromAttribute takes unit u, real s, real a, real i returns real
local real damage_agi = I2R(GetHeroStatBJ(bj_HEROSTAT_AGI, u, true)) * a
local real damage_str = I2R(GetHeroStatBJ(bj_HEROSTAT_STR, u, true)) * s
local real damage_int = I2R(GetHeroStatBJ(bj_HEROSTAT_INT, u, true)) * i
return damage_agi + damage_str + damage_int
endmethod
private method dealDamage takes real whereX, real whereY, real distanceR returns nothing
local unit u
local effect e
if DESTROYS_TREES then
call onDestroyTree(whereX, whereY, distanceR)
endif
call GroupEnumUnitsInRange(damageGroup, whereX, whereY, distanceR, null)
loop
set u = FirstOfGroup(damageGroup)
exitwhen u == null
if .isShardable(u, .owner) and not(IsUnitInGroup(u, .damagedGroup)) then
set e = AddSpecialEffectTarget(HIT_MODEL, u, HIT_ATTACHMENT)
call BlzSetSpecialEffectScale(e, GET_HIT_MODEL_SIZE(.level))
call DestroyEffect(e)
call .onDamage(caster, u, .damage, .ATTACK_TYPE, .DAMAGE_TYPE, .WEAPON_TYPE)
call GroupAddUnit(damagedGroup, u)
if USES_DUMMY_CASTER then
call onDummyCast(u, .level)
endif
endif
call GroupRemoveUnit(damageGroup,u)
endloop
endmethod
private method createShard takes real whereX, real whereY, real distanceR returns nothing
local real randomRadius = distanceR * SquareRoot(GetRandomReal(0, 1))
local real angle = GetRandomDirectionDeg() * bj_DEGTORAD
local real randomX = whereX + randomRadius * Cos(angle)
local real randomY = whereY + randomRadius * Sin(angle)
local real z
call MoveLocation(thistype.loc, randomX, randomY)
set z = GetLocationZ(thistype.loc)
call Shard.createShard(randomX, randomY, IcyShards.SHARD_DURATION, z, this)
endmethod
private method clean takes nothing returns nothing
call this.deallocate()
call pop(this)
set .caster = null
set .owner = null
call DestroyGroup(.damagedGroup)
set index = index - 1
if index == 0 then
call PauseTimer(shardTimer)
endif
endmethod
private method update takes nothing returns boolean
set .x = .x + .velocityX
set .y = .y + .velocityY
set .t = .t + .speed
set .shardSpawnTimeLeft = .shardSpawnTimeLeft - TIMER_SPEED
if .shardSpawnTimeLeft <= 0 then
call createShard(.x, .y, GET_SPREAD_AOE(.level))
call dealDamage(.x, .y, GET_DAMAGE_AOE(.level))
set .shardSpawnTimeLeft = GET_SHARD_SPAWN_INTERVAL(.level)
endif
return .t > GET_MAX_DISTANCE(.level)
endmethod
private static method onEffect takes nothing returns nothing
local thistype this = thistype(0).next
loop
exitwhen this == 0
if update() then
call clean()
endif
set this = this.next
endloop
endmethod
private static method onCast takes nothing returns nothing
local thistype this
local real spellX
local real spellY
local real directionX
local real directionY
local real duration
if GetSpellAbilityId() == ABILITY_ID then
set this = thistype.allocate()
call insertAtHead(this)
set .caster = GetTriggerUnit()
set .owner = GetTriggerPlayer()
set .level = GetUnitAbilityLevel(caster, ABILITY_ID)
set .x = GetUnitX(.caster)
set .y = GetUnitY(.caster)
set spellX = GetSpellTargetX()
set spellY = GetSpellTargetY()
set .angle = Atan2(spellY - .y, spellX - .x)
set directionX = Cos(.angle)
set directionY = Sin(.angle)
set duration = GET_SHARD_MOVEMENT_SPEED_DURATION(.level)
set .speed = GET_MAX_DISTANCE(.level)/(duration/TIMER_SPEED)
set .velocityX = directionX * .speed
set .velocityY = directionY * .speed
set .x = .x + directionX * GET_SHARD_CAST_OFFSET(.level)
set .y = .y + directionY * GET_SHARD_CAST_OFFSET(.level)
set .shardSpawnTimeLeft = GET_SHARD_SPAWN_INTERVAL(.level)
set .damage = GET_ABSOLUTE_DAMAGE(.level) + getDamageFromAttribute(.caster, GET_STRENGTH_DAMAGE(.level), GET_AGILITY_DAMAGE(.level), GET_INTELLIGENCE_DAMAGE(.level))
set index = index + 1
if index == 1 then
call TimerStart(shardTimer, TIMER_SPEED, true, function thistype.onEffect)
endif
endif
endmethod
static method onInit takes nothing returns nothing
local trigger t = CreateTrigger()
call onPreload()
call TriggerRegisterAnyUnitEventBJ(t, EVENT_PLAYER_UNIT_SPELL_EFFECT)
call TriggerAddAction(t, function thistype.onCast)
set t = null
endmethod
endstruct
endscope
endlibrary
Approved
