Approved
| - IsTerrainWalkable | by Anitarf and Vexorian |
| - CTL | by Nestharus |
| - AutoFly | by Nestharus |
| - WorldBounds | by Nestharus |
| - UnitIndexer | by Nestharus |
| - GetClosestWidget | by Bannar |
| - SpellEffectEvent | by Bribe |
| - UnitZ | by Garfield1337 |
library GummyLink uses CTL, WorldBounds, UnitZ, IsTerrainWalkable optional AutoFly
/*
Gummy Link v2.5
Descriptions:
A library used to create magical link between
two units which will drag the target toward the
source elastically.
!! Source of any link should not be able to move !!
External Dependencies:
(Required)
- CTL
- UnitZ
- WorldBounds
- UnitIndexer
- IsTerrainWalkable
(Optional)
- AutoFly
How to use:
struct GummyLink
1. Create connection between two units
static method connect takes unit s, unit t, real z, real power, real elastic, string mdl, boolean is3D returns thistype
s => source
t => target
z => lightning z offset
power => drag power
elastic => link elasticity
mdl => lightning model string
is3D => simulate 3D effect
2. Remove a connection
method remove takes nothing returns nothing
Credits:
- IsTerrainWalkable by Anitarf and Vexorian
- CTL by Nestharus
- AutoFly by Nestharus
- WorldBounds by Nestharus
- UnitIndexer by Nestharus
- GetClosestWidget by Bannar
- SpellEffectEvent by Bribe
- UnitZ by Garfield1337
- OrbDragonX.mdx by Frankster
- BTNManaBreathe by D.ee
- LaserBlue.blp by Erkki2
Link:
hiveworkshop.com/forums/spells-569/gummy-leash-v1-0-a-257717/
*/
// CONFIGURATIONS
globals
// Unit flying height reset rate
private constant real RESET_RATE = 15.0
// Add KB effect after unit's link destroy
private constant boolean ENABLE_KB = true
endglobals
// Just skip these KB datas if ENABLE_KB is false
private module KBData
// Friction rate when units flung on the ground
static constant real FRICTION_FACTOR_GROUND = 0.04
// Friction rate when units flung in the air
static constant real FRICTION_FACTOR_AIR = 0.5
// General destructable heights
// For better idea, this is minimum height
// before pathability checking is performed
static constant real DEST_HEIGHT = 100.0
endmodule
// =============================================================================
// Check whether given coords is in map bound or not
private constant function inBound takes real x, real y returns boolean
return x < WorldBounds.maxX and y < WorldBounds.maxY and x > WorldBounds.minX and y > WorldBounds.minY
endfunction
private module KBModule
unit target
real speed
real rate
real cos
real sin
implement KBData
implement CTL
local real f
local real x
local real y
implement CTLExpire
if .speed > .rate then
set x = GetUnitX(.target) + .speed * .cos
set y = GetUnitY(.target) + .speed * .sin
set f = GetUnitFlyHeight(.target)
if f > DEST_HEIGHT then
// Ignore any pathability issue except world bounds
if inBound(x, y) then
call SetUnitX(.target, x)
call SetUnitY(.target, y)
endif
else
if IsTerrainWalkable(x, y) then
call SetUnitX(.target, x)
call SetUnitY(.target, y)
else
call destroy()
set .target = null
endif
endif
if f > .01 then
set .speed = .speed - .rate * FRICTION_FACTOR_AIR
else
set .speed = .speed - .rate
endif
else
call destroy()
set .target = null
endif
implement CTLEnd
static method knock takes unit u, real a, real s returns nothing
local thistype this = create()
set .target = u
set .speed = s
set .cos = Cos(a)
set .sin = Sin(a)
set .rate = s * FRICTION_FACTOR_GROUND
endmethod
endmodule
// Add simple KB effect to a unit
private struct SimpleKB extends array
static if ENABLE_KB then
implement KBModule
endif
endstruct
// Struct used to modify and save unit's fly height
// since the default one doesn't fit my needs
private struct UnitZ extends array
unit unit
real rate
real height
static real array Height
static thistype array Index
implement CTL
local integer dex
implement CTLExpire
set dex = GetUnitUserData(.unit)
if Height[dex] > .height then
set Height[dex] = Height[dex] - .rate
if Height[dex] < .height then
set Height[dex] = .height
endif
call SetUnitFlyHeight(.unit, Height[dex], 0)
elseif Height[dex] < .height then
set Height[dex] = Height[dex] + .rate
if Height[dex] > .height then
set Height[dex] = .height
endif
call SetUnitFlyHeight(.unit, Height[dex], 0)
else
set Index[dex] = 0
call destroy()
set .unit = null
endif
implement CTLEnd
static method get takes unit u returns real
return Height[GetUnitUserData(u)]
endmethod
static method apply takes unit u, real h, real r returns nothing
local thistype this
local integer dex = GetUnitUserData(u)
// If instant rate
if r < 1 then
set Height[dex] = h
call SetUnitFlyHeight(u, Height[dex], 0)
if Index[dex] != 0 then
set Index[dex].height = h
endif
else
if Index[dex] == 0 then
set this = create()
set .unit = u
set .height = h
set .rate = r
set Index[dex] = this
set Height[dex] = GetUnitFlyHeight(u)
else
set Index[dex].height = h
set Index[dex].rate = r
endif
endif
endmethod
static method onIndex takes nothing returns boolean
set Height[GetIndexedUnitId()] = GetUnitFlyHeight(GetIndexedUnit())
return false
endmethod
static method onInit takes nothing returns nothing
call RegisterUnitIndexEvent(Condition(function thistype.onIndex), UnitIndexer.INDEX)
endmethod
endstruct
struct GummyLink extends array
readonly unit source
readonly unit target
private real z
private real pow
private real elstc
private boolean b
private boolean is3D
private lightning link
private static real array sX
private static real array sY
private static real array tX
private static real array tY
private static real array HVel
private static real array VVel
private static real array Height
private static boolean array Bool
private static constant real TAU = bj_PI*2
private static constant real HP = bj_PI/2
private static constant real M = 0.2
// Gets circular differences between two radians
private static method circDifference takes real a, real b returns real
local real r = RAbsBJ(a-b)
if r * 2 <= TAU then
return r
else
return TAU - r
endif
endmethod
implement CTL
local real a
local real v
local real z
local integer sDex
local integer tDex
implement CTLExpire
set sDex = GetUnitUserData(.source)
set tDex = GetUnitUserData(.target)
// Automatically destroy link if unit has been removed
if .b and GetUnitTypeId(.source) != 0 and GetUnitTypeId(.target) != 0 then
set a = Atan2(tY[tDex] - sY[sDex], tX[tDex] - sX[sDex])
// Calculate horizontal velocity
if HVel[tDex] >= 0 then
set HVel[tDex] = HVel[tDex] - .elstc
else
set HVel[tDex] = HVel[tDex] - .pow
endif
set tX[tDex] = tX[tDex] + HVel[tDex] * Cos(a)
set tY[tDex] = tY[tDex] + HVel[tDex] * Sin(a)
if circDifference(a, Atan2(tY[tDex] - sY[sDex], tX[tDex] - sX[sDex])) > HP then
set HVel[tDex] = HVel[tDex] * -1
endif
set z = GetUnitZ(.source) + .z
// If 3D simulation is enabled
if .is3D then
// Calculate vertical velocity
if Height[tDex] < z then
set VVel[tDex] = VVel[tDex] + .pow*M
else
set VVel[tDex] = VVel[tDex] - (.elstc+elstc*(1-M))
endif
set Height[tDex] = Height[tDex] + VVel[tDex]
if Height[tDex] < 0 then
set Height[tDex] = 0
if VVel[tDex] < HVel[tDex] then
set VVel[tDex] = 0
endif
endif
call UnitZ.apply(.target, Height[tDex], 0)
endif
if inBound(tX[tDex], tY[tDex]) then
call SetUnitX(.target, tX[tDex])
call SetUnitY(.target, tY[tDex])
// Update the lightning
call MoveLightningEx(.link, false, sX[sDex], sY[sDex], z, tX[tDex], tY[tDex], GetUnitZ(.target) + .z)
endif
else
call SetUnitPathing(.source, true)
call SetUnitPathing(.target, true)
static if ENABLE_KB then
// Determine KB direction
if HVel[tDex] < 0 then
call SimpleKB.knock(.target, Atan2(sY[sDex] - tY[tDex], sX[sDex] - tX[tDex]), RAbsBJ(HVel[tDex]))
else
call SimpleKB.knock(.target, Atan2(tY[tDex] - sY[sDex], tX[tDex] - sX[sDex]), HVel[tDex])
endif
endif
// Reset fly height
if .is3D then
call UnitZ.apply(.target, GetUnitDefaultFlyHeight(.target), RESET_RATE)
endif
call DestroyLightning(.link)
set Bool[tDex] = false
set HVel[tDex] = 0
set VVel[tDex] = -RESET_RATE
call destroy()
set .source = null
set .target = null
set .link = null
endif
implement CTLEnd
method remove takes nothing returns nothing
set .b = false
endmethod
static method connect takes unit s, unit t, real z, real power, real elastic, string mdl, boolean is3D returns thistype
local thistype this = 0
local integer dex
if not Bool[GetUnitUserData(t)] then
set this = create()
set .z = z
set .source = s
set .target = t
set .is3D = is3D
set .pow = power
set .elstc = elastic
set .b = true
set .link = AddLightningEx(mdl, false, GetUnitX(s), GetUnitY(s), GetUnitZ(s) + z, GetUnitX(t), GetUnitY(t), GetUnitZ(t) + z)
set dex = GetUnitUserData(s)
set sX[dex] = GetUnitX(s)
set sY[dex] = GetUnitY(s)
set Bool[dex] = true
set dex = GetUnitUserData(t)
set tX[dex] = GetUnitX(t)
set tY[dex] = GetUnitY(t)
set Bool[dex] = true
call SetUnitPathing(s, false)
call SetUnitPathing(t, false)
if is3D then
set Height[dex] = UnitZ.get(t)
static if not LIBRARY_AutoFly then
if UnitAddAbility(t, 'Amrf') and UnitRemoveAbility(t, 'Amrf') then
endif
endif
endif
debug else
debug call BJDebugMsg("Connecting failed: target is already connected to other instance.")
endif
return this
endmethod
endstruct
endlibraryscope GummyLeash
/*
Gummy Leash v2.5
Descriptions:

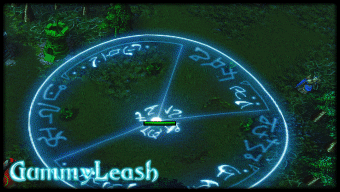

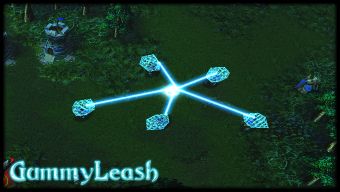

Summons a mythical orb upon the target point.
Nearby enemy units will be captured by an
elastical energy stream which will keep them
from moving further away from the orb.
Requires:
- GummyLink
External Dependencies:
(Required)
- CTL
- UnitIndexer
- WorldBounds
(Optional)
- GetClosestWidget
- SpellEffectEvent
How to import:
- Install and configure all dependencies properly
- Copy GummyLeash trigger group into your map
- Import all necessary stuffs (OE & import data) to your map
- Configure the spell
Credits:
- IsTerrainWalkable by Anitarf and Vexorian
- CTL by Nestharus
- AutoFly by Nestharus
- WorldBounds by Nestharus
- UnitIndexer by Nestharus
- GetClosestWidget by Bannar
- SpellEffectEvent by Bribe
- UnitZ by Garfield1337
- OrbDragonX.mdx by Frankster
- BTNManaBreathe by D.ee
- LaserBlue.blp by Erkki2
Link:
hiveworkshop.com/forums/spells-569/gummy-leash-v1-0-a-257717/
*/
// CONFIGURATIONS
// Native declaration
native UnitAlive takes unit id returns boolean
globals
// Summoned unit's rawcode
private constant integer WARD_ID = 'h000'
// Main ability's rawcode
private constant integer MAIN_ID = 'A000'
// Adjust z offset of the lightning
// As example, if you use a floating model for the ward
// then you can adjust the lightning's z offset here
private constant real Z_OFFSET = 75.0
// Lightning effect string
private constant string LIGHTNING_EFFECT = "BLUE"
// Allow ward to detect for new targets during lifespan
private constant boolean ALLOW_NEW_TARGET = true
// Simulate 3D effect for GummyLink
private constant boolean ENABLE_3D = true
// Add timed life bar to the ward
private constant boolean ADD_TIMED_LIFE = true
private constant integer TIMED_LIFE = 'BTLF'
// Maximum possible target
// Set this to target count at max ability level
private constant integer MAXIMUM_TARGET = 5
// Attached sfx on victims
private constant string TARGET_SFX = "war3mapImported\\GummyLeash.mdx"
private constant string TARGET_SFX_PT = "chest"
// Add buff effect (stun) to targets
private constant boolean ADD_BUFF = true
// Damage configuration
private constant attacktype ATTACK_TYPE = ATTACK_TYPE_NORMAL
private constant damagetype DAMAGE_TYPE = DAMAGE_TYPE_NORMAL
private constant weapontype WEAPON_TYPE = WEAPON_TYPE_WHOKNOWS
endglobals
// Just skip these buff datas if ADD_BUFF is false
private module BuffData
// Dummy unit's rawcode
static constant integer DUMMY_ID = 'h001'
// Buff ability rawcode
static constant integer SPELL_ID = 'A001'
// Buff rawcode
static constant integer BUFF_ID = 'B000'
// Stun order id
static constant integer BUFF_ORDER = 852127 // stomp
// The higher the safer but just leave it
static constant real BUFF_SAFETY = 64.0
endmodule
// Maximum targets per ward
private constant function count takes integer level returns integer
return 2 + level
endfunction
// Ward's lifespan
private constant function duration takes integer level returns real
return 3.0 + 2.0 * level
endfunction
// Apply damage interval
private constant function delay takes integer level returns real
return 0.0
endfunction
// Dealt damage amount
private constant function damage takes integer level returns real
return 0.0
endfunction
// Detect AoE
private constant function aoe takes integer level returns real
return 600.0
endfunction
// Drag power of the link (when shrinking)
private constant function power takes integer level returns real
return 3.2
endfunction
// Drag power of the link (when stretching)
private constant function elasticity takes integer level returns real
return 3.2
endfunction
// Configure desired targets
// By default, it's unable to targets structures and magic immune
private function targets takes unit u, player p returns boolean
return UnitAlive(u) and IsUnitEnemy(u, p) and not IsUnitType(u, UNIT_TYPE_MECHANICAL)
endfunction
// This function is called whenever a unit takes damage from this spell
private function onDamage takes unit caster, unit target returns nothing
endfunction
// This function is called whenever a unit is released by this spell
private function onRelease takes unit caster, unit target returns nothing
endfunction
// =============================================================================
private struct LeashBuff extends array
unit target
boolean dispose
effect sfx
static unit Caster
static group Group = CreateGroup()
static boolean array Bool
static thistype array Index
static if ADD_BUFF then
implement BuffData
endif
method remove takes nothing returns nothing
set .dispose = true
endmethod
implement CTLExpire
if .dispose or not UnitAlive(.target) then
set Bool[GetUnitUserData(.target)] = false
static if ADD_BUFF then
call UnitRemoveAbility(.target, BUFF_ID)
endif
call DestroyEffect(.sfx)
call destroy()
set .sfx = null
set .target = null
endif
implement CTLEnd
static method apply takes unit target returns thistype
local thistype this = 0
local integer dex = GetUnitUserData(target)
local real x
local real y
if Bool[dex] then
set this = Index[dex]
else
if not(IsUnitType(target, UNIT_TYPE_STRUCTURE)) then
set this = create()
set .target = target
set .dispose = false
set .sfx = AddSpecialEffectTarget(TARGET_SFX, .target, TARGET_SFX_PT)
set Bool[dex] = true
set Index[dex] = this
static if ADD_BUFF then
set x = GetUnitX(target)
set y = GetUnitY(target)
// If unit don't have the buff yet
if GetUnitAbilityLevel(target, BUFF_ID) == 0 then
call SetUnitX(Caster, x)
call SetUnitY(Caster, y)
call IssueImmediateOrderById(Caster, BUFF_ORDER)
call SetUnitPosition(Caster, WorldBounds.maxX, WorldBounds.maxY)
endif
// Remove unwanted buff
call GroupEnumUnitsInRange(Group, x, y, BUFF_SAFETY, null)
loop
set target = FirstOfGroup(Group)
exitwhen target == null
call GroupRemoveUnit(Group, target)
if GetUnitAbilityLevel(target, BUFF_ID) > 0 and not Bool[GetUnitUserData(target)] then
call UnitRemoveAbility(target, BUFF_ID)
endif
endloop
endif
debug else
debug call BJDebugMsg("Error occured: failed to attach buff")
endif
endif
return this
endmethod
private static method onInit takes nothing returns nothing
static if ADD_BUFF then
set Caster = CreateUnit(Player(PLAYER_NEUTRAL_PASSIVE), DUMMY_ID, WorldBounds.maxX, WorldBounds.maxY, 0)
call UnitAddAbility(Caster, SPELL_ID)
endif
endmethod
endstruct
// Container for targets per instance
private struct LeashTargets
unit array target[MAXIMUM_TARGET]
GummyLink array link[MAXIMUM_TARGET]
LeashBuff array buff[MAXIMUM_TARGET]
endstruct
private struct GummyLeash extends array
real x
real y
real dur
real aoe
real pow
real elstc
real dly
real dlyx
real dmg
integer ct
integer ctx
player p
unit caster
unit ward
LeashTargets t
static group Group = CreateGroup()
static player TempPlayer
static thistype TempDex
static boolean array Bool
// Target filtration, made to be compatible for GetClosestUnit
static method filter takes nothing returns boolean
return targets(GetFilterUnit(), TempPlayer)
endmethod
implement CTL
local unit u
local integer i
local integer dex
implement CTLExpire
if .dur > 0.03125 and UnitAlive(.ward) then
set .dur = .dur - 0.03125
set .dly = .dly - 0.03215
set i = 0
loop
exitwhen i >= .ct
if UnitAlive(.t.target[i]) then
if .dly <= 0 and .dmg > 0 then
call onDamage(.caster, .t.target[i])
call UnitDamageTarget(.caster, .t.target[i], .dmg, true, false, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE)
endif
else
call onRelease(.caster, .t.target[i])
set Bool[GetUnitUserData(.t.target[i])] = false
call .t.link[i].remove()
// Deindex
set .ct = .ct - 1
set .t.target[i] = .t.target[.ct]
set .t.link[i] = .t.link[.ct]
set .t.buff[i] = .t.buff[.ct]
set .t.target[.ct] = null
set i = i - 1
endif
set i = i + 1
endloop
if .dly <= 0 then
set .dly = .dlyx
endif
static if ALLOW_NEW_TARGET then
if .ct < .ctx then
set TempPlayer = .p
call GroupEnumUnitsInRange(Group, .x, .y, .aoe, function thistype.filter)
loop
exitwhen .ct >= .ctx
static if LIBRARY_GetClosestWidget then
set u = GetClosestUnitInGroup(.x, .y, Group)
else
set u = FirstOfGroup(Group)
endif
exitwhen u == null
call GroupRemoveUnit(Group, u)
set dex = GetUnitUserData(u)
if not Bool[dex] then
set .t.buff[.ct] = LeashBuff.apply(u)
// If successfully buffed
if .t.buff[.ct] != 0 then
set .t.link[.ct] = GummyLink.connect(.ward, u, Z_OFFSET, .pow, .elstc, LIGHTNING_EFFECT, ENABLE_3D)
// If successfully connected
if .t.link[.ct] != 0 then
set Bool[dex] = true
set .t.target[.ct] = u
set .ct = .ct + 1
endif
endif
endif
endloop
set u = null
endif
endif
else
set i = 0
loop
exitwhen i >= .ct
call onRelease(.caster, .t.target[i])
set Bool[GetUnitUserData(.t.target[i])] = false
call .t.link[i].remove()
call .t.buff[i].remove()
set .t.target[i] = null
set i = i + 1
endloop
call KillUnit(.ward)
call .t.destroy()
call destroy()
set .ward = null
set .caster = null
endif
implement CTLEnd
static method onCast takes nothing returns boolean
local thistype this = create()
local integer level
local integer dex
local unit fog
set .caster = GetTriggerUnit()
set .p = GetTriggerPlayer()
set .ward = CreateUnit(.p, WARD_ID, GetSpellTargetX(), GetSpellTargetY(), bj_UNIT_FACING)
set .x = GetUnitX(.ward)
set .y = GetUnitY(.ward)
set .ct = 0
set level = GetUnitAbilityLevel(.caster, MAIN_ID)
set .aoe = aoe(level)
set .dur = duration(level)
set .elstc = elasticity(level)
set .pow = power(level)
set .ctx = count(level)
set .dlyx = delay(level)
set .dmg = damage(level)
set .dly = .dlyx
set .t = LeashTargets.create()
static if ADD_TIMED_LIFE then
call UnitApplyTimedLife(.ward, TIMED_LIFE, .dur)
endif
set TempPlayer = .p
call GroupEnumUnitsInRange(Group, .x, .y, .aoe, function thistype.filter)
loop
exitwhen .ct >= .ctx
static if LIBRARY_GetClosestWidget then
set fog = GetClosestUnitInGroup(.x, .y, Group)
else
set fog = FirstOfGroup(Group)
endif
exitwhen fog == null
call GroupRemoveUnit(Group, fog)
set dex = GetUnitUserData(fog)
if not Bool[dex] then
set .t.buff[.ct] = LeashBuff.apply(fog)
// If successfully buffed
if .t.buff[.ct] != 0 then
set .t.link[.ct] = GummyLink.connect(.ward, fog, Z_OFFSET, .pow, .elstc, LIGHTNING_EFFECT, ENABLE_3D)
// If successfully connected
if .t.link[.ct] != 0 then
set Bool[dex] = true
set .t.target[.ct] = fog
set .ct = .ct + 1
endif
endif
endif
endloop
set fog = null
return false
endmethod
static if not LIBRARY_SpellEffectEvent then
private static method checkId takes nothing returns boolean
if GetSpellAbilityId() == MAIN_ID then
call thistype.onCast()
endif
return false
endmethod
endif
static method onInit takes nothing returns nothing
static if LIBRARY_SpellEffectEvent then
call RegisterSpellEffectEvent(MAIN_ID, function thistype.onCast)
else
set gg_trg_GummyLeash = CreateTrigger()
call TriggerRegisterAnyUnitEventBJ(gg_trg_GummyLeash, EVENT_PLAYER_UNIT_SPELL_EFFECT)
call TriggerAddAction(gg_trg_GummyLeash, Condition(function thistype.checkId))
endif
endmethod
endstruct
endscope| - IsTerrainWalkable | by Anitarf and Vexorian |
| - CTL | by Nestharus |
| - WorldBounds | by Nestharus |
| - AutoFly | by Nestharus |
| - UnitIndexer | by Nestharus |
| - GetClosestWidget | by Bannar |
| - SpellEffectEvent | by Bribe |
| - UnitZ | by Garfield1337 |
| - OrbDragonX.mdx | by Frankster |
| - BTNManaBreathe | by D.ee |
| - LaserBlue.blp | by Erkki2 |
Ok
Ok
I've asked about this to you multiple times yet you haven't answered. Since I don't understand how default struct destroy() method works, I'm affraid I will misnulled things. So the question is: am I need to null after/before I call destroy() method?
Yes
It allows user to adjust lightning's normal z, so it doesnt looks like hitting units' feet.
I think camelCase is better for private.
Doesn't make any difference. You can do it before or afterwards. Destroy is a simple recycling process, it does not influence the current struct instance you are dealing with.
set ns[t]=ns[0]
set ns[0]=t
if r * 2 <= TAU thenif r <= bj_PI
boolean array Bool is just not descriptive at all.
Thanks, daffa. I believe 180KB is not a problem for anyone.Great spell, and extremely good visuals.
If I may recommend, use in-game models for less imports
One of few I could say extremely well done, it deserves 5/5 ^^
I'll get a view on the code later, but still, this is very rare and well done, Quilnez ^^
The code is in vJass so it's much better to use Nestharus'.
Hmm. What image? Which cover?
// Summoned unit's rawcode
private constant integer WARD_ID = 'h000' // Main ability's rawcode
private constant integer MAIN_ID = 'A000' // Dummy unit's rawcode
static constant integer DUMMY_ID = 'h001' // Buff ability rawcode
static constant integer SPELL_ID = 'A001' // Buff rawcode
static constant integer BUFF_ID = 'B000'
