Arrow System v1.5

This bundle is marked as approved. It works and satisfies the submission rules.
  • Like
Reactions: deepstrasz

Arrow System

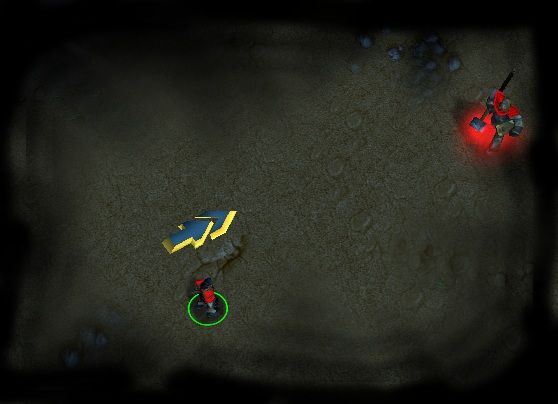

Arrow system is for rpg maps that want to show how to get from one unit to another using a graphic. It is very simple to import and start using.
Arrow Model by hellblazer-14
New version does not contain the function ArrowUnit2Point

JASS:
library ArrowSystem //By maddeem
    globals
        private integer   ID = 'B000' // Arrow Destructable ID
        private real      Timeout = 0.03125 //How often the timers fire
        private real      DestroyDistance = 200 //The distance from the target at which the arrow is destroyed
        private hashtable h = InitHashtable( )
    endglobals
    function DestroyArrow takes unit u1 returns nothing //This function will destroy any arrow on any unit at any time
        local integer i = GetHandleId( u1 )
        local timer   t = LoadTimerHandle( h, i, 0 )
        local integer ii = GetHandleId( t )
        call DestroyTimer( t )
        call RemoveDestructable( LoadDestructableHandle( h, ii, 4 ) )
        call FlushChildHashtable( h, i )
        call FlushChildHashtable( h, ii )
        set t = null
    endfunction
    private function SetArrowU2U takes nothing returns nothing
        local timer        t = GetExpiredTimer( )
        local integer      i = GetHandleId( t )
        local unit         u1 = LoadUnitHandle( h, i, 0 )
        local unit         u2 = LoadUnitHandle( h, i, 1 )
        local real         x1 = GetUnitX( u1 )
        local real         x2 = GetUnitX( u2 )
        local real         y1 = GetUnitY( u1 )
        local real         y2 = GetUnitY( u2 )
        local real         dx = x1 - x2
        local real         dy = y1 - y2
        local real         si = LoadReal( h, i, 2 )
        local real         he = LoadReal( h, i, 3 )
        local location     l = Location( x1, y1 )
        local destructable d
        call RemoveDestructable( LoadDestructableHandle( h, i, 4 ) )
        if SquareRoot( dx * dx + dy * dy ) < DestroyDistance then
            call DestroyTimer( t )
            call FlushChildHashtable( h, i )
            call FlushChildHashtable( h, GetHandleId( u1 ) )
        else
            set d = CreateDestructableZ( ID, x1, y1, he + GetUnitFlyHeight( u1 ) + GetLocationZ( l ), 90 + bj_RADTODEG * Atan2( y2 - y1, x2 - x1 ), si, 0 )
            call SaveDestructableHandle( h, i, 4, d )
            if IsUnitOwnedByPlayer( u1, GetLocalPlayer( ) ) then
                call ShowDestructable( d, true )
            else
                call ShowDestructable( d, false )
            endif
        endif
        call RemoveLocation( l )
        set l = null
        set u1 = null
        set u2 = null
        set t = null
        set d = null
    endfunction
    function ArrowUnit2Unit takes unit u1, unit u2, real size, real height returns nothing //Main function of the system
        local timer   t = CreateTimer( )
        local integer i = GetHandleId( t )
        call TimerStart( t, Timeout, true, function SetArrowU2U )
        call SaveUnitHandle( h, i, 0, u1 )
        call SaveUnitHandle( h, i, 1, u2 )
        call SaveReal( h, i, 2, size )
        call SaveReal( h, i, 3, height )
        call SaveTimerHandle( h, GetHandleId( u1 ), 0, t )
        set t = null
    endfunction
endlibrary


//Code indented using The_Witcher's Script language Aligner
//Download the newest version and report bugs at www.hiveworkshop.com

Give Credit if used! :D

Keywords:
Arrow, Pointer, Quest, Direction
Contents

Arrow System (Map)

Reviews
This system could be useful. Suggested changes Use coordinates instead of locations Use an integer instead of GroupCount founction and ForGroup Player variable does not need to be nulled You could pause/resume the timer instead of using a...

Moderator

M

Moderator

Reviewed by Maker, Arrow System v1.1, 24th Apr 2012

This system could be useful.
Suggested changes
  • Use coordinates instead of locations
  • Use an integer instead of GroupCount founction and ForGroup
  • Player variable does not need to be nulled
  • You could pause/resume the timer instead of using a trigger
Why does CreateArrow have destructable as function parameter, but it is not used?

Level 7
Joined
Jan 7, 2009
Messages
44
Your arrow system works, however there are few things that I dislike.

1. Do not make your arrow destroy itself when the unit reaches its destination, rather make sure the unit follows the arrows guidance to perform an action which should destroy the arrow guiding (since he accomplished something already and doesn't need to be guided).
2. You should consider including some eyecandy on arrow's disappearance. It looks very static right now. Do it with an effect or arrow animation (which you may now be short on).
3. Reconsider using a unit instead of a destructable. This provides you with following capabilities: vertex coloring, animation time scaling, scaling and moving, Vexorian projectile dummy model usage (making your arrow system able to point at high point or low ground), but provides and few disadvantages: GetLocalPlayer() usage exacerbation (in this case you would need to use vertex coloring to hide the arrow from other players) and additional hard work.
4. Your codding part is rather messy.

JASS:
private integer Arrow = 'B000'
public real ArrowTimeOut = 0.03
public real DestroyDistance = 200.
Consider making these constant
Changes:
JASS:
private constant integer Arrow = 'B000'
public constant real ArrowTimeOut = 0.03
public constant real DestroyDistance = 200.

As -Kobas- mentioned you should merge your triggers into one.
Consider changing these public members to private and provide the library with public functions to get those members in case of emergency (which I honestly hope wont happen in a lifetime)
JASS:
public hashtable ArrowHash = InitHashtable( )
public group ArrowGroup = CreateGroup( )

Help yourself - create a GetArrow function which takes a unit and returns a destructable (obviously get unit's arrow)

JASS:
if IsUnitGroupEmptyBJ( ArrowGroup ) == true then
Can be changed to:
JASS:
if FirstOfGroup( ArrowGroup ) == null then
Which is so much faster

and

JASS:
        call ShowDestructable( d, false )
        if GetLocalPlayer( ) == p then
            call ShowDestructable( d, true )
        endif
Can be changed to (I know people can get messed up, but this is quite simple):
JASS:
call ShowDestructable( d, GetLocalPlayer( ) == p )

On top of that: get used to using coordinates instead of locations (they can get really messy in a big project and leave a huge memory leak if you don't know what you're doing). Practicing coordinates now gives your further coding life an excellent contribution.

If you just practice, it's good you're doing so, but if you need a good arrow system you should make my mentioned changes (2 and 3 parts are optional) or I can create such library for your use (no credits, just rep).

Wish you best luck!

Level 7
Joined
Jan 7, 2009
Messages
44
Then you got a long way to go.

Timer usage:
JASS:
function TimerFunction takes nothing returns nothing
    call BJDebugMsg("timer function call")
    //TimerFunction actions here, depending on what you want to do
    //There are so many bonus posibilties what timers can do including but not limited to struct attachment.
endfunction

function InitTrig_Timer takes nothing returns nothing
    local timer t = CreateTimer()
    call TimerStart(t, 0.03, true, function TimerFunction)
endfunction

What timers do is absolutely simple, they call a function everytime their time run out (that's called a time out) and refreshes it or not based on the third parameter (which is true here and makes the timer keep going forever)

I wanted to use locations to make this gui friendly, also I tried merging them... proved to be quite difficult
And merging them isn't that difficult as you would have thought. Simple.

Make your library an initializer:
JASS:
library ArrowSys initializer Startup

    private function Startup takes nothing returns nothing
        //Here goes the code for startup: timer definition and timer start
    endfunction
endlibrary

The Timer API is extremely simple.

CreateTimer()
DestroyTimer(timer)
TimerStart(timer, timeout, isPeriodic, code)
PauseTimer(timer)
ResumeTimer(timer)
TimerGetTimeout(timer)
TimerGetElapsed(timer)
TimerGetRemaining(timer)

All you need here is CreateTimer, TimerStart and PauseTimer.

Examples of usage:

JASS:
local timer t = CreateTimer()
call TimerStart(t, 0.03125, true, function onRun)
call PauseTimer(t)

Level 7
Joined
Jan 7, 2009
Messages
44
I'm terribly sorry that I have to be this harsh but...
Give Credit if used! :D
This line is pointless if you won't update your system as friendly hive members offered you to.
Well unless people use GUI and don't give a single fuck about it's performance.

I can create such a system from scratch in around 10...20 minutes (including my level of experience) you should be able to do the same in about 5x more time, which has to be 50...100 minutes or harshly around an hour or two.

Just to give you a push... I'll give +rep if you manage to update it into a perfect state.

Do not get my post as a must do and do whatever you think is right.

Happy coding!

May I suggest:
JASS:
 private integer Arrow = 'B000'
        public real ArrowTimeOut = 0.03
        public real DestroyDistance = 200.
        //End Configurables
        public hashtable ArrowHash = InitHashtable( )
        public group ArrowGroup = CreateGroup( )
        private boolean boob
to be changed into
JASS:
    globals
        //Configurables
        private integer    ARROW_ID       = 'B000'
        private real       LOOP           = 0.03
        private real       MIN_DISTANCE   = 200.
        //End Configurables

        private hashtable  HASH          = InitHashtable( )
        private group      G             = CreateGroup( )
        private boolean    B             = false
        private trigger    T             = CreateTrigger()
    endglobals
There is no need for long names in this small script.
Also there is no need for public variables you can merge scripts.

Also function names are horrible :D
Even variables are bad:
function ArrowU2U takes real size, real Height, unit AttachedUnit, unit TargetUnit returns nothing
can be
function ArrowU2U takes real size, real z, unit u, unit target returns nothing

What?

Kobas, most of those must be public, so I had to have realistic names.

Jesus, this is my first vJass script or any scripting language at all. You have some high expectations.
You don't need public variables for that, everything can be crated with private ones, use public functions to link this system with any other.

Function names are bad, variables as well.
Once again you should use coordinates instead of locations, global functions can be declared later that will allow you to do same shit with locations.
Use TAB to inline code.

And check the best tutorial there is http://www.wc3c.net/vexorian/jasshelpermanual.html (actually it's not tutorial but it will do just fine).

Level 10
Joined
Sep 19, 2011
Messages
527
Function names are bad, variables as well.
They are not bad, they just have long names e__e.

Once again you should use coordinates instead of locations
Locations seems to be more faster than coordinates.

Player variable does not need to be nulled
But is a good practise.

That you (maddeem) should really use are structs. In this case, they would make your code more easy to read and "easy to program" it.

Also, try to use Table by Bribe instead of the hashtable :).

Greetings :).


Cokemonkey11

Code Moderator
Level 26
Joined
May 9, 2006
Messages
3,374
I'd say at this point it's quite usable, and probably useful for someone. But it's certainly not perfect.

Your script only attaches to units. As a general rule, if only one object can be attached to a unit at a time (and therefore have a maximum number of instances equal to the number of units) you should not use hashtables, but instead use a linear stack.

This will significantly speed up your code. If you'd like an example I'd be happy to provide.

At this point I'd vote for the script to be approved with 3 stars.

***


Cokemonkey11

Code Moderator
Level 26
Joined
May 9, 2006
Messages
3,374
Here's an example of an MUI spell using a linear stack.

JASS:
scope warSlam initializer i
    private struct unpauseDat
        unit u
        real timeLeft
        boolean attacked
    endstruct

    globals
        private constant integer SHOUTID='A00R'
        private constant integer IMPALEID='A00F'
        private constant real AVERAGEUNITHEIGHT=60.
        private constant real FIDELITY=.05
        private constant real MAXSHOUTPOWER=40.
        private constant real PAUSETIME=.45
        private constant real FOLLOWTHROUGHTIME=.2
        private constant real SHOUTRANGE=600.
        private constant string SLAMMODEL="Abilities\\Spells\\Human\\MarkOfChaos\\MarkOfChaosTarget.mdl"
        private constant string SLAMSOUND="Units\\Orc\\HeroTaurenChieftain\\WarStompBirth1.wav"
        private group grp=CreateGroup()
        private integer dbIndex=-1
        private timer time=CreateTimer()
        private unit tempCaster
        private unpauseDat array unpauseDB
        private real tempCasterX
        private real tempCasterY
        private real tempCasterZ
    endglobals

    private function f takes nothing returns boolean
        local real distX
        local real distY
        local real distZ
        local real fX
        local real fY
        local real fZ
        local real power
        local real distXY
        local unit filter=GetFilterUnit()
        if IsUnitEnemy(filter,GetOwningPlayer(tempCaster)) and GetUnitState(filter,UNIT_STATE_LIFE)>=1 then
            set fX=GetUnitX(filter)
            set fY=GetUnitY(filter)
            set fZ=GetUnitFlyHeight(filter)+helper_getZ(fX,fY)+AVERAGEUNITHEIGHT
            set distZ=fZ-tempCasterZ
            set distX=fX-tempCasterX
            set distY=fY-tempCasterY
            set power=(SHOUTRANGE-SquareRoot(distX*distX+distY*distY+distZ*distZ))/SHOUTRANGE*MAXSHOUTPOWER
            set distXY=SquareRoot(distX*distX+distY*distY)
            call Knockback_add(filter,power,Atan2(fY-tempCasterY,fX-tempCasterX),Atan2(distZ,distXY))
        endif
        set filter=null
        return false
    endfunction

    private function p takes nothing returns nothing
        local unpauseDat tempDat
        local integer index=0
        loop
            exitwhen index>dbIndex
            set tempDat=unpauseDB[index]
            set tempDat.timeLeft=tempDat.timeLeft-FIDELITY
            if tempDat.timeLeft<=0 and tempDat.attacked==false then
                call PauseUnit(tempDat.u,false)
                call SetUnitTimeScale(tempDat.u,1)
                set tempDat.attacked=true
                set tempCasterX=GetUnitX(tempDat.u)
                set tempCasterY=GetUnitY(tempDat.u)
                set tempCasterZ=GetUnitFlyHeight(tempDat.u)+helper_getZ(tempCasterX,tempCasterY)
                call helper_sound3d(SLAMSOUND,tempCasterX,tempCasterY,GetUnitFlyHeight(tempDat.u))
                set tempCaster=tempDat.u
                call GroupEnumUnitsInRange(grp,tempCasterX,tempCasterY,SHOUTRANGE,Filter(function f))
            endif
            if tempDat.timeLeft<=(0-FOLLOWTHROUGHTIME) and tempDat.attacked then
                call UnitAddAbility(tempDat.u,IMPALEID)
                set unpauseDB[index]=unpauseDB[dbIndex]
                set dbIndex=dbIndex-1
                if dbIndex==-1 then
                    call PauseTimer(time)
                endif
                call tempDat.destroy()
            endif
            set index=index+1
        endloop
    endfunction

    private function c takes nothing returns boolean
        local effect fx
        local unpauseDat tempDat
        if GetSpellAbilityId()==SHOUTID then
            set tempDat=unpauseDat.create()
            set tempDat.u=GetTriggerUnit()
            set tempDat.attacked=false
            set tempDat.timeLeft=PAUSETIME
            set dbIndex=dbIndex+1
            set unpauseDB[dbIndex]=tempDat
            call UnitRemoveAbility(tempDat.u,IMPALEID)
            if dbIndex==0 then
                call TimerStart(time,FIDELITY,true,function p)
            endif
            set fx=AddSpecialEffect(SLAMMODEL,GetUnitX(tempDat.u),GetUnitY(tempDat.u))
            call DestroyEffect(fx)
            call SetUnitTimeScale(tempDat.u,2)
            call IssueImmediateOrder(tempDat.u,"stop")
            call PauseUnit(tempDat.u,true)
            call SetUnitAnimationByIndex(tempDat.u,3)
        endif
        set fx=null
        return false
    endfunction

    private function i takes nothing returns nothing
        local trigger t=CreateTrigger()
        call TriggerRegisterAnyUnitEventBJ(t,EVENT_PLAYER_UNIT_SPELL_EFFECT)
        call TriggerAddCondition(t,Condition(function c))
        set t=null
    endfunction
endscope

Sorry I don't have time to make a more fitting example of one for a system like this, but if you still don't understand what I mean I can write something custom later.


Edit: I ended up having time now :) Here's a simple "arrow system" made with a stack.

JASS:
library stackSystemExample
    private struct arrowData
        unit arrow
        unit attachment
        unit target
    endstruct

    globals
        private constant real FIDELITY=1./30.
        private timer time=CreateTimer()
        private arrowData array arrowDB
        private integer dbIndex=-1
    endglobals

    private function p takes nothing returns nothing
        local integer index=0
        local arrowData tempDat
        loop
            exitwhen index>dbIndex
            set tempDat=arrowDB[index]
            call SetUnitX(tempDat.arrow,GetUnitX(tempDat.attachment))
            call SetUnitY(tempDat.arrow,GetUnitY(tempDat.attachment))
            call SetUnitFacing(tempDat.arrow,Atan2(GetUnitY(tempDat.target)-GetUnitY(tempDat.attachment),GetUnitX(tempDat.target)-GetUnitX(tempDat.attachment))*bj_RADTODEG)
            set index=index+1
        endloop
    endfunction

    public function removeArrow takes unit attachment returns nothing
        local integer index=0
        local boolean found=false
        local arrowData tempDat
        loop
            exitwhen index>dbIndex or found
            set tempDat=arrowDB[index]
            if tempDat.attachment=attachment then
                set found=true
                call RemoveUnit(tempDat.arrow)
                call tempDat.destroy()
                set arrowDB[index]=arrowDB[dbIndex]
                set dbIndex=dbIndex-1
                if dbIndex==-1 then
                    call PauseTimer(time)
                endif
            endif
            set index=index+1
        endloop
    endfunction

    public function addArrow takes unit attachment, unit target returns nothing
        local arrowData tempDat=arrowData.create()
        set arrowData.arrow=CreateUnit(...)
        set arrowData.target=target
        set arrowData.attachment=attachment
        set dbIndex=dbIndex+1
        set arrowDB[dbIndex]=tempDat
        if dbIndex==0 then
            call TimerStart(time,FIDELITY,true,function p)
        endif
    endfunction
endlibrary

Top
