Lightning Flashes - Environmental Effect

Discussion in 'General Mapping Tutorials' started by Legal_Ease, Mar 30, 2016.

  1. Legal_Ease

    Legal_Ease

    Joined:
    Feb 8, 2013
    Messages:
    1,455
    Resources:
    28
    Icons:
    11
    Packs:
    1
    Skins:
    2
    Maps:
    10
    Template:
    1
    Tutorials:
    3
    Resources:
    28
    zZZZLightning FlashesZZZz

    What this tutorial will teach you to do:

    Create a flashing lightning effect to add to your dynamic environmental effects. You may know how to put nature sounds across a region, create ambient rain or fog in a region and create a periodic roll of thunder, but now add heat lightning to your environment. I looked everywhere for a tutorial on how to do this. I still really like the monsoon target buff .mdx but I couldn't make the blast and fumes at the end of the animation disappear. So unless some really nice model-maker comes along and creates one, this will have to do for now.
    What you need to get started:
    1. View attachment Light.mdx
    2. World Editor

    Let's get started:

    Step 1:

    Import Light.mdx into your map with Import Manager and
    SAVE! .

    Step 2:

    Select a unit in Object Editor and make sure it is highlighted.
    Press cntrl-C and then contrl-V (copy and paste).
    Then click OK.
    This will be our light dummy unit.

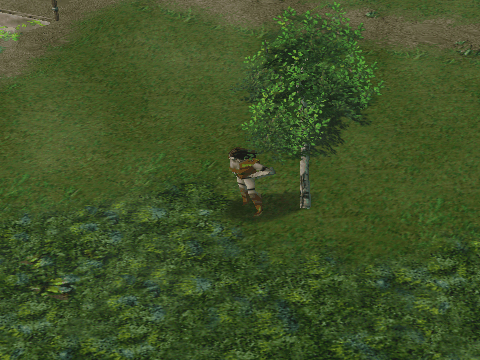

    [​IMG]

    Step 3:

    Edit the unit's data fields in Object Editor as follows:
    PHP:

    Abilities - Normal: Locust
    Movement - Height: 70
    Movement - Type: Fly
    Pathing - Collision Size: 0.00
    Art - Scaling Value: 5.00
    Combat - Attacks Enabled: None
    Feel free to give it a lightning icon and anything else you want. Height is not so important but it will change the downward angle of the flash.
    And then rename it something appropriate, like LightningDummy, or fxUnit (that's what I will call it).


    Step 4:



    You can do this part many ways, and I am sure this is not the best by any means. They way you do this next part might depend on how your map is intended to function.
    Open Trigger Editor.
    Now create the trigger. Here's what I did:

    GUI
    • Lightning Flashing Effect
      • Events
        • Time - Every 60.00 seconds of game time
      • Conditions
        • (Blood Moore <gen> contains unit) Equal to True
      • Actions
        • -----set to store location for removal later. we hate leaks------
        • Set temploc = (Position of (pWhatever_Unit))
        • Set temploc2 = (temploc offset by 200.00 towards 0.00 degrees)
        • -------The distance and angle will change the intensity and x,y direction of the flash----
        • ----------------------------------------------------------------------------------------
        • Unit - Create 1 Lightning for Neutral Passive at temploc2 facing Default building facing degrees
        • Custom script: call RemoveLocation(udg_temploc)
        • Custom script: call RemoveLocation(udg_temploc2)
        • Set fxUnit = (Last created unit)
        • Wait 0.03 seconds
        • Unit - Remove fxUnit from the game
        • --------One flash is complete, but one is never enough for a spooky storm------
        • ----------so. . . . . . --------
        • Wait 0.04 seconds
        • Set temploc = (Position of unit)
        • Set temploc2 = (temploc offset by 200.00 towards 0.00 degrees)
        • Unit - Create 1 Lightning for Neutral Passive at temploc2 facing Default building facing degrees
        • Custom script: call RemoveLocation(udg_temploc)
        • Custom script: call RemoveLocation(udg_temploc2)
        • Set fxUnit = (Last created unit)
        • Wait 0.04 seconds
        • Unit - Remove fxUnit from the game
        • ------And again-------------------------------------
        • Wait 0.04 seconds
        • Set temploc = (Position of unit)
        • Set temploc2 = (temploc offset by 200.00 towards 0.00 degrees)
        • Unit - Create 1 Lightning for Neutral Passive at temploc2 facing Default building facing degrees
        • Custom script: call RemoveLocation(udg_temploc)
        • Custom script: call RemoveLocation(udg_temploc2)
        • Set fxUnit = (Last created unit)
        • Wait 0.05 seconds
        • Unit - Remove fxUnit from the game
        • -----Pause for effect and ... wait for it-----
        • Wait 1.00 seconds
        • Sound - Play RollingThunder1 <gen>
        • -----And how about a bit of thunder for a nice finish-------------

    Blizzard did it this way in Chapter 4 of the Night Elf Campaign like this:
    gui
    • Occasional Lightning
      • Events
        • Time - LightningTimer expires
      • Conditions
      • Actions
        • Wait until (InCinematic Equal to False), checking every 1.00 seconds
        • Countdown Timer - Start LightningTimer as a One-shot timer that will expire in (Random real number between 25.00 and 60.00) seconds
        • Cinematic - Fade out and back in over 0.12 seconds using texture White Mask and color (100.00%, 100.00%, 100.00%) with 5.00% transparency
        • Wait 0.03 seconds
        • Cinematic - Fade out and back in over 0.12 seconds using texture White Mask and color (100.00%, 100.00%, 100.00%) with 5.00% transparency
        • Wait 0.20 seconds
        • Set RandomSound = (Random integer number between 1 and 2)
        • If (RandomSound Equal to 1) then do (Sound - Play LightningBolt1 <gen>) else do (Do nothing)
        • If (RandomSound Equal to 2) then do (Sound - Play RollingThunder1 <gen>) else do (Do nothing)


    Or as suggested in a comment below, a better way would be to use an advanced filter. This protects tooltips:

    • Cinematic - Apply a filter over 0.12 seconds using Normal blending on texture White Mask, starting with color (100.00%, 100.00%, 100.00%) and 25.00% transparency and ending with color (0.00%, 0.00%, 0.00%) and 100.00% transparency

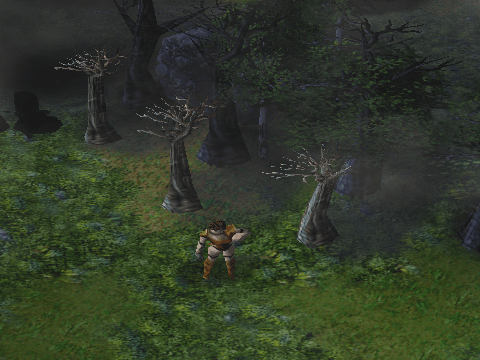

    Put them both together to get this effect ---->

    For more on lighting and environmental effects,
    try reading the following:
