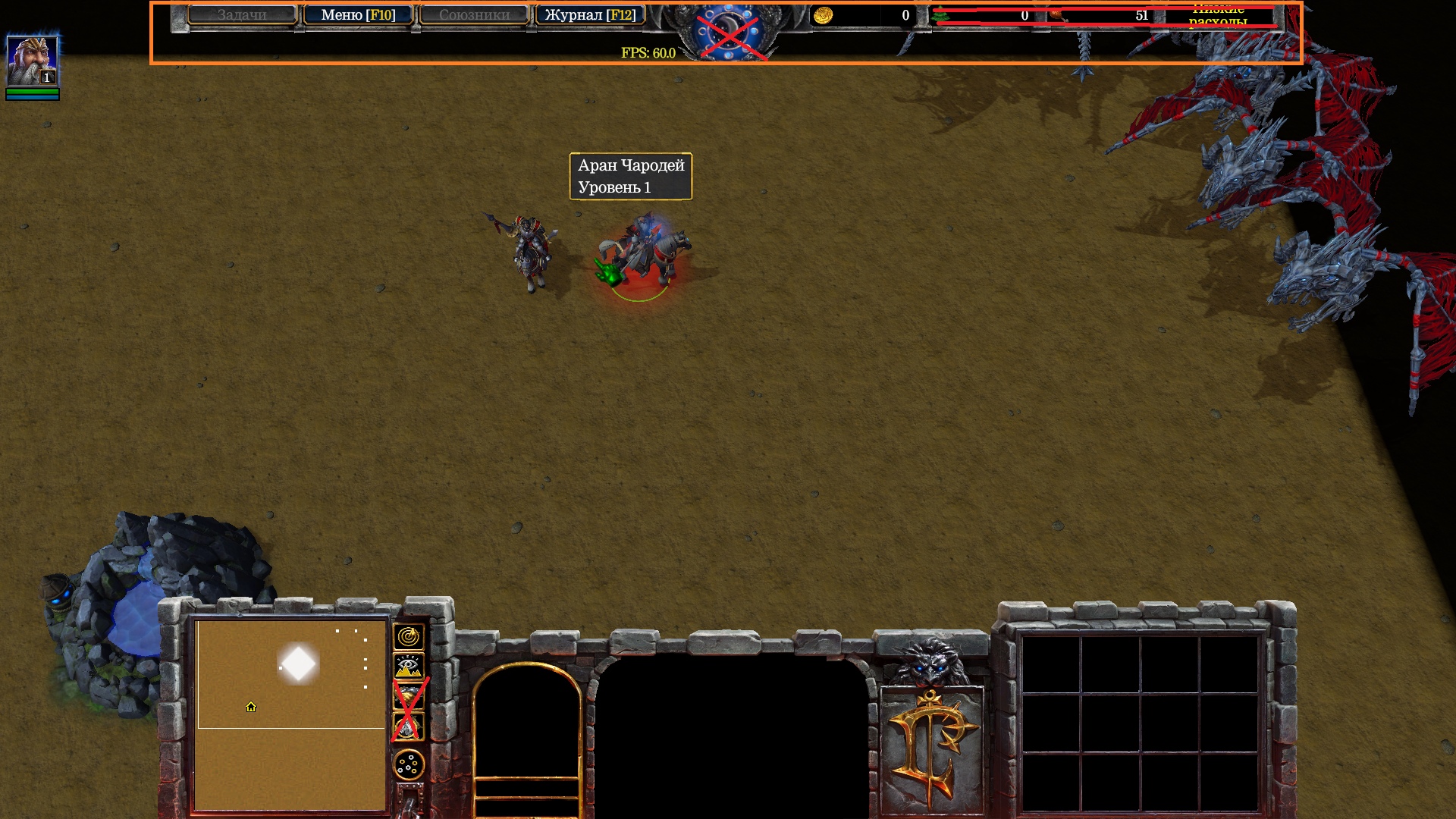

How to hide entire upper panel?

[prizraknadache]

How to hide entire upper panel?



[Pyrogasm]

@Tasyen



[Uncle]

for i=0,11 do
    HideOriginUI(ORIGIN_FRAME_MINIMAP, i)
    HideOriginUI(ORIGIN_FRAME_ITEM_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_COMMAND_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_SYSTEM_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_PORTRAIT, i)
    HideOriginUI(ORIGIN_FRAME_MINIMAP, i)
    HideOriginUI(ORIGIN_FRAME_MINIMAP_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_TOOLTIP, i)
    HideOriginUI(ORIGIN_FRAME_UBERTOOLTIP, i)
    HideOriginUI(ORIGIN_FRAME_TOP_MSG, i)
    HideUI("ResourceBarFrame", i)
    HideUI("ConsoleUI", i)
end

function HideOriginUI(name, index)
    local fh = BlzGetOriginFrame(name, index)
    BlzFrameClearAllPoints(fh)
    BlzFrameSetAbsPoint(fh, FRAMEPOINT_CENTER, 3, 3)
    BlzFrameSetScale(fh, 0.001)
end

function HideUI(name, index)
    local fh = BlzGetFrameByName(name, index)
    BlzFrameClearAllPoints(fh)
    BlzFrameSetAbsPoint(fh, FRAMEPOINT_CENTER, 3, 3)
    BlzFrameSetScale(fh, 0.001)
end

You would want to mess around with it to find which frame is which. Straight away I can tell you that you DON'T want to hide MINIMAP, and SOME of the MINIMAP_BUTTONs, ITEM_BUTTON, COMMAND_BUTTON, PORTRAIT, TOOLTIP, and UBERTOOLTIP.

I attached a GUI version that uses Jass.



[prizraknadache]

for i=0,11 do
    HideOriginUI(ORIGIN_FRAME_MINIMAP, i)
    HideOriginUI(ORIGIN_FRAME_ITEM_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_COMMAND_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_SYSTEM_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_PORTRAIT, i)
    HideOriginUI(ORIGIN_FRAME_MINIMAP, i)
    HideOriginUI(ORIGIN_FRAME_MINIMAP_BUTTON, i)
    HideOriginUI(ORIGIN_FRAME_TOOLTIP, i)
    HideOriginUI(ORIGIN_FRAME_UBERTOOLTIP, i)
    HideOriginUI(ORIGIN_FRAME_TOP_MSG, i)
    HideUI("ResourceBarFrame", i)
    HideUI("ConsoleUI", i)
end

function HideOriginUI(name, index)
    local fh = BlzGetOriginFrame(name, index)
    BlzFrameClearAllPoints(fh)
    BlzFrameSetAbsPoint(fh, FRAMEPOINT_CENTER, 3, 3)
    BlzFrameSetScale(fh, 0.001)
end

function HideUI(name, index)
    local fh = BlzGetFrameByName(name, index)
    BlzFrameClearAllPoints(fh)
    BlzFrameSetAbsPoint(fh, FRAMEPOINT_CENTER, 3, 3)
    BlzFrameSetScale(fh, 0.001)
end

You would want to mess around with it to find which FRAME is which. Straight away I can tell you that you DON'T want to hide MINIMAP, MINIMAP_BUTTON, ITEM_BUTTON, COMMAND_BUTTON, PORTRAIT, TOOLTIP, and UBERTOOLTIP.

I attached a GUI version that uses Jass.

I've tried with Lua script it works, however there is still not the result that i em expecting. Also i think the main issue is because "ConsoleUI" is a both plane upper and down and it's one single frame so it's can be only hide fully or i might be wrong



[prizraknadache]

@Tasyen

PMed him



[Tasyen]

This would hide the top Panel but not the DayTime-Clock.
The only way to hide it right now for good is BlzHideOriginFrames(true). Other ways are replacing the textures inside gameinterface with an transparent image. That still would block that part for the mouse and trigger the ToolTip with image solution.

TimerStart(CreateTimer(), 0, false, function()
        -- move the background out of the top screen, will also move the hero icons up
        local frame = BlzGetFrameByName("ConsoleUI", 0)
        --BlzFrameSetAbsPoint(frame, FRAMEPOINT_TOPLEFT, 0.0, 0.67) -- to high
        BlzFrameSetAbsPoint(frame, FRAMEPOINT_TOPLEFT, 0.0, 0.6265)

        -- hide the resources top right, this also hides /apm, /ping /fps
        frame = BlzGetFrameByName("ResourceBarFrame", 0)
        BlzFrameSetVisible(frame, false)

        -- hide the Top Left
        frame = BlzGetFrameByName("UpperButtonBarFrame", 0)
        BlzFrameSetVisible(frame, false)

        print("Done")
end)



[prizraknadache]

This would hide the top Panel but not the DayTime-Clock.
The only way to hide it right now for good is BlzHideOriginFrames(true). Other ways are replacing the textures inside gameinterface with an transparent image. That still would block that part for the mouse and trigger the ToolTip with image solution.

TimerStart(CreateTimer(), 0, false, function()
        -- move the background out of the top screen, will also move the hero icons up
        local frame = BlzGetFrameByName("ConsoleUI", 0)
        BlzFrameSetAbsPoint(frame, FRAMEPOINT_TOPLEFT, 0.0, 0.67)

        -- hide the resources top right, this also hides /apm, /ping /fps
        frame = BlzGetFrameByName("ResourceBarFrame", 0)
        BlzFrameSetVisible(frame, false)

        -- hide the Top Left
        frame = BlzGetFrameByName("UpperButtonBarFrame", 0)
        BlzFrameSetVisible(frame, false)

        print("Done")
end)

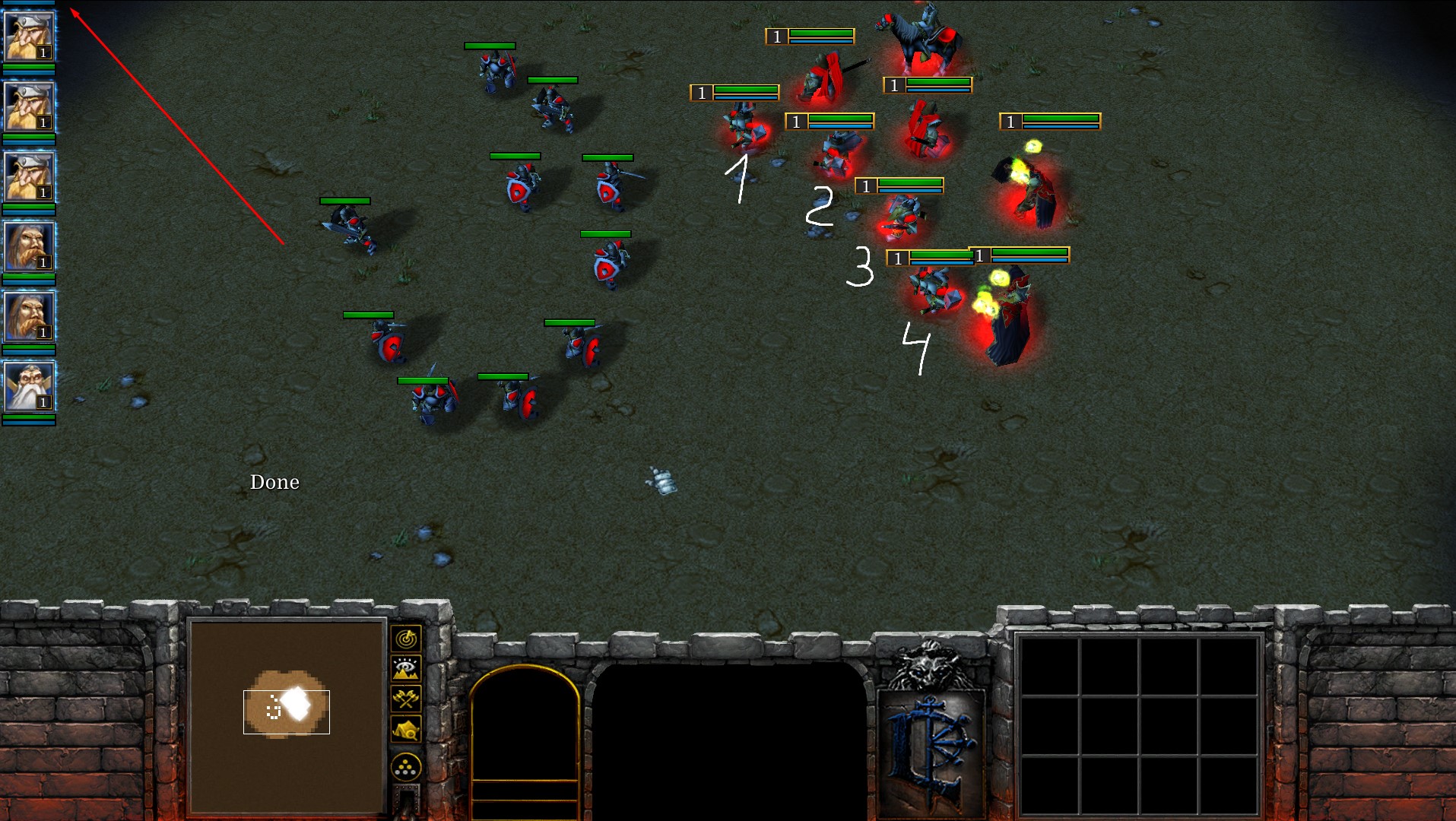

Works! However, one thing remaning - the HeroBar is a little bit up, there is a way to lower HeroBar ?



[Tasyen]

I moved the ConsoleUI to high. A lower value for y should fix that.
That value should be better:
BlzFrameSetAbsPoint(frame, FRAMEPOINT_TOPLEFT, 0.0, 0.6265)

But, yes one also could move the HeroBar.
