3ds max Export: Vertices not connected to Bone

[Tigrick]

(files for testing attached below, if you can open .max files).


Hi all,

I use 3ds max 5 with Blizzard's War3 Art Tools.

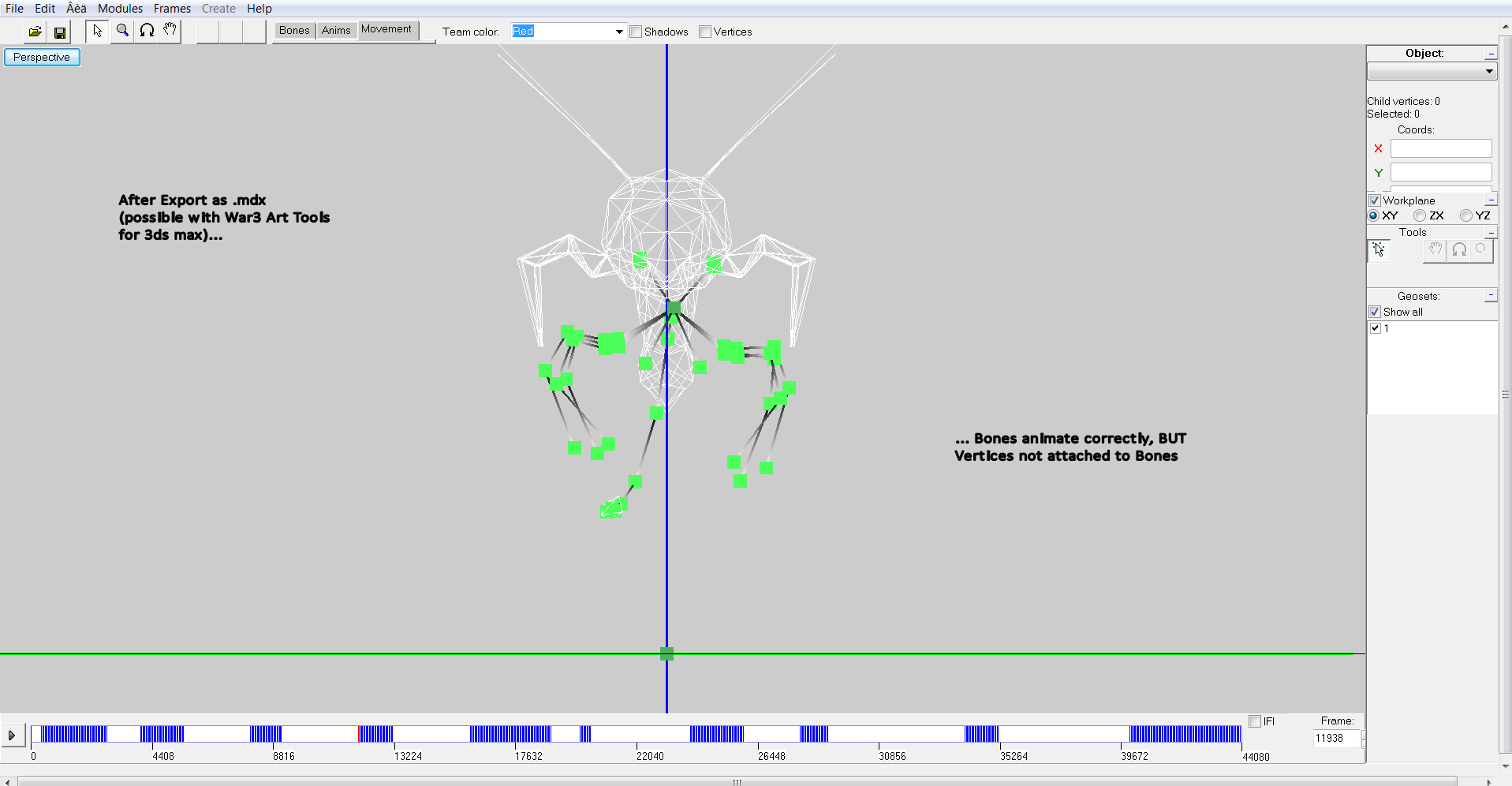

When I export the model (attached bellow), the bones are animated, but the vertices are not attached correctly:

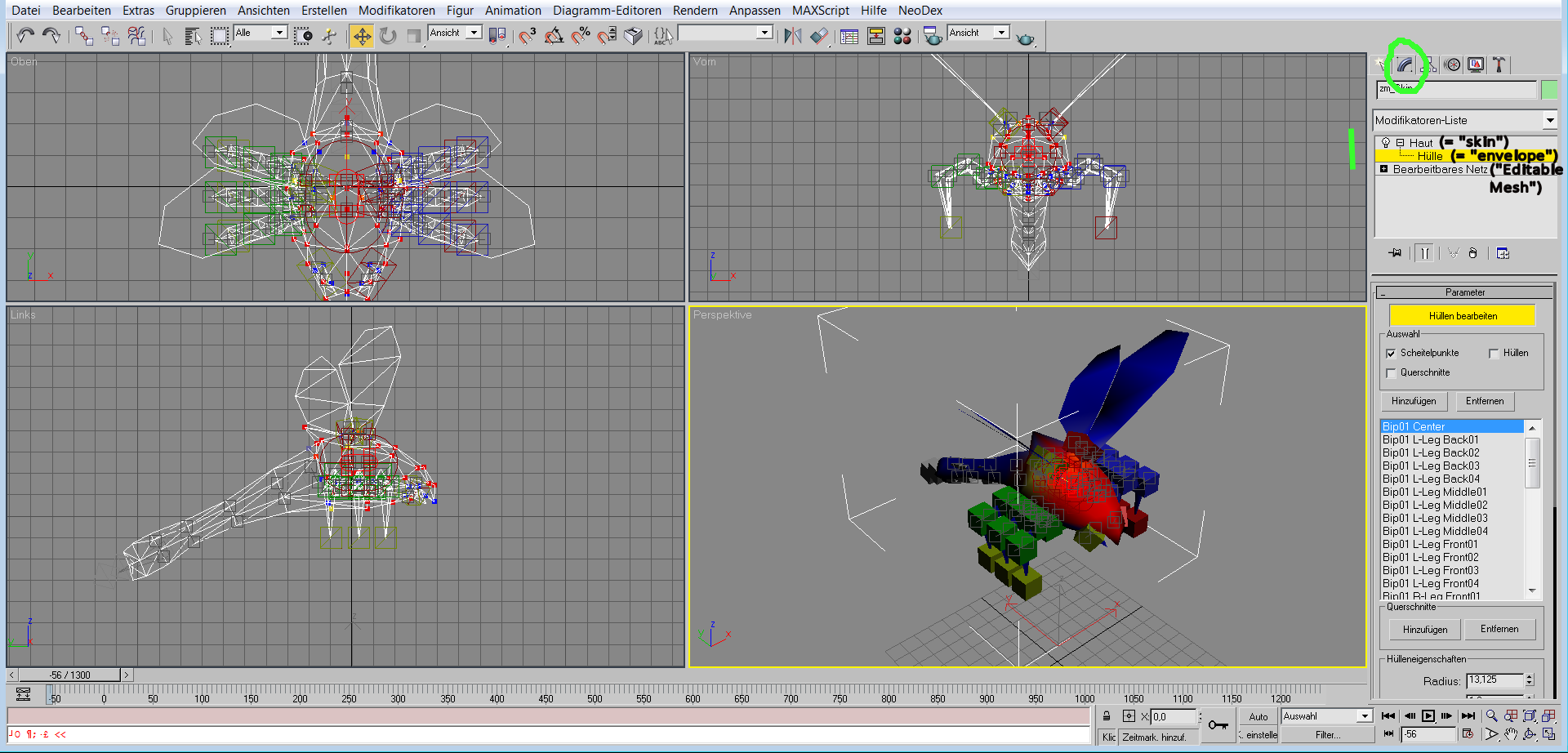

In 3ds max, the model itsself is set as a skin (envelope)

Spoiler: Settings

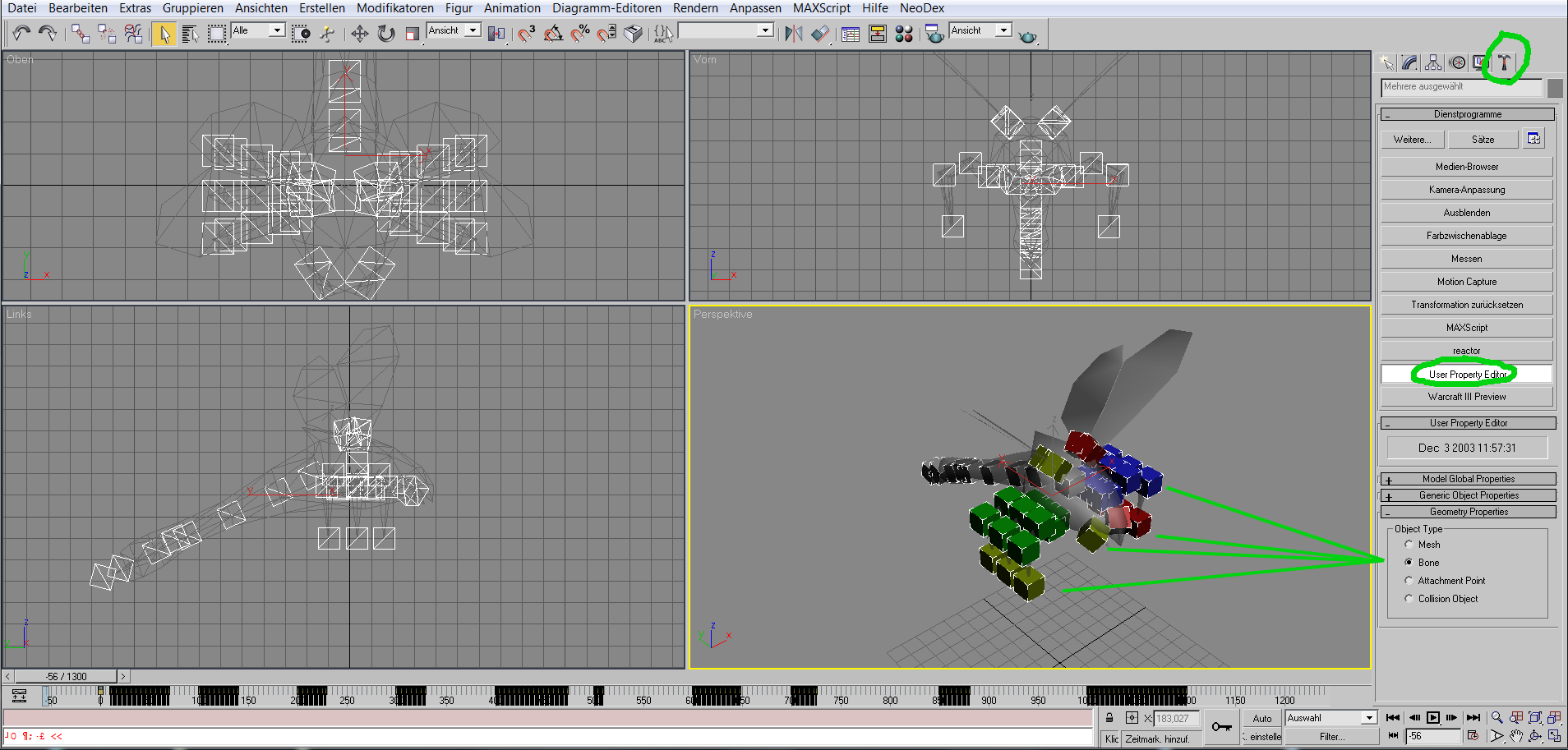

I used the User Property Editor of Blizzard Art Tools to mark the Bones as Bones

Spoiler: Marking the Bones with Blizzard Art Tools

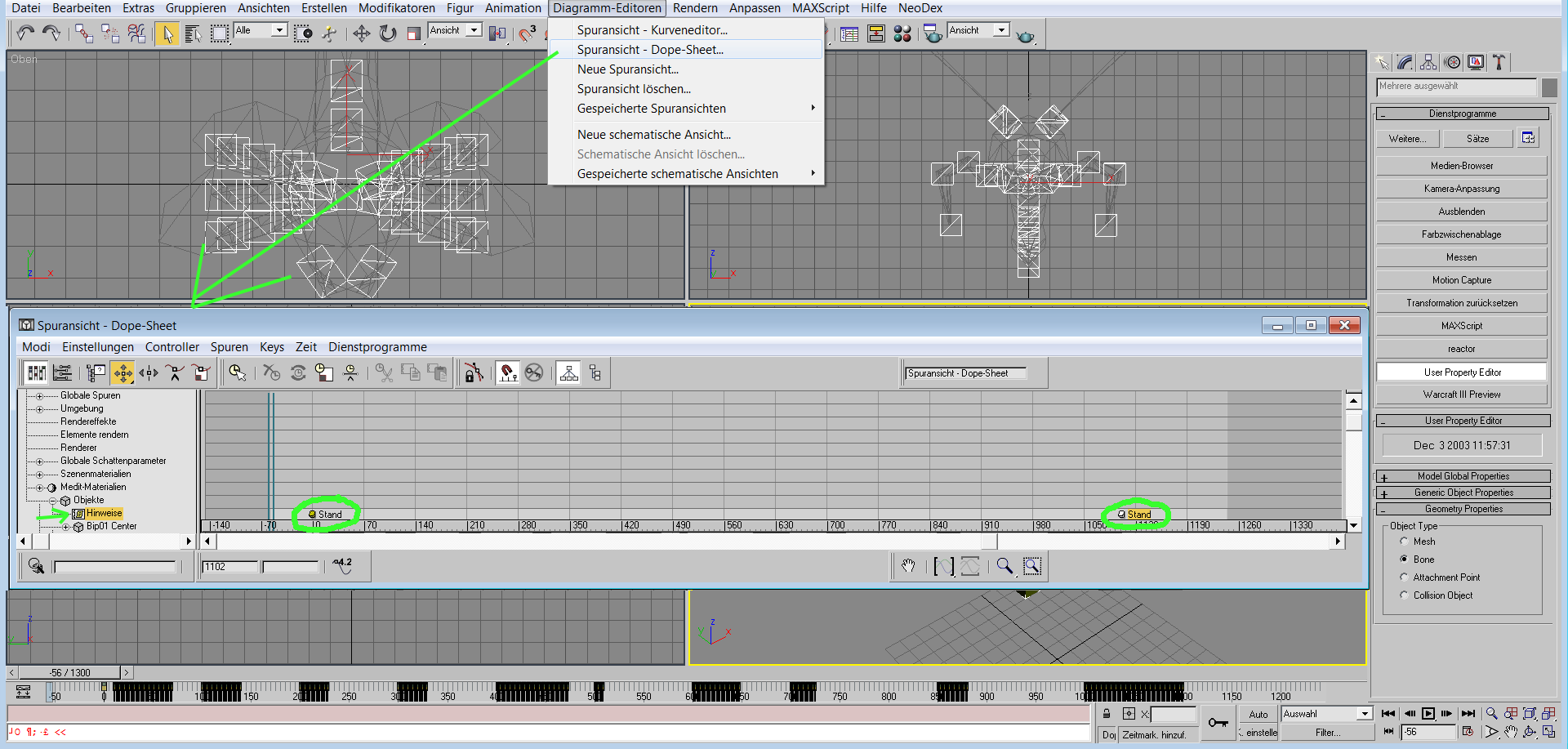

I set the animation markers in the note track, as the Blizzard Art Tool Documentation says

Spoiler: Note Track

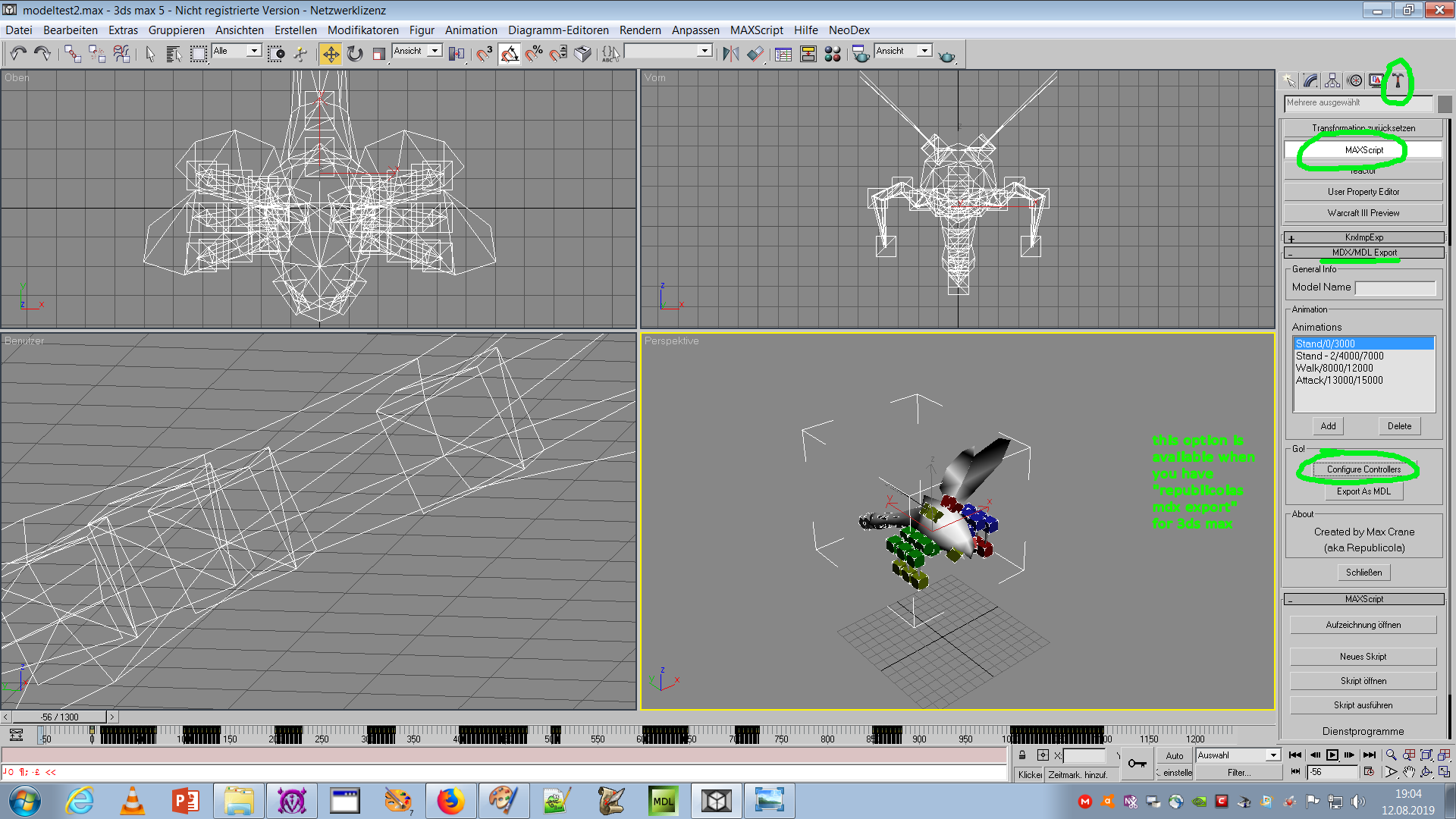

I prevented "float key controllers", which could make animations not be exported, with the help of republicolas mdx export for 3ds max

Spoiler: Float Key Controllers



[Stefan.K]

Why don't you connect the vertices to bones in Mdlvis?



[Tigrick]

^^ I have a bunch of models all set in 3ds max now, it would be way too much work to reattach everything in mdlvis.

It's strange: When exporting 3ds max models with NeoDex Exporter or republicolas Exporter, the vertex-bone-connections are correct (but sadly, other errors sneak in).
