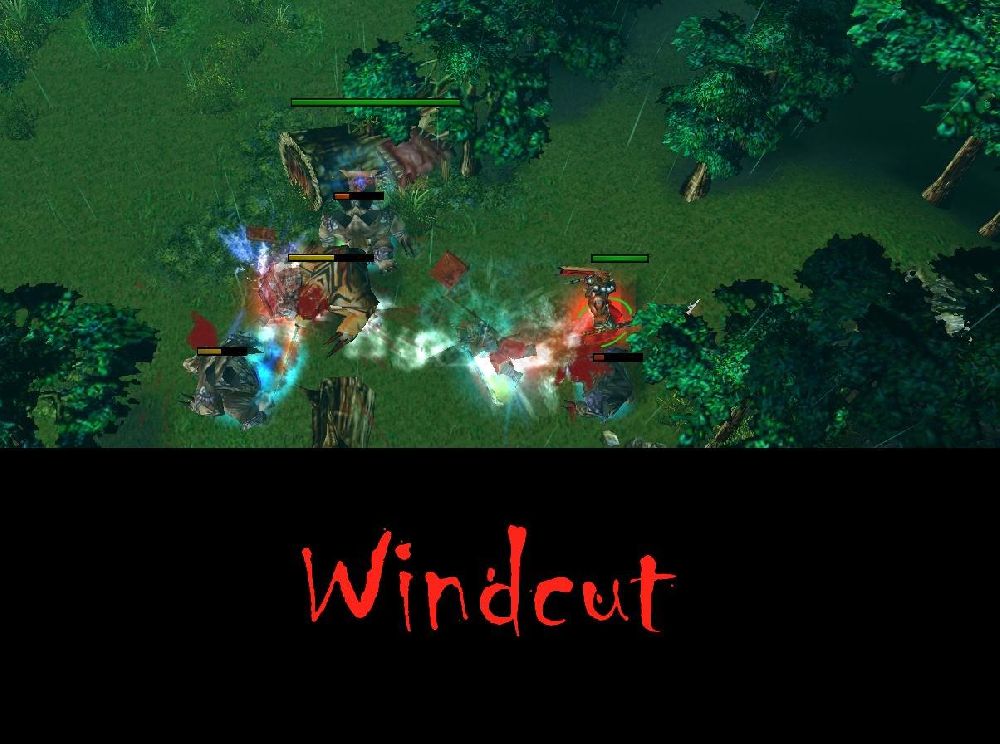

Windcut 1.3
- Author(s)
- Kingz
- Tags
- Target Ground, vJASS
- Size
- 110.66 KB
- Rating
- Downloads
- 1171
- Created
- Jan 25, 2010
- Updated
- Feb 6, 2010
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
A spell i made for a real life friend to use in his campaign.
The spell is maybe a bit simple, but at least it isn't a complete omnislash ripoff.
The library contains 2 libraries i made, if there are 2 other that are a standard and i am not aware of notify me.
The 2 libraries i coded are:
FadeUnitTimed
StopAnimationTimed
I hope someone finds this spell usefull, i sure did spend some time to make it match my friends request.
The spell's idea and concept aren't mine since it is a request.
Please notify me of any possible improvements and bugs/leaks that i may have overlooked.
Used libraries:
v1.0 rellease
v1.1 added code in the description, inlined GroupAddGroup() function
v1.2 made the struct private, made the effects disapear timer to take an automatically calculated time from FadeTimeEx value.
Keywords:
slash,blade,blood,gore,blademaster,wind,cut,windcut,sword,impact,strike,furious,fury,omnislash,dota
The spell is maybe a bit simple, but at least it isn't a complete omnislash ripoff.
The library contains 2 libraries i made, if there are 2 other that are a standard and i am not aware of notify me.
The 2 libraries i coded are:
FadeUnitTimed
StopAnimationTimed
I hope someone finds this spell usefull, i sure did spend some time to make it match my friends request.
The spell's idea and concept aren't mine since it is a request.
Please notify me of any possible improvements and bugs/leaks that i may have overlooked.
Used libraries:
JASS:
library Windcut initializer InitWindCut requires TimerUtils,GroupUtils,MathBasic,TimedFadeUnit,TimedAnimationStop,Group2Group
//SETTINGS
globals
// ID's
private constant integer Spell_ID = 'A000' // spell ID must match this value
private constant integer Dummy_ID = 'e000' // dummy unit Id must match this value
// end of ID setup
private constant boolean InvulnerableCaster = false // if true caster is invulnerable
// damage
private constant real BaseDamage = 60.00 // base damage per slash
private constant real DamageInc = 25 // damage added on base damage with every levelup of the ability
// end of damage options
// eyecandy
private constant string SlashEff = "Objects\\Spawnmodels\\Human\\HumanBlood\\BloodElfSpellThiefBlood.mdl" // effect created on unit strike
private constant string WeaponEff = "Abilities\\Spells\\NightElf\\Blink\\BlinkCaster.mdl" // effect created on illusions blade
private constant string TrailEff = "Abilities\\Weapons\\GlaiveMissile\\GlaiveMissileTarget.mdl" // trail effect which is created on the ground as the hero moves
private constant integer ESR = 3 // ESR = Effect Spam Ration, increase in this = less effects, decrease = more effects (used for trail effects)
// end of eyecandy options
// fade options
private constant real CasterFade = 0.55 // takes a value from 0.00 to 1.00; 0.00 is transparent, 1.00 is normal value of every unit.
// 0.7 = 70% visibility, 30% transparency
private constant real ImageFade = 0.45 // same as CasterFade but for illusions
private constant real FadeTime = 0.3 // fade time for illusions, 0.3 = 0.3 seconds of delay before the trail illusions behind the heroes are removed
private constant real AnimStopValue = 0.85 // varies from model to model, takes a value when the animation is stoped
// blademaster's animation of attack ("attack") is 1.167 seconds so this is
// a user defined value, there is no equation for it
private constant real FadeTimeEx = 3.00 // this value is used for the illusions that play the attack animation
// this value should be larget than FadeTime to show the full eyecandy
// and the effect of TimedAnimationStop
// end of fade options
// speed related things
private constant real FPS = 30.00 // optimal values from 30 to 60
private constant real ChargeSpeed = 1025 * (1/FPS) // speed of the hero,uses WC3 movement speed values, don't touch anything after the sign *
private constant real AoE = 366.66 // AoE which is actualy used for a strange AoE calculated by distance from caster to cast point
// end of speed options
endglobals
//END OF SETTINGS
// Don't Touch the stuff bellow this point
globals
private unit TU = null
private player TP = null
private real TR = 0.00
private group FG = CreateGroup()
private constant real MinOffset = 50.00
endglobals
private function GroupFilter takes nothing returns boolean
return GetWidgetLife(GetFilterUnit()) > .405 and IsUnitInGroup(GetFilterUnit(),FG)==false and GetFilterUnit() != TU and IsUnitType(GetFilterUnit(),UNIT_TYPE_STRUCTURE)==false and IsUnitType(GetFilterUnit(),UNIT_TYPE_FLYING)==false and IsUnitEnemy(GetFilterUnit(),TP) and IsUnitType(GetFilterUnit(),UNIT_TYPE_MECHANICAL)==false
endfunction
private function groupfunc takes nothing returns nothing
call GroupAddUnit(FG,GetEnumUnit())
endfunction
private constant function GetDamage takes integer lvl returns real
return BaseDamage + (lvl-1)*DamageInc
endfunction
private function ExtractInteger takes real r returns integer
local integer i = R2I(r)
local real s = r - I2R(i)
if s >= 0.50 then
set i = i+1
endif
return i
endfunction
private function condition2run takes nothing returns boolean
local windcut this
local real d
local integer groupnum
local integer i
local real x
local real y
if GetSpellAbilityId() == Spell_ID then
set this = windcut.Create()
set this.g = NewGroup()
set this.d = NewGroup()
set this.u = GetTriggerUnit()
set this.t = NewTimer()
set this.x = GetUnitX(this.u)
set this.y = GetUnitY(this.u)
set this.tpx = GetSpellTargetX()
set this.tpy = GetSpellTargetY()
set this.rad = RBL(this.x,this.y,this.tpx,this.tpy)
set this.dmg = GetDamage(GetUnitAbilityLevel(this.u,Spell_ID))
call SetUnitVertexColor(this.u,255,255,255, 255 - R2I(CasterFade*255))
if InvulnerableCaster then
call SetUnitInvulnerable(this.u,true)
endif
call PauseUnit(this.u,true)
set d = DBL(this.x,this.y,this.tpx,this.tpy)
set groupnum = ExtractInteger(d / AoE)
set i = 0
set x = this.x
set y = this.y
if groupnum < 1 then
set groupnum = 1
endif
loop
exitwhen i > groupnum
set TU = this.u
set TP = GetOwningPlayer(TU)
call GroupEnumUnitsInRange(this.d,x,y,AoE,Filter(function GroupFilter))
call ForGroup(this.d,function groupfunc)
call Group2Group(this.d,this.g)
set x = x + (AoE) * Cos(this.rad)
set y = y + (AoE) * Sin(this.rad)
call GroupClear(this.d)
set i = i+1
endloop
call GroupClear(FG)
call SetTimerData(this.t,integer(this))
call TimerStart(this.t,1/FPS,true,function windcut.motion)
set this.tar = FirstOfGroup(this.g)
set this.tx = GetUnitX(this.tar)
set this.ty = GetUnitY(this.tar)
set this.rad = RBL(this.x,this.y,this.tx,this.ty)
endif
return false
endfunction
struct windcut
unit u
unit tar
group g
group d
timer t
real x
real y
real tx
real ty
real rad
real tpx
real tpy
real dmg
method onDestroy takes nothing returns nothing
call SetUnitVertexColor(this.u,255,255,255,255)
if InvulnerableCaster then
call SetUnitInvulnerable(this.u,false)
endif
call PauseUnit(this.u,false)
set this.u = null
call GroupClear(this.g)
call GroupClear(this.d)
call ReleaseGroup(this.g)
call ReleaseGroup(this.d)
set this.g = null
set this.d = null
endmethod
static method Create takes nothing returns windcut
local windcut this = windcut.allocate()
return(this)
endmethod
static method motion takes nothing returns nothing
local windcut this = GetTimerData(GetExpiredTimer())
local unit tu = CreateUnit(GetOwningPlayer(this.u),Dummy_ID,this.x,this.y,this.rad*bj_RADTODEG)
call SetUnitX(tu,this.x)
call SetUnitY(tu,this.y)
call SetUnitFacing(this.u,this.rad*bj_RADTODEG)
if this.tar != null then
set this.tx = GetUnitX(this.tar)
set this.ty = GetUnitY(this.tar)
set this.rad = RBL(this.x,this.y,this.tx,this.ty)
set this.x = this.x + ChargeSpeed * Cos(this.rad)
set this.y = this.y + ChargeSpeed * Sin(this.rad)
call SetUnitX(this.u,this.x)
call SetUnitY(this.u,this.y)
if TrailEff != "" and GetRandomInt(0,ESR) == ESR then
call DestroyEffectTimed(AddSpecialEffect(TrailEff,this.x,this.y),1)
endif
if DBL(this.x,this.y,this.tx,this.ty) <= 128 and this.tar != null then
call UnitDamageTarget(this.u,this.tar,this.dmg,true,false,null,null,null)
if WeaponEff != "" then
call DestroyEffectTimed(AddSpecialEffectTarget(WeaponEff,tu,"weapon"),3)
endif
if SlashEff != "" then
call DestroyEffectTimed(AddSpecialEffectTarget(SlashEff,this.tar,"chest"),2)
endif
call SetUnitAnimation(tu,"attack")
call FadeUnitTimed(tu,FadeTimeEx,ImageFade)
call StopAnimationTimed(tu,0.80)
call GroupRemoveUnit(this.g,this.tar)
set this.tar = FirstOfGroup(this.g)
else
call FadeUnitTimed(tu,FadeTime,ImageFade)
endif
else
if DBL(this.x,this.y,this.tpx,this.tpy) <= MinOffset then
call RemoveUnit(tu)
call PauseTimer(GetExpiredTimer())
call ReleaseTimer(GetExpiredTimer())
set this.t = null
call this.destroy()
else
if TrailEff != "" and GetRandomInt(0,ESR) == ESR then
call DestroyEffectTimed(AddSpecialEffect(TrailEff,this.x,this.y),1)
endif
set this.rad = RBL(this.x,this.y,this.tpx,this.tpy)
set this.x = this.x + ChargeSpeed * Cos(this.rad)
set this.y = this.y + ChargeSpeed * Sin(this.rad)
call SetUnitX(this.u,this.x)
call SetUnitY(this.u,this.y)
call FadeUnitTimed(tu,FadeTime,ImageFade)
endif
endif
if this.x > MaxX or this.x < MinX or this.y > MaxY or this.y < MinY then
set this.tar = null
set this.x = this.x - ChargeSpeed * Cos(this.rad)
set this.y = this.y - ChargeSpeed * Sin(this.rad)
set this.tpx = this.x
set this.tpy = this.y
endif
endmethod
endstruct
private function InitWindCut takes nothing returns nothing
local trigger t = CreateTrigger()
call TriggerRegisterAnyUnitEventBJ(t,EVENT_PLAYER_UNIT_SPELL_EFFECT)
call TriggerAddCondition(t,Condition(function condition2run))
call GroupClear(FG)
endfunction
endlibraryv1.0 rellease
v1.1 added code in the description, inlined GroupAddGroup() function
v1.2 made the struct private, made the effects disapear timer to take an automatically calculated time from FadeTimeEx value.
Keywords:
slash,blade,blood,gore,blademaster,wind,cut,windcut,sword,impact,strike,furious,fury,omnislash,dota
Contents
Reviews
- Joined
- Aug 11, 2009
- Messages
- 6,528
Ah i see you uploaded this^^
- Joined
- Jun 5, 2008
- Messages
- 2,572
EDIT:
Attached the code to the spell description.
I was sceptical whether this is considered an omnislash spell, but BerZerKer convinced me to upload it.
Attached the code to the spell description.
I was sceptical whether this is considered an omnislash spell, but BerZerKer convinced me to upload it.
Last edited:
- Joined
- Apr 7, 2008
- Messages
- 1,618
nice spell
often the blademaster spells looks always the same.
first I thought it would be such a spell.
but it's a nice idea, that the blademaster will slash every enemy in his way, and then
continues.
good job.
often the blademaster spells looks always the same.
first I thought it would be such a spell.
but it's a nice idea, that the blademaster will slash every enemy in his way, and then
continues.
good job.
Last edited:
- Joined
- Aug 2, 2008
- Messages
- 219
Nice spell you made there, not the most original one but quite good. Only a few things about coding:
Some minor flaws i found out but i´m rather sleepy right now so i might have overlooked something.
Suggestions
- Structs should be private
- You might preload the special effects
- You should use
native UnitAlive takes unit id returns booleaninstead ofGetWidgetLife() <= 0.405- (optional)It would be nice if you could link the threads from the libraries you used to the description
~TNT
- Joined
- Jun 5, 2008
- Messages
- 2,572
In some strange cases
I will link the thread for the libraries with the next update.
EDIT:
If i made the struct private i couldn't call upon the Create method:
And i use that struct/method outside the struct:
native UnitAlive takes unit id returns boolean can bug and The_Reborn_Devil uses GetWidgetLife() so i don't think it is an issue.I will link the thread for the libraries with the next update.
EDIT:
If i made the struct private i couldn't call upon the Create method:
JASS:
static method Create takes nothing returns windcut
local windcut this = windcut.allocate()
return(this)
endmethodAnd i use that struct/method outside the struct:
JASS:
local windcut this
...
set this = windcut.Create()
- Joined
- Feb 25, 2009
- Messages
- 2,004
Pros
+Different from other "walk" or "cut" spells here
+Animations are nice
+Lagless SFXs which is realy nice
+I realy like the redirections when you hit a unit
+MUIness FTW.
Cons
-Animations are not realy good, especially when theres no targets in your way
-Well hes cutting them, but I didn't saw any "blood" SFXs
-SFX on movement is not realy nice, I mean its a death effect from an arrow, not realy fitting the "wind" part of the spell
-Collision are a big problem in this kind of spells, I think you need a system to detect when the caster is closer to a unit and turn off/on its collision, because its atm
Rate: 4/5
Vote: Approval
+Different from other "walk" or "cut" spells here
+Animations are nice
+Lagless SFXs which is realy nice
+I realy like the redirections when you hit a unit
+MUIness FTW.
Cons
-Animations are not realy good, especially when theres no targets in your way
-Well hes cutting them, but I didn't saw any "blood" SFXs
-SFX on movement is not realy nice, I mean its a death effect from an arrow, not realy fitting the "wind" part of the spell
-Collision are a big problem in this kind of spells, I think you need a system to detect when the caster is closer to a unit and turn off/on its collision, because its
atmRate: 4/5
Vote: Approval
- Joined
- Aug 2, 2008
- Messages
- 219
Ahh ok never mind about the IsUnitAlive thingy. I meant making the struct private and not the creator method. When structs are private you can still access them (and everything inside them). Just move the windcut struct below the 'dont touch this' globalsblock and make it private.
- Joined
- Jun 5, 2008
- Messages
- 2,572
Ok will make the struct private on the next update tomorrow.
- Joined
- Mar 16, 2008
- Messages
- 941
Just a question for the "UnitAlive" discussion.
A method I saw some days ago:
Any problems with this? Slow?
A method I saw some days ago:
JASS:
return not IsUnitType(u, UNIT_TYPE_DEAD)- Joined
- Jun 5, 2008
- Messages
- 2,572
Updated.
Fixed all things except the UnitAlive method, i heard it can sometimes bug and i don't want to take chances.
Fixed all things except the UnitAlive method, i heard it can sometimes bug and i don't want to take chances.
- Joined
- Feb 9, 2009
- Messages
- 203
aceptable
- Joined
- Nov 20, 2008
- Messages
- 445
Why do you have a Create method like this ? This is practicly the same as create() so I dont see a reason for it. And I suggest you move all the code from your condition function into the Create(which you should rename to just create as theres no need for a new method when you have the other one already there for you) method, it looks better and more organised. Also when working withing the structs methods you don't need to type "this". Using just a dot works with no problems.
Example
This will work. And it saves writing time.
Example
JASS:
static method create takes real x, real y returns thistype
local thistype this = thistype.allocate()
set .x = x
set .y = y
return this
endmethodThis will work. And it saves writing time.
- Joined
- Oct 13, 2008
- Messages
- 560
what will be if I put more levels on the spell?
- Joined
- Jun 5, 2008
- Messages
- 2,572
The damage will increase by 25 for every level you add.
- Joined
- Oct 13, 2008
- Messages
- 560
humm
how can I put one imported model on the effect?
how can I put one imported model on the effect?
- Joined
- Jun 5, 2008
- Messages
- 2,572
Be more specific, what effect?
The unit model? The blink model attached to the weapon? The blood model when hitting a unit? The windy trail behind the unit?
The unit model? The blink model attached to the weapon? The blood model when hitting a unit? The windy trail behind the unit?
- Joined
- Oct 13, 2008
- Messages
- 560
all effects...
^^
^^
- Joined
- Jun 5, 2008
- Messages
- 2,572
Well for unit model you need to modify the dummy unit.
For the Slash effect you need to modify the SlashEff variable, for the trail effect you need to modify TrailEff variable for the weapon effect you need to modify WeaponEff variable.
NOTE: When replacing the paths to special effects your new path must have \\ instead of \ .
Example:
Wrong path:
Proper path:
For the Slash effect you need to modify the SlashEff variable, for the trail effect you need to modify TrailEff variable for the weapon effect you need to modify WeaponEff variable.
NOTE: When replacing the paths to special effects your new path must have \\ instead of \ .
Example:
Wrong path:
JASS:
"Abilities\Spells\Human\DispelMagic\DispelMagicTarget.mdl"Proper path:
JASS:
"Abilities\\Spells\\Human\\DispelMagic\\DispelMagicTarget.mdl"- Joined
- Oct 13, 2008
- Messages
- 560
now I undestand!
the best spell!
1000/5
how can I do to the caster play the Morph animation when he is walking to attack?
the best spell!
1000/5
how can I do to the caster play the Morph animation when he is walking to attack?
- Joined
- Mar 24, 2008
- Messages
- 184
Nice spell i was looking for something to add a trail behind units and i found this which looks very nice and i think i'm going to use your libraries (with proprer credits of course).
I don't know if maybe i'm missing something, but i've noticed that the variable
on line 39 Is never used. I suppose it goes on line 157 in
in place of the 0.80
i was looking for something to add a trail behind units and i found this which looks very nice and i think i'm going to use your libraries (with proprer credits of course).I don't know if maybe i'm missing something, but i've noticed that the variable
JASS:
private constant real AnimStopValue = 0.85on line 39 Is never used. I suppose it goes on line 157 in
JASS:
call StopAnimationTimed(tu,0.80)in place of the 0.80
