Check out Tasyen's guides, tutorials and introductions at this link ui-fdf | HIVE for more informations about UI Frames
Overview
With patch 1.31 Blizzard added more than a few new API functions that allow us, mappers to manipulate with game UI in general (such as visibility of certain parts of default UI) and also allowed to use custom created frames, so if you ever wanted for your map to provide totally custom UI now it's easier than ever!
What functions?
Functions needs types, so we're gonna start with them
Frame related types
Frame related constants
Frame related hashtable addition
Frame related methods themselves
So how do I do things?
As with anything in warcraft 3 world editor there are multiple ways to achieve same result, we will try to achieve our results writing everything from scratch (you'll note that later), so in order to start this way we need this function:
Note that it is native and is present in common.j so it is available for GUI (via call), JASS, vJASS and Wurst.
As function name states, it is for loading TOC file, TOC file is nothing else as Table Of Contents being a file with .toc extension which looks like this:
that's it! TOC file stores file paths one at a line, so multiple files would look like this:
Note that there is no empty line at beginning but there is one at the end of it.
Once you import TOC file into your map we need to tell the game to load it via BlzLoadTOCFile which takes a string, that string is an absolute path to our TOC file (you can see path of file you imported in WorldEditor and for Wurst files are imported accordingly to directory structure within imports directory at root of your project).
Returning to TOC file, entries there represent relative paths to files that are to be loaded so in our example those files should be at same directory level as our TOC file (near them, next to them, with them).
Note that BlzLoadTOCFile returns boolean which is set to true when all files are loaded successfully but if something goes wrong - function will return false which comes in handy during debug.
So where we are now?
Quick answers is nowhere, but we are close to start things!
Create files
Create 2 files, name them MyFiles.toc and MyFrames.fdf, put name of second one into first so it looks like this:
MyFiles.toc
MyFrames.fdf is empty for now
Import them into map
For Wurst place them into imports directory within your project
For GUI/JASS/vJASS import them via World Editor and remember paths to them (you may also set paths into something shorter)
Instruct your map to load TOC file
During map initialization we need to run:
BUT we are savvy programmers/mappers so we want what happens with our loading function so:
MyFrames.fdf can be empty, function still returns true
If your function returns false check if you got empty line at the end of MyFrames.toc file and/or path to TOC file.
Still we didn't do anything?
Well, yes but we're about to do some amazing stuff!
This .fdf file, what is it?
FDF files are files that contain Frame Definitions and other stuff related to them, all default things related to GUI (not trigger thingy) in Warcraft 3 is defined in those files, you can view them via Ladik's Casc Viewer under war3.w3mod->ui->framedef, some of those files are loaded by default, some of them are not.
Learn through replication
To not create some weird idea for you to follow let's replicate some of default behaviour but in our way!
We're gonna tackle hero icon in upper left corner because that will touch numerous problems you should be aware of.
HEY, I want to do stuffs and see them right now!
Okay, put this into your MyFrames.fdf:
And update your map code to this:

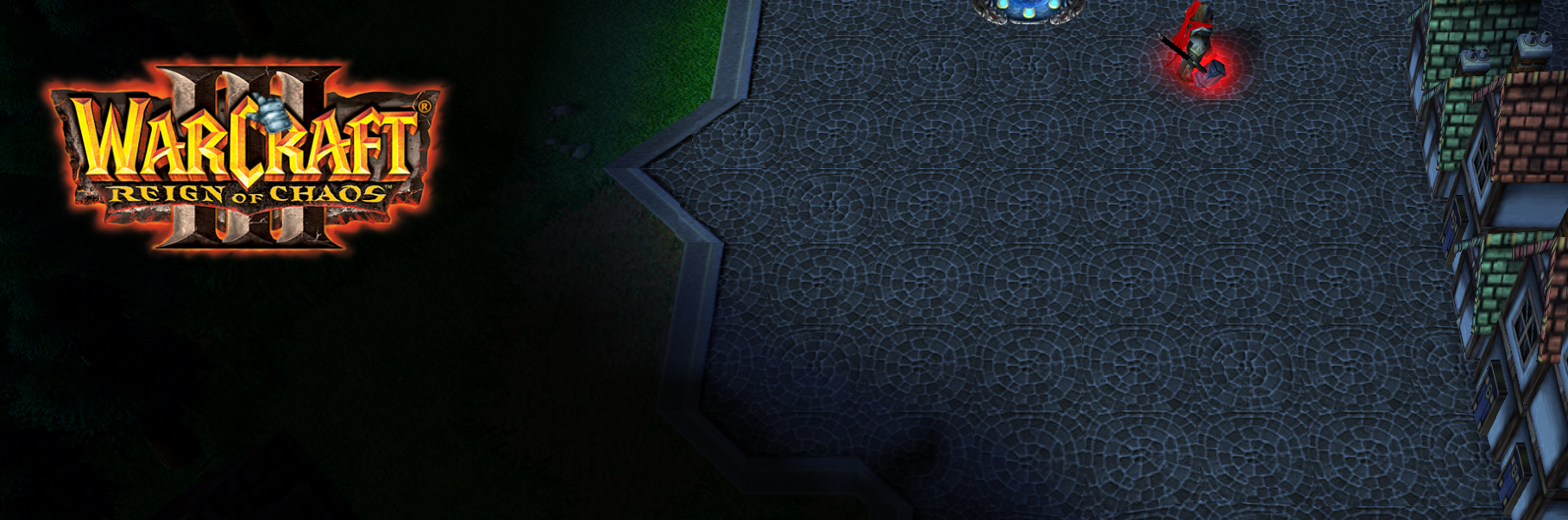

And voila we got something like this:
Quick breakdown:
In FDF file we've created Frame Definition which consists of:
In our map code:
Overview
With patch 1.31 Blizzard added more than a few new API functions that allow us, mappers to manipulate with game UI in general (such as visibility of certain parts of default UI) and also allowed to use custom created frames, so if you ever wanted for your map to provide totally custom UI now it's easier than ever!
What functions?
Functions needs types, so we're gonna start with them
Frame related types
Code:
type framehandle extends handle
type originframetype extends handle
type framepointtype extends handle
type textaligntype extends handle
type frameeventtype extends handle
Frame related constants
Code:
constant originframetype ORIGIN_FRAME_GAME_UI
constant originframetype ORIGIN_FRAME_COMMAND_BUTTON
constant originframetype ORIGIN_FRAME_HERO_BAR
constant originframetype ORIGIN_FRAME_HERO_BUTTON
constant originframetype ORIGIN_FRAME_HERO_HP_BAR
constant originframetype ORIGIN_FRAME_HERO_MANA_BAR
constant originframetype ORIGIN_FRAME_HERO_BUTTON_INDICATOR
constant originframetype ORIGIN_FRAME_ITEM_BUTTON
constant originframetype ORIGIN_FRAME_MINIMAP
constant originframetype ORIGIN_FRAME_MINIMAP_BUTTON
constant originframetype ORIGIN_FRAME_SYSTEM_BUTTON
constant originframetype ORIGIN_FRAME_TOOLTIP
constant originframetype ORIGIN_FRAME_UBERTOOLTIP
constant originframetype ORIGIN_FRAME_CHAT_MSG
constant originframetype ORIGIN_FRAME_UNIT_MSG
constant originframetype ORIGIN_FRAME_TOP_MSG
constant originframetype ORIGIN_FRAME_PORTRAIT
constant originframetype ORIGIN_FRAME_WORLD_FRAME
Frame related hashtable addition
Code:
native SaveFrameHandle
native LoadFrameHandle
Frame related methods themselves
Code:
native BlzGetOriginFrame takes originframetype frameType, integer index returns framehandle
native BlzEnableUIAutoPosition takes boolean enable returns nothing
native BlzHideOriginFrames takes boolean enable returns nothing
native BlzConvertColor takes integer a, integer r, integer g, integer b returns integer
native BlzLoadTOCFile takes string TOCFile returns boolean
native BlzCreateFrame takes string name, framehandle owner, integer priority, integer createContext returns framehandle
native BlzCreateSimpleFrame takes string name, framehandle owner, integer createContext returns framehandle
native BlzCreateFrameByType takes string typeName, string name, framehandle owner, string inherits, integer createContext returns framehandle
native BlzDestroyFrame takes framehandle frame returns nothing
native BlzFrameSetPoint takes framehandle frame, framepointtype point, framehandle relative, framepointtype relativePoint, real x, real y returns nothing
native BlzFrameSetAbsPoint takes framehandle frame, framepointtype point, real x, real y returns nothing
native BlzFrameClearAllPoints takes framehandle frame returns nothing
native BlzFrameSetAllPoints takes framehandle frame, framehandle relative returns nothing
native BlzFrameSetVisible takes framehandle frame, boolean visible returns nothing
native BlzFrameIsVisible takes framehandle frame returns boolean
native BlzGetFrameByName takes string name, integer createContext returns framehandle
native BlzFrameGetName takes framehandle frame returns string
native BlzFrameClick takes framehandle frame returns nothing
native BlzFrameSetText takes framehandle frame, string text returns nothing
native BlzFrameGetText takes framehandle frame returns string
native BlzFrameSetTextSizeLimit takes framehandle frame, integer size returns nothing
native BlzFrameGetTextSizeLimit takes framehandle frame returns integer
native BlzFrameSetTextColor takes framehandle frame, integer color returns nothing
native BlzFrameSetFocus takes framehandle frame, boolean flag returns nothing
native BlzFrameSetModel takes framehandle frame, string modelFile, integer cameraIndex returns nothing
native BlzFrameSetEnable takes framehandle frame, boolean enabled returns nothing
native BlzFrameGetEnable takes framehandle frame returns boolean
native BlzFrameSetAlpha takes framehandle frame, integer alpha returns nothing
native BlzFrameGetAlpha takes framehandle frame returns integer
native BlzFrameSetSpriteAnimate takes framehandle frame, integer primaryProp, integer flags returns nothing
native BlzFrameSetTexture takes framehandle frame, string texFile, integer flag, boolean blend returns nothing
native BlzFrameSetScale takes framehandle frame, real scale returns nothing
native BlzFrameSetTooltip takes framehandle frame, framehandle tooltip returns nothing
native BlzFrameCageMouse takes framehandle frame, boolean enable returns nothing
native BlzFrameSetValue takes framehandle frame, real value returns nothing
native BlzFrameGetValue takes framehandle frame returns real
native BlzFrameSetMinMaxValue takes framehandle frame, real minValue, real maxValue returns nothing
native BlzFrameSetStepSize takes framehandle frame, real stepSize returns nothing
native BlzFrameSetSize takes framehandle frame, real width, real height returns nothing
native BlzFrameSetVertexColor takes framehandle frame, integer color returns nothing
native BlzFrameSetLevel takes framehandle frame, integer level returns nothing
native BlzFrameSetParent takes framehandle frame, framehandle parent returns nothing
native BlzFrameGetParent takes framehandle frame returns framehandle
native BlzFrameGetHeight takes framehandle frame returns real
native BlzFrameGetWidth takes framehandle frame returns real
native BlzFrameSetFont takes framehandle frame, string fileName, real height, integer flags returns nothing
native BlzFrameSetTextAlignment takes framehandle frame, textaligntype vert, textaligntype horz returns nothing
So how do I do things?
As with anything in warcraft 3 world editor there are multiple ways to achieve same result, we will try to achieve our results writing everything from scratch (you'll note that later), so in order to start this way we need this function:
Code:
native BlzLoadTOCFile takes string TOCFile returns boolean
As function name states, it is for loading TOC file, TOC file is nothing else as Table Of Contents being a file with .toc extension which looks like this:
Code:
ourAwesomeFile.fdf
Code:
ourAwesomeFile.fdf
yourAwesomeFile.fdf
myAwesomeFile.fdf
Once you import TOC file into your map we need to tell the game to load it via BlzLoadTOCFile which takes a string, that string is an absolute path to our TOC file (you can see path of file you imported in WorldEditor and for Wurst files are imported accordingly to directory structure within imports directory at root of your project).
Returning to TOC file, entries there represent relative paths to files that are to be loaded so in our example those files should be at same directory level as our TOC file (near them, next to them, with them).
Note that BlzLoadTOCFile returns boolean which is set to true when all files are loaded successfully but if something goes wrong - function will return false which comes in handy during debug.
So where we are now?
Quick answers is nowhere, but we are close to start things!
Create files
Create 2 files, name them MyFiles.toc and MyFrames.fdf, put name of second one into first so it looks like this:
MyFiles.toc
Code:
myFrames.fdf
MyFrames.fdf is empty for now
Import them into map
For Wurst place them into imports directory within your project
For GUI/JASS/vJASS import them via World Editor and remember paths to them (you may also set paths into something shorter)
Instruct your map to load TOC file
During map initialization we need to run:
Code:
BlzLoadTOCFile("MyFiles.toc")
Code:
init
boolean loadingResult = BlzLoadTOCFile("myfiles.toc")
if loadingResult == false
BJDebugMsg("SOMETHING WENT WRONG WITH myFiles.toc")
else
BJDebugMsg("MyFiles.toc is loaded (files that it points to)")
MyFrames.fdf can be empty, function still returns true
If your function returns false check if you got empty line at the end of MyFrames.toc file and/or path to TOC file.
Still we didn't do anything?
Well, yes but we're about to do some amazing stuff!
This .fdf file, what is it?
FDF files are files that contain Frame Definitions and other stuff related to them, all default things related to GUI (not trigger thingy) in Warcraft 3 is defined in those files, you can view them via Ladik's Casc Viewer under war3.w3mod->ui->framedef, some of those files are loaded by default, some of them are not.
Learn through replication
To not create some weird idea for you to follow let's replicate some of default behaviour but in our way!
We're gonna tackle hero icon in upper left corner because that will touch numerous problems you should be aware of.
HEY, I want to do stuffs and see them right now!
Okay, put this into your MyFrames.fdf:
Code:
Frame "SPRITE" "WarCraftIIILogo" {
BackgroundArt "UI\Glues\MainMenu\WarCraftIIILogo\WarCraftIIILogo.mdl",
}
Code:
init
boolean loadingResult = BlzLoadTOCFile("myfiles.toc")
if loadingResult == false
BJDebugMsg("SOMETHING WENT WRONG WITH myFiles.toc")
else
BJDebugMsg("MyFiles.toc is loaded (files that it points to)")
framehandle logo = BlzCreateFrame("WarCraftIIILogo", BlzGetOriginFrame(ORIGIN_FRAME_GAME_UI, 0), 0, 0)
BlzFrameClearAllPoints(logo)
BlzFrameSetPoint(logo, FRAMEPOINT_TOPLEFT, BlzGetOriginFrame(ORIGIN_FRAME_GAME_UI, 0), FRAMEPOINT_TOPLEFT, 0, 0)
Quick breakdown:
In FDF file we've created Frame Definition which consists of:
Code:
Frame(object type) "SPRITE"(frameType) "WarcraftIIILogo"(objectName) {
BackgroundArt(Property Name) "UI\Glues\MainMenu\WarCraftIIILogo\WarCraftIIILogo.mdl",(Property Value)
}
Code:
framehandle logo = BlzCreateFrame("WarCraftIIILogo"(objectName), BlzGetOriginFrame(ORIGIN_FRAME_GAME_UI, 0), 0, 0)
BlzFrameClearAllPoints(logo) // Clears all point settings it may have
BlzFrameSetPoint(logo, FRAMEPOINT_TOPLEFT, BlzGetOriginFrame(ORIGIN_FRAME_GAME_UI, 0), FRAMEPOINT_TOPLEFT, 0, 0) // Sets one point (top-left) relative to top-left point of other frame (that exists)
