Third Person Movement + Camera 1.03

Moderator · Nov 24, 2013

12th Dec 2015
IcemanBo: Too long as NeedsFix. Rejected.

23:25, 24th Nov 2013
Maker: You have improved the system but it still has flaws.
I can get the unit to move forward and backwards without the walk
animation playing. Running on destructables and cliffs causes the unit
to bounce here and there.
The unit disappears from the camera on lowered ground

Shoto · Nov 24, 2013

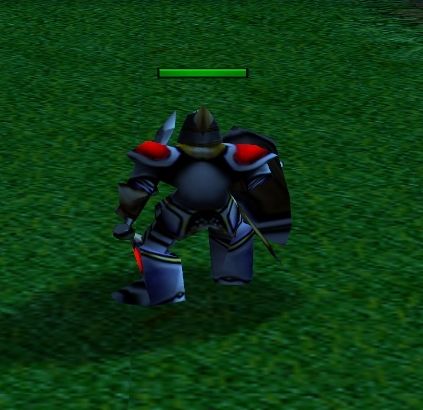

Additional in-game screenshots.

Triggers:

Actions to Apply
- Events
- Conditions
- Actions
  - Set MovUnitOfPlayer[1] = No unit
  - -------- Set the unit each player will control. --------
  - Set MovAnimationOfPlayer[1] = 0
  - -------- Set the integer at which the units Walk animation is. --------
  - -------- Footman's walk animation is at 6 for example. --------

MovSettings
- Events
  - Time - Elapsed game time is 0.01 seconds
- Conditions
- Actions
  - -------- --------
  - Set MovUniqueSpeeds = False
  - -------- Set this to true if you want each player to have different movement speeds. --------
  - -------- If this is set to true, you will have to set MovForwardSpeed, MovBackSpeed and MovTurnSpeed for all individual players in this trigger. --------
  - -------- --------
  - Set MovForwardSpeed[1] = 3.00
  - -------- Speed moving forward --------
  - -------- --------
  - Set MovBackSpeed[1] = 1.50
  - -------- Speed moving back --------
  - -------- --------
  - Set MovTurnSpeed[1] = 5.00
  - -------- Rate of turning left/right --------
  - -------- --------
  - Trigger - Run MovInitialization <gen> (ignoring conditions)
  - -------- Don't change this! --------

MovInitialization
- Events
- Conditions
- Actions
  - Set MovActivePlayers = (All players matching (((Matching player) slot status) Equal to Is playing))
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - MovUniqueSpeeds Equal to False
    - Then - Actions
      - Player Group - Pick every player in MovActivePlayers and do (Actions)

        Loop - Actions

        Set MovInt = (Player number of (Picked player))

        Set MovForwardSpeed[MovInt] = MovForwardSpeed[1]

        Set MovBackSpeed[MovInt] = MovBackSpeed[1]

        Set MovTurnSpeed[MovInt] = MovTurnSpeed[1]
    - Else - Actions
  - Player Group - Pick every player in MovActivePlayers and do (Actions)
    - Loop - Actions
      - Trigger - Add to MovForward <gen> the event (Player - (Picked player) Presses the Up Arrow key)
      - Trigger - Add to MovForward Stop <gen> the event (Player - (Picked player) Releases the Up Arrow key)
      - Trigger - Add to MovBack <gen> the event (Player - (Picked player) Presses the Down Arrow key)
      - Trigger - Add to MovBack Stop <gen> the event (Player - (Picked player) Releases the Down Arrow key)
      - Trigger - Add to MovLeft <gen> the event (Player - (Picked player) Presses the Left Arrow key)
      - Trigger - Add to MovLeft Stop <gen> the event (Player - (Picked player) Releases the Left Arrow key)
      - Trigger - Add to MovRight <gen> the event (Player - (Picked player) Presses the Right Arrow key)
      - Trigger - Add to MovRight Stop <gen> the event (Player - (Picked player) Releases the Right Arrow key)

MovForward
- Events
- Conditions
  - MovBack[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovInt2 = MovAnimationOfPlayer[MovInt]
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovForward[MovInt] = True
  - Custom script: call SetUnitAnimationByIndex(udg_MovUnit, udg_MovInt2)
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (MovUnit is in MovGroup) Equal to False
    - Then - Actions
      - Unit Group - Add MovUnit to MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (MovLoop <gen> is on) Equal to False

        Then - Actions

        Trigger - Turn on MovLoop <gen>

        Else - Actions
    - Else - Actions

MovForward Stop
- Events
- Conditions
  - MovBack[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovForward[MovInt] = False
  - Unit - Order MovUnit to Stop
  - Animation - Reset MovUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - MovForward[MovInt] Equal to False
      - MovLeft[MovInt] Equal to False
      - MovRight[MovInt] Equal to False
      - MovBack[MovInt] Equal to False
    - Then - Actions
      - Unit Group - Remove MovUnit from MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Number of units in MovGroup) Equal to 0

        Then - Actions

        Trigger - Turn off MovLoop <gen>

        Else - Actions
    - Else - Actions

MovLeft
- Events
- Conditions
  - MovRight[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovLeft[MovInt] = True
  - Unit - Make MovUnit face ((Facing of MovUnit) + 5.00) over 0.00 seconds
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (MovUnit is in MovGroup) Equal to False
    - Then - Actions
      - Unit Group - Add MovUnit to MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (MovLoop <gen> is on) Equal to False

        Then - Actions

        Trigger - Turn on MovLoop <gen>

        Else - Actions
    - Else - Actions

MovLeft Stop
- Events
- Conditions
  - MovRight[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovLeft[MovInt] = False
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - MovForward[MovInt] Equal to False
      - MovLeft[MovInt] Equal to False
      - MovRight[MovInt] Equal to False
      - MovBack[MovInt] Equal to False
    - Then - Actions
      - Unit Group - Remove MovUnit from MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Number of units in MovGroup) Equal to 0

        Then - Actions

        Trigger - Turn off MovLoop <gen>

        Else - Actions
    - Else - Actions

MovRight
- Events
- Conditions
  - MovLeft[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovRight[MovInt] = True
  - Unit - Make MovUnit face ((Facing of MovUnit) - 5.00) over 0.00 seconds
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (MovUnit is in MovGroup) Equal to False
    - Then - Actions
      - Unit Group - Add MovUnit to MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (MovLoop <gen> is on) Equal to False

        Then - Actions

        Trigger - Turn on MovLoop <gen>

        Else - Actions
    - Else - Actions

MovRight Stop
- Events
- Conditions
  - MovLeft[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovRight[MovInt] = False
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - MovForward[MovInt] Equal to False
      - MovLeft[MovInt] Equal to False
      - MovRight[MovInt] Equal to False
      - MovBack[MovInt] Equal to False
    - Then - Actions
      - Unit Group - Remove MovUnit from MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Number of units in MovGroup) Equal to 0

        Then - Actions

        Trigger - Turn off MovLoop <gen>

        Else - Actions
    - Else - Actions

MovBack
- Events
- Conditions
  - MovForward[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovInt2 = MovAnimationOfPlayer[MovInt]
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovBack[MovInt] = True
  - Custom script: call SetUnitTimeScale(udg_MovUnit, -1.00)
  - Custom script: call SetUnitAnimationByIndex(udg_MovUnit, udg_MovInt2)
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (MovUnit is in MovGroup) Equal to False
    - Then - Actions
      - Unit Group - Add MovUnit to MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (MovLoop <gen> is on) Equal to False

        Then - Actions

        Trigger - Turn on MovLoop <gen>

        Else - Actions
    - Else - Actions

MovBack Stop
- Events
- Conditions
  - MovForward[(Player number of (Triggering player))] Equal to False
- Actions
  - Set MovInt = (Player number of (Triggering player))
  - Set MovUnit = MovUnitOfPlayer[MovInt]
  - Set MovBack[MovInt] = False
  - Custom script: call SetUnitTimeScale(udg_MovUnit, 1.00)
  - Unit - Order MovUnit to Stop
  - Animation - Reset MovUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - MovForward[MovInt] Equal to False
      - MovLeft[MovInt] Equal to False
      - MovRight[MovInt] Equal to False
      - MovBack[MovInt] Equal to False
    - Then - Actions
      - Unit Group - Remove MovUnit from MovGroup
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Number of units in MovGroup) Equal to 0

        Then - Actions

        Trigger - Turn off MovLoop <gen>

        Else - Actions
    - Else - Actions

MovLoop
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in MovGroup and do (Actions)
    - Loop - Actions
      - Set MovInt = (Player number of (Owner of (Picked unit)))
      - Set MovUnit = (Picked unit)
      - Set MovPoint = (Position of MovUnit)
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        MovForward[MovInt] Equal to True

        Then - Actions

        Set MovPoint2 = (MovPoint offset by MovForwardSpeed[MovInt] towards (Facing of MovUnit) degrees)

        Set CP_Point = (MovPoint offset by 50.00 towards (Facing of MovUnit) degrees)

        Trigger - Run Check Walkability <gen> (ignoring conditions)

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        CP_PointIsWalkable Equal to True

        Then - Actions

        Unit - Move MovUnit instantly to MovPoint2

        Else - Actions

        Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        MovBack[MovInt] Equal to True

        Then - Actions

        Set MovPoint2 = (MovPoint offset by MovBackSpeed[MovInt] towards ((Facing of MovUnit) + 180.00) degrees)

        Set CP_Point = (MovPoint offset by 50.00 towards ((Facing of MovUnit) + 180.00) degrees)

        Trigger - Run Check Walkability <gen> (ignoring conditions)

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        CP_PointIsWalkable Equal to True

        Then - Actions

        Unit - Move MovUnit instantly to MovPoint2

        Else - Actions

        Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        MovLeft[MovInt] Equal to True

        Then - Actions

        Unit - Make MovUnit face ((Facing of MovUnit) + MovTurnSpeed[MovInt]) over 0.00 seconds

        Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        MovRight[MovInt] Equal to True

        Then - Actions

        Unit - Make MovUnit face ((Facing of MovUnit) - MovTurnSpeed[MovInt]) over 0.00 seconds

        Else - Actions
      - Custom script: call RemoveLocation(udg_MovPoint)
      - Custom script: call RemoveLocation(udg_MovPoint2)

MovCamera
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Player Group - Pick every player in MovActivePlayers and do (Actions)
    - Loop - Actions
      - Set MovInt = (Player number of (Picked player))
      - Set MovUnit = MovUnitOfPlayer[MovInt]
      - Set MovPoint = (Position of MovUnit)
      - Custom script: set udg_MovReal=GetLocationZ(udg_MovPoint)
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        MovReal Less than 0.00

        Then - Actions

        Camera - Set (Picked player)'s camera Height Offset to ((MovReal x 0.15) + 100.00) over 0.10 seconds

        Else - Actions

        Camera - Set (Picked player)'s camera Height Offset to ((MovReal x 0.55) + 100.00) over 0.10 seconds
      - Camera - Lock camera target for (Picked player) to MovUnit, offset by (0.00, 0.00) using Default rotation
      - Camera - Set (Picked player)'s camera Distance to target to 600.00 over 0.10 seconds
      - Camera - Set (Picked player)'s camera Rotation to (Facing of MovUnit) over 0.10 seconds
      - Custom script: call RemoveLocation(udg_MovPoint)

MovCamAngle
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Player Group - Pick every player in MovActivePlayers and do (Actions)
    - Loop - Actions
      - Set MovUnit = MovUnitOfPlayer[(Player number of (Picked player))]
      - Set MovPoint = (Position of MovUnit)
      - Set MovPoint2 = (MovPoint offset by 100.00 towards (Facing of MovUnit) degrees)
      - Set MovAngle[1] = (Distance between MovPoint and MovPoint2)
      - Custom script: set udg_MovReal=GetLocationZ(udg_MovPoint)
      - Set MovAngle[2] = MovReal
      - Custom script: set udg_MovReal=GetLocationZ(udg_MovPoint2)
      - Set MovAngle[3] = MovReal
      - Set MovAngle[4] = (Atan(((MovAngle[3] - MovAngle[2]) / MovAngle[1])))
      - Camera - Set (Picked player)'s camera Angle of attack to (340.00 + (MovAngle[4] x 0.50)) over 0.10 seconds
      - Custom script: call RemoveLocation(udg_MovPoint)
      - Custom script: call RemoveLocation(udg_MovPoint2)

I use Check Walkability by PurgeandFire

Check Walkability Setup
- Events
  - Map initialization
- Conditions
- Actions
  - Set CP_Rect = (Region(0.00, 0.00, 128.00, 128.00))
  - Custom script: set udg_CP_Item = CreateItem('wtlg', 0, 0)
  - Item - Hide CP_Item
  - -------- Variables For Copy and Paste --------
  - Set CP_HiddenItemsIndex = 0
  - Set CP_HiddenItems[0] = No item
  - Set CP_Point = (Target point of ability being cast)
  - Set CP_PointIsWalkable = False

Check Walkability
- Events
- Conditions
- Actions
  - Custom script: local real x = GetLocationX(udg_CP_Point)
  - Custom script: local real y = GetLocationY(udg_CP_Point)
  - Custom script: local real x2 = 0
  - Custom script: local real y2 = 0
  - Custom script: call MoveRectTo(udg_CP_Rect, x, y)
  - Item - Pick every item in CP_Rect and do (Actions)
    - Loop - Actions
      - Custom script: if IsItemVisible(GetEnumItem()) then
      - Set CP_HiddenItems[CP_HiddenItemsIndex] = (Picked item)
      - Custom script: call SetItemVisible(udg_CP_HiddenItems[udg_CP_HiddenItemsIndex], false)
      - Set CP_HiddenItemsIndex = (CP_HiddenItemsIndex + 1)
      - Custom script: endif
  - Custom script: call SetItemPosition(udg_CP_Item, x, y)
  - Custom script: set x2 = GetItemX(udg_CP_Item)
  - Custom script: set y2 = GetItemY(udg_CP_Item)
  - Custom script: call SetItemVisible(udg_CP_Item, false)
  - Custom script: loop
  - Custom script: exitwhen udg_CP_HiddenItemsIndex <= 0
  - Custom script: set udg_CP_HiddenItemsIndex = udg_CP_HiddenItemsIndex - 1
  - Custom script: call SetItemVisible(udg_CP_HiddenItems[udg_CP_HiddenItemsIndex], true)
  - Custom script: set udg_CP_HiddenItems[udg_CP_HiddenItemsIndex] = null
  - Custom script: endloop
  - Custom script: set udg_CP_PointIsWalkable = ((x2-x)*(x2-x) + (y2-y)*(y2-y) <= 100) and (not IsTerrainPathable(x, y, PATHING_TYPE_WALKABILITY))

Kazeon · Nov 24, 2013

I haven't tested it yet but I'm pretty sure this camera system is so much better than yours..

and please, post the triggers..

BPower · Nov 24, 2013

I haven't tested it yet but I'm pretty sure this camera system is so much better than yours..

So you're argument is based on nothing, but guessing ...
@ Shoto: Check out this How to easily post triggers
We take it from there.

Kazeon · Nov 24, 2013

yes it was. I have tested the system and it is proved..

Shoto · Nov 24, 2013

SecondHand said:
I haven't tested it yet but I'm pretty sure this camera system is so much better than yours.

Indeed, so it seems. I'll test that.

That system does indeed contain the same functionality as this does, but does it a lot better and has more features.
This submission may be deleted.

Kazeon · Nov 24, 2013

you don't really need to delete this :/
I'm really sorry for comparing your system with the others..

IcemanBo · Nov 24, 2013

You use 'TmpInt' in loops for max player number, but if one slot is unused, last player would not get looped. So better loop from 1-12 and then you can make a check.

You forgot about Z-coordinate when you set your cam-height. At the moment you set it to a constant value. If you would like to pass a hilly area for example the cam would stay at it's height.
Also you should add a periodic event at your camera trigger, because otherwise players are able to change the view.

When you often use 'picked unit' it's better to use tmpunit variable as refrerence.
_____________

@SecondHand, your link shows a good system.. but this one is GUI - but atm need some improvements for me. But gl :thumbs_up:

Maker · Nov 24, 2013

The camera has issues when terrain height is elevated. Plus we already have pretty good GUI arrow movement system and this one adds nothing. You have to improve this, make it better and smoother. Needs Fix

Shoto · Nov 25, 2013

I'll see what I can do to make this better. Thanks for the suggested improvements. Any tips on how to make the camera turning smoother? It's kinda choppy right now.

BPower · Nov 25, 2013

Again, please post the triggers. If you don't know how, click on the link in the 3rd post.

Shoto · Nov 25, 2013

Updates galore!
Fixed the problem with MPI.
Improved Camera. Height now changes with terrain, and turning is smoother.
Changed Down arrow to be backwards movement instead of 180 degree turn.

The height now changes with terrain, but it is still problematic. At high altitudes it changes too much, causing the unit to dissapear from the field of view.
How to fix?

Triggers, ho!:

Initialization
- Events
  - Time - Elapsed game time is 0.01 seconds
- Conditions
- Actions
  - Set ActivePlayers = (All players matching (((Matching player) slot status) Equal to Is playing))
  - Set TempPoint = (Random point in Region 000 <gen>)
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Unit - Create 1 Footman for (Picked player) at TempPoint facing Default building facing degrees
      - Set UnitOfPlayer[(Player number of (Picked player))] = (Last created unit)

Camera Update
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Set TempInt = (Player number of (Picked player))
      - Set TempUnit = UnitOfPlayer[TempInt]
      - Set TempPoint = (Position of TempUnit)
      - Custom script: set udg_TempReal=GetLocationZ(udg_TempPoint)
      - Camera - Lock camera target for (Picked player) to TempUnit, offset by (0.00, 0.00) using Default rotation
      - Camera - Set (Picked player)'s camera Angle of attack to 345.00 over 0.10 seconds
      - Camera - Set (Picked player)'s camera Distance to target to 600.00 over 0.10 seconds
      - Camera - Set (Picked player)'s camera Height Offset to (TempReal + 100.00) over 0.10 seconds
      - Camera - Set (Picked player)'s camera Rotation to (Facing of TempUnit) over 0.10 seconds
      - Custom script: call RemoveLocation(udg_TempPoint)

That's it. That's the entire camera.

There are so many triggers.

Forward
- Events
  - Player - Player 1 (Red) Presses the Up Arrow key
  - Player - Player 2 (Blue) Presses the Up Arrow key
  - Player - Player 3 (Teal) Presses the Up Arrow key
  - Player - Player 4 (Purple) Presses the Up Arrow key
  - Player - Player 5 (Yellow) Presses the Up Arrow key
  - Player - Player 6 (Orange) Presses the Up Arrow key
  - Player - Player 7 (Green) Presses the Up Arrow key
  - Player - Player 8 (Pink) Presses the Up Arrow key
  - Player - Player 9 (Gray) Presses the Up Arrow key
  - Player - Player 10 (Light Blue) Presses the Up Arrow key
  - Player - Player 11 (Dark Green) Presses the Up Arrow key
  - Player - Player 12 (Brown) Presses the Up Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Custom script: call SetUnitAnimationByIndex(udg_TempUnit, 6)
  - Unit Group - Add TempUnit to GroupForward
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Forward Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Forward Loop <gen>
    - Else - Actions

Forward Loop
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupForward and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Set TempPoint = (Position of TempUnit)
      - Set TempPoint2 = (TempPoint offset by 3.00 towards (Facing of TempUnit) degrees)
      - Unit - Move TempUnit instantly to TempPoint2
      - Custom script: call RemoveLocation(udg_TempPoint)
      - Custom script: call RemoveLocation(udg_TempPoint2)

Forward Stop
- Events
  - Player - Player 1 (Red) Releases the Up Arrow key
  - Player - Player 2 (Blue) Releases the Up Arrow key
  - Player - Player 3 (Teal) Releases the Up Arrow key
  - Player - Player 4 (Purple) Releases the Up Arrow key
  - Player - Player 5 (Yellow) Releases the Up Arrow key
  - Player - Player 6 (Orange) Releases the Up Arrow key
  - Player - Player 7 (Green) Releases the Up Arrow key
  - Player - Player 8 (Pink) Releases the Up Arrow key
  - Player - Player 9 (Gray) Releases the Up Arrow key
  - Player - Player 10 (Light Blue) Releases the Up Arrow key
  - Player - Player 11 (Dark Green) Releases the Up Arrow key
  - Player - Player 12 (Brown) Releases the Up Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupForward
  - Unit - Order TempUnit to Stop
  - Animation - Reset TempUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupForward) Equal to 0
    - Then - Actions
      - Trigger - Turn off Forward Loop <gen>
    - Else - Actions

Left
- Events
  - Player - Player 1 (Red) Presses the Left Arrow key
  - Player - Player 2 (Blue) Presses the Left Arrow key
  - Player - Player 3 (Teal) Presses the Left Arrow key
  - Player - Player 4 (Purple) Presses the Left Arrow key
  - Player - Player 5 (Yellow) Presses the Left Arrow key
  - Player - Player 6 (Orange) Presses the Left Arrow key
  - Player - Player 7 (Green) Presses the Left Arrow key
  - Player - Player 8 (Pink) Presses the Left Arrow key
  - Player - Player 9 (Gray) Presses the Left Arrow key
  - Player - Player 10 (Light Blue) Presses the Left Arrow key
  - Player - Player 11 (Dark Green) Presses the Left Arrow key
  - Player - Player 12 (Brown) Presses the Left Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit - Make TempUnit face ((Facing of TempUnit) + 5.00) over 0.00 seconds
  - Unit Group - Add TempUnit to GroupLeft
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Left Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Left Loop <gen>
    - Else - Actions

Left Loop
- Events
  - Time - Every 0.02 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupLeft and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Unit - Make TempUnit face ((Facing of TempUnit) + 5.00) over 0.00 seconds

Left Stop
- Events
  - Player - Player 1 (Red) Releases the Left Arrow key
  - Player - Player 2 (Blue) Releases the Left Arrow key
  - Player - Player 3 (Teal) Releases the Left Arrow key
  - Player - Player 4 (Purple) Releases the Left Arrow key
  - Player - Player 5 (Yellow) Releases the Left Arrow key
  - Player - Player 6 (Orange) Releases the Left Arrow key
  - Player - Player 7 (Green) Releases the Left Arrow key
  - Player - Player 8 (Pink) Releases the Left Arrow key
  - Player - Player 9 (Gray) Releases the Left Arrow key
  - Player - Player 10 (Light Blue) Releases the Left Arrow key
  - Player - Player 11 (Dark Green) Releases the Left Arrow key
  - Player - Player 12 (Brown) Releases the Left Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupLeft
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupLeft) Equal to 0
    - Then - Actions
      - Trigger - Turn off Left Loop <gen>
    - Else - Actions

Right
- Events
  - Player - Player 1 (Red) Presses the Right Arrow key
  - Player - Player 2 (Blue) Presses the Right Arrow key
  - Player - Player 3 (Teal) Presses the Right Arrow key
  - Player - Player 4 (Purple) Presses the Right Arrow key
  - Player - Player 5 (Yellow) Presses the Right Arrow key
  - Player - Player 6 (Orange) Presses the Right Arrow key
  - Player - Player 7 (Green) Presses the Right Arrow key
  - Player - Player 8 (Pink) Presses the Right Arrow key
  - Player - Player 9 (Gray) Presses the Right Arrow key
  - Player - Player 10 (Light Blue) Presses the Right Arrow key
  - Player - Player 11 (Dark Green) Presses the Right Arrow key
  - Player - Player 12 (Brown) Presses the Right Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit - Make TempUnit face ((Facing of TempUnit) - 5.00) over 0.00 seconds
  - Unit Group - Add TempUnit to GroupRight
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Right Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Right Loop <gen>
    - Else - Actions

Right Loop
- Events
  - Time - Every 0.02 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupRight and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Unit - Make TempUnit face ((Facing of TempUnit) - 5.00) over 0.00 seconds

Right Stop
- Events
  - Player - Player 1 (Red) Releases the Right Arrow key
  - Player - Player 2 (Blue) Releases the Right Arrow key
  - Player - Player 3 (Teal) Releases the Right Arrow key
  - Player - Player 4 (Purple) Releases the Right Arrow key
  - Player - Player 5 (Yellow) Releases the Right Arrow key
  - Player - Player 6 (Orange) Releases the Right Arrow key
  - Player - Player 7 (Green) Releases the Right Arrow key
  - Player - Player 8 (Pink) Releases the Right Arrow key
  - Player - Player 9 (Gray) Releases the Right Arrow key
  - Player - Player 10 (Light Blue) Releases the Right Arrow key
  - Player - Player 11 (Dark Green) Releases the Right Arrow key
  - Player - Player 12 (Brown) Releases the Right Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupRight
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupRight) Equal to 0
    - Then - Actions
      - Trigger - Turn off Right Loop <gen>
    - Else - Actions

Back
- Events
  - Player - Player 1 (Red) Presses the Down Arrow key
  - Player - Player 2 (Blue) Presses the Down Arrow key
  - Player - Player 3 (Teal) Presses the Down Arrow key
  - Player - Player 4 (Purple) Presses the Down Arrow key
  - Player - Player 5 (Yellow) Presses the Down Arrow key
  - Player - Player 6 (Orange) Presses the Down Arrow key
  - Player - Player 7 (Green) Presses the Down Arrow key
  - Player - Player 8 (Pink) Presses the Down Arrow key
  - Player - Player 9 (Gray) Presses the Down Arrow key
  - Player - Player 10 (Light Blue) Presses the Down Arrow key
  - Player - Player 11 (Dark Green) Presses the Down Arrow key
  - Player - Player 12 (Brown) Presses the Down Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Custom script: call SetUnitTimeScale(udg_TempUnit, -1.00)
  - Custom script: call SetUnitAnimationByIndex(udg_TempUnit, 6)
  - Unit Group - Add TempUnit to GroupBack
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Back Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Back Loop <gen>
    - Else - Actions

Back Loop
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupBack and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Set TempPoint = (Position of TempUnit)
      - Set TempPoint2 = (TempPoint offset by 1.50 towards ((Facing of TempUnit) + 180.00) degrees)
      - Unit - Move TempUnit instantly to TempPoint2
      - Custom script: call RemoveLocation(udg_TempPoint)
      - Custom script: call RemoveLocation(udg_TempPoint2)

Back Stop
- Events
  - Player - Player 1 (Red) Releases the Down Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Custom script: call SetUnitTimeScale(udg_TempUnit, 1.00)
  - Unit Group - Remove TempUnit from GroupBack
  - Unit - Order TempUnit to Stop
  - Animation - Reset TempUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupBack) Equal to 0
    - Then - Actions
      - Trigger - Turn off Back Loop <gen>
    - Else - Actions

BPower · Nov 25, 2013

Custom script: call SetUnitAnimationByIndex(udg_TempUnit, 6). Not every unit has walk on animation index 6

Shoto · Nov 25, 2013

I'm aware. How do I fix it?

Animation - Play TempUnit's walk animation

doesn't work.

BPower · Nov 25, 2013

At the moment you initialze a footman to your system. Your goal is to init any unit with a corresponding walk animation to the system. In your scenario UnitOfPlayer[PlayerId] points to the correct unit --> AnimationOfPlayer[PlayerId] could point to the correct animation.

Shoto · Nov 26, 2013

Something like this?

Initialization
- Events
  - Time - Elapsed game time is 0.01 seconds
- Conditions
- Actions
  - Set ActivePlayers = (All players matching (((Matching player) slot status) Equal to Is playing))
  - Set TempPoint = (Random point in Region 000 <gen>)
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Set TempInt = (Player number of (Picked player))
      - Unit - Create 1 Footman for (Picked player) at TempPoint facing Default building facing degrees
      - Unit - Create 1 Demon Hunter for (Picked player) at TempPoint facing Default building facing degrees
      - Set UnitOfPlayer[TempInt] = (Last created unit)
      - Set TempUnit = (Last created unit)
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Unit-type of TempUnit) Equal to Footman

        Then - Actions

        Set AnimationOfPlayer[TempInt] = 6

        Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Unit-type of TempUnit) Equal to Demon Hunter

        Then - Actions

        Set AnimationOfPlayer[TempInt] = 8

        Else - Actions

And of course, change in the movement triggers:

Actions
- Set TempInt = (Player number of (Triggering player))
- Set TempUnit = UnitOfPlayer[TempInt]
- Set TempInt2 = AnimationOfPlayer[TempInt]
- Custom script: call SetUnitAnimationByIndex(udg_TempUnit, udg_TempInt2)

What about the camera?

EDIT:
New update, new triggers:

Somewhat local to the test map. Will improve this to make it easier to import.

Initialization
- Events
  - Time - Elapsed game time is 0.01 seconds
- Conditions
- Actions
  - Set ActivePlayers = (All players matching (((Matching player) slot status) Equal to Is playing))
  - Set TempPoint = (Random point in Region 000 <gen>)
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Set TempInt = (Player number of (Picked player))
      - Unit - Create 1 Footman for (Picked player) at TempPoint facing Default building facing degrees
      - Unit - Create 1 Demon Hunter for (Picked player) at TempPoint facing Default building facing degrees
      - Set UnitOfPlayer[TempInt] = (Last created unit)
      - Set TempUnit = (Last created unit)
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Unit-type of TempUnit) Equal to Footman

        Then - Actions

        Set AnimationOfPlayer[TempInt] = 6

        Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Unit-type of TempUnit) Equal to Demon Hunter

        Then - Actions

        Set AnimationOfPlayer[TempInt] = 8

        Else - Actions

Camera Update
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Set TempInt = (Player number of (Picked player))
      - Set TempUnit = UnitOfPlayer[TempInt]
      - Set TempPoint = (Position of TempUnit)
      - Custom script: set udg_TempReal=GetLocationZ(udg_TempPoint)
      - Camera - Lock camera target for (Picked player) to TempUnit, offset by (0.00, 0.00) using Default rotation
      - Camera - Set (Picked player)'s camera Angle of attack to 345.00 over 0.10 seconds
      - Camera - Set (Picked player)'s camera Distance to target to 600.00 over 0.10 seconds
      - Camera - Set (Picked player)'s camera Height Offset to (TempReal + 100.00) over 0.10 seconds
      - Camera - Set (Picked player)'s camera Rotation to (Facing of TempUnit) over 0.10 seconds
      - Custom script: call RemoveLocation(udg_TempPoint)

Camera Angle
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Player Group - Pick every player in ActivePlayers and do (Actions)
    - Loop - Actions
      - Set TempUnit = UnitOfPlayer[(Player number of (Picked player))]
      - Set TempPoint = (Position of TempUnit)
      - Set TempPoint2 = (TempPoint offset by 500.00 towards (Facing of TempUnit) degrees)
      - Set RealArray[1] = (Distance between TempPoint and TempPoint2)
      - Custom script: set udg_TempReal=GetLocationZ(udg_TempPoint)
      - Set RealArray[2] = TempReal
      - Custom script: set udg_TempReal=GetLocationZ(udg_TempPoint2)
      - Set RealArray[3] = TempReal
      - Set RealArray[4] = (Atan(((RealArray[3] - RealArray[2]) / RealArray[1])))
      - Camera - Set (Picked player)'s camera Angle of attack to (345.00 + (RealArray[4] x 0.50)) over 0.10 seconds
      - Custom script: call RemoveLocation(udg_TempPoint)
      - Custom script: call RemoveLocation(udg_TempPoint2)

There are so many triggers.

Forward
- Events
  - Player - Player 1 (Red) Presses the Up Arrow key
  - Player - Player 2 (Blue) Presses the Up Arrow key
  - Player - Player 3 (Teal) Presses the Up Arrow key
  - Player - Player 4 (Purple) Presses the Up Arrow key
  - Player - Player 5 (Yellow) Presses the Up Arrow key
  - Player - Player 6 (Orange) Presses the Up Arrow key
  - Player - Player 7 (Green) Presses the Up Arrow key
  - Player - Player 8 (Pink) Presses the Up Arrow key
  - Player - Player 9 (Gray) Presses the Up Arrow key
  - Player - Player 10 (Light Blue) Presses the Up Arrow key
  - Player - Player 11 (Dark Green) Presses the Up Arrow key
  - Player - Player 12 (Brown) Presses the Up Arrow key
- Conditions
- Actions
- Set TempInt = (Player number of (Triggering player))
- Set TempUnit = UnitOfPlayer[TempInt]
- Set TempInt2 = AnimationOfPlayer[TempInt]
- Custom script: call SetUnitAnimationByIndex(udg_TempUnit, udg_TempInt2)
- Unit Group - Add TempUnit to GroupForward
- If (All Conditions are True) then do (Then Actions) else do (Else Actions)
  - If - Conditions
    - (Forward Loop <gen> is on) Equal to False
  - Then - Actions
    - Trigger - Turn on Forward Loop <gen>
  - Else - Actions

Forward Loop
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupForward and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Set TempPoint = (Position of TempUnit)
      - Set TempPoint2 = (TempPoint offset by 3.00 towards (Facing of TempUnit) degrees)
      - Unit - Move TempUnit instantly to TempPoint2
      - Custom script: call RemoveLocation(udg_TempPoint)
      - Custom script: call RemoveLocation(udg_TempPoint2)

Forward Stop
- Events
  - Player - Player 1 (Red) Releases the Up Arrow key
  - Player - Player 2 (Blue) Releases the Up Arrow key
  - Player - Player 3 (Teal) Releases the Up Arrow key
  - Player - Player 4 (Purple) Releases the Up Arrow key
  - Player - Player 5 (Yellow) Releases the Up Arrow key
  - Player - Player 6 (Orange) Releases the Up Arrow key
  - Player - Player 7 (Green) Releases the Up Arrow key
  - Player - Player 8 (Pink) Releases the Up Arrow key
  - Player - Player 9 (Gray) Releases the Up Arrow key
  - Player - Player 10 (Light Blue) Releases the Up Arrow key
  - Player - Player 11 (Dark Green) Releases the Up Arrow key
  - Player - Player 12 (Brown) Releases the Up Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupForward
  - Unit - Order TempUnit to Stop
  - Animation - Reset TempUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupForward) Equal to 0
    - Then - Actions
      - Trigger - Turn off Forward Loop <gen>
    - Else - Actions

Left
- Events
  - Player - Player 1 (Red) Presses the Left Arrow key
  - Player - Player 2 (Blue) Presses the Left Arrow key
  - Player - Player 3 (Teal) Presses the Left Arrow key
  - Player - Player 4 (Purple) Presses the Left Arrow key
  - Player - Player 5 (Yellow) Presses the Left Arrow key
  - Player - Player 6 (Orange) Presses the Left Arrow key
  - Player - Player 7 (Green) Presses the Left Arrow key
  - Player - Player 8 (Pink) Presses the Left Arrow key
  - Player - Player 9 (Gray) Presses the Left Arrow key
  - Player - Player 10 (Light Blue) Presses the Left Arrow key
  - Player - Player 11 (Dark Green) Presses the Left Arrow key
  - Player - Player 12 (Brown) Presses the Left Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit - Make TempUnit face ((Facing of TempUnit) + 5.00) over 0.00 seconds
  - Unit Group - Add TempUnit to GroupLeft
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Left Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Left Loop <gen>
    - Else - Actions

Left Loop
- Events
  - Time - Every 0.02 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupLeft and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Unit - Make TempUnit face ((Facing of TempUnit) + 5.00) over 0.00 seconds

Left Stop
- Events
  - Player - Player 1 (Red) Releases the Left Arrow key
  - Player - Player 2 (Blue) Releases the Left Arrow key
  - Player - Player 3 (Teal) Releases the Left Arrow key
  - Player - Player 4 (Purple) Releases the Left Arrow key
  - Player - Player 5 (Yellow) Releases the Left Arrow key
  - Player - Player 6 (Orange) Releases the Left Arrow key
  - Player - Player 7 (Green) Releases the Left Arrow key
  - Player - Player 8 (Pink) Releases the Left Arrow key
  - Player - Player 9 (Gray) Releases the Left Arrow key
  - Player - Player 10 (Light Blue) Releases the Left Arrow key
  - Player - Player 11 (Dark Green) Releases the Left Arrow key
  - Player - Player 12 (Brown) Releases the Left Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupLeft
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupLeft) Equal to 0
    - Then - Actions
      - Trigger - Turn off Left Loop <gen>
    - Else - Actions

Right
- Events
  - Player - Player 1 (Red) Presses the Right Arrow key
  - Player - Player 2 (Blue) Presses the Right Arrow key
  - Player - Player 3 (Teal) Presses the Right Arrow key
  - Player - Player 4 (Purple) Presses the Right Arrow key
  - Player - Player 5 (Yellow) Presses the Right Arrow key
  - Player - Player 6 (Orange) Presses the Right Arrow key
  - Player - Player 7 (Green) Presses the Right Arrow key
  - Player - Player 8 (Pink) Presses the Right Arrow key
  - Player - Player 9 (Gray) Presses the Right Arrow key
  - Player - Player 10 (Light Blue) Presses the Right Arrow key
  - Player - Player 11 (Dark Green) Presses the Right Arrow key
  - Player - Player 12 (Brown) Presses the Right Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit - Make TempUnit face ((Facing of TempUnit) - 5.00) over 0.00 seconds
  - Unit Group - Add TempUnit to GroupRight
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Right Loop <gen> is on) Equal to False
    - Then - Actions
      - Trigger - Turn on Right Loop <gen>
    - Else - Actions

Right Loop
- Events
  - Time - Every 0.02 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupRight and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Unit - Make TempUnit face ((Facing of TempUnit) - 5.00) over 0.00 seconds

Right Stop
- Events
  - Player - Player 1 (Red) Releases the Right Arrow key
  - Player - Player 2 (Blue) Releases the Right Arrow key
  - Player - Player 3 (Teal) Releases the Right Arrow key
  - Player - Player 4 (Purple) Releases the Right Arrow key
  - Player - Player 5 (Yellow) Releases the Right Arrow key
  - Player - Player 6 (Orange) Releases the Right Arrow key
  - Player - Player 7 (Green) Releases the Right Arrow key
  - Player - Player 8 (Pink) Releases the Right Arrow key
  - Player - Player 9 (Gray) Releases the Right Arrow key
  - Player - Player 10 (Light Blue) Releases the Right Arrow key
  - Player - Player 11 (Dark Green) Releases the Right Arrow key
  - Player - Player 12 (Brown) Releases the Right Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Unit Group - Remove TempUnit from GroupRight
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupRight) Equal to 0
    - Then - Actions
      - Trigger - Turn off Right Loop <gen>
    - Else - Actions

Back
- Events
  - Player - Player 1 (Red) Presses the Down Arrow key
  - Player - Player 2 (Blue) Presses the Down Arrow key
  - Player - Player 3 (Teal) Presses the Down Arrow key
  - Player - Player 4 (Purple) Presses the Down Arrow key
  - Player - Player 5 (Yellow) Presses the Down Arrow key
  - Player - Player 6 (Orange) Presses the Down Arrow key
  - Player - Player 7 (Green) Presses the Down Arrow key
  - Player - Player 8 (Pink) Presses the Down Arrow key
  - Player - Player 9 (Gray) Presses the Down Arrow key
  - Player - Player 10 (Light Blue) Presses the Down Arrow key
  - Player - Player 11 (Dark Green) Presses the Down Arrow key
  - Player - Player 12 (Brown) Presses the Down Arrow key
- Conditions
- Actions
- Set TempInt = (Player number of (Triggering player))
- Set TempUnit = UnitOfPlayer[TempInt]
- Set TempInt2 = AnimationOfPlayer[TempInt]
- Custom script: call SetUnitTimeScale(udg_TempUnit, -1.00)
- Custom script: call SetUnitAnimationByIndex(udg_TempUnit, udg_TempInt2)
- Unit Group - Add TempUnit to GroupBack
- If (All Conditions are True) then do (Then Actions) else do (Else Actions)
  - If - Conditions
    - (Back Loop <gen> is on) Equal to False
  - Then - Actions
    - Trigger - Turn on Back Loop <gen>
  - Else - Actions

Back Loop
- Events
  - Time - Every 0.01 seconds of game time
- Conditions
- Actions
  - Unit Group - Pick every unit in GroupBack and do (Actions)
    - Loop - Actions
      - Set TempUnit = (Picked unit)
      - Set TempPoint = (Position of TempUnit)
      - Set TempPoint2 = (TempPoint offset by 1.50 towards ((Facing of TempUnit) + 180.00) degrees)
      - Unit - Move TempUnit instantly to TempPoint2
      - Custom script: call RemoveLocation(udg_TempPoint)
      - Custom script: call RemoveLocation(udg_TempPoint2)

Back Stop
- Events
  - Player - Player 1 (Red) Releases the Down Arrow key
- Conditions
- Actions
  - Set TempInt = (Player number of (Triggering player))
  - Set TempUnit = UnitOfPlayer[TempInt]
  - Custom script: call SetUnitTimeScale(udg_TempUnit, 1.00)
  - Unit Group - Remove TempUnit from GroupBack
  - Unit - Order TempUnit to Stop
  - Animation - Reset TempUnit's animation
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Number of units in GroupBack) Equal to 0
    - Then - Actions
      - Trigger - Turn off Back Loop <gen>
    - Else - Actions

Shoto · Nov 27, 2013

Bump?
Updated, check first comment for new triggers.

deathismyfriend · Nov 27, 2013

Check out my camera movement system and see if the functionality compares to it.

http://www.hiveworkshop.com/forums/...0-1-a-239423/?prev=status=a&u=deathismyfriend

Sorry i can't test it myself.

Mine has a lot of different ways to customize. It is not only 3rd person it can do 1st person as well. It allows for changing of angle of attack, height, roll. It can have different modes for each player. Allowing full control to the map maker or to the players. It can also limit control to each player individually. There are a few other things it can do as well.

Maker · Nov 28, 2013

-You seem to be leaking CP_Point
-You don't necessarily set MovPoint2 but you always remove it
-Try using only CP_Point, not MovPoint2
-As you check pathing with the item method, there is necessarily no need to rely in setting unit position instantly. That also does pathinc check. Try SetUnitX/Y instead

Shoto · Nov 29, 2013

Maker said:
-You seem to be leaking CP_Point
-You don't necessarily set MovPoint2 but you always remove it
-Try using only CP_Point, not MovPoint2

I realize the leak now that you point it out.
I'll look into these points.

Maker said:
-As you check pathing with the item method, there is necessarily no need to rely in setting unit position instantly. That also does pathing check. Try SetUnitX/Y instead

That makes sense. I just never think of using custom scripts like those unless someone points it out

I'll update soon!

Third Person Movement + Camera 1.03

Third Person Test (Map)

Moderator

Moderator

Attachments

Similar threads
