[REQUEST] PRO MultiBoard

Status
Not open for further replies.

hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82

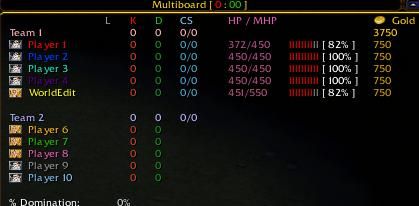

So guys, I want a PRO Multiboard like this one


The difference I want you replace the kills/death by Gold and Lumber, remove this CS, HP/MHP and the Unit HP you change to Team HP, what will be an MAIN unit (Like the TREE of DotA)

Observations: The Team 1 wont see the Team 2 Gold,Lumber just the Team 1 Main unit HP and the Team 2 wont see the Team 1 Gold,Lumber just the Main Unit HP !

Thanks, if you do that for me = REP


Deleted member 177737

D

Deleted member 177737

Theres nothing "Pro" about it, all you need to know how to do is set up a multiboard and how to tie it into all the systems that update the info one it.
Just checkout the tutorials section and look for "how to make a multiboard", with 30 min or so you can begin to make basic multiboards, and within a day or two you can begin expanding and making it into a large multiboard like in the picture you posted.


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
Yayoi said:
Theres nothing "Pro" about it, all you need to know how to do is set up a multiboard and how to tie it into all the systems that update the info one it.
Just checkout the tutorials section and look for "how to make a multiboard", with 30 min or so you can begin to make basic multiboards, and within a day or two you can begin expanding and making it into a large multiboard like in the picture you posted.
Click to expand...

I can do a NORMAL Multiboard, but I don't know how to edit and blablabla multiboards like that!


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
Darkgrom said:
i think i can fix this when i got time for it its kind of easy i think but it takes time

Don't you worry about icons... I just want the muiltboard atm..

if i should make it for you i need to know what icons and other...
Click to expand...

Don't you worry about Icons, I just want the multiboard atm...


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
It's still missing the life bar he wanted... You said it works like DotA, but every player has a seperate main unit? and if you want to hide one team's stats from another, you have to make 12 separate multiboard, hide them, then use:

  • Custom script: if (GetLocalPlayer() == GetIndexPlayer(ForLoopIndexA))
  • Multiboard: Show StatsTab[Integer A]
  • Custom script: endif
I'm sorry I can't help much else, I don't have WC3 installed on this computer (I'm not at home...)


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
Darkgrom said:
im sorry i did'nt add life because i worked with the dumb board for 2 hours i think and it was very late, it was 5im i think
Click to expand...

Sorry Darkgrom, you spent 2 free hours, cause i said

1- The main unit with HP Bar (what you didnt do)
2- I said, "I want a muiltiboard what FRIENDS can't see ENEMIES stats..." (What you didn't do)

The rest of multiboard i can do alone, it's not a problem to me!


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
It is:
  • Multiboard
    • Events:
      • Map Initialization
    • Conditions:
    • Actions:
      • For each (Integer A) from 1 to 2, do
        • Multiboard - Create Multiboard with 5 columns and 16 rows, titled "Multiboard [0:00]"
        • Set StatsTab[Integer A] = Last created multiboard
        • For each (Integer B) from 1 to 12, do
          • Multiboard - Set the width for (StatsTab[Integer A]) item in column 1, row (Integer B) to 13.00% of the total screen width
          • Multiboard - Set the width for (StatsTab[Integer A]) item in column 2, row (Integer B) to 3% of the total screen width
          • Multiboard - Set the width for (StatsTab[Integer A]) item in column 3, row (Integer B) to 6% of the total screen width
          • Multiboard - Set the width for (StatsTab[Integer A]) item in column 4, row (Integer B) to 6% of the total screen width
          • Multiboard - Set the width for (StatsTab[Integer A]) item in column 5, row (Integer B) to 10% of the total screen width
          • For each integer (I) from 1 to 5, do
            • Multiboard - Set the display style for (StatsTab[Integer A]) item in column (I), row (Integer B) to Show text and Hide icons
        • For each (Integer B) from 1 to 5, do
          • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row (2+(Integer B)) to (Name of PlayerNumber(IntegerB))
          • Multiboard - Set the display style for (StatsTab[Integer A]) item in column 1, row (2+(Integer B)) to Show text and Show icons
          • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row (9+(Integer B)) to (Name of PlayerNumber(5+(IntegerB)))
          • Multiboard - Set the display style for (StatsTab[Integer A]) item in column 1, row (9+(Integer B)) to Show text and Show icons
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row 2 to (Team 1)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row 9 to (Team 2)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 2, row 1 to (L)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 3, row 1 to (Gold)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 4, row 1 to (Lumber)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 5, row 1 to (Main Unit)
        • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row 16 to (% Domination:)
        • Multiboard - Hide StatsTab[Integer A]
    • For loop (Integer A) from 1 to 5, do
      • Custom script: if (GetLocalPlayer() == ConvertedPlayer(ForLoopIndexA))
      • Multiboard - Show StatsTab[1]
      • Custom script: endif
    • For loop (Integer A) from 6 to 10, do
      • Custom script: if (GetLocalPlayer() == ConvertedPlayer(ForLoopIndexA))
      • Multiboard - Show StatsTab[2]
      • Custom script: endif
  • Refresh
    • Events:
      • Time - Every 1.00 seconds
    • Conditions:
    • Actions:
      • For each (Integer A) from 1 to 2, do
        • For each (Integer B) from 1 to 5, do
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • (Integer A) is equal to 1
            • Then - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 3, row (2+Integer B) to (Gold of Player(Integer B))
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 4, row (2+Integer B) to (Lumber of Player(Integer B))
            • Else - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 3, row (9+Integer B) to (Gold of Player(5+Integer B))
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 4, row (9+Integer B) to (Lumber of Player(5+Integer B))
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • MainUnit[Integer B] is Alive equal to True
            • Then - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 2, row (2+Integer B) to (Y)
            • Else - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 2, row (2+Integer B) to (N)
          • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
            • If - Conditions
              • MainUnit[5+Integer B] is Alive equal to True
            • Then - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 2, row (9+Integer B) to (Y)
            • Else - Actions
              • Multiboard - Set the text for (StatsTab[Integer A]) item in column 2, row (9+Integer B) to (N)
Initialize multiboards in the place of the comment. GetLocalPlayer is a tricky thing, so don't use it often, it may cause desync, but localy showing a multiboard is okay-I use the same method in my map for skill book. Also don't forget to update multiboards 1by1! :)

EDIT: I can't finish this myself-as I told it like 12 times these last 2 days, I'm not at home, but if you can't finish it I hope ppl around here will know what to do with it, as all you have to do is set the rows their text and icon

EDIT2: I can't really make the life bar here, but you can do it with Concentrate Strings and Substring Function the following way:

Red color code+Substring(1,HP%/10,IIIIIIIIII)+|r+White color code+Substring(1,10-(HP%/10),IIIIIIIIII)+|r

I hope you can make it now :)

Last edited:

hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
kanadaj said:
It is:
  • For each (Integer A) from 1 to 12, do
  • Multiboard - Create Multiboard with 4 columns and 15 rows, titled "Multiboard [0:00]"
  • Set StatsTab[Integer A] = Last created multiboard
  • ------------ˇˇSet Multiboard Hereˇˇ----------
  • -----------^^Set Multiboard Here^^---------
  • Multiboard - Hide StatsTab[Integer A]
  • Custom script: if (GetLocalPlayer() == GetIndexPlayer(ForLoopIndexA))
  • Multiboard - Show StatsTab[Integer A]
  • Custom script: endif
Initialize multiboards in the place of the comment. GetLocalPlayer is a tricky thing, so don't use it often, it may cause desync, but localy showing a multiboard is okay-I use the same method in my map for skill book. Also don't forget to update multiboards 1by1! :)

EDIT: I can't finish this myself-as I told it like 12 times these last 2 days, I'm not at home, but if you can't finish it I hope ppl around here will know what to do with it, as all you have to do is set the rows their text and icon
Click to expand...

This " ------------ˇˇSet Multiboard Hereˇˇ----------
-----------^^Set Multiboard Here^^---------" will be a Variable ?


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
No, at their place you make the multiboard, eg. set the texts in the spicific columns and rows, set the icons etc.

Use Multiboard - Set text at row X column Y to Z

If you can wait an hour or so I'll finish it

EDIT: Half done, without the values or color codes (if you want colors you'll have to suffer for it as I have to type the entire trigger by hand...)

Last edited:

Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
Yes :) I'll tell you what it does apart from creating a multiboard:

If you create a multiboard locally (for only 1 person) the game will desync because the datas are different so you do this:

Create 10 different multiboards
Fill them with different data
Hide all of them
Show multiboard 1 for player 1, multiboard 2 for player 2 and so on

EDIT: Not sure if the custom script is 100% ok, I'll check it and edit it if it's not, else it'll crash your game

EDIT2: Oh my god, I don't have a world editor here Oo Can I ask your help?

Do the following:
Make a new trigger
make action: if-then-else
into that the following condition: Boolean: Player(player number(1)) equal to triggering player equal to true
then go to file->covert to custom text
press CTRL+F and write "GetTriggerPlayer()"
hit ok
Copy that entire line and post it here so I can use it to check mine :)

Sorry for making you a hard time but I lack WE soo much now it hurts


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
But this multiboard will show just for player 1 or will be a multiboard to show for player 1-5 and another to show for 6-10 ?


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
Oh ffs will you belive me or not? :D It will show player 1-5 the same and 6-10 the same but different groups won't see each others' lumber... Now will you copy here the line I want so much to finish the work or will you ask the same thing 4th time in a row without letting me finish your multiboard? Oo
The thing is:
Player1-5 has the SAME multiboard
Player 6-10 has an OTHER multiboard


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
  • Multiboard
    • Events:
      • Map Initialization
    • Conditions:
    • Actions:
      • Set StatsTab[Integer A] = Last created multiboard
This Variable "StatsTab[Integer A]" I can just create "statstab" not "statstab[integer A]


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
It's because you have to tick "Array" and set the number after it to 2
If you see Variable[Something] then it's an array of variables

EDIT: After sooo much sucking... I mean... helping I hope you'll at least find the +rep button xD I don't want to seem mean, but after spending 2 hours with your trigger I think I deserve it ^^

Oh, and you should really learn triggering before continuin your project as for most of the things you'll need them, and if you need some1 to make triggers, get a triggerer for your map... If you can't make neither the terrain well, nor the units, I think you should learn WE with tutorials before starting a serious project and asking ppl to help ;)


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
kanadaj said:
It's because you have to tick "Array" and set the number after it to 2
If you see Variable[Something] then it's an array of variables

EDIT: After sooo much sucking... I mean... helping I hope you'll at least find the +rep button xD I don't want to seem mean, but after spending 2 hours with your trigger I think I deserve it ^^

Oh, and you should really learn triggering before continuin your project as for most of the things you'll need them, and if you need some1 to make triggers, get a triggerer for your map... If you can't make neither the terrain well, nor the units, I think you should learn WE with tutorials before starting a serious project and asking ppl to help ;)
Click to expand...

I did your REP, but continue helping me in this topic


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
kanadaj said:
I is an integer variablo, and value is FROM 1 TO 5, means the trigger runs that section after it 5 times, with i=1 then I=2 then I=3 and so on. It's called a loop. It's the same as For Loop (Integer A) but A and B were already occupied so I had to use a third one :)
Click to expand...

Got some questions,

Initial Value = 1 right ?

But see what happens
"For each (Integer I [Index] ) from 1 to 5, do (actions)"

What I need change to remove the "index" ?


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
  • Multiboard
    • Events:
      • Map Initialization
    • Conditions:
    • Actions:
    • For loop (Integer A) from 1 to 5, do
And about this Loop ? I select "For each integer variable, do multiple actions" ?


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82

hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
  • Custom Script: if (GetLocalPlayer() == GetIndexPlayer(ForLoopIndexA))
When I save my WE disable the trigger and an error appears


Kanadaj

Kanadaj

Kanadaj

Level 15
Joined
Oct 18, 2008
Messages
1,591
Action-general-for loop integer A
The custom script is not good because I can't remember the exact way so do the following:

Make a new trigger
set the following condition: player condition-player from player index(1) equal to triggering player
go to file-convert to custom text
hit OK for the popup window
copy the text and post it here

from that I can finish the code :p


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
function Trig_outros_Conditions takes nothing returns boolean
if ( not ( ConvertedPlayer(1) == GetTriggerPlayer() ) ) then
return false
endif
return true
endfunction

function Trig_outros_Actions takes nothing returns nothing
endfunction

//===========================================================================
function InitTrig_outros takes nothing returns nothing
set gg_trg_outros = CreateTrigger( )
call DisableTrigger( gg_trg_outros )
call TriggerAddCondition( gg_trg_outros, Condition( function Trig_outros_Conditions ) )
call TriggerAddAction( gg_trg_outros, function Trig_outros_Actions )
endfunction


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
kanadaj said:
It is:
  • Multiboard
    • Events:
      • Map Initialization
    • Conditions:
    • Actions:
      • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row (2+(Integer B)) to (Name of PlayerNumber(IntegerB))
      • Multiboard - Set the text for (StatsTab[Integer A]) item in column 1, row (9+(Integer B)) to (Name of PlayerNumber(5+(IntegerB)))
PlayerNumber = Variable ? Type: Array ? Size: 1 ?
Click to expand...


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
  • Refresh
    • Events:
      • Time - Every 1.00 seconds
    • Conditions:
    • Actions:
      • MainUnit[5+Integer B] is Alive equal to True
[5+Integer B] = How do i do that ? I didn't find the action what i can use the variable + integer with the "is Alive" 'condition', When i can use the variable and integer the option "is alive" doesn't have, i mean, there're just "Is a building" "is ...." What I need do ? (I was selecting Boleam comparision action, that's right ?)


hbadotti

hbadotti

hbadotti

Level 4
Joined
Jul 9, 2011
Messages
82
kanadaj said:
Main Unit is a unit array :) The index number is Arithmetic-add function :D Oh, and u see is a building because is alive is on the dropdown list in the boolean menu, a bit lower, try pressing U untilk you see it
Click to expand...

Yea, but I select Unit ? Unit-Type ? (As variable)

Status
Not open for further replies.

Similar threads

hbadotti
  • Locked
[REQUEST] Multiboard EDIT
Replies
16
Views
1K
hbadotti
hbadotti
Marcos DAB
  • Locked
Advanced AoS Multiboard Implementation
Replies
6
Views
988
Choggers
Choggers
MapperForLife
  • Locked
Requesting a multiboard
Replies
15
Views
2K
ChirusHighwind
ChirusHighwind
Nightbrowler
  • Locked
Multiboard...
Replies
5
Views
1K
ShadowHunter291
ShadowHunter291
Vercas
  • Locked
Multiboard Request!!!
Replies
3
Views
577
Vercas
Vercas
Top
