[GUI] BunkerSystem V1.4
- Author(s)
- nedio95
- Tags
- System, GUI / Triggers
- Size
- 32.36 KB
- Rating
- Downloads
- 374
- Created
- Aug 29, 2012
- Updated
- Sep 8, 2012
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
Multy-UnitBunkerSystem
by Nedio95
Description

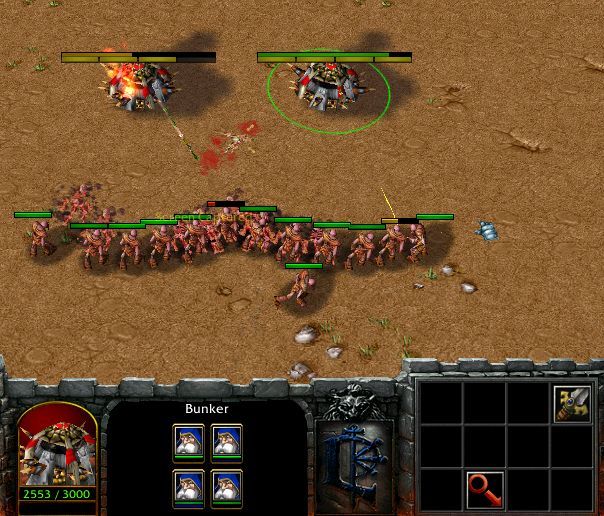

Allows the creation of starcraft-like bunkers
Pluses
-Works with multiple bunker types
-Units-of-type can be set to fire from 1 bunker type and not from other
-Garisoned units can be ordered to atack specified unit
-Garisoned units can use autocast abilites
Minuses
-Doesnt support heroes (In next version)
-Doesnt support melee units (Working on it)
-Max of 10 units in a single bunker
Credits
To SonicFlare101 for requesting this system
To Bribe for his Unit Indexing System and Unit Event System
To rulerofiron99 for finding a way to keep the dummy in the bunker and exchanging ideas
Triggers
Changelog
- Turned into mini-game and uploaded
- Updated documentation
- GetLastCreatedUnit() -> bj_lastCreatedUnit
- Added Wooden Bunker from which Fire Archers cant fire
- Fixed the scaling value as rulerofiron99 said
- Added different missiles for different dummiees and changed atack speed so you can see the difference
- Added register trigger and simplified initialization trigger
- Minor changes
- Updated documentation
- Reduced calls
- Fixed typos in the documentation
Keywords:
bunker,bunker system, starcraft bunker, garison, multy-unit bunker
by Nedio95
Description
Allows the creation of starcraft-like bunkers
Pluses
-Works with multiple bunker types
-Units-of-type can be set to fire from 1 bunker type and not from other
-Garisoned units can be ordered to atack specified unit
-Garisoned units can use autocast abilites
Minuses
-Doesnt support heroes (In next version)
-Doesnt support melee units (Working on it)
-Max of 10 units in a single bunker
Credits
To SonicFlare101 for requesting this system
To Bribe for his Unit Indexing System and Unit Event System
To rulerofiron99 for finding a way to keep the dummy in the bunker and exchanging ideas
Triggers
-
Initialization
-
Events
-
Map initialization
-
-
Conditions
-
Actions
-
Visibility - Create an initially Enabled visibility modifier for Player 1 (Red) emitting Visibility across (Entire map)
-
-------- ^ ^ ^PURELY FOR MAP TESTING ^ ^ ^ --------
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------UNIT TYPE 1------------------------------------------------------------------------------------------- --------
-
-------- This is the Unit-Type which can enter the bunker --------
-
Set TempUnitType = Archer
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- And its coresponding dummy --------
-
Set TempUnitType2 = Archer (Dummy)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- The next line runs the UnitRegister trigger which registers the Unit-Type to the system --------
-
Trigger - Run UnitRegister <gen> (ignoring conditions)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------UNIT TYPE 2------------------------------------------------------------------------------------------- --------
-
-------- And now the second Unit-Type --------
-
Set TempUnitType = Advanced Archer
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- And its coresponding dummy --------
-
Set TempUnitType2 = Advanced Archer (Dummy)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- And again we register the unit. --------
-
Trigger - Run UnitRegister <gen> (ignoring conditions)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------UNIT TYPE 3------------------------------------------------------------------------------------------- --------
-
-------- And now the third Unit-Type --------
-
Set TempUnitType = Fire Archer
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- And its coresponding dummy --------
-
Set TempUnitType2 = Fire Archer (Dummy)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- And again we register the unit. --------
-
Trigger - Run UnitRegister <gen> (ignoring conditions)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- --------
-
-------- ---------------------------------------------------------------------You can continue to 8192 unit types but I doubt you'd need that much------------------------------------------------------------------------------------------- --------
-
-
-
BunkerUnitRegister
-
Events
-
Conditions
-
Actions
-
-------- This sets the index of the unit-type and the number of unit-types which can shoot from a bunker, each time +1 --------
-
Set BunkerMaxUnits = (BunkerMaxUnits + 1)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- This registers the unit-type to the system --------
-
Set BunkerUnits[BunkerMaxUnits] = TempUnitType
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- This registers its coresponding dummy to the system --------
-
Set BunkerDummies[BunkerMaxUnits] = TempUnitType2
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-
-
BunkerLoad
-
Events
-
Unit - A unit Is loaded into a transport
-
-
Conditions
-
Or - Any (Conditions) are true
-
Conditions
-
(Unit-type of (Transporting unit)) Equal to Bunker
-
(Unit-type of (Transporting unit)) Equal to Bunker Wooden
-
-
-
-
Actions
-
-------- Setting the entering unit and the bunker to variable --------
-
Set TempUnit = (Triggering unit)
-
Set TempUnit2 = (Transporting unit)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Setting the unit-type of the entering unit and the bunker to variable --------
-
Set TempUnitType = (Unit-type of TempUnit)
-
Set TempUnitType2 = (Unit-type of TempUnit2)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- This makes the fire archer unable to fire form wooden bunker. --------
-
If ((TempUnitType Equal to Fire Archer) and (TempUnitType2 Equal to Bunker Wooden)) then do (Skip remaining actions) else do (Do nothing)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Custom values of the entering unit and the bunker --------
-
Set TempInteger = (Custom value of TempUnit)
-
Set TempInteger2 = (Custom value of TempUnit2)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- The number of units who can enter the bunker --------
-
For each (Integer TempInteger3) from 1 to BunkerMaxUnits, do (Actions)
-
Loop - Actions
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Then check if the unit can fire from the bunker --------
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
TempUnitType Equal to BunkerUnits[TempInteger3]
-
-
Then - Actions
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- The point of the bunker --------
-
Set TempPoint = (Position of TempUnit2)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Creating a dummy unit --------
-
Unit - Create 1 BunkerDummies[TempInteger3] for (Triggering player) at TempPoint facing Default building facing degrees
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- This makes the dummy not to run after the targes and stay in the bunker --------
-
Custom script: call SetUnitPropWindow(bj_lastCreatedUnit, 0)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Set variable for the dummy unit so we can destroy it in the unload trigger --------
-
Set BunkerDummy[TempInteger] = (Last created unit)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Add the unit to unit group so we can issue it an atack order --------
-
Unit Group - Add BunkerDummy[TempInteger] to BunkerUnitGroup[TempInteger2]
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Mooving the dummy to the center of the bunker --------
-
Unit - Move BunkerDummy[TempInteger] instantly to TempPoint
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Setting the mana of a unit if it has (as the fire archer here) --------
-
Unit - Set mana of BunkerDummy[TempInteger] to (Mana of TempUnit)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Clearing Leaks --------
-
Custom script: call RemoveLocation(udg_TempPoint)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Skiping all reamining actions so it dont repeat and make more unneeded units :) --------
-
Skip remaining actions
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-
Else - Actions
-
-
-
-
-
-
Unload
-
Events
-
Game - CargoEvent becomes Equal to 2.00
-
-
Conditions
-
Actions
-
-------- Custom values of the entering unit and the bunker --------
-
-------- For more information check Unit Event System --------
-
Set TempInteger = (Custom value of UDexUnits[UDex])
-
Set TempInteger2 = (Custom value of CargoTransportUnit[UDex])
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Setting the mana of a unit if it has (as the fire archer here) --------
-
Unit - Set mana of UDexUnits[UDex] to (Mana of Dummy[TempInteger])
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Removing the dummy from the game --------
-
Unit - Remove Dummy[TempInteger] from the game
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-
-
Atack
-
Events
-
Unit - A unit Starts the effect of an ability
-
-
Conditions
-
(Ability being cast) Equal to Atack !
-
-
Actions
-
-------- Setting the bunker and the atack target into variables --------
-
Set TempUnit = (Casting unit)
-
Set TempUnit2 = (Target unit of ability being cast)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Setting the custom value of the bunker --------
-
Set TempInteger = (Custom value of TempUnit)
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-------- Picking all the units in the bunker and ordering them to atack --------
-
Unit Group - Pick every unit in BunkerUnitGroup[TempInteger] and do (Actions)
-
Loop - Actions
-
Unit - Order (Picked unit) to Attack TempUnit2
-
-
-
-------- ----------------------------------------------------------------------------------------------------- --------
-
-
- Turned into mini-game and uploaded
- Updated documentation
- GetLastCreatedUnit() -> bj_lastCreatedUnit
- Added Wooden Bunker from which Fire Archers cant fire
- Fixed the scaling value as rulerofiron99 said
- Added different missiles for different dummiees and changed atack speed so you can see the difference
- Added register trigger and simplified initialization trigger
- Minor changes
- Updated documentation
- Reduced calls
- Fixed typos in the documentation
Keywords:
bunker,bunker system, starcraft bunker, garison, multy-unit bunker
Contents
Reviews
- Joined
- Jul 10, 2006
- Messages
- 3,315
Nice, you uploaded it.
Only problem I have with it so far: I sometimes have to re-order a unit to enter the bunker, possibly because of the pathing map/range you're using?
In all other ways strictly superior to my system.
EDIT: Because the dummy units have a scaling value of 0.00, their missiles appear "wrong" - all the particles etc are rendered in exactly the same place. Either turn off Art - Scale Projectiles, or leave the units at normal scaling and set their vertex colouring to 100% transparency in the load trigger.
Only problem I have with it so far: I sometimes have to re-order a unit to enter the bunker, possibly because of the pathing map/range you're using?
In all other ways strictly superior to my system.
How is this configured? There was nothing about it in the triggers.
EDIT: Because the dummy units have a scaling value of 0.00, their missiles appear "wrong" - all the particles etc are rendered in exactly the same place. Either turn off Art - Scale Projectiles, or leave the units at normal scaling and set their vertex colouring to 100% transparency in the load trigger.
- Joined
- Mar 24, 2011
- Messages
- 1,082
I was in a rush when making the documentation
Will update soon. Will add examples too.
Edit// Btw why noone thought of making a bunker system before ? And now voila - 2 of em
Edit2// Max number of garrisoned units is 10 in my system.
Will update soon. Will add examples too.Edit// Btw why noone thought of making a bunker system before ? And now voila - 2 of em
Edit2//
Whrong
Max number of garrisoned units is 10 in my system.
Last edited:
- Joined
- Sep 22, 2012
- Messages
- 2
great! can you make system like this but for moving units like boat or zeppelin? it would be awesome
