Fixed Camera Lock (Isometric RPG)
- Author(s)
- Antares
- Tags
- GUI / Triggers, vJASS, Lua, Snippet
- Size
- 168.12 KB
- Rating
- Downloads
- 40
- Created
- Aug 7, 2024
- Updated
- Aug 9, 2024
- Resources
- 4
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
There seem to be a whole bunch of camera systems on hive, but no system for isometric view that addresses an inherent issue with those camera systems.

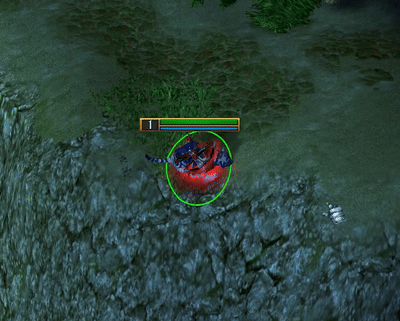

The SetCameraTargetController native behaves incredibly awful around steep terrain and often sinks into the ground for no reason or lets the anchored unit escape to the edge of the screen. This simple system fixes that by adjusting the camera z-offset dynamically.
Instead of doing SetCameraTargetController(whichUnit, ...), you do FCL_Lock(whichUnit, whichPlayer).
As a GUI user, you do:
The SetCameraTargetController native behaves incredibly awful around steep terrain and often sinks into the ground for no reason or lets the anchored unit escape to the edge of the screen. This simple system fixes that by adjusting the camera z-offset dynamically.
Instead of doing SetCameraTargetController(whichUnit, ...), you do FCL_Lock(whichUnit, whichPlayer).
As a GUI user, you do:
-
Custom script: call FCL_Lock(udg_myUnit, udg_myPlayer)
Lua:
if Debug then Debug.beginFile "FixedCameraLock" end
do
--[[
=============================================================================================================================================================
Fixed Camera Lock
by Antares
Locks the camera to a unit while dynamically adjusting the z-offset to disable awfulness.
Requires:
TotalInitialization https://www.hiveworkshop.com/threads/total-initialization.317099/
PrecomputedHeightMap (optional) https://www.hiveworkshop.com/threads/precomputed-synchronized-height-map.353477/
=============================================================================================================================================================
A P I
=============================================================================================================================================================
FCL_Lock(whichUnit, whichPlayer) Locks the camera of the specified player to the specified unit or the camera of the owning player of that unit,
if player is not specified.
FCL_Release(whichPlayer) Releases the camera of the specified player or for all players if no player is specified.
=============================================================================================================================================================
C O N F I G
=============================================================================================================================================================
]]
local ADJUSTMENT_INTERVAL = 0.1 ---@constant number
--The adjustment strength when the camera target is below the unit. This type of camera shift is always awful and I recommend a value of 1.
local ADJUSTMENT_STRENGTH_UP = 1.0 ---@constant number
--The adjustment strength when the camera target is above the unit. This camera shift is sometimes actually useful, so you can disable it if you want to.
local ADJUSTMENT_STRENGTH_DOWN = 1.0 ---@constant number
--===========================================================================================================================================================
local MASTER_TIMER ---@type timer
local anchor ---@type unit
local lockEnabled = false ---@type boolean
local moveableLoc ---@type location
local GetLocZ ---@type function
---@param whichUnit unit
---@param whichPlayer? player
function FCL_Lock(whichUnit, whichPlayer)
if GetLocalPlayer() == (whichPlayer or GetOwningPlayer(whichUnit)) then
SetCameraTargetController(whichUnit, 0, 0, false)
lockEnabled = true
anchor = whichUnit
end
end
---@param whichPlayer? player
function FCL_Release(whichPlayer)
if whichPlayer == nil or GetLocalPlayer() == whichPlayer then
ResetToGameCamera(0)
lockEnabled = false
end
end
local function AdjustCameraHeight()
if lockEnabled then
local dz = GetLocZ(GetUnitX(anchor), GetUnitY(anchor)) - (GetCameraTargetPositionZ() - GetCameraField(CAMERA_FIELD_ZOFFSET))
if dz > 0 then
SetCameraField(CAMERA_FIELD_ZOFFSET, ADJUSTMENT_STRENGTH_UP*dz, ADJUSTMENT_INTERVAL)
else
SetCameraField(CAMERA_FIELD_ZOFFSET, ADJUSTMENT_STRENGTH_DOWN*dz, ADJUSTMENT_INTERVAL)
end
end
end
OnInit.final("FixedCameraLock", function()
local precomputedHeightMap = Require.optionally "PrecomputedHeightMap"
if precomputedHeightMap then
GetLocZ = _G.GetLocZ
else
moveableLoc = Location(0, 0)
GetLocZ = function(x, y)
MoveLocation(moveableLoc, x, y)
return GetLocationZ(moveableLoc)
end
end
MASTER_TIMER = CreateTimer()
TimerStart(MASTER_TIMER, ADJUSTMENT_INTERVAL, true, AdjustCameraHeight)
end)
end
if Debug then Debug.endFile() end
JASS:
library FixedCameraLock initializer Init
/*
=============================================================================================================================================================
Fixed Camera Lock
by Antares
Locks the camera to a unit while dynamically adjusting the z-offset to disable awfulness.
=============================================================================================================================================================
A P I
=============================================================================================================================================================
FCL_Lock(whichUnit, whichPlayer) Locks the camera of the specified player to the specified unit.
FCL_Release(whichPlayer) Releases the camera of the specified player.
=============================================================================================================================================================
C O N F I G
=============================================================================================================================================================
*/
globals
private real ADJUSTMENT_INTERVAL = 0.1
private real ADJUSTMENT_STRENGTH_UP = 1.0
//The adjustment strength when the camera target is below the unit. This type of camera shift is always awful and I recommend a value of 1.
private real ADJUSTMENT_STRENGTH_DOWN = 1.0
//The adjustment strength when the camera target is above the unit. This type of camera shift is actually useful, so you can disable it if you want to.
//=======================================================================================================================================================
private timer MASTER_TIMER = CreateTimer()
private unit anchor
private boolean lockEnabled = false
private location moveableLoc = Location(0, 0)
endglobals
private function GetLocZ takes real x, real y returns real
call MoveLocation(moveableLoc, x, y)
return GetLocationZ(moveableLoc)
endfunction
function FCL_Lock takes unit whichUnit, player whichPlayer returns nothing
if GetLocalPlayer() == whichPlayer then
call SetCameraTargetController(whichUnit, 0, 0, false)
set lockEnabled = true
set anchor = whichUnit
endif
endfunction
function FCL_Release takes player whichPlayer returns nothing
if GetLocalPlayer() == whichPlayer then
call ResetToGameCamera(0)
set lockEnabled = false
endif
endfunction
private function AdjustCameraHeight takes nothing returns nothing
local real dz
if lockEnabled then
set dz = GetLocZ(GetUnitX(anchor), GetUnitY(anchor)) - (GetCameraTargetPositionZ() - GetCameraField(CAMERA_FIELD_ZOFFSET))
if dz > 0 then
call SetCameraField(CAMERA_FIELD_ZOFFSET, ADJUSTMENT_STRENGTH_UP*dz, ADJUSTMENT_INTERVAL)
else
call SetCameraField(CAMERA_FIELD_ZOFFSET, ADJUSTMENT_STRENGTH_DOWN*dz, ADJUSTMENT_INTERVAL)
endif
endif
endfunction
private function Init takes nothing returns nothing
call TimerStart(MASTER_TIMER, ADJUSTMENT_INTERVAL, true, function AdjustCameraHeight)
endfunction
endlibraryContents
