DebugLog v1.2
- Author(s)
- Almia
- Tags
- System, GUI / Triggers
- Size
- 15.22 KB
- Rating
- Downloads
- 207
- Created
- Jan 19, 2013
- Updated
- May 5, 2016
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
- DebugLog v1.0
- By Me,Almia
- What does this do?

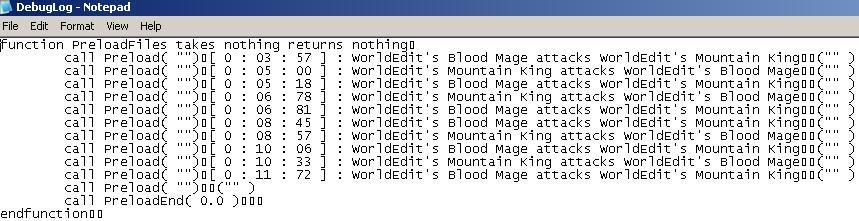

- If you want to view the debug messages outside warcraft,use this.This records the debugs messages you want,but it wont appear in-game.The debug messages then will be created inside a text document found in a folder path w/c can be configured inside.The messages will be recorded w/ their time of execution.
- The Trigger:
-
DebugLog
-
Events
-
Map initialization
-
-
Conditions
-
Actions
-
-------- ------------------------------------------------------------ --------
-
-------- ------------------------------------------------------------ --------
-
-------- DEBUG LOG --------
-
-------- ------------------------------------------------------------ --------
-
-------- ------------------------------------------------------------ --------
-
-------- Records all messages (not the ones that spawn in the screen) --------
-
-------- as debug messages then adds it into a text document w/c is created --------
-
-------- ------------------------------------------------------------ --------
-
-------- ------------------------------------------------------------ --------
-
-------- ------------------------------------------------------------ --------
-
-------- CONFIGURATION --------
-
-------- ------------------------------------------------------------ --------
-
-------- ------------------------------------------------------------ --------
-
-------- Below,determines the folder path where you --------
-
-------- are going to save the document --------
-
-------- ------------------------------------------------------------ --------
-
Set DL_SavePath = Map Errors\\
-
Set DL_MapName = MyMap
-
-------- ------------------------------------------------------------ --------
-
-------- Below,allows you to auto-update or create the document --------
-
-------- ------------------------------------------------------------ --------
-
Set DL_Auto = False
-
-------- ------------------------------------------------------------ --------
-
-------- Below,the interval value where it will record all messages --------
-
-------- ------------------------------------------------------------ --------
-
Set DL_Int = 0.03
-
-------- ------------------------------------------------------------ --------
-
-------- END --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: call ExecuteFunc("DL_OnInit")
-
Custom script: endfunction
-
-------- ------------------------------------------------------------ --------
-
-------- LogAdd --------
-
-------- ------------------------------------------------------------ --------
-
-------- Records the debug msg you want to add --------
-
-------- ------------------------------------------------------------ --------
-
-------- Recquires : DL_Msg --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: function DL_LogAdd takes nothing returns nothing
-
Custom script: local string sec = I2S(udg_DL_Sec)
-
Custom script: local string msec = I2S(udg_DL_MSec)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
DL_Sec Less than 10
-
-
Then - Actions
-
Custom script: set sec = "0" + sec
-
-
Else - Actions
-
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
DL_MSec Less than 10
-
-
Then - Actions
-
Custom script: set msec = "0" + msec
-
-
Else - Actions
-
-
Custom script: set udg_DL_Log[udg_DL_Index] = "[ " + I2S(udg_DL_Mins) + " : " + sec + " : " + msec + " ] : " + udg_DL_Msg + "\r\n\t"
-
Set DL_Index = (DL_Index + 1)
-
-
Custom script: endfunction
-
-------- ------------------------------------------------------------ --------
-
-------- LogClear --------
-
-------- ------------------------------------------------------------ --------
-
-------- Clears all recorded logs --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: function DL_LogClear takes nothing returns nothing
-
Custom script: local integer i = 0
-
Custom script: loop
-
Custom script: exitwhen i > udg_DL_Index
-
Custom script: set udg_DL_Log[i] = ""
-
Custom script: set i = i + 1
-
Custom script: endloop
-
Set DL_Index = 0
-
-
Custom script: endfunction
-
-------- ------------------------------------------------------------ --------
-
-------- LogUpdate --------
-
-------- ------------------------------------------------------------ --------
-
-------- Updates or creates the text document --------
-
-------- which all of the msgs recorded are inside --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: function DL_LogUpdate takes nothing returns nothing
-
Custom script: local integer i = 0
-
Custom script: call PreloadGenClear()
-
Custom script: call PreloadGenStart()
-
Custom script: loop
-
Custom script: exitwhen i > udg_DL_Index
-
Custom script: call Preload("\")\r\n\t" + udg_DL_Log[i] + "\r\n\t(\"")
-
Custom script: set i = i + 1
-
Custom script: endloop
-
Custom script: call PreloadGenEnd(udg_DL_SavePath + udg_DL_MapName +" - DebugLog.txt")
-
-
Custom script: endfunction
-
-------- ------------------------------------------------------------ --------
-
-------- TimeBuffer --------
-
-------- ------------------------------------------------------------ --------
-
-------- Records minutes , seconds and deciseconds --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: function DL_TimeBuffer takes nothing returns nothing
-
Set DL_MSec = (DL_MSec + (Integer((DL_Int x 100.00))))
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
DL_MSec Greater than 99
-
-
Then - Actions
-
Set DL_MSec = (DL_MSec - 100)
-
Set DL_Sec = (DL_Sec + 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
DL_Sec Greater than 59
-
-
Then - Actions
-
Set DL_Sec = 0
-
Set DL_Mins = (DL_Mins + 1)
-
-
Else - Actions
-
-
-
Else - Actions
-
-
-
Custom script: endfunction
-
-------- ------------------------------------------------------------ --------
-
-------- Initialize --------
-
-------- ------------------------------------------------------------ --------
-
Custom script: function DL_OnInit takes nothing returns nothing
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
DL_Auto Equal to True
-
-
Then - Actions
-
Custom script: call TimerStart(CreateTimer(),udg_DL_Int,true,function DL_LogUpdate)
-
-
Else - Actions
-
-
Custom script: call TimerStart(CreateTimer(),udg_DL_Int,true,function DL_TimeBuffer)
-
-
-
-
- How to use?
- declare the variable DL_Msg then put the path of the message.Then use the custom script then call ExecuteFunc("DL_LogAdd") to record the message.
- If you want to create the text document,call ExecuteFunc("DL_LogUpdate") then find the folder where you want the text document to be created.
- You can configure the folder path in the configuration function of the system.The variable is named DL_SavePath.
- Example:
-
Example
-
Events
-
Unit - A unit Is attacked
-
-
Conditions
-
Actions
-
Set DL_Msg = (((Name of (Owner of (Attacking unit))) + ('s + (Name of (Attacking unit)))) + ( attacks + ((Name of (Triggering player)) + ('s + (Name of (Triggering unit))))))
-
Custom script: call ExecuteFunc("DL_LogAdd")
-
Game - Display to (All players) the text: DL_Msg
-
-------- Example of updating --------
-
Set I = (I + 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
I Equal to 10
-
-
Then - Actions
-
Custom script: call ExecuteFunc("DL_LogUpdate")
-
Game - Display to (All players) the text: Created Text Docume...
-
Set I = 0
-
-
Else - Actions
-
-
-
-
- Credits
-Magtheridon96 w/c helps me a lot to debug my unfixable spell
-Geries for an awesome help
-Doctor Gester for the original script - Changelogs
-Fixed math on GUI version
-Optimized code(I love you Geries for this)
Contents
Reviews
- Joined
- Apr 24, 2012
- Messages
- 5,113
~Reserved
The difference between the GUI and vJASS version is that GUI records not just minutes and seconds,but also MS
Added MS on vJASS version
Added MS on vJASS version
Last edited:
Tutorial Reviewer
- Joined
- Jun 9, 2011
- Messages
- 13,219
I think this is useful for a low ammout of people but still nicely done 4/5
- Joined
- Sep 13, 2010
- Messages
- 550
I suggest you to change \n into \r\n\t so newlines will appear properly in notepad.
Also, since we already have the same in the Jass Section, you shall make your code unique or something: I suggest you to change your script to be able to handle more than one debug log files, for instance every system could have its own debug log at its own specified path, but you can still have a map specified instance( at ID 1 or something ) which every script can use. Also you should have some limitations for string length, or make it auto break the strings into 240 sized parts so long messages won't get cropped. Last but not least, change the path of the output at config not to "C:\\" but to "Map Errors\\Log.txt" so it will output it to C:\\Blabla\Warcraft III\Map Errors\Log.txt. Also you might want to make the output file name configurable, so overwriting other's dumps will less likely happen.
Also, since we already have the same in the Jass Section, you shall make your code unique or something: I suggest you to change your script to be able to handle more than one debug log files, for instance every system could have its own debug log at its own specified path, but you can still have a map specified instance( at ID 1 or something ) which every script can use. Also you should have some limitations for string length, or make it auto break the strings into 240 sized parts so long messages won't get cropped. Last but not least, change the path of the output at config not to "C:\\" but to "Map Errors\\Log.txt" so it will output it to C:\\Blabla\Warcraft III\Map Errors\Log.txt. Also you might want to make the output file name configurable, so overwriting other's dumps will less likely happen.
- Joined
- Apr 24, 2012
- Messages
- 5,113
The script is from mag,i just made a GUI version of it and added a new feature.
btw,thanks for the suggestion.
Updating
edit
Updated.Please view changelogs
btw,thanks for the suggestion.
Updating
edit
Updated.Please view changelogs
Last edited:
- Joined
- Dec 12, 2008
- Messages
- 7,385
The script is from Doctor Gester. I did not make it.
I just took his code and put up a vJASS version of it because cJASS resources don't always get approved on this site and it was a very useful utility, so I didn't want it to go to waste.
Give credits to the original author.
I just took his code and put up a vJASS version of it because cJASS resources don't always get approved on this site and it was a very useful utility, so I didn't want it to go to waste.
Give credits to the original author.
- Joined
- Apr 24, 2012
- Messages
- 5,113
Added vJASS author on the credits.
- Joined
- Jul 16, 2012
- Messages
- 679
Nc This is usefull for my map
