The user gathers star shaped missles in their vicinity created from Astral power and then proceeds to absorb their power creating a Supernova
-----------------------------------
-Creates 20 Projectiles within 600 AOE of the caster over 2 Seconds
-Caster can move during the spell
-After the last projectile has been created they will start to move towards the user
-If a projectile touches an enemy it will explode and disappear
-For each projectile that reaches the user one charge will be stored
-The supernova's AOE and Damage will vary depending in the charges stored
-----------------------------------
Damage per charge: 10/12/14/16/18
AOE Per Charge: 10/20/30/40/50

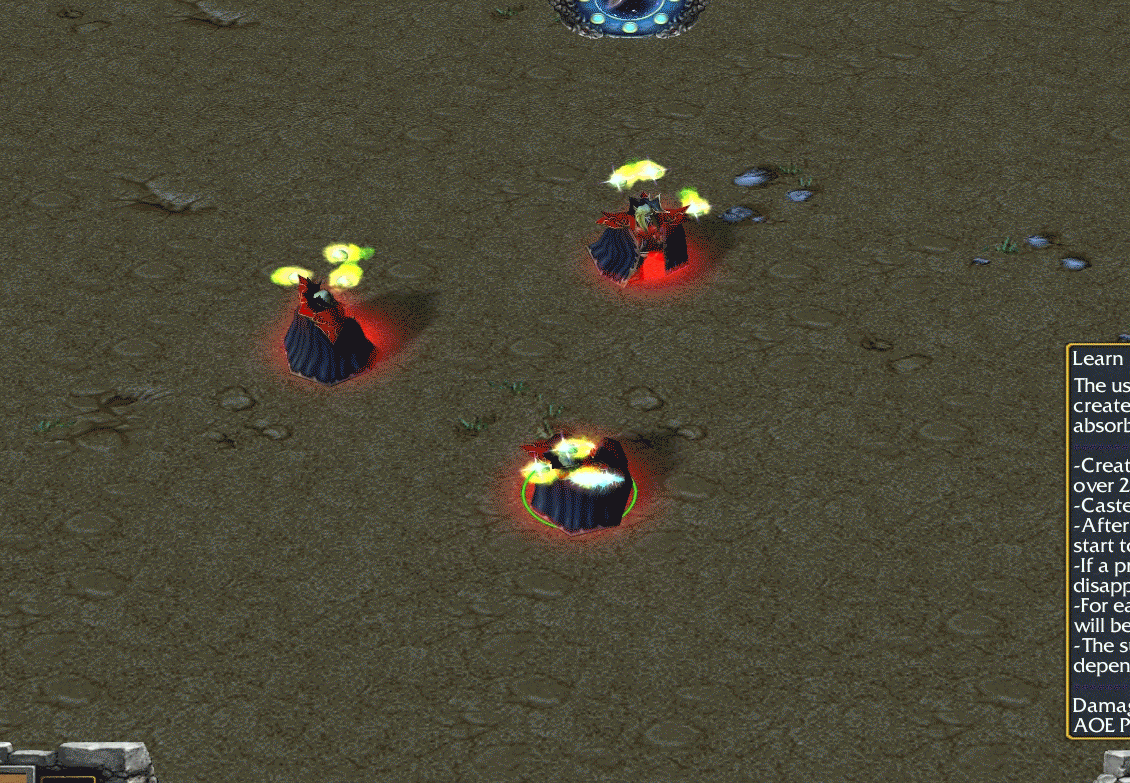

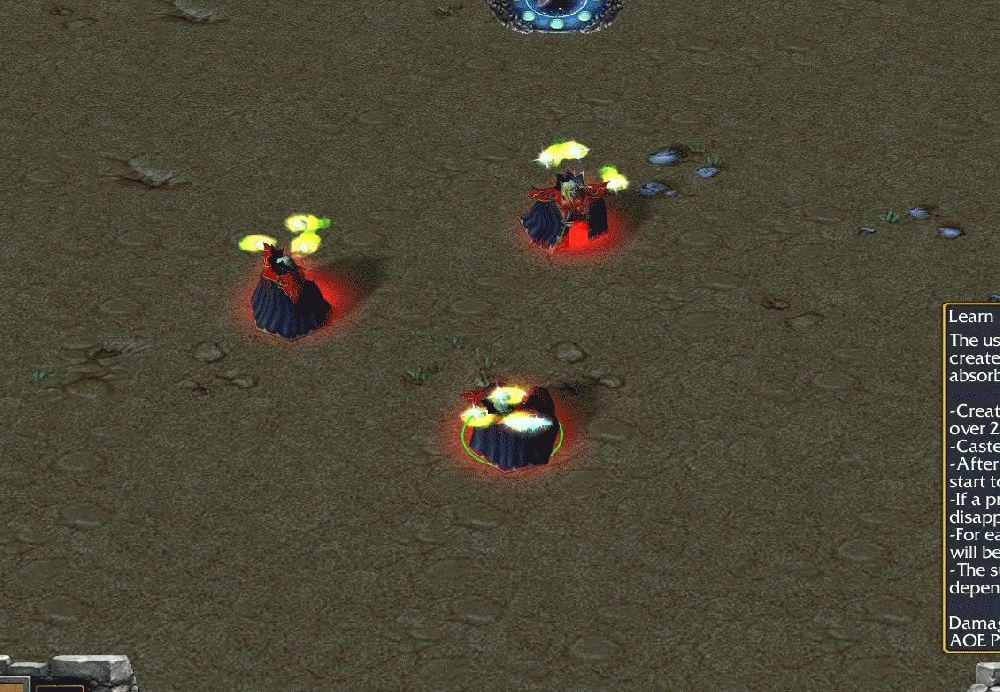

Preview - GIF
Triggers:
AFStart
Events
Unit - A unit Starts the effect of an ability
Conditions
(Ability being cast) Equal to Astral Force
Actions
-------- First we set the basic Variables --------
Set AF_Index = (AF_Index + 1)
Set AF_MUI = (AF_MUI + 1)
-------- These two Integers are vital parts of a Indexing spell, allowing the MUI part to work --------
Set AF_Caster[AF_MUI] = (Triggering unit)
-------- Here we set which unit is casting the spell, using AF_MUI as the variable because every time the spell is activated AF_MUI will increase by 1 --------
Set AF_Damage_Set[AF_MUI] = (8.00 + (2.00 x (Real((Level of Astral Force for AF_Caster[AF_MUI])))))
-------- This is the calcualtion used to work out the amount of damage each charge will give to the Supernova --------
-------- It also sets the amount of damage a unit will recieve if it touches a star --------
Set AF_AOE_Set[AF_MUI] = (10.00 x (Real((Level of Astral Force for AF_Caster[AF_MUI]))))
-------- This sets how much each charge will increase the Supernova's AOE by --------
-------- It also sets the AOE of the stars explosions --------
Set AF_Star_AOE[AF_MUI] = 600.00
-------- This sets the size of the region in which the stars will appear --------
Set AF_Star_Movement[AF_MUI] = 25.00
-------- This sets the rate at which the stars will approach the caster --------
Set AF_Start_Limit[AF_MUI] = 20
-------- This sets the maximum amount of stars --------
Set Star_Movement_Check[AF_MUI] = False
-------- This tells the game whether the Stars should be moving or not, at the start they shouldn't be so it is set to false --------
Set AF_Star_Create_Time[AF_MUI] = 3
-------- This says how often a star will be created --------
-------- 3*0.03 = 0.09, 0.09*20 = 1.8 (I know it's not 2, but i dealing with 0.03 seconds, making it customisable whilst not using timers is annoying) --------
Set AF_ON[AF_MUI] = True
-------- This says whether or not the spells is considered "On" so it doesn't run the triggers for the spell if it is finished --------
-------- --------
Set Star_Create_Current_Time[AF_MUI] = 0
Set AF_Star_Amount[AF_MUI] = 0
Set AF_Charges[AF_MUI] = 0
-------- These are just setting used Integers to 0 before use --------
-------- --------
Custom script: set udg_AF_Star_Group[(udg_AF_MUI)] = CreateGroup()
-------- This gets rid of a bug with Unit Group arrays// first time using it here --------
-------- --------
-------- Now we start actually doing actions --------
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
AF_MUI Equal to 1
Then - Actions
Trigger - Turn on AFLoop <gen>
Else - Actions
-------- If MUI is equal to one then the spell has been activated for the first time, so the loop will need to be turned on --------
Loop:
AFLoop
Events
Time - Every 0.03 seconds of game time
Conditions
Actions
For each (Integer AFLoop) from 1 to AF_MUI, do (Actions)
Loop - Actions
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
AF_ON[AFLoop] Equal to True
Then - Actions
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
Star_Movement_Check[AFLoop] Equal to False
Then - Actions
Set Star_Create_Current_Time[AFLoop] = (Star_Create_Current_Time[AFLoop] + 1)
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
Star_Create_Current_Time[AFLoop] Equal to AF_Star_Create_Time[AFLoop]
Then - Actions
Set AF_Caster_Position[AFLoop] = (Position of AF_Caster[AFLoop])
Set Star_Create_Current_Time[AFLoop] = 0
Set AF_Star_Amount[AFLoop] = (AF_Star_Amount[AFLoop] + 1)
Set AF_Star_Region = (Region centered at AF_Caster_Position[AFLoop] with size (AF_Star_AOE[AFLoop], AF_Star_AOE[AFLoop]))
Set AF_Star_Position[AFLoop] = (Random point in AF_Star_Region)
Unit - Create 1 ChargeDummy for (Owner of AF_Caster[AFLoop]) at AF_Star_Position[AFLoop] facing (Random angle) degrees
Unit - Add a 0.50 second Generic expiration timer to (Last created unit)
Animation - Change (Last created unit)'s animation speed to 200.00% of its original speed
Unit - Create 1 StarDummy for (Owner of AF_Caster[AFLoop]) at AF_Star_Position[AFLoop] facing (Random angle) degrees
Unit Group - Add (Last created unit) to AF_Star_Group[AFLoop]
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
AF_Star_Amount[AFLoop] Equal to AF_Start_Limit[AFLoop]
Then - Actions
Set Star_Movement_Check[AFLoop] = True
Else - Actions
Else - Actions
Else - Actions
Unit Group - Pick every unit in AF_Star_Group[AFLoop] and do (Actions)
Loop - Actions
Set AF_Caster_Position[AFLoop] = (Position of AF_Caster[AFLoop])
Set AF_Star_Position[AFLoop] = (Position of (Picked unit))
Set AF_Star_Offset[AFLoop] = (AF_Star_Position[AFLoop] offset by AF_Star_Movement[AFLoop] towards (Angle from AF_Star_Position[AFLoop] to AF_Caster_Position[AFLoop]) degrees)
Unit - Move (Picked unit) instantly to AF_Star_Offset[AFLoop]
Set AF_Damage_Targets = (Units within AF_AOE_Set[AFLoop] of AF_Star_Offset[AFLoop] matching ((((Matching unit) belongs to an enemy of (Owner of AF_Caster[AFLoop])) Equal to True) and (((Matching unit) is alive) Equal to True)))
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
(Number of units in AF_Damage_Targets) Greater than 0
Then - Actions
Unit - Create 1 ChargeDummy for (Owner of AF_Caster[AFLoop]) at AF_Star_Offset[AFLoop] facing (Random angle) degrees
Unit - Add a 0.50 second Generic expiration timer to (Last created unit)
Animation - Change (Last created unit)'s animation speed to 200.00% of its original speed
Unit - Remove (Picked unit) from the game
Unit Group - Pick every unit in AF_Damage_Targets and do (Actions)
Loop - Actions
Unit - Cause AF_Caster[AFLoop] to damage (Picked unit), dealing AF_Damage_Set[AFLoop] damage of attack type Spells and damage type Normal
Else - Actions
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
(Distance between AF_Star_Offset[AFLoop] and AF_Caster_Position[AFLoop]) Less than or equal to 50.00
Then - Actions
Set AF_Charge_Size = ((Real(AF_Charges[AFLoop])) x 50.00)
Unit - Create 1 ChargeDummy for (Owner of AF_Caster[AFLoop]) at AF_Star_Position[AFLoop] facing (Random angle) degrees
Unit - Add a 0.50 second Generic expiration timer to (Last created unit)
Animation - Change (Last created unit)'s animation speed to 200.00% of its original speed
Animation - Change (Last created unit)'s size to (AF_Charge_Size%, AF_Charge_Size%, AF_Charge_Size%) of its original size
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
(Number of units in AF_Star_Group[AFLoop]) Equal to 0
Then - Actions
Set AF_Caster_Position[AFLoop] = (Position of AF_Caster[AFLoop])
Set AF_Damage_Targets = (Units within (AF_AOE_Set[AFLoop] x (Real(AF_Charges[AFLoop]))) of AF_Caster_Position[AFLoop] matching ((((Matching unit) belongs to an enemy of (Owner of AF_Caster[AFLoop])) Equal to True) and (((Matching unit) is alive) Equal to True)))
Unit Group - Pick every unit in AF_Damage_Targets and do (Actions)
Loop - Actions
Unit - Cause AF_Caster[AFLoop] to damage (Picked unit), dealing (AF_Damage_Set[AFLoop] x (Real(AF_Charges[AFLoop]))) damage of attack type Spells and damage type Normal
Firstly, the oversized gif makes it harder to browse. If you could make it a little bit smaller, that would be lovely.
In the second chunk of your loop triggers, you use Picked Unit a lot of times. Better store the picked unit(s) into a variable before you call any functions with it, that way, you save some functions.
I'm not sure about this, but when checking conditions if the picked unit is alive, or an enemy, or is not a structure etc. you don't make 1 long line. You use a group (Units in range) and then make an If Then Else statement to check the conditions, and if the actions meet the conditions, they are executed.
Store Last Created Unit into a variable as well, for the same reason as for Picked Unit(s).
- Create a config trigger, where user can define certain aspects of the spell to his needs.
- Don't hardcode, if not needed. Try to make as much configurable/setable as possible.
- OwnerOfCaster could be indexed as well.
- Something like "MUI" doesn't really belong in a variable name. It's not really matching. Current/Max -Index is much better.
- Please add some import instructions.
Nearly every GUI spell that is not instant needs either a for loop or unit indexer to be MUI and there is a lot of it on hive. Does that mean that every single GUI spell must use an indexer?
If you convert for loop to custom text, you'll see that it is actually using the following syntax:
JASS:
loop
exitwhen udg_Temp_Int > udg_Index
// do stuff
set udg_Temp_Int = udg_Temp_Int + 1
endloop
Basicly the computer checks everytime if Temp_Int > Index and if not, increases Temp_Int by one. The de-index part's coding also takes a lot of space and is less inefficient. A unit indexer assign a unique custom value to every unit in a map. In that way, you can store data in an array in the same element (the container number of stored data in an array) that the unit's custom value that relates to that unit. This can be used to improve efficiency because it doesn't need that index/de-index method.
