All About Inlining:
Inlining is replacing the call site of a function or the lookup of a constant variable by its content making the code run faster since no function call or variable lookup actually takes place. It happens upon compiling the script (Function Inlining) or optimizing the map script (Constant Inlining).


Part 1: Function Inlining

Function inlining is one of the features of vJASS Optimization allowing readable yet efficient code. However functions that get inlined still remain in the map script (even thought it is unused) so it still takes up space in the map script (unless Wc3 optimizer is used).

JassHelper Manual said:
Function inlining will look for function calls that can be inlined and then just convert their calls to a direct usage of the function's contents.

Here are some rules regarding function inlining (as of JassHelper 0.A.2.B included in Jass New Gen Pack 2.0):
  • The function must be a one-liner

    JASS:
        function Inline1 takes integer i1, integer i2 returns integer
            return i1 + i2
        endfunction

        function Inline2 takes integer i1, integer i2 returns integer
            local integer answer = 42
            return i1 + i2
        endfunction

        function I takes nothing returns nothing
            local integer i = Inline1(1, 2)
            local integer j = Inline2(1, 2)
        endfunction
    JassHelper generated script:
    JASS:
        function Inline1 takes integer i1,integer i2 returns integer
            return i1 + i2
        endfunction

        function Inline2 takes integer i1,integer i2 returns integer
            local integer answer= 42
            return i1 + i2
        endfunction

        function I takes nothing returns nothing
            local integer i= ((1 ) + ( 2)) // INLINED!!
            local integer j= Inline2(1 , 2)
        endfunction

  • BJ Functions don't get inlined, but custom functions that do the same thing get inlined

    JASS:
        function UnitDamageTargetCustom takes unit whichUnit, unit target, real amount, attacktype whichAttack, damagetype whichDamage returns boolean
            return UnitDamageTarget(whichUnit, target, amount, true, false, whichAttack, whichDamage, WEAPON_TYPE_WHOKNOWS)
        endfunction

        function CosDeg takes real r returns real
            return Cos(r*bj_RADTODEG)
        endfunction

        function F takes nothing returns nothing
            local unit u1
            local unit u2
            local real r1 = CosBJ(42)
            local real r2 = CosDeg(42)
            call UnitDamageTargetBJ(u1, u2, 0, ATTACK_TYPE_NORMAL, DAMAGE_TYPE_NORMAL)
            call UnitDamageTargetCustom(u1, u2, 0, ATTACK_TYPE_NORMAL, DAMAGE_TYPE_NORMAL)
        endfunction
    JassHelper generated script:
    JASS:
        function UnitDamageTargetCustom takes unit whichUnit,unit target,real amount,attacktype whichAttack,damagetype whichDamage returns boolean
            return UnitDamageTarget(whichUnit, target, amount, true, false, whichAttack, whichDamage, WEAPON_TYPE_WHOKNOWS)
        endfunction

        function CosDeg takes real r returns real
            return Cos(r * bj_RADTODEG)
        endfunction

        function F takes nothing returns nothing
            local unit u1
            local unit u2
            local real r1= CosBJ(42)
            local real r2= (Cos(((42)*1.0) * bj_RADTODEG)) // INLINED!!
            call UnitDamageTargetBJ(u1, u2, 0, ATTACK_TYPE_NORMAL, DAMAGE_TYPE_NORMAL)
            call UnitDamageTarget((u1 ), ( u2 ), (( 0 )*1.0), true, false, ( ATTACK_TYPE_NORMAL ), ( DAMAGE_TYPE_NORMAL), WEAPON_TYPE_WHOKNOWS) // INLINED!!
        endfunction
    Wc3 Map optimizer generated script:
    (BJs are still not inlined but unused functions (UnitDamageTargetCustom and CosDeg) are removed
    JASS:
    function F takes nothing returns nothing
    local unit u1
    local unit u2
    local real r1=CosBJ(42)
    local real r2=(Cos(((42)*1.)*bj_RADTODEG))
    call UnitDamageTargetBJ(u1,u2,0,ATTACK_TYPE_NORMAL,DAMAGE_TYPE_NORMAL)
    call UnitDamageTarget((u1),(u2),((0)*1.),true,false,(ATTACK_TYPE_NORMAL),(DAMAGE_TYPE_NORMAL),WEAPON_TYPE_WHOKNOWS)
    endfunction


  • The order of the input arguments must match how they appear in the custom function

    JASS:
        //Correct order
        function Inline1 takes integer i1, integer i2 returns integer
            return i1 + i2
        endfunction

        //Incorrect order
        function Inline2 takes integer i1, integer i2 returns integer
            return i2 + i1
        endfunction

        function I takes nothing returns nothing
            local integer i = Inline1(1, 2)
            local integer j = Inline2(1, 2)
        endfunction
    JassHelper generated script:
    JASS:
        //Correct order
        function Inline1 takes integer i1,integer i2 returns integer
            return i1 + i2
        endfunction

        //Incorrect order
        function Inline2 takes integer i1,integer i2 returns integer
            return i2 + i1
        endfunction

        function I takes nothing returns nothing
            local integer i= ((1 ) + ( 2)) // INLINED!!
            local integer j= Inline2(1 , 2)
        endfunction

  • Each argument must only appear once in the function.

    JASS:
        //Correct way
        function Inline1 takes integer i1, integer i2 returns real
            return 3*i1 + 5.0*i2
        endfunction

        //Incorrect way
        function Inline2 takes integer i1, integer i2 returns real
            return i1 + 2*i1 + 5.0*i2
        endfunction

        function I takes nothing returns nothing
            local real r1 = Inline1(1, 2)
            local real r2 = Inline2(1, 2)
        endfunction
    JassHelper generated script:
    JASS:
    	//Correct way
        function Inline1 takes integer i1,integer i2 returns real
            return 3 * i1 + 5.0 * i2
        endfunction

    	//Incorrect way
        function Inline2 takes integer i1,integer i2 returns real
            return i1 + 2 * i1 + 5.0 * i2
        endfunction

        function I takes nothing returns nothing
            local real r1= (3 * (1 ) + 5.0 * ( 2)) // INLINED!!
            local real r2= Inline2(1 , 2)
        endfunction

  • Directly setting a variable also gets inlined, but it must not take any input argument nor it must not assign one of its argument

    JASS:
        //Inlining setting a variable with unused input argument
        //Won't get inlined
        function Inline1 takes integer i returns nothing
            set global = 42 //a global variable
        endfunction

        //Inlining setting a variable with no input argument
        //Will get inlined
        function Inline2 takes nothing returns nothing
            set global = 42 //a global variable
        endfunction

        function F takes nothing returns nothing
            call Inline1(1)
            call Inline2()
        endfunction
    JassHelper generated script:
    JASS:
        //Inlining setting a variable with unused input argument
        //Won't get inlined
        function Inline1 takes integer i returns nothing
            set global=42 //a global variable
        endfunction

        //Inlining setting a variable with no input argument
        //Will get inlined
        function Inline2 takes nothing returns nothing
            set global=42 //a global variable
        endfunction

        function F takes nothing returns nothing
            call Inline1(1)
            set global=42 // INLINED!!
        endfunction

  • Directly calling another function also gets inlined

    JASS:
        //Directly calling a function with no input argument
        //Will get inlined
        function Inline1 takes real r returns nothing
            call SetWidgetLife(globalUnit, r)
        endfunction

        //Directly calling a function with no input argument
        //Will get inlined
        function Inline2 takes nothing returns nothing
            call SetWidgetLife(globalUnit, 42)
        endfunction

        //Directly calling a function with unused input argument
        //Will not get inlined
        function Inline3 takes real r returns nothing
            call SetWidgetLife(globalUnit, 42)
        endfunction

        //Calling an inlining function
        //Will get inlined
        function Inline4 takes nothing returns nothing
            call Inline2()
        endfunction

        function F takes nothing returns nothing
            call Inline1(1)
            call Inline2()
            call Inline3(1)
            call Inline4()
        endfunction
    JassHelper generated script:
    JASS:
        //Directly calling a function with no input argument
        //Will get inlined
        function Inline1 takes real r returns nothing
            call SetWidgetLife(globalUnit, r)
        endfunction

        //Directly calling a function with no input argument
        //Will get inlined
        function Inline2 takes nothing returns nothing
            call SetWidgetLife(globalUnit, 42)
        endfunction

        //Directly calling a function with unused input argument
        //Will not get inlined
        function Inline3 takes real r returns nothing
            call SetWidgetLife(globalUnit, 42)
        endfunction

        //Calling an inlining function
        //Will get inlined
        function Inline4 takes nothing returns nothing
            call SetWidgetLife(globalUnit, 42) // INLINED!!
        endfunction

        function F takes nothing returns nothing
            call SetWidgetLife(globalUnit, ((1)*1.0)) // INLINED!!
            call SetWidgetLife(globalUnit, 42) // INLINED!!
            call Inline3(1)
            call SetWidgetLife(globalUnit, 42) // INLINED!!
        endfunction

  • Functions which contains other function calls must have all its input argument evaluated first before the function call.

    JASS:
        //Function call after input arguments
        function Inline1 takes unit u, real x returns nothing
            call SetUnitPosition(u, x, Sin(42))
        endfunction

        //Function call before input arguments
        function Inline2 takes real x, real y returns nothing
            call SetUnitPosition(GetTriggerUnit(), x, y)
        endfunction

        function F takes nothing returns nothing
            local unit u1
            call Inline1(u1, 1)
            call Inline2(1, 2)
        endfunction
    JassHelper generated script:
    JASS:
        //Function call after input arguments
        function Inline1 takes unit u,real x returns nothing
            call SetUnitPosition(u, x, Sin(42))
        endfunction

        //Function call before input arguments
        function Inline2 takes real x,real y returns nothing
            call SetUnitPosition(GetTriggerUnit(), x, y)
        endfunction

        function F takes nothing returns nothing
            local unit u1
            call SetUnitPosition((u1 ), (( 1)*1.0), Sin(42)) // INLINED!!
            call Inline2(1 , 2)
        endfunction

Part 2: Constants Variables

Constant variables are different from normal variables because they can be inlined when the script is optimized by Wc3mapoptimizer 5.0 therefore it does not take any RAM because no variable exists and it is faster than normal variables because no variable lookup takes place. The speed gain may not be noticeable, however the optimized map script will have significantly lesser file size. As the name suggest, it holds a constant value so you cannot change its value (it will throw an error in an attempt to change its value).
Wc3 Map Optimizer Read Me said:
Constant inlining: This method inlines constant variables and some of the constant functions in order to save size (most of the times) but the bigger impact is an improvement in performance, although this method will not have any impact unless you use some advanced Jass spells or systems.

Inlining constant variables has a simple rule:
  • Constants that needs to be evaluated doesn't get inlined.

    JASS:
    library L initializer F

        globals
            constant integer INT1 = 42
            constant integer INT2 = 42 + 73
            constant real REAL1 = 2.718281828
            constant real REAL2 = 1/32
            constant real REAL3 = 1*2*3*4
            constant real REAL4 = Sin(bj_PI/2)
            constant string STRING1 = "A constant string"
            constant string STRING2 = SubString("12345", 0, 3)
            constant boolean BOOL1 = true
            constant boolean BOOL2 = (42 == 72)
            constant boolean BOOL3 = true or false //static if will not work because of 'or' operation
            constant boolean BOOL4 = false and false
        endglobals

        function F takes nothing returns nothing
            local integer i1 = INT1
            local integer i2 = INT2
            local real r1 = REAL1
            local real r2 = REAL2
            local real r3 = REAL3
            local real r4 = REAL4
            local string s1 = STRING1
            local string s2 = STRING2
            local boolean b1 = BOOL1
            local boolean b2 = BOOL2
            local boolean b3 = BOOL3
            //However BOOL2 and BOOL4 still works with static ifs
            static if not BOOL2 then
                call BJDebugMsg("BOOL2 static if works correctly")
            endif
            static if BOOL3 then
                call BJDebugMsg("BOOL3 static if works correctly")
            endif
            static if not BOOL4 then
                call BJDebugMsg("BOOL4 static if works correctly")
            endif
        endfunction

    endlibrary
    Wc3 Map optimizer generated script:
    JASS:
    globals
    constant integer e=42+73
    constant real x=1/ 32
    constant real o=1*2*3*4
    constant real i=Sin(bj_PI/ 2)
    constant string a=SubString("12345",0,3)
    constant boolean n=42==72
    constant boolean V=true or false
    trigger E=null
    real R=.0
    real I=.0
    boolexpr b=null
    endglobals
    //...
    function F takes nothing returns nothing
    local integer i1=42
    local integer i2=e
    local real r1=2.718281828
    local real r2=x
    local real r3=o
    local real r4=i
    local string s1="A constant string"
    local string s2=a
    local boolean b1=true
    local boolean b2=n
    local boolean b3=V
    call BJDebugMsg("BOOL2 static if works correctly")
    call BJDebugMsg("BOOL4 static if works correctly")
    endfunction

    The Wc3 map optimizer generated script shows that constants containing arithmetic operation, boolean expression, comparison or functions calls doesn't get inlined. Since other variables types (e.g. widgets, players, trigger) cannot be initialized without a function call, they cannot be inlined. The code variable cannot also be used as a constant (constant variables must be initialized with a value) because it will throw an undefined function error since the globals endglobals block is placed at the top most part of the script.

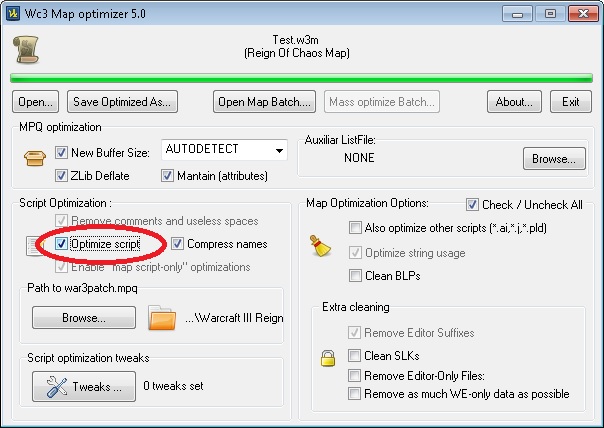

To inline constant variables, the 'Optimized Script' option must be checked (enabled) and the constant inlining script optimization feature must unchecked (enabled).

attachment.php

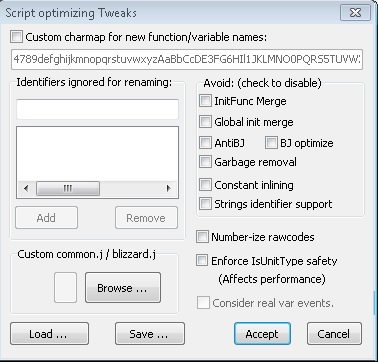

Script Optimization Tweaks
attachment.php



Attachments

  • wc3mapoptimizer-Settings1.jpg
    89.8 KB · Views: 533
  • wc3mapoptimizer-Settings2.jpg
    52.4 KB · Views: 521
Last edited by a moderator:
Level 13
Joined
Nov 7, 2014
Messages
570
Well, if it's "All About Inlining" then I think it's fair to at least mention cJass and it's macrodefinitions feature, which allow the user to inline whatever he wants:

JASS:
globals
    location loc = Location(0.0, 0.0)
endglobals

// We can't inline this in vJass unfortunately ...
//function GetTerrainZ takes real x, real y returns real
//    call MoveLocation(loc, x, y)
//    return GetLocationZ(loc)
//endfunction

define GetTerrainZ(x, y, result) = {
    call MoveLocation(loc, x, y)
    set result = GetLocationZ(loc)
}

globals
    real loc_z = 0.0
endglobals

define CalledGetTerrainZ(x, y) = {
    MoveLocation(loc, x, y)
    set loc_z = GetLocationZ(loc)
}

...

    local real z

    GetTerrainZ(0.0, 0.0, z)
    // =>
    // call MoveLocation(loc, x, y)
    // set z = GetLocationZ(loc)

    // The above looks strange because there is no "call", but we can work around that

    call CalledGetTerrainZ(3.14, 6.28)
    // =>
    // call MoveLocation(loc, x, y)
    // set loc_z = GetLocationZ(loc)
    set z = loc_z

    // idealy one would want:
    //
    // set z = GetTerrainZ(x, y)
    // =>
    // call MoveLocation(loc, x, y)
    // set z = GetLocationZ(x, y)
    //
    // which may or may not be possible with cJass, if there's someone more experienced with it, do tell =)
...

But of course this kind of inlining should only be used for very tight loops (code that get's called very very often), because "with great power comes" yada yada...

Top
