Particles not visible in game

Discussion in 'Modeling & Animation' started by MatiS, Feb 8, 2017.

  1. MatiS

    MatiS

    Joined:
    Feb 23, 2015
    Messages:
    208
    Resources:
    29
    Models:
    27
    Packs:
    2
    Resources:
    29
    Hi,

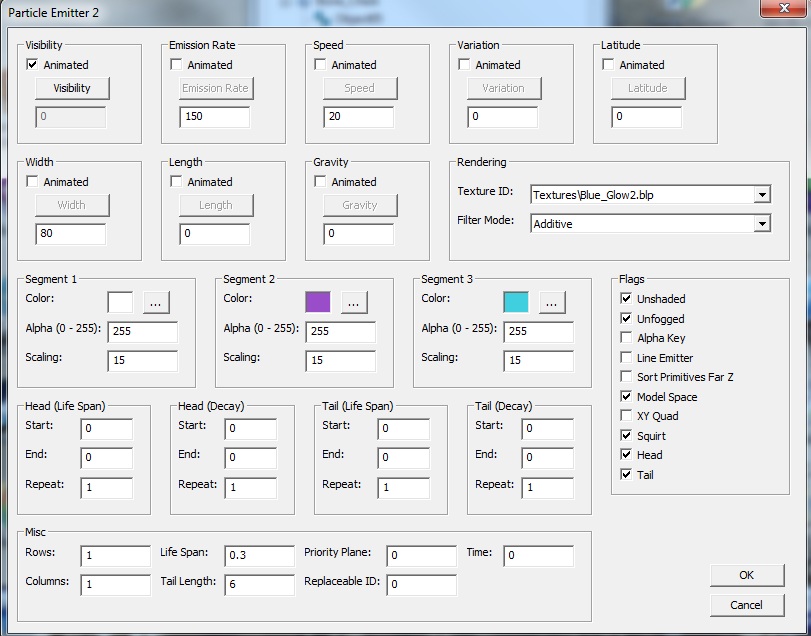

    I have a problem - rather important particle emitter doesn't work in game (it's works in model editor). It doesn't create any particles. Here's screen:[​IMG]
    I would be grateful for help :-D

  2. Infrisios

    Infrisios

    Joined:
    Feb 21, 2005
    Messages:
    106
    Resources:
    7
    Models:
    7
    Resources:
    7
    Most likely that you screwed up in the animated visibility. Can you paste the code of the emitter and the model's animation keyframes here?

    With a scaling of 15 and ModelSpace tags set, as well as a relatively low speed and no variation and/or latitude included, it could also just not be visible enough, though that's rather unlikely if it's obvious enough in the model editor.

  3. MatiS

    MatiS

    Joined:
    Feb 23, 2015
    Messages:
    208
    Resources:
    29
    Models:
    27
    Packs:
    2
    Resources:
    29
    Visibility:

    0: 0
    1000: 0
    3000: 0
    5000: 0
    7000: 0
    9000: 0
    9600: 1
    10200: 0
    11000: 1
    13000: 0
    13330: 1
    14200: 0
    14500: 0
    15000: 0
    28767: 0
    29500: 0
    30000: 0
    31500: 0
    32000: 0
    34000: 0
    36000: 0


    Keyframes:

    Stand Ready
    1000-2000
    Stand
    3000-4000
    Attack - 1
    5000-6000
    Attack - 2
    7000-8000
    Spell Slam
    9000-10500
    Spell Channel
    11000-12000
    Spell
    13000-14500
    Death
    15000-16234
    Walk
    28767-29500
    Stand - 2
    30000-31500
    Portrait Talk
    32000-33000
    Portrait
    34000-35000
    Dissipate
    36000-38000

  4. Infrisios

    Infrisios

    Joined:
    Feb 21, 2005
    Messages:
    106
    Resources:
    7
    Models:
    7
    Resources:
    7
    Try removing the squirt flag and see what happens. I've got to admit that I am a bit rusty with FX and I never really got along well with squirt, it always seemed to create somewhat erratic behavior, but even so it seems like the most likely candidate to cause issues.

    If that doesn't help, give it constant visibility to see if the issue lies somewhere there.

  5. MatiS

    MatiS

    Joined:
    Feb 23, 2015
    Messages:
    208
    Resources:
    29
    Models:
    27
    Packs:
    2
    Resources:
    29
    It worked :-D. There are some bugs with particles that are not visible in ME, but I can take care of that. Thanks :-D

  6. Infrisios

    Infrisios

    Joined:
    Feb 21, 2005
    Messages:
    106
    Resources:
    7
    Models:
    7
    Resources:
    7
    Those are probably the tails, if I am not mistaken Mago's can't display tails.

    Edit: Oh, and if you want the animation to squirt, I believe you'll have to tinker around with an animated emission rate.

  7. MatiS

    MatiS

    Joined:
    Feb 23, 2015
    Messages:
    208
    Resources:
    29
    Models:
    27
    Packs:
    2
    Resources:
    29
    Yeah, it were tails. I removed them and it's OK now. Thanks again :)
