Arcing Floating Text 1.0.0.3

Submitted by Maker
This bundle is marked as approved. It works and satisfies the submission rules.

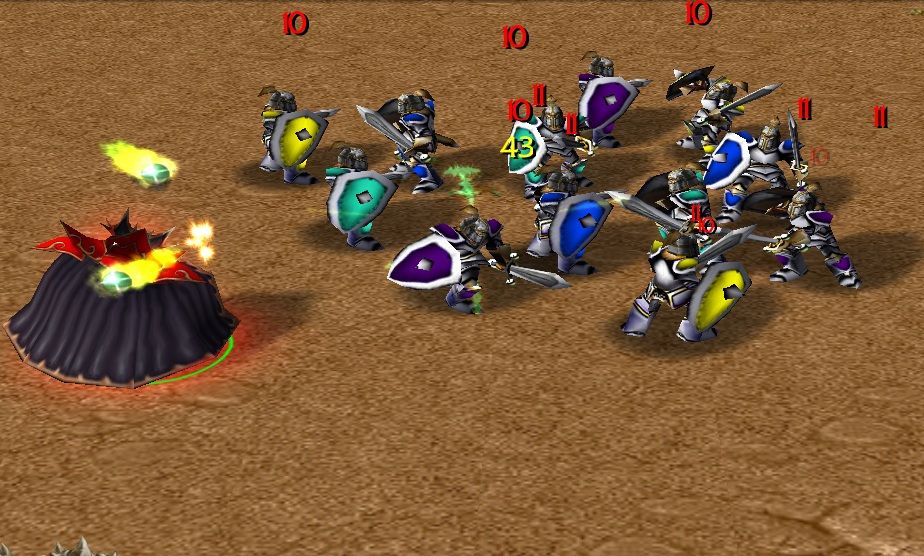

This system creates floating texts on units. The text tags change their height throughout their lifespan and they travel in a nice arc.
The system offers a bit nicer method than the standard that is used. Very suitable for damage detection systems.
Creates the texts only for players that have visibility over the target unit, thus the limit of 100 floating texts is less likely to be reached.

Code (vJASS):

// Arcing Text Tag v1.0.0.3 by Maker

library FloatingTextArc
    globals
        private constant    real    SIZE_MIN        = 0.018         // Minimum size of text
        private constant    real    SIZE_BONUS      = 0.012         // Text size increase
        private constant    real    TIME_LIFE       = 1.0           // How long the text lasts
        private constant    real    TIME_FADE       = 0.8           // When does the text start to fade
        private constant    real    Z_OFFSET        = 50            // Height above unit
        private constant    real    Z_OFFSET_BON    = 50            // How much extra height the text gains
        private constant    real    VELOCITY        = 2             // How fast the text move in x/y plane
        private constant    real    ANGLE           = bj_PI/2       // Movement angle of the text. Does not apply if
                                                                    // ANGLE_RND is true
        private constant    boolean ANGLE_RND       = true          // Is the angle random or fixed
        private             timer   TMR             = CreateTimer()
    endglobals

    struct ArcingTextTag extends array
        private texttag tt
        private real as         // angle, sin component
        private real ac         // angle, cos component
        private real ah         // arc height
        private real t          // time
        private real x          // origin x
        private real y          // origin y
        private string s        // text
        private static integer array next
        private static integer array prev
        private static integer array rn
        private static integer ic           = 0       // Instance count

        private static method update takes nothing returns nothing
            local thistype this=next[0]
            local real p
            loop
                set p = Sin(bj_PI*.t)
                set .t = .t - 0.03125
                set .x = .x + .ac
                set .y = .y + .as
                call SetTextTagPos(.tt, .x, .y, Z_OFFSET + Z_OFFSET_BON * p)
                call SetTextTagText(.tt, .s, SIZE_MIN + SIZE_BONUS * p)
                if .t <= 0 then
                    set .tt = null
                    set next[prev[this]] = next[this]
                    set prev[next[this]] = prev[this]
                    set rn[this] = rn[0]
                    set rn[0] = this
                    if next[0]==0 then
                        call PauseTimer(TMR)
                    endif
                endif
                set this = next[this]
                exitwhen this == 0
            endloop
        endmethod

        public static method create takes string s, unit u returns thistype
            local thistype this = rn[0]
            static if ANGLE_RND then
                local real a = GetRandomReal(0, 2*bj_PI)
            else
                local real a = ANGLE
            endif
            if this == 0 then
                set ic = ic + 1
                set this = ic
            else
                set rn[0] = rn[this]
            endif

            set next[this] = 0
            set prev[this] = prev[0]
            set next[prev[0]] = this
            set prev[0] = this

            set .s = s
            set .x = GetUnitX(u)
            set .y = GetUnitY(u)
            set .t = TIME_LIFE
            set .as = Sin(a)*VELOCITY
            set .ac = Cos(a)*VELOCITY
            set .ah = 0.

            if IsUnitVisible(u, GetLocalPlayer()) then
                set .tt = CreateTextTag()
                call SetTextTagPermanent(.tt, false)
                call SetTextTagLifespan(.tt, TIME_LIFE)
                call SetTextTagFadepoint(.tt, TIME_FADE)
                call SetTextTagText(.tt, s, SIZE_MIN)
                call SetTextTagPos(.tt, .x, .y, Z_OFFSET)
            endif

            if prev[this] == 0 then
                call TimerStart(TMR, 0.03125, true, function thistype.update)
            endif

            return this
        endmethod
    endstruct
endlibrary



Trigger

  • Create Floating Text
    • Events
      • Game - DamageEvent becomes Equal to 1.00
    • Conditions
    • Actions
      • Custom script: if GetOwningPlayer(udg_DamageEventSource) == GetLocalPlayer() then
      • Set str = (|c00FFFF00 + ((String((Integer(DamageEventAmount)))) + |r))
      • Custom script: else
      • Set str = (|c00FF0000 + ((String((Integer(DamageEventAmount)))) + |r))
      • Custom script: endif
      • Custom script: call ArcingTextTag.create( udg_str, udg_DamageEventTarget)



Change log

v1.0.0.0 Uploaded 14th Jan 2013
v1.0.0.1 Uploaded 14th Jan 2013
-Remove a static struct member that counted the amount of active instances, used to turn the timer off and on. Using another method for that now
v1.0.0.2 Uploaded 14th Jan 2013
-Struct member s is no longer nulled
-Inlined destroy method
v1.0.0.3 Uploaded 14th Jan 2013
-Rearranged some code
-Added an option to give the text fixed angle


Credits

Thanks for Magtheridon96 for suggestions on arranging code


Keywords:
floating, text, tag, maker, damage
Contents

Just another Warcraft III map (Map)

Reviews
Moderator
17:02, 14th Jan 2013 Magtheridon96: Approved. This thing is awesome.
  1. 17:02, 14th Jan 2013
    Magtheridon96: Approved.
    This thing is awesome.

  2. meowie

    meowie

    Joined:
    Jun 13, 2010
    Messages:
    43
    Resources:
    0
    Resources:
    0
    Add configuration for angle/degrees rather then setting it random

  3. zv27

    zv27

    Joined:
    Aug 21, 2010
    Messages:
    293
    Resources:
    0
    Resources:
    0
    Very good system. Nothing overly complex, but very useful 4.8/5.0

  4. Maker

    Maker

    Joined:
    Mar 6, 2006
    Messages:
    9,174
    Resources:
    17
    Maps:
    2
    Spells:
    14
    Tutorials:
    1
    Resources:
    17
    Now you can set it to a fixed angle or to random angle.

    Thanks.

  5. Almia

    Almia

    Joined:
    Apr 24, 2012
    Messages:
    4,842
    Resources:
    35
    Spells:
    30
    Tutorials:
    4
    JASS:
    1
    Resources:
    35
    Ralle should fix the JASS script now.I cant read the whole script :((

    but,the idea is cool.

  6. mateuspv

    mateuspv

    Joined:
    Apr 16, 2011
    Messages:
    140
    Resources:
    0
    Resources:
    0
    My suggestion (not sure if it's possible) is:
    - Use different colors for different types of injury:
    Damage spells
    Damage heroes
    Damage units
    ...
    - Perhaps support for healing too?
    Anyway, I loved your code.
    5/5

  7. Maker

    Maker

    Joined:
    Mar 6, 2006
    Messages:
    9,174
    Resources:
    17
    Maps:
    2
    Spells:
    14
    Tutorials:
    1
    Resources:
    17
    The colours are upto the user to define. When you detect damage or healing, colour the string you pass to the create method.

    Thanks for the comment.

    Last edited: Feb 8, 2013
  8. Almia

    Almia

    Joined:
    Apr 24, 2012
    Messages:
    4,842
    Resources:
    35
    Spells:
    30
    Tutorials:
    4
    JASS:
    1
    Resources:
    35
    It is in you to configure it.It isnt a damage detection,its an arcing texttag

  9. FRENGERS

    FRENGERS

    Joined:
    Aug 4, 2012
    Messages:
    970
    Resources:
    4
    Icons:
    3
    Maps:
    1
    Resources:
    4
    TQ this is what I searching for ;) ;)

  10. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,364
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    Thanks Maker - I will be using this to spice up my demo map when I release Damage Engine 5.1.

  11. Kusanagi Kuro

    Kusanagi Kuro

    Joined:
    Mar 11, 2012
    Messages:
    700
    Resources:
    0
    Resources:
    0
    The motion of the arc changed when you change the TIME_LIFE variable.

    If you want to keep the arc going up then down, then this line:

    set p = Sin(bj_PI*.t)

    in the update trigger, should become this:

    set p = Sin(bj_PI*(.t / TIME_LIFE))

    Also, the attribute "ah" seems meaningless? I don't see you using it in the update trigger at all.

  12. Ugabunda

    Ugabunda

    Joined:
    May 16, 2020
    Messages:
    315
    Resources:
    0
    Resources:
    0
    Is it possible to dynamically increase the text size when spell damage is done?

    I know how to recognize if spell damage is done, but not how to increase the text afterwards...

  13. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,364
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    I just made the below in order to enable that feature. I tested it and plan to use this variant the next time I update the Damage Engine map because it will help certain things to be more subdued or to pop better.

    Code (vJASS):

    // Arcing Text Tag v1.0.1.0 by Maker with added API by Bribe
    //
    // Added API in 1.0.1.0:
    //   public static ArcingTextTag lastCreated
    //   - Get the last created ArcingTextTag
    //   public real scaling
    //   - Set the size ratio of the texttag - 1.00 is the default
    //   public real timeScaling
    //   - Set the duration ratio of the texttag - 1.00 is the default
    library FloatingTextArc
        globals
            private constant    real    SIZE_MIN        = 0.018         // Minimum size of text
            private constant    real    SIZE_BONUS      = 0.012         // Text size increase
            private constant    real    TIME_LIFE       = 1.0           // How long the text lasts
            private constant    real    TIME_FADE       = 0.8           // When does the text start to fade
            private constant    real    Z_OFFSET        = 50            // Height above unit
            private constant    real    Z_OFFSET_BON    = 50            // How much extra height the text gains
            private constant    real    VELOCITY        = 2             // How fast the text move in x/y plane
            private constant    real    ANGLE           = bj_PI/2       // Movement angle of the text. Does not apply if
                                                                        // ANGLE_RND is true
            private constant    boolean ANGLE_RND       = true          // Is the angle random or fixed
            private             timer   TMR             = CreateTimer()
        endglobals

        struct ArcingTextTag extends array
            private texttag tt
            private real as         // angle, sin component
            private real ac         // angle, cos component
            private real ah         // arc height
            private real t          // time
            private real x          // origin x
            private real y          // origin y
            private string s        // text
            private static integer array next
            private static integer array prev
            private static integer array rn
            private static integer ic           = 0       // Instance count

            private real scale
            public method operator scaling takes nothing returns real
                return scale
            endmethod
            public method operator scaling= takes real r returns nothing
                if .tt != null then
                    call SetTextTagText(.tt, .s, SIZE_MIN*r)
                endif
                set .scale = r
            endmethod
            private real timeScale
            public method operator timeScaling takes nothing returns real
                return timeScale
            endmethod
            public method operator timeScaling= takes real r returns nothing
                local real p = Sin(bj_PI*r)
                if .tt != null then
                    call SetTextTagLifespan(.tt, TIME_LIFE*r)
                    call SetTextTagFadepoint(.tt, TIME_FADE*r)
                    call SetTextTagPos(.tt, .x, .y, Z_OFFSET + Z_OFFSET_BON*p)
                    call SetTextTagText(.tt, .s, (SIZE_MIN + SIZE_BONUS*p)*.scale)
                    set .t = r
                endif
                set .t = r
            endmethod

            public static thistype lastCreated = 0

            private static method update takes nothing returns nothing
                local thistype this=next[0]
                local real p
                loop
                    set p = Sin(bj_PI*.t)
                    set .t = .t - 0.03125
                    set .x = .x + .ac
                    set .y = .y + .as
                    call SetTextTagPos(.tt, .x, .y, Z_OFFSET + Z_OFFSET_BON*p)
                    call SetTextTagText(.tt, .s, (SIZE_MIN + SIZE_BONUS*p)*.scale)
                    if .t <= 0 then
                        set .tt = null
                        set next[prev[this]] = next[this]
                        set prev[next[this]] = prev[this]
                        set rn[this] = rn[0]
                        set rn[0] = this
                        if next[0]==0 then
                            call PauseTimer(TMR)
                        endif
                    endif
                    set this = next[this]
                    exitwhen this == 0
                endloop
            endmethod

            public static method create takes string s, unit u returns thistype
                local thistype this = rn[0]
                static if ANGLE_RND then
                    local real a = GetRandomReal(0, 2*bj_PI)
                else
                    local real a = ANGLE
                endif
                if this == 0 then
                    set ic = ic + 1
                    set this = ic
                else
                    set rn[0] = rn[this]
                endif

                set .scale = 1.00

                set next[this] = 0
                set prev[this] = prev[0]
                set next[prev[0]] = this
                set prev[0] = this

                set .s = s
                set .x = GetUnitX(u)
                set .y = GetUnitY(u)
                set .t = TIME_LIFE
                set .as = Sin(a)*VELOCITY
                set .ac = Cos(a)*VELOCITY
                set .ah = 0.

                if IsUnitVisible(u, GetLocalPlayer()) then
                    set .tt = CreateTextTag()
                    call SetTextTagPermanent(.tt, false)
                    call SetTextTagLifespan(.tt, TIME_LIFE)
                    call SetTextTagFadepoint(.tt, TIME_FADE)
                    call SetTextTagText(.tt, s, SIZE_MIN)
                    call SetTextTagPos(.tt, .x, .y, Z_OFFSET)
                else
                    set .tt = null
                endif

                if prev[this] == 0 then
                    call TimerStart(TMR, 0.03125, true, function thistype.update)
                endif

                set .lastCreated = this

                return this
            endmethod
        endstruct
    endlibrary


  14. Ugabunda

    Ugabunda

    Joined:
    May 16, 2020
    Messages:
    315
    Resources:
    0
    Resources:
    0
    Thanks Bribe as always. But how do I take advantage of the added functions? I guess I need to create a Variable?

  15. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,364
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    When you create an ArcingTextTag, you can do local ArcingTextTag att = ArcingTextTag.create(...)

    Then you just do something like set att.scaling = 1.50 for 50% bigger size, and set att.timeScaling = 0.50 for 50% fade time.

  16. Ugabunda

    Ugabunda

    Joined:
    May 16, 2020
    Messages:
    315
    Resources:
    0
    Resources:
    0
    Mmm I did the following:
    1. Updated the JASS code to what you wrote above and
    2. Took the below code over from your map and adjusted it to my needs.
    3. Then I added "set att.scaling = 1.50" below one of the Text which want to increase in text size (the "Instant kill" text)
    ...But I'm getting the error "att is not of a type that allows . syntax":

    • Damage Tag
      • Events
        • Game - DamageEvent becomes Equal to 1.00
      • Conditions
      • Actions
        • Set VariableSet DmgStr = |cffffffff
        • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
          • If - Conditions
            • DamageEventAmount Not equal to 0.00
          • Then - Actions
            • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
              • If - Conditions
                • DamageEventAmount Less than -0.99
              • Then - Actions
                • -------- HEALING --------
                • Set VariableSet DmgStr = |cff00ff00+
                • Custom script: call ArcingTextTag.create(udg_DmgStr + I2S(R2I(-udg_DamageEventAmount)) + "|r", udg_DamageEventTarget)
              • Else - Actions
                • -------- Critical Strike --------
                • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                  • If - Conditions
                    • DamageScalingUser Greater than or equal to 1.50
                  • Then - Actions
                    • Set VariableSet DmgStr = (|cffff0000 + ((String((Integer(DamageEventAmount)))) + !|r))
                    • Custom script: call ArcingTextTag.create(udg_DmgStr, udg_DamageEventTarget)
                  • Else - Actions
                    • -------- PLAYER DAMAGE --------
                    • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                      • If - Conditions
                        • DamageEventAmount Greater than 0.99
                        • ((Owner of DamageEventSource) is in (All players controlled by a User player).) Equal to True
                      • Then - Actions
                        • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                          • If - Conditions
                            • DamageEventAttackT Equal to ATTACK_TYPE_CHAOS
                          • Then - Actions
                            • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                              • If - Conditions
                                • DamageEventAmount Greater than or equal to 10000000.00
                              • Then - Actions
                                • Custom script: call ArcingTextTag.create("|cff7D26CD" + "Instant Kill" + "|r", udg_DamageEventTarget)
                                • Custom script: set att.scaling = 1.50
                                • Skip remaining actions
                              • Else - Actions
                                • Set VariableSet DmgStr = |cffF5F5DC
                          • Else - Actions
                            • -------- PHYSICAL DAMAGE --------
                            • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                              • If - Conditions
                                • IsDamageAttack Equal to True
                              • Then - Actions
                                • Set VariableSet DmgStr = |cffffff00
                              • Else - Actions
                                • -------- SPELL DAMAGE --------
                                • If (All Conditions are True) then do (Then Actions) else do (Else Actions)
                                  • If - Conditions
                                    • IsDamageSpell Equal to True
                                  • Then - Actions
                                    • Set VariableSet DmgStr = |cff248dce
                                  • Else - Actions
                        • Custom script: call ArcingTextTag.create(udg_DmgStr + I2S(R2I(udg_DamageEventAmount)) + "|r", udg_DamageEventTarget)
                      • Else - Actions
          • Else - Actions

  17. Bribe

    Bribe

    Joined:
    Sep 26, 2009
    Messages:
    8,364
    Resources:
    25
    Maps:
    3
    Spells:
    10
    Tutorials:
    3
    JASS:
    9
    Resources:
    25
    Yes it would require some JASS knowledge in order to utilize local variables in that sense. I haven't yet published my demo script showcasing that feature, so there's nothing I can refer you to yet (which is why I hadn't replied).

    Instead of "set att.scaling = 1.50" do "set ArcingTextTag.lastCreated.scaling = 1.50"

  18. Ugabunda

    Ugabunda

    Joined:
    May 16, 2020
    Messages:
    315
    Resources:
    0
    Resources:
    0
    Thank you - worked (at least it increases all text tags now)! And will await your new version to see what else can be done :)
