library MissileCollision /* v1.1
*************************************************************************************
*
* by mckill2009
*
*************************************************************************************
*
* An extremely simple missile projectile system that collides and damages on enemy units
* or blows on impact when desired distance is reached.
* The missile is recycle able so that it will not create different dummies everytime.
*
*************************************************************************************
*
* */ uses /*
*
* */ T32 /* http://www.thehelper.net/forums/showthread.php/132538-Timer32
* */ Dummy /* http://www.hiveworkshop.com/forums/jass-resources-412/system-dummy-213908/
*
************************************************************************************
*
* Credits
*
* Vexorian
* -----------------------
* For his DUMMY.mdx model
*
* Jesus4Lyf
* -----------------------
* For his Timer32 library
*
* Nesthaurus
* -----------------------
* For his Dummy library
*
************************************************************************************
*
* Installation:
* - Import the DUMMY.mdx model to your map
* - Copy the DummySfx unit from the object editor to your map and change the model to DUMMY.mdx
* - Copy ALL the Required Libraries and MissileCollicion folder to your map (except the DEMO)
* - Change the DUMMY_ID of the Dummy library to your imported DummySfx
*
************************************************************************************
*
* API:
* struct MC
* static method create takes player owningPlayer, real xWhere, real yWhere, string missileModel returns thistype
* - owningPlayer is the owner of the missile
* - xWhere and yWhere is the coordinate where the missile's origin or launched
*
* method setupCollision takes real aoe, real collision, string collisionEffect returns nothing
* - aoe is the area of effect damage when missile explodes
* - collision, missile will explode and deals damage if it collides with the first enemy unit in range
* - collisionEffect, the effect or eye candy of the explosion
*
* method setupDamage takes real damage, attacktype attackType, damagetype damageType returns nothing
* - damage, the damage when missile explodes
* - attackType and damageType is self explanatory
*
* method launch takes real facingInRadiants, real distance, real height, real speed returns nothing
* - facingInRadiants is the angle where the missile goes
* - distance is how far the missile traver
* - height and speed is the height of the missile and speed travel of the missile respectively
*
*
************************************************************************************
*/
private struct Delay
unit missile
real del
Dummy remove
endstruct
struct MC
private unit missile
private real aoeDamage
private real collision
private real distance
private real damage
private real height
private real speed
private real cos
private real sin
private string collisionEffect
private effect missileModel
private player pl
private attacktype atk
private damagetype dmg
private Dummy remove
private static group g = CreateGroup()
/*
*
* This block is used to delay the dummy to be recycled so that the effects will be
* visible from their origin attachment
*
*/
private static timer t = CreateTimer()
private static integer index = 0
private static integer array indexAR
private static method looper takes nothing returns nothing
local Delay this
local integer i = 0
loop
set i = i+1
set this = indexAR[i]
set this.del = this.del - 0.03125
if 0 > this.del then
call this.remove.destroy()
set this.missile = null
call this.destroy()
set indexAR[i] = indexAR[index]
set i = i - 1
set index = index - 1
if index==0 then
call PauseTimer(t)
endif
endif
exitwhen i==index
endloop
endmethod
private method delay takes nothing returns nothing returns nothing
local Delay m = Delay.create()
set m.missile = .missile
set m.del = 2.0
set m.remove = .remove
if index==0 then
call TimerStart(t, 0.03125, true, function thistype.looper)
endif
set index = index + 1
set indexAR[index] = m
endmethod
/*
*
* End of Delay block
*
*/
private method stop takes nothing returns nothing
call .delay()
call DestroyEffect(.missileModel)
set .missile = null
set .missileModel = null
call .stopPeriodic()
call .deallocate()
endmethod
private method damageThem takes real x, real y returns nothing
local unit first
if .collisionEffect!="" then
call DestroyEffect(AddSpecialEffectTarget(.collisionEffect, .missile, "origin"))
endif
call GroupEnumUnitsInRange(g, x, y, .aoeDamage, null)
loop
set first = FirstOfGroup(g)
exitwhen first==null
if not IsUnitType(first, UNIT_TYPE_DEAD) and IsUnitEnemy(first, .pl) then
if .atk==null or .dmg==null then
call UnitDamageTarget(.missile, first, .damage, false, false, ATTACK_TYPE_NORMAL, DAMAGE_TYPE_NORMAL, null)
else
call UnitDamageTarget(.missile, first, .damage, false, false, .atk, .dmg, null)
endif
endif
call GroupRemoveUnit(g, first)
endloop
call .stop()
endmethod
private method periodic takes nothing returns nothing
local unit first
local real xMissile = GetUnitX(.missile)
local real yMissile = GetUnitY(.missile)
if .distance > 0 then
set .distance = .distance - .speed
call SetUnitX(.missile, xMissile + .cos)
call SetUnitY(.missile, yMissile + .sin)
call GroupEnumUnitsInRange(g, xMissile, yMissile, .collision, null)
loop
set first = FirstOfGroup(g)
exitwhen first==null
if not IsUnitType(first, UNIT_TYPE_DEAD) and IsUnitEnemy(first, .pl) then
call .damageThem(xMissile, yMissile)
exitwhen true
endif
call GroupRemoveUnit(g, first)
endloop
else
call .damageThem(xMissile, yMissile)
endif
endmethod
implement T32x
/*
*
* API:
*
*/
static method create takes player owningPlayer, real xWhere, real yWhere, string missileModel returns thistype
local thistype this = allocate()
local Dummy d = Dummy.create(xWhere, yWhere, 0)
set .missile = d.unit
set .missileModel = AddSpecialEffectTarget(missileModel, .missile, "origin")
set .pl = owningPlayer
set .collisionEffect = ""
set .remove = d
if UnitAddAbility(.missile, 'Aloc') then
endif
return this
endmethod
method setupCollision takes real aoe, real collision, string collisionEffect returns nothing
set .aoeDamage = aoe
set .collision = collision
set .collisionEffect = collisionEffect
endmethod
method setupDamage takes real damage, attacktype attackType, damagetype damageType returns nothing
set .damage = damage
set .atk = attackType
set .dmg = damageType
endmethod
method launch takes real facingInRadiants, real distance, real height, real speed returns nothing
set .distance = distance
set .height = height
set .speed = speed
set .cos = speed * Cos(facingInRadiants)
set .sin = speed * Sin(facingInRadiants)
call SetUnitFlyHeight(.missile, height, 0)
call SetUnitFacing(.missile, facingInRadiants*bj_RADTODEG)
call .startPeriodic()
endmethod
endstruct
endlibrary
MC Demo
Events
Player - Player 1 (Red) skips a cinematic sequence
Conditions
Actions
Custom script: local MC m
Custom script: set m = m.create(Player(0), GetUnitX(udg_Hero), GetUnitY(udg_Hero), "Abilities\\Weapons\\PoisonArrow\\PoisonArrowMissile.mdl")
Custom script: call m.setupCollision(300, 80, "Objects\\Spawnmodels\\Human\\FragmentationShards\\FragBoomSpawn.mdl")
Custom script: call m.setupDamage(100, ATTACK_TYPE_NORMAL, DAMAGE_TYPE_NORMAL)
Custom script: call m.launch(GetUnitFacing(udg_Hero)*bj_DEGTORAD, 800, 75, 5)

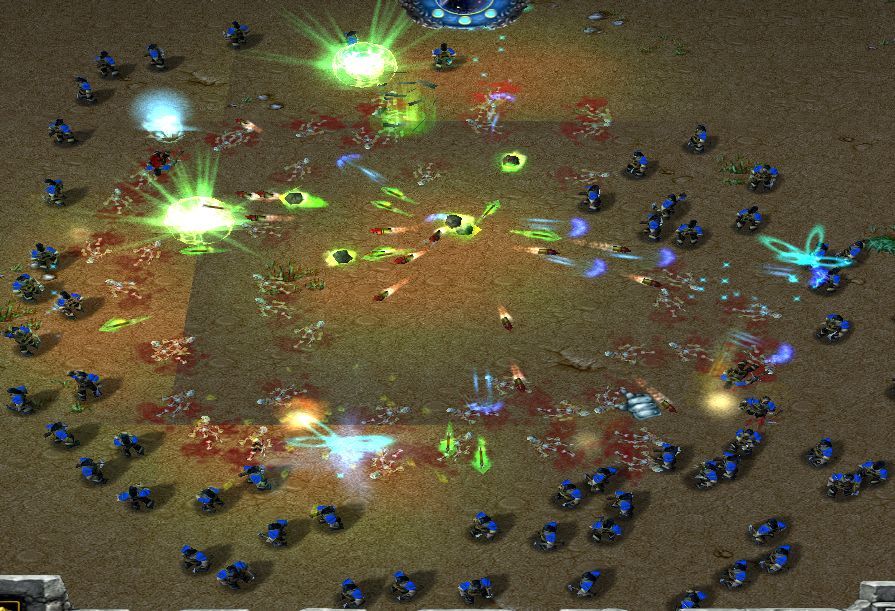

scope MCInsaneTest
globals
private string array missileSfx
private string array sfxExplode
endglobals
struct MCD
static method insaneTest takes nothing returns nothing
local MC m = MC.create(Player(0), 0, 0, missileSfx[GetRandomInt(1,4)])
/*
* The locals is really not needed, I only put it here to see what are those numbers for
*/
local real angle = GetRandomReal(1, 6.2)
local real aoe = GetRandomReal(150, 200)
local real collision = GetRandomReal(80, 100)
local real damage = GetRandomReal(50, 150)
local real distance = GetRandomReal(500, 800)
local real height = GetRandomReal(75, 150)
local real speed = GetRandomReal(2, 10)
local integer randomSfx = GetRandomInt(1, 5)
call m.setupCollision(aoe, collision, sfxExplode[GetRandomInt(1,5)])
if GetRandomInt(1, 2)==1 then
call m.setupDamage(damage, null, null)
else
call m.setupDamage(damage, ATTACK_TYPE_CHAOS, DAMAGE_TYPE_COLD)
endif
call m.launch(angle, distance, height, speed)
endmethod
static method onInit takes nothing returns nothing
set missileSfx[1] = "Abilities\\Weapons\\PoisonArrow\\PoisonArrowMissile.mdl"
set missileSfx[2] = "Abilities\\Weapons\\CannonTowerMissile\\CannonTowerMissile.mdl"
set missileSfx[3] = "Abilities\\Weapons\\WingedSerpentMissile\\WingedSerpentMissile.mdl"
set missileSfx[4] = "Abilities\\Weapons\\DemonHunterMissile\\DemonHunterMissile.mdl"
set sfxExplode[1] = "Objects\\Spawnmodels\\Human\\FragmentationShards\\FragBoomSpawn.mdl"
set sfxExplode[2] = "Objects\\Spawnmodels\\NightElf\\EntBirthTarget\\EntBirthTarget.mdl"
set sfxExplode[3] = "UI\\Feedback\\GoldCredit\\GoldCredit.mdl"
set sfxExplode[4] = "Objects\\Spawnmodels\\NightElf\\NEDeathMedium\\NEDeath.mdl"
set sfxExplode[5] = "Objects\\Spawnmodels\\Undead\\UDeathSmall\\UDeathSmall.mdl"
call TimerStart(CreateTimer(), 0.1, true, function MCD.insaneTest)
endmethod
endstruct
endscopescope MCExecutionMode
globals
private real array y
endglobals
struct MCDE
static method insaneTest takes nothing returns nothing
local MC m = MC.create(Player(0), -550, y[GetRandomInt(0,5)], "Abilities\\Weapons\\CannonTowerMissile\\CannonTowerMissile.mdl")
/*
* The locals is really not needed, I only put it here to see what are those numbers for
*/
local real angle = 180*bj_DEGTORAD
local real aoe = 150
local real collision = 80
local real damage = 75
local real distance = 1200
local real height = 30
local real speed = GetRandomReal(2, 10)
call m.setupCollision(aoe, collision, "Objects\\Spawnmodels\\Undead\\UDeathSmall\\UDeathSmall.mdl")
call m.setupDamage(damage, ATTACK_TYPE_CHAOS, DAMAGE_TYPE_COLD)
call m.launch(angle, distance, height, speed)
endmethod
static method onInit takes nothing returns nothing
set y[0] = -790
set y[1] = -520
set y[2] = -260
set y[3] = -8
set y[4] = 260
set y[5] = 520
call TimerStart(CreateTimer(), 0.1, true, function MCDE.insaneTest)
endmethod
endstruct
endscope
if UnitAddAbility(.missile, 'Arav') then
endif
if UnitAddAbility(.missile, 'Aloc') then
endifif UnitAddAbility(.missile, 'Arav') then
call UnitRemoveAbility(.missile, 'Arav') //So that you only remove it, if it was added by the script
endifif GetUnitFlyHeight(.missile) > 100 then
call DestroyEffect(AddSpecialEffectTarget(.sfx, .missile, "origin"))
else
call DestroyEffect(AddSpecialEffect(.sfx, GetUnitX(.missile), GetUnitY(.missile)))
endif
* static method create takes player owningPlayer, real xWhere, real yWhere, string missileModel, string attachToWhere returns thistype
* method operator []= takes real collision, string collisionEffect returns nothing
* method setupDamage takes real damage, attacktype attackType, damagetype damageType returns nothing
* method launch takes real facingInRadiants, real distance, real height, real speed returns nothing
the T32 start is inside that, so it will reset the parameters or worst cause an error...
yes, it uses same handle if that handle is not in use like TU...
if UnitAddAbility(.missile, 'Arav') then
//Useless since this part is blank anyway
endif
if UnitAddAbility(.missile, 'Arav') then
call UnitRemoveAbility(.missile, 'Arav')
//Now the if check has a use
endif
/*
Conclusion? Well, since you don't need to know if ability is added or not, just remove the check
*/That's why I put the name collision...first time hit, stops...
1) An option of hitting an ally unit is another option Im thinking...and it already hits all enemy units but depends on collision size...if Ima add that option, another parameter should be created...1) An option for hitting all enemies around the area is a nice add-on IMO...
2) BTW, most users will probably want support for missile arcs...
3) PS: You should just make the attachment point as a non-parameter... I don't see why the user will need to use a non-origin point for the missile anyway...
//These two lines effectively stop the missile processing
//upon hitting a unit, so it will always only hit a single unit
call .stop()
exitwhen true
if UnitAddAbility(myUnit, 'Amrf') and UnitRemoveAbility(myUnit, 'Amrf') then
endifstatic method pop takes thistype this, real x, real y, real facing returns integer
/*
* Retrieve queue and first dummy on queue given angle
*/
local unit dummyUnit //dummy unit
local thistype dummyIndex = next //dummy index
local integer unitIndex //unit idex
local thistype this2
local thistype node
local real stamp
/*
* If the queue is empty, return new dummy
*/
if (0 == dummyIndex or dummyIndex.stamp > TimerGetElapsed(stampTimer)) then
/*
* Allocate new dummy
*/
debug if (dummyCount == 8191) then
debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,10,"DUMMY RECYCLER FATAL ERROR: DUMMY OVERLOAD")
debug set Dummy.enabled = false
debug set this = 1/0
debug endif
set dummyIndex = dummyCount + 1
set dummyCount = dummyIndex
/*
* Create and initialize new unit handle
*/
set dummyUnit = CreateUnit(DUMMY_OWNER, DUMMY_ID, x, y, facing)
set unitIndex = GetUnitUserData(dummyUnit)
set indexPointer[dummyIndex] = unitIndex
set dummyPointer[unitIndex] = dummyIndex
set dummies[unitIndex] = dummyUnit
call UnitAddAbility(dummyUnit, 'Amrf')
call UnitRemoveAbility(dummyUnit, 'Amrf')
call PauseUnit(dummyUnit, true)
return dummyIndex
endif
/*
* Remove the dummy from the queue
*/
set next = dummyIndex.next
if (0 == next) then
set last = this
endif
/*
* Only remove from the count if the queue has most dummies in it
*
* If queue doesn't have most dummies in it, take a dummy from the queue
* with most dummies in it and keep count the same
*/
if (count == ArrayStack.max) then
set count = count - 1
else
/*
* Retrieve the queue with most dummies in it as well as the
* first dummy in that queue
*/
set this2 = max
set node = this2.next
/*
* Remove first dummy from largest queue
*/
if (0 == node.next) then
set this2.last = this2
else
set this2.next = node.next
endif
set this2.count = this2.count - 1
/*
* Add first dummy to current queue
*/
set last.next = node
set last = node
set node.next = 0
/*
* Match unit angle with queue
*/
call SetUnitFacing(dummies[indexPointer[node]], this - 1)
/*
* .73 seconds is how long it takes for a dummy to rotate 180 degrees
*
* Credits to Bribe for these 4 lines of code and the .73 value
*/
set stamp = TimerGetElapsed(stampTimer) + .73
if (stamp > node.stamp) then
set node.stamp = stamp
endif
endif
/*
* Move dummy to target position
*/
set dummyUnit = dummies[indexPointer[dummyIndex]]
call SetUnitX(dummyUnit, x)
call SetUnitY(dummyUnit, y)
call SetUnitFacing(dummyUnit, facing)
set dummyUnit = null
/*
* Return first dummy from current queue
*/
return dummyIndex
endmethodprivate function Initialize takes nothing returns nothing
local unit dummy
local integer last
local integer angle
local ArrayStack queue
local integer count
/*
* This timer
*/
set stampTimer = CreateTimer()
call TimerStart(stampTimer, 604800, false, null)
/*
* The highest possible angle
*/
set last = 360/ANGLE_SPACING*ANGLE_SPACING
if (360 == last) then
set last = last - ANGLE_SPACING
if (last < ANGLE_SPACING) then
set last = 0
endif
endif
/*
* The lowest possible angle
*/
set angle = 0
/*
* Start dummy count at the last possible angle so that
* angles don't overlap with dummy indexes. This is done
* to simplify queue algorithm and improve overall performance.
* At most 360 possible dummy unit indexes will be lost due to this.
*/
set dummyCount = last + 1
/*
* Initialize ArrayStack
*/
set ArrayStack.min = PRELOAD_PROJECTILES_PER_ANGLE
set ArrayStack.max = PRELOAD_PROJECTILES_PER_ANGLE
set ArrayStack(PRELOAD_PROJECTILES_PER_ANGLE).first = 1
loop
/*
* queue pointer is angle + 1
*/
set queue = angle + 1
/*
* Only add projectiles to queue if MAX_PROJECTILES < 0
*/
if (0 < PRELOAD_PROJECTILES_PER_ANGLE) then
set count = PRELOAD_PROJECTILES_PER_ANGLE
set queue.count_p = PRELOAD_PROJECTILES_PER_ANGLE
set dummyCount = dummyCount + 1
set Queue(queue).next = dummyCount
/*
* Create and add all dummies to queue
*/
loop
/*
* Create and initialize unit handle
*/
set dummy = CreateUnit(DUMMY_OWNER, DUMMY_ID, 0, 0, angle)
set indexPointer[dummyCount] = GetUnitUserData(dummy)
set dummyPointer[GetUnitUserData(dummy)] = dummyCount
set dummies[indexPointer[dummyCount]] = dummy
call UnitAddAbility(dummy, 'Amrf')
call UnitRemoveAbility(dummy, 'Amrf')
call PauseUnit(dummy, true)
set count = count - 1
exitwhen 0 == count
/*
* Point to next
*/
set dummyCount.next = dummyCount + 1
set dummyCount = dummyCount + 1
endloop
set Queue(queue).last = dummyCount
else
set Queue(queue).last = queue
endif
exitwhen last == angle
/*
* Go to next angle
*/
set angle = angle + ANGLE_SPACING
/*
* Link queues together
*/
set queue.next = angle + 1
set ArrayStack(angle + 1).prev = queue
/*
* Go to next queue
*/
set queue = angle + 1
endloop
set dummy = null
debug set Dummy.enabled = true
endfunction
coz of this >>>
call SetUnitPosition(dummies[this], 2147483647, 2147483647), that's the main reason why I made a delay structit's just in the test, not inside system itself...
ummm, nothing wrong with it so no...
