Flare Seal v1.2
- Author(s)
- jim7777
- Tags
- No Target, GUI / Triggers, Spell
- Size
- 25.12 KB
- Rating
- Downloads
- 873
- Created
- Aug 19, 2010
- Updated
- Sep 1, 2010
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.

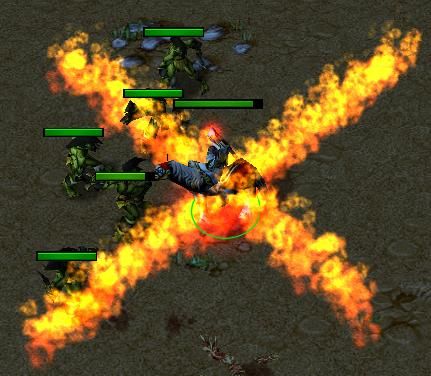

Flare Seal created by jim7777
Tooltip:
A pretty high-level anti-fire spell, which is so powerful that even while being in fire, no heat can be felt. However, using this spell in combat is difficult because of the long amount of time required for casting. A seal is created around the hero then after a few seconds., it would explode dealing damage to the units inside the seal.Deals 5 x current Intelligence of the hero to enemies within range twice.
Hotkey: Q
Press the ESC button to reset mana,life and cooldown.
Read the comments in the trigger section for additional informations.
Have fun and enjoy!
This spell is fully GUI/MUI, leakless (i think) and lagless (for my pc)
Give credits if used or you may not but please be good at it
It may look simple though....
v1.0
- Initial Release
v1.1
- Fix Leaking points
- Reduce creation time of the Fire(dummy) to 0.1 second
- Remove DestroyGroup for the DummyGroup (as it is removed already O,o)
v1.1b
- Make "Pause Unit" action included in the Init Trigger (run only onced)
- Added up more filter conditions in damaging units and adding special effects.
v1.2
- Re-added DestroyGroup function for destroying dummy group as TriggerHappy suggested.
- Creates two lines of fire instead of one
- Increases timeline of creating fire to 0.2 second
Still looking for some concepts on making this better
Keywords:
fire, flare, seal, gui, mui, jim7777, x, mark, explosion, intelligence, damage
Tooltip:
A pretty high-level anti-fire spell, which is so powerful that even while being in fire, no heat can be felt. However, using this spell in combat is difficult because of the long amount of time required for casting. A seal is created around the hero then after a few seconds., it would explode dealing damage to the units inside the seal.Deals 5 x current Intelligence of the hero to enemies within range twice.
Hotkey: Q
Press the ESC button to reset mana,life and cooldown.
Read the comments in the trigger section for additional informations.
Have fun and enjoy!
This spell is fully GUI/MUI, leakless (i think) and lagless (for my pc)
Give credits if used or you may not but please be good at it
It may look simple though....
v1.0
- Initial Release
v1.1
- Fix Leaking points
- Reduce creation time of the Fire(dummy) to 0.1 second
- Remove DestroyGroup for the DummyGroup (as it is removed already O,o)
v1.1b
- Make "Pause Unit" action included in the Init Trigger (run only onced)
- Added up more filter conditions in damaging units and adding special effects.
v1.2
- Re-added DestroyGroup function for destroying dummy group as TriggerHappy suggested.
- Creates two lines of fire instead of one
- Increases timeline of creating fire to 0.2 second
Still looking for some concepts on making this better
-
Flare Seal
-
Events
-
Unit - A unit Starts the effect of an ability
-
-
Conditions
-
(Ability being cast) Equal to Flare Seal
-
-
Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_Index[1] Equal to 0
-
-
Then - Actions
-
Trigger - Turn on Flare Seal Fire Loop <gen>
-
-
Else - Actions
-
-
-------- Don't change these parts. --------
-
Set FSeal_Index[1] = (FSeal_Index[1] + 1)
-
Set FSeal_Index[2] = (FSeal_Index[2] + 1)
-
Set FSeal_Caster[FSeal_Index[2]] = (Triggering unit)
-
Set FSeal_LoopIsOn[FSeal_Index[2]] = True
-
Set FSeal_FirstEnd[FSeal_Index[2]] = False
-
-------- Maximum Range. If you change this area, change also all values with 350 or -350 in the Flare Seal Fire Loop trigger. --------
-
Set FSeal_CurrentRange[FSeal_Index[2]] = 350.00
-
-------- Set Damage here. --------
-
Set FSeal_DMG[FSeal_Index[2]] = (((Real((Level of (Ability being cast) for (Triggering unit)))) + 4.00) x (Real((Intelligence of (Triggering unit) (Include bonuses)))))
-
-------- Just set this to 0 and you won't have any problems. Counts number of seconds to wait. --------
-
Set FSeal_Wait[FSeal_Index[2]] = 0.00
-
-------- We need to declare the group variable so we don't have any problems removing dummy --------
-
Set FSeal_FireGroupDummy[FSeal_Index[2]] = (Units owned by (Owner of (Triggering unit)) of type Flare Seal Dummy Fire)
-
Unit - Pause (Triggering unit)
-
-
-
Flare Seal Fire Loop
-
Events
-
Time - Every 0.20 seconds of game time
-
-
Conditions
-
Actions
-
For each (Integer FSeal_Index[3]) from 1 to FSeal_Index[2], do (Actions)
-
Loop - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_LoopIsOn[FSeal_Index[3]] Equal to True
-
-
Then - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
(FSeal_Caster[FSeal_Index[3]] is alive) Equal to True
-
-
Then - Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_FirstEnd[FSeal_Index[3]] Equal to False
-
-
Then - Actions
-
Set FSeal_TempPoint[1] = (Position of FSeal_Caster[FSeal_Index[3]])
-
Set FSeal_TempPoint[2] = (FSeal_TempPoint[1] offset by FSeal_CurrentRange[FSeal_Index[3]] towards 45.00 degrees)
-
Unit - Create 1 Flare Seal Dummy Fire for (Owner of FSeal_Caster[FSeal_Index[3]]) at FSeal_TempPoint[2] facing Default building facing degrees
-
Unit Group - Add (Last created unit) to FSeal_FireGroupDummy[FSeal_Index[3]]
-
Set FSeal_CurrentRange[FSeal_Index[3]] = (FSeal_CurrentRange[FSeal_Index[3]] - 40.00)
-
Custom script: call RemoveLocation(udg_FSeal_TempPoint[1])
-
Custom script: call RemoveLocation(udg_FSeal_TempPoint[2])
-
Set FSeal_TempPoint[1] = (Position of FSeal_Caster[FSeal_Index[3]])
-
Set FSeal_TempPoint[2] = (FSeal_TempPoint[1] offset by FSeal_CurrentRange[FSeal_Index[3]] towards 135.00 degrees)
-
Unit - Create 1 Flare Seal Dummy Fire for (Owner of FSeal_Caster[FSeal_Index[3]]) at FSeal_TempPoint[2] facing Default building facing degrees
-
Unit Group - Add (Last created unit) to FSeal_FireGroupDummy[FSeal_Index[3]]
-
Set FSeal_CurrentRange[FSeal_Index[3]] = (FSeal_CurrentRange[FSeal_Index[3]] - 40.00)
-
Custom script: call RemoveLocation(udg_FSeal_TempPoint[1])
-
Custom script: call RemoveLocation(udg_FSeal_TempPoint[2])
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_CurrentRange[FSeal_Index[3]] Less than or equal to -350.00
-
-
Then - Actions
-
Set FSeal_FirstEnd[FSeal_Index[3]] = True
-
Set FSeal_CurrentRange[FSeal_Index[3]] = 350.00
-
-
Else - Actions
-
-
-
Else - Actions
-
Set FSeal_Wait[FSeal_Index[3]] = (FSeal_Wait[FSeal_Index[3]] + 0.20)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_Wait[FSeal_Index[3]] Greater than or equal to 0.80
-
-
Then - Actions
-
Set TempPoint = (Position of FSeal_Caster[FSeal_Index[3]])
-
For each (Integer FSeal_Index[4]) from 1 to 2, do (Actions)
-
Loop - Actions
-
Custom script: set bj_wantDestroyGroup = true
-
Unit Group - Pick every unit in (Units within 350.00 of TempPoint matching (((Matching unit) belongs to an enemy of (Owner of FSeal_Caster[FSeal_Index[3]])) Equal to True)) and do (Actions)
-
Loop - Actions
-
Special Effect - Create a special effect attached to the origin of (Picked unit) using Abilities\Spells\Other\Doom\DoomDeath.mdl
-
Special Effect - Destroy (Last created special effect)
-
Unit - Cause FSeal_Caster[FSeal_Index[3]] to damage (Picked unit), dealing FSeal_DMG[FSeal_Index[3]] damage of attack type Spells and damage type Normal
-
-
-
-
-
Custom script: call RemoveLocation(udg_TempPoint)
-
Unit Group - Pick every unit in FSeal_FireGroupDummy[FSeal_Index[3]] and do (Actions)
-
Loop - Actions
-
Unit - Remove (Picked unit) from the game
-
-
-
Unit - Unpause FSeal_Caster[FSeal_Index[3]]
-
Unit - Order FSeal_Caster[FSeal_Index[3]] to Stop
-
Custom script: call DestroyGroup(udg_FSeal_FireGroupDummy[udg_FSeal_Index[3]])
-
Set FSeal_LoopIsOn[FSeal_Index[3]] = False
-
Set FSeal_Index[1] = (FSeal_Index[1] - 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_Index[1] Equal to 0
-
-
Then - Actions
-
Trigger - Turn off (This trigger)
-
-
Else - Actions
-
-
-
Else - Actions
-
-
-
-
-
Else - Actions
-
Unit Group - Pick every unit in FSeal_FireGroupDummy[FSeal_Index[3]] and do (Actions)
-
Loop - Actions
-
Unit - Remove (Picked unit) from the game
-
-
-
Custom script: call DestroyGroup(udg_FSeal_FireGroupDummy[udg_FSeal_Index[3]])
-
Unit - Unpause FSeal_Caster[FSeal_Index[3]]
-
Unit - Order FSeal_Caster[FSeal_Index[3]] to Stop
-
Set FSeal_LoopIsOn[FSeal_Index[3]] = False
-
Set FSeal_Index[1] = (FSeal_Index[1] - 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
FSeal_Index[1] Equal to 0
-
-
Then - Actions
-
Trigger - Turn off (This trigger)
-
-
Else - Actions
-
-
-
-
-
Else - Actions
-
-
-
-
-
Keywords:
fire, flare, seal, gui, mui, jim7777, x, mark, explosion, intelligence, damage
Contents
Reviews
- Joined
- Aug 11, 2009
- Messages
- 6,522
Post the triggers.
- Joined
- Nov 6, 2008
- Messages
- 8,316
Hey,
• The "X-mark" is created so slowly, please, increase its speed of creation. The hero practically loses a great deal of hp, if there are enemy units around, attacking him, until he fully reanimates the mark.
• Pause the caster once, in the first trigger, not periodically.
• You leak some points, FSeal_TempPoint[1] and FSeal_TempPoint[2].
• When you are adding units into a global group, unless that group is set into a variable by the Set variable action, you don't have to destroy it. Each index is individual, unless it's cleaned. Removing the units from the global group will be enough.
• The "X-mark" is created so slowly, please, increase its speed of creation. The hero practically loses a great deal of hp, if there are enemy units around, attacking him, until he fully reanimates the mark.
• Pause the caster once, in the first trigger, not periodically.
• You leak some points, FSeal_TempPoint[1] and FSeal_TempPoint[2].
• When you are adding units into a global group, unless that group is set into a variable by the Set variable action, you don't have to destroy it. Each index is individual, unless it's cleaned. Removing the units from the global group will be enough.
- Joined
- May 27, 2009
- Messages
- 495
hmm ok
about the pausing the caster periodically it bugs for me. I try doing it once in the init trigger then press esc when the fire is animating, the caster will cast it infinitely or repeatedly so I used a 0.2 wait but its periodically =) tell me if I gonna change that stuff.
Updating..
about the pausing the caster periodically it bugs for me. I try doing it once in the init trigger then press esc when the fire is animating, the caster will cast it infinitely or repeatedly so I used a 0.2 wait but its periodically =) tell me if I gonna change that stuff.
Updating..
- Joined
- Jun 6, 2010
- Messages
- 224
the effects looks kind of bad since the flames go through your hero as well O_O
also that hero doesn't fit in... you know? fit in?
also that hero doesn't fit in... you know? fit in?
- Joined
- May 27, 2009
- Messages
- 495
oh c mon its only a test map
)
btw, those things are editable via the dummy unit. I just set it too like those going through the hero so the path will be straight haha but its to your option if you want to change that by just changing the Movement type to Foot (cause I changed it to Fly)
Updated to v1.1
i did not implement this one:
)btw, those things are editable via the dummy unit. I just set it too like those going through the hero so the path will be straight haha but its to your option if you want to change that by just changing the Movement type to Foot (cause I changed it to Fly)
Updated to v1.1
i did not implement this one:
because its bugging though . Check my recent post or the trigger's documentation why I do not change that
- Joined
- Sep 5, 2015
- Messages
- 369
This ability is great tbh
I LOVE SIMPLE GUI'S!!!!!!!!!
I LOVE SIMPLE GUI'S!!!!!!!!!
