Encoder 3.0.1.2

Submitted by Nestharus
This bundle is marked as substandard. It may contain bugs, not perform optimally or otherwise be in violation of the submission rules.
Use Save/Load With Snippets as this and all save/load systems are deprecated

Encoder Framework - Advanced Quality Save/Load Made Easy

Quickstart Guide to Installing Lua Scripts (easy)

Saving and Loading Tutorial

The best save/load system ever created for Warcraft 3. No other save/load system even compares to this.

Check out the notes in the Demo map to see why this is so superior to the others.

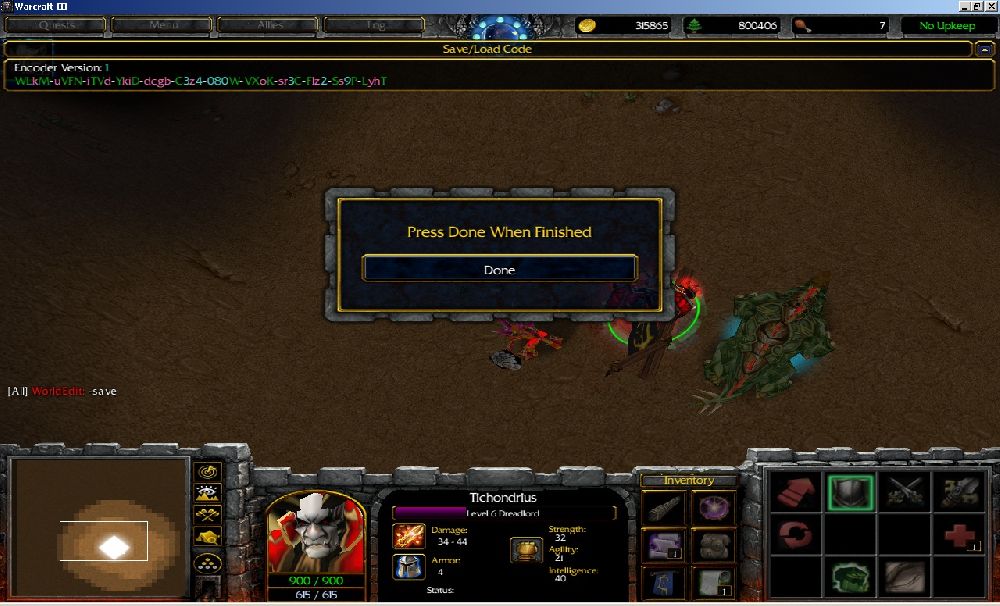

The data in the sceenshot saves-
Code (Text):

hero
    x%,y%,facing%
    lvl,xp%,str,agi,int
    item x6
        itemCharge?
    life%,mana%
    abilities x4|x5?
    pet x4
        x%,y%,facing%
        life%,mana%
lumber
gold

Statistics

min code size in demo: 21
kM6c-ypaF-UbKi-RWbb-nOqc-Z​

average code size in demo: 60
4YMX-sYnp-Uiij-15vg-YcVv-Y4vz-fiZb-A0Ks-3w38-jZJm-zW3B-eJ3L-jcb3-VV0P-QmwU​

max code size in demo: 63
JZae-DdjD-dWsQ-NKgU-sZCM-JLmt-XNmW-yMsA-eoND-aPor-qn8I-c4fO-tEjq-olO9-P3fW-eec​


Security

1 bit value changes (from demo) (a bit is the tiniest change possible, like 0 to 1)

GCq3-4nVh-qtJc-AaJe-oFdh-N4
GTH2-JP2M-Vdc0-bU77-i6P1-rW
FoD8-kFq1-EO1B-3WSh-mGGf-jK6
xTEa-gBt2-4wPQ-wMuI-7jJK-V3
YDb6-LXrR-p1Ht-DnIZ-I6Mr-zia

Security Used in demo (prevents code tampering): 148194
Security Size (how big it is in the code): 3 chars (Ddy) (not too big ^^)

Where is the security? It's scrambled into the code at many different levels. This means that every single character in the code has a bit of every single security value in it + every single other value in the code. Changing 1 character in the code changes every single digit in the code by a fractional value. It's pretty much impossible to crack.


Compression

Encoder uses rather standard compression. It simply makes one gigantic number.

If there was this collection of numbers
5,10,15​

For these ranges
[0,6), [0,11), [0,16)​

It'd just merge them together
(5*11+10)*16+15 = 1055​

And then it would convert the base
h1​

Going back
Code (Text):

    h1->1055

    1055%16=    15;     1055/16=65
    65%11=      10;     65/11=5
    5%6=        5

    5,10,15



Structure

Most save/load systems have a very simple data structure. Recall the ranges from before
[0,6), [0,11), [0,16)​

They would be stored in a simple list for older save/load systems
  • [0,6)
  • [0,11)
  • [0,16)

For Encoder, they are stored in what I call a QueueQUeue, which is a tree structure formed
by a queues of queues.

  • Head: (0,0)
    • Link: (0,0)
      • Value 1: [0,6)
    • Link: (0,0)
      • Value 2: [0,11)
    • Link: (0,0)
      • Value 3: [0,16)

Each link is a node specific to the tree and each non link is a node that may be in any
number of trees. The head represents the tree, in this case the Encoder.

Links are only entered if the value fits. For example, the head value is always going to be
nothing (0,0), so the links will always be entered. Values of nothing can fit into any link.
This is the basis that allows Encoder to serialize objects into a code rather than just
a collection of values.

Let's say that are were 200 items in a map. Items 1 through 100 have max item charges
of 0 and items 101 through 200 have max item charges of 16. Let's say that we want to
build a code that can store 6 of these items.

With a regular save/load system using a Queue, the struct would have to be this
  • Item id: [0,201)
  • Item charge: [0,17)
  • Item id: [0,201)
  • Item charge: [0,17)
  • Item id: [0,201)
  • Item charge: [0,17)
  • Item id: [0,201)
  • Item charge: [0,17)
  • Item id: [0,201)
  • Item charge: [0,17)
  • Item id: [0,201)
  • Item charge: [0,17)
That will result in a max number of:
Code (Text):

    ((((((((((200*17+16)*       1
        201+200)*17+16)*    2
        201+200)*17+16)*    3
        201+200)*17+16)*    4
        201+200)*17+16)*    5
        201+200)*17+16      6

        = 1591731726658570620368
        = uAv2c69GEgMu

A mid number of:
Code (Text):

    ((((((((((100*17+16)*       1
        201+100)*17+16)*    2
        201+100)*17+16)*    3
        201+100)*17+16)*    4
        201+100)*17+16)*    5
        201+100)*17+16      6

        = 799593572291014983768
        = fmGT2JMqrYGU

A min number of: 0

For Encoder
  • Head: (0,0)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)
    • Link (0,0)
      • Item id: [0,201)
        • Link: [101, 200]

          • Item charge: [0,17)

With that, only items fitting between 101 and 200 gets an item charge slot.

Max number: same as max for regular
Mid number:
Code (Text):

        ((((100     1
        *201+100)*  2
        201+100)*   3
        201+100)*   4
        201+100)*   5
        201+100     6

        = 32972080300600
        = 9muv6KXS

Min number: 0

Comparisons

Max 1: uAv2c69GEgMu
Max 2: uAv2c69GEgMu

Mid 1: fmGT2JMqrYGU
Mid 2: 9muv6KXS

Min 1: 0
Min 2: 0

And again, this is assuming that the save/load system in question is using the same
compression technique as Encoder. Only 1 save/load system uses the same compression
technique, and that is Pipedream's save/load at wc3c.net. The others use a horrible
one that more than doubles the code size (7 chars -> 16+ chars).

Now, keep in mind that not every slot may be used in a tree. What if there were two
types of heroes, one with 4 abilities that had max levels of 3,3,3,1 and the other
with 5 abilities that had max levels of 4,4,4,2,4 (actual wc3 data). What this would mean
is that the first style of save/load would have to save 4,4,4,2,4 and the second style
could save 3,3,3,1 or 4,4,4,2,4. In practical use, the data structures can get very
complicated, which can result in some drastic differences.

Queue method:
  • Hero id: [1,3)
  • Ability Level: [0,5)
  • Ability Level: [0,5)
  • Ability Level: [0,5)
  • Ability Level: [0,3)
  • Ability Level: [0,5)

Encoder method:
  • Head: (0,0)
    • Link: (0,0)
      • Hero id: [1,3)
        • Link: [1,1]
          • Ability Level: [0,4)
          • Ability Level: [0,4)
          • Ability Level: [0,4)
          • Ability Level: [0,2)
        • Link: [2,2]
          • Ability Level: [0,5)
          • Ability Level: [0,5)
          • Ability Level: [0,5)
          • Ability Level: [0,3)
          • Ability Level: [0,5)


Code (vJASS):

library Encoder /* v3.0.1.2
*************************************************************************************
*
*   Save/Load system
*
*************************************************************************************
*   */
uses/*
*
*       */
BigInt /*        hiveworkshop.com/forums/jass-functions-413/system-bigint-188973/
*       */
QueueQueue /*    hiveworkshop.com/forums/submissions-414/snippet-queuequeue-190890/
*
*       These two can be changed (*Advanced*)
*       */
KnuthChecksum /* hiveworkshop.com/forums/1846246-post343.html
*       */
Scrambler /*     hiveworkshop.com/forums/submissions-414/snippet-salt-189766/
*
*               Used in settings functions:
*                   private function Checksum takes BigInt k, integer m returns integer
*                   private function ApplyScramble takes BigInt k, integer pid returns nothing
*                   private function UnapplyScramble takes BigInt k, integer pid returns nothing
*
************************************************************************************
*
*   SETTINGS
*/

    private keyword b10         //base 10
    globals
    /*************************************************************************************
    *
    *   I suggest permutation of the following base for encoders
    *
    *       0123456789ABCDEFGHKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz@#$%&?
    *
    *************************************************************************************/


    /*************************************************************************************
    *
    *   VER_BASE refers to the base used with encoder.toString()
    *
    *************************************************************************************/

        private constant string VER_BASE="0123456789"

    /*************************************************************************************
    *
    *   Coloring Settings
    *
    *************************************************************************************/

        private constant string NUM_COLOR="|cff40e0d0"    //what to color numbers
        private constant string LOWER_COLOR="|cffff69b4"  //what to color lowercase characters
        private constant string UPPER_COLOR="|cff00AA00"  //what to color uppercase characters
        private constant string SPEC_COLOR="|cffffff00"   //what to color special characters
        private constant string DELIMITER_COLOR="|cffffffff"  //what to color DELIMITER characters

    /*************************************************************************************
    *
    *   Spacing Settings
    *
    *************************************************************************************/

        private constant string DELIMITER="-"                 //DELIMITER to make code easier to read
        private constant integer DELIMITER_COUNT=4            //how many characters per DELIMITER

    /*************************************************************************************
    *
    *   Encryption Settings
    *
    *************************************************************************************/

        /*************************************************************************************
        *
        *   SHUFFLES
        *
        *   How many shuffles to perform in encoder
        *
        *   Nust be greater than 0
        *
        *************************************************************************************/

        private constant integer SHUFFLES=3


        /*************************************************************************************
        *
        *   CHECKSUM_VARIANCE
        *
        *   Balanced value: .85
        *
        *   The larger the variance value, the smaller the range of active checksums. A small range
        *   means that it is more likely for two players to have the same checksums.
        *
        *   Smaller variance increases the range of active checksums, however it also increases the
        *   range of cehcksum strengths. This means that some checksums may be much weaker than others,
        *   which increases the chances for those players with weaker checksums to tamper with their
        *   code.
        *
        *   Checksum strength should be about the same for each checksum and there should be enough
        *   active checksums that it is unlikely that two players will have te same checksum.
        *
        *   .85 is a rather balanced value, but it can be increased for generally stronger checksums
        *   with smaller ranges or decreased for weaker checksums with wider ranges.
        *
        *   Ex:
        *       .85 for a checksum of 238,609,294
        *
        *       min: 202,817,899
        *       range: 35,791,395
        *
        *       1 in 35,791,395 checksums will work for a player and checksums will all be around same
        *       strength.
        *
        *       .99 for a checksum of 238,609,294
        *
        *       min: 236,223,201
        *       range: 2,386,093
        *
        *       1 in 2,386,093 checksums will work for a player and checksums will all be around same
        *       strength.
        *
        *       .01 for a checksum of 238,609,294
        *
        *       min: 2,386,092
        *       range: 236,223,202
        *
        *       1 in 236,223,202 will work for a player and checksums will have a wide range of strengths
        *       from weak to strong.
        *
        *************************************************************************************/

        private constant real CHECKSUM_VARIANCE=.85

    /*************************************************************************************
    *
    *   PLAYER_CHECKSUM_SALT
    *
    *   Player checksum salt refers to a value that is appended to a player's name when
    *   generating player hashes. A player's checksum salt helps determine the player's
    *   checksum for encoders.
    *
    *   This value can be any string
    *
    *       example: "29a\\~alf1!m~..."
    *
    *************************************************************************************/

    private constant string PLAYER_CHECKSUM_SALT=""
    endglobals

    /*************************************************************************************
    *
    *   Checksum
    *
    *       This is the Checksum used for code security (makes modifications
    *       difficult). By default, this uses the Knuth Checksum, but
    *       that can be changed.
    *
    *       BigInt k:               number to get the checksum for
    *       integer m:              dividend for modulos
    *
    *       returns:                nothing
    *
    *************************************************************************************/

    private function Checksum takes BigInt k, integer m returns integer
        return GetKnuthChecksum(k, m)
    endfunction

    /*************************************************************************************
    *
    *   ApplyScramble
    *
    *       This is essentially for scrambling the code given a player id.
    *       By default this uses my own scrambling algorithm.
    *       Because a player hash based on the player's username is used in my
    *       scrambling algorithm, this will make it so that a player can't load
    *       up the code of another player with 0 increase to the code size.
    *       This security alone is not enough to 100% guarantee the player unique
    *       codes.
    *
    *       BigInt k:               number to be scrambled
    *       integer pid:            player id to scramble for
    *
    *       returns:                nothing
    *
    *************************************************************************************/

    private function ApplyScramble takes BigInt k, integer pid returns nothing
        call Shuffle(k, pid, SHUFFLES)
    endfunction

    /*************************************************************************************
    *
    *   UnapplyScramble
    *
    *       This is used to undo the scrambling on a number. This should
    *       revert the number back to what it was before it was scrambled.
    *
    *       BigInt k:               number to be unscrambled
    *       integer pid:            player id to unscramble the number for
    *
    *       returns:                nothing
    *
    *************************************************************************************/

    private function UnapplyScramble takes BigInt k, integer pid returns nothing
        call Unshuffle(k, pid, SHUFFLES)
    endfunction
/*
*******************************************************************
*
*   struct CodeRange extends array
*
*       -   A slot that can store a value. These slots have a range of values they can store. The
*       -   range is from a low bound value to a high bound value. Slots are added to Encoder objects.
*       -   Specific ranges of slots can link to other slots (an item with 25 charges for example). Not
*       -   all slots can store values: some are purely pointers (an inventory slot for example which simply
*       -   points to 6 items).
*
*       static method create takes integer lowBound, integer highBound returns CodeRange
*           -   Creates a new CodeRange that can be added to an Encoder and linked to. CodeRange objects
*           -   can be linked to multiple times and can link to as many other CodeRange objects as needed.
*           -   If the lowBound is equal to the highBound, then the CodeRange object returned is a pointer
*           -   object that can't store values. This can be useful for things like an inventory that simply
*           -   points to 6 item slots.
*
*           -   integer lowBound                The minimum value that can be stored in the slot.
*           -   integer highBound               The maximum value that can be stored in the slot.
*       method link takes integer lowBound, integer highBound, CodeRange linkTo, integer customLinkId returns nothing
*           -   Links a CodeRange to another CodeRange. The link is only applied if the value that ends
*           -   up going into the CodeRange fits the link range. For example, if only heroes from 1 to 5 had
*           -   an inventory of 6, then the lowBound would be 1 and the highBound would be 5 for that link.
*           -   Passing in the minimal value and maximal values for a given slot does a link for all possible
*           -   values that can go into that slot.
*
*           -   integer lowBound                The minimal value that can be in the slot to go into the link
*           -   integer highBound               The maximal value that can be in the slot to go into the link
*           -   CodeRange linkTo                The slot that is to be linked to
*           -   integer customLinkId            A link id that can be used to infer current slot for save/load
*       method linka takes CodeRange linkTo returns nothing
*           -   Links all possible values to a slot. Essentially just calls link with the minimum possible
*           -   value, maximum possible value, and a custom id of 0.
*
*           -   CodeRange linkTo                The slot that is to be linked to
*
************************************************************************************
*
*   struct DataBuffer extends array
*
*       -   The DataBuffer is used for reading and writing values.
*       -   When opening an Encoder, it is loaded into the DataBuffer
*       -   and then values can be read/written. An Encoder may be
*       -   opened for decompressing a code or for compressing a
*       -   collection of numbers into a code.
*
*       readonly integer id
*           -   Returns the current custom link id (remember link and linka in CodeRange)
*           -   As slots inside of links may or may not exist (does value fit?), this is
*           -   a necessity so that a user can easily determine whether they are in a
*           -   questionable slot or not.
*           -   Can be used in read and write mode.
*       readonly string code
*           -   Returns all of the values in the DataBuffer as a save/load code.
*           -   Can only be used when the DataBuffer is finalized.
*           -   Can be used in write mode.
*
*       method write takes integer value returns nothing
*           -   Writes a value to the DataBuffer. Order of values is determined by the
*           -   loaded Encoder. For example, if a Hero, gold, and lumber slots were
*           -   added to the Encoder in that order, then the DataBuffer would expect
*           -   values fitting those ranges in that order. When all values are written,
*           -   the DataBuffer is finalized (meaning can't be written to) and the code
*           -   can be read.
*           -   Can be used in write mode.
*
*           -   integer value                   The value to write to the DataBuffer.
*       method read takes nothing returns integer
*           -   Reads a value out of the DataBuffer. Value read order is determined by
*           -   the loaded Encoder.
*           -   Can be used in read mode.
*
************************************************************************************
*
*   struct Encoder extends array
*
*       -   An Encoder is like a frame for compacting values. It is used
*       -   for storing base, checksum, player checksum, and CodeRange information.
*       -   the Encoder determines the order of values in a code for the DataBuffer
*       -   as well. DataBuffers can only be opened through an Encoder.
*
*       static method create takes string base, integer minCodeLength, integer maxCodeLength, integer maxChecksum, integer encoderVersion returns Encoder
*           -   Creates a new Encoder.
*
*           -   string base                     The collection of possible characters that the Encoder can
*           -                                   use for its save/load codes. Bigger collection means smaller
*           -                                   codes.
*           -   integer minCodeLength           Minimum length a code has to be to be loaded. Useful for blocking
*           -                                   small values like 1 or 5. Keeps load codes in bounds.
*           -   integer maxCodeLength           Maximal length a code can be to be loaded. Useful for blocking
*           -                                   off random large values. Keeps load codes in bounds.
*           -   integer maxChecksum             The maximum checksum value that can be put into the Encoder.
*           -                                   Checksums are used to validate codes (ensure they weren't
*           -                                   tampered with and that there are no typos in it). The bigger
*           -                                   the checksum value, the more secure the code is, but the longer
*           -                                   the code will be. I typically use a 6 digit number like 148292
*           -                                   or 559321.
*           -                                   Maximum checksum- 238609294
*           -
*           -   integer encoderVersion          Used for version control on encoders. toString returns this value and
*           -                                   convertString takes the toString value and converts it back into the encoder
*           -                                   toString() -> encoderVersion
*           -                                   convertString(encoderVersion)
*       method toString takes nothing returns string
*           -   Converts the Encoder into a string that represents it. This can
*           -   be outputted to players to show the Encoder version that their
*           -   code was saved for. Players can then possibly type in the Encoder
*           -   version of older codes so that older codes can be loaded.
*       static method convertString takes string encoderId returns Encoder
*           -   Converts an Encoder string into an Encoder. Used primarily for
*           -   older save/load codes (player might have inputted Encoder id
*           -   for their save/load code).
*
*           -   string encoderId                The string that represents the Encoder (toString).
*       method add takes CodeRange valueSlot returns nothing
*           -   Adds a new slot to the Encoder. Value order doesn't matter.
*
*           -   CodeRange valueSlot             The CodeRange to be added to the Encoder.
*       method read takes string codeString, integer loadingPlayerId returns DataBuffer
*           -   Opens a DataBuffer for reading and returns the opened DataBuffer. Loads
*           -   a code string into the DataBuffer. If this returns 0, the code was invalid.
*
*           -   string codeString               The code to load into the DataBuffer
*           -   integer loadingPlayerId         The player id to load the code for (must
*           -                                   be a valid human playing player).
*       method write takes integer savingPlayerId returns DataBuffer
*           -   Opens a DataBuffer for writing and returns the opened DataBuffer. If
*           -   this returns 0, the Encoder or player id were invalid.
*
*           -   integer savingPlayerId          The player id to save the code for (must
*           -                                   be a valid human playing player).
*
************************************************************************************/


/*************************************************************************************
*
*   Code
*
*************************************************************************************/

    globals
    private keyword Link
    /*************************************************************************************
    *
    *   Encoder Variables
    *
    *************************************************************************************/

        private Table array eb                      //encoder base
        private string array er                     //encoder code string
        private Table array eh                      //encoder max hash value
        private Base es                             //encoder base for code string
        private Link array el                       //last range added to encoder
        private integer array ec                    //encoder ver to encoder
        private integer array ml                    //minimum code length
        private integer array mx                    //maximum code length

    /*************************************************************************************
    *
    *   Range Variables
    *
    *************************************************************************************/

        private integer array rl                    //low bound
        private integer array rh                    //high bound
        private integer array rsh                   //shifted high bound
        private integer array rf                    //flag

        private constant integer AP=1             //always positive
        private constant integer SN=2             //sometimes negative
        private constant integer AN=3             //always negative

    /*************************************************************************************
    *
    *   Link Variables
    *
    *************************************************************************************/

        private integer array li                    //link id
        private boolean array lb                    //is link

    /*************************************************************************************
    *
    *   Player Variables
    *
    *************************************************************************************/

        private integer array ph                    //hash of player name + salt
        private integer array pn                    //next player

    /*************************************************************************************
    *
    *   Data Buffer Variables
    *
    *************************************************************************************/

        //Base
        private Base b10=0                        //use for writing
                                                    //use encoder base for reading
        private Link array dm                       //data buffer looper
        private integer dc=0                      //data buffer count
        private integer array dn                    //data buffer next, recycler
        private integer array dl                    //data buffer previous
        private integer array dv                    //data buffer value
        private Link array di                       //data buffer link node id
        private integer array dd                    //data buffer node
        private integer array dz                    //data buffer link id

        private integer array de                    //data buffer encoder
        private boolean array df                    //is data buffer finalized?
        private boolean array dw                    //data buffer open for writing?
        private integer array dp                    //data buffer player
    endglobals

    /*************************************************************************************
    *
    *   Link
    *
    *       Links values together to form dynamic objects.
    *
    *************************************************************************************/

    private struct Link extends array
        implement QueueQueue
        implement QueueQueueLoop
    endstruct

    /*************************************************************************************
    *
    *   CodeRange : Link
    *
    *       Used for manipulating value slots in Encoders and CodeRanges.
    *
    *   Methods
    *       static method create takes integer l, integer h returns CodeRange
    *       method link takes integer l, integer h, CodeRange p, integer i returns nothing
    *       method linka takes CodeRange p returns nothing
    *
    *************************************************************************************/

    struct CodeRange extends array
        /*************************************************************************************
        *
        *   create
        *       Creates a code range given a maximum value and a minimum value. Ranges are slots
        *       that can be added to encoders and other Ranges.
        *
        *       integer l:          low bound
        *       integer h:          high bound
        *
        *       returns:            CodeRange
        *
        *************************************************************************************/

        static method create takes integer l,integer h returns CodeRange
            local Link t

            if (h>l) then
                //first ensure that the high bound is greater than the low bound
                //  if the high bound is greater, then it is a valid range for
                //  storing actual values

                //instantiate
                set t=Link.allocate()
                set t.skips=false

                //store the low bound and the high bound into the properties
                set rl[t]=l       //low bound
                set rh[t]=h       //high bound

                //now have to determine how to store the value
                //the value could be negative, it could always be negative,
                //or it could always be positive
                if (0>h) then
                    /**********************************
                    *
                    *   Flag:               AN
                    *   Shifted Low Bound:  High Bound
                    *   Shifted High Bound: -Low Bound + High Bound
                    *
                    **********************************/


                    set rf[t]=AN     //flag to always negative

                    //the shifhted high bound is the low bound minus
                    //the high bound
                    set rsh[t]=-l+h+1
                elseif (0>l) then
                    /**********************************
                    *
                    *   Flag: SN
                    *   Shifted Low Bound:  low bound
                    *   Shifted High Bound: high bound - low bound
                    *
                    **********************************/


                    set rf[t]=SN     //flag to sometimes negative

                    set rsh[t]=h-l+1
                else
                    /**********************************
                    *
                    *   Flag: AP
                    *   Shifted Low Bound:  lowBound
                    *   Shifted High Bound: highBound-lowBound
                    *
                    **********************************/


                    set rf[t]=AP
                    set rsh[t]=h-l+1
                endif

                return t
            elseif (h==l) then
                //if they are equal, then it is a valid pointer range.
                //  pointer ranges are used to just point to values. They don't go into the actual code,
                //  but values they point to do.

                /**********************************
                *
                *   Flag: 0
                *
                **********************************/


                //simple instiate it as it is meant only for pointing
                return Link.allocate()
            debug else
                //if the high bound is lower than the low bound, then the range isn't valid
                //  throw an error

                debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"CODE RANGE CREATE ERROR: HIGH BOUND LOWER THAN LOW BOUND")

                debug return 0
            endif

            return 0
        endmethod

        /*************************************************************************************
        *
        *   link
        *       Links a CodeRange to another CodeRange by adding the later range to the
        *       first range by a pointer.
        *
        *       integer l:          low bound
        *       integer h:          high bound
        *       integer p:          CodeRange to add to CodeRange this
        *       integer i:          a user id for identifying the link
        *
        *       returns:            nothing
        *
        *************************************************************************************/

        method link takes integer l,integer h,CodeRange p,integer i returns nothing
            local Link t
            debug if (h>=l and h<=rh[this] and l>=rl[this]) then
                //first ensure that the high bound is greater than the low bound
                //  if the high bound is greater, then it is a valid range for
                //  storing actual values

                //instantiate via point
                set t=Link(this).point(p)
                set t.skips=false

                set rl[t]=l       //link low bound
                set rh[t]=h       //link high bound
                set li[t]=i       //link id for identification
                set lb[t]=true    //is link
            debug else
                //if the high bound is lower than the low bound, then the range isn't valid
                //  throw an error
                debug if (l>h) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"CODE RANGE CREATE ERROR: HIGH BOUND LOWER THAN LOW BOUND")
                debug endif
                //range was out of bounds
                debug if (h>rh[this] or l<rl[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"CODE RANGE CREATE ERROR: LINK RANGE OUT OF BOUNDS")
                debug endif
            debug endif
        endmethod

        /*************************************************************************************
        *
        *   linka
        *       A special link that links all values (lowBound to highBound).
        *
        *       integer p:          CodeRange to add to CodeRange this
        *
        *       returns:            nothing
        *
        *************************************************************************************/

        method linka takes CodeRange p returns nothing
            call link(rl[this],rh[this],p,0)
        endmethod
    endstruct

    /*************************************************************************************
    *
    *   DataBuffer : Queue, Link
    *
    *       Used to read/write code.
    *
    *   Properties
    *       readonly integer id
    *
    *   Methods
    *       method write takes integer value returns nothing
    *       method operator code takes nothing returns string
    *       method read takes nothing returns integer
    *       internal method open takes nothing returns nothing
    *
    *************************************************************************************/

    private keyword open
    struct DataBuffer extends array
        /*************************************************************************************
        *
        *   id
        *       Retrieves the current open id on the DataBuffer
        *
        *************************************************************************************/

        method operator id takes nothing returns integer
            return dz[this]
        endmethod

        /*************************************************************************************
        *
        *   internal open
        *       Prepares next slot in DataBuffer
        *
        *       takes:              nothing
        *
        *       returns:            nothing
        *
        *************************************************************************************/

        method open takes nothing returns nothing
            local Link n
            local Link y=0
            local Link l=0

            //retrieve the next node
            set n=dm[this].get    //node

            loop
                //if the current node is a pointer, have to determine
                //  whether to go inside of the pointer or not.
                exitwhen not lb[n]
                loop
                    //keep looping until can either go inside of link or the
                    //  node isn't a link

                    //link ranges of 0 to 0 are pointer links, all values fit into them
                    exitwhen not lb[n] or (0==rl[n] and 0==rh[n]) or 0==n

                    //if not a pointer link, then have to retrieve the parent
                    //  node's value
                    set y=dm[this].depthPointer
                    loop
                        exitwhen not lb[y.depthNode]
                        set y=y.depthPointer
                    endloop

                    //the value is stored into the depth pointer's id, check for fit
                    exitwhen (y.id>=rl[n] and y.id<=rh[n])
                    set n=dm[this].skip   //if value doesn't fit, skip link and all of its contents
                endloop

                //if the final found node was a pointer (meaning the value fit)
                //go inside of it
                if (lb[n]) then
                    //only store link for node ref if the link id isn't 0
                    if (0!=li[n]) then
                        set l=n
                    endif
                    set n=dm[this].get    //go to next node
                endif
            endloop

            //if there is no next node, finalize
            if (0==n) then
                set df[this]=true
                return
            endif

            //add new node to data buffer
            if (0==dn[0]) then
                set dc=dc+1
                set y=dc
            else
                set y=dn[0]
                set dn[0]=dn[y]
            endif
            //this buffer is a list because it will eventually have to be looped
            //over backwards. The buffer has to be read into the code backwards
            //or it will be impossible to read it out because some values exist
            //and some don't. Remember integers are written left to right but
            //read right to left.
            set dl[y]=dl[this]
            set dn[y]=this
            set dn[dl[y]]=y
            set dl[this]=y

            //set link id for current node to the node right above it, which
            //  is always going to be a link
            set di[y]=li[l]
            set dz[this]=li[l]

            //set node for size reference and shifting
            set dd[y]=n
        endmethod

        /*************************************************************************************
        *
        *   write
        *       Writes a value to the DataBuffer
        *
        *       integer value:      value to write
        *
        *       returns:            nothing
        *
        *************************************************************************************/

        method write takes integer v returns nothing
            local Link y=dl[this]
            local Link n=dd[y]

            //make sure
            //  buffer isn't finalized
            //  buffer is open for writing
            //  buffer is valid
            debug if (not df[this] and dw[this] and 0!=de[this] and v>=rl[n] and v<=rh[n]) then
                //store shifted value as current depth pointer id
                set dm[this].depthPointer.id=v

                //shift the value so that it is smaller
                if (rf[n]==AN) then
                    set v=-v+rh[n]
                else
                    set v=v-rl[n]
                endif

                //store value
                set dv[y]=v

                //prepare next slot for writing
                call open()
            debug else
                debug if (v<rl[n] or v>rh[n]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: VALUE OUT OF BOUNDS\n    "+I2S(v)+"-> "+I2S(rl[n])+" ... "+I2S(rh[n]))
                debug endif
                debug if (df[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: DATA BUFFER FINALIZED")
                debug endif
                debug if (not dw[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: DATA BUFFER NOT OPEN FOR WRITING")
                debug endif
                debug if (0==de[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: INVALID ENCODER")
                debug endif
            debug endif
        endmethod

        /*************************************************************************************
        *
        *   read
        *       Reads a value out of the DataBuffer
        *
        *       returns:            integer
        *
        *************************************************************************************/

        method read takes nothing returns integer
            local Link n
            local Link o
            //make sure
            //  buffer isn't finalized
            //  buffer is open for reading
            //  buffer is valid
            debug if (not dw[this] and 0!=de[this]) then
                //retrieve current node
                set n=dp[this]
                set o=dn[n]

                //go to next node
                set dp[this]=o
                set dz[this]=di[o]

                //if no more nodes, deallocate and close
                if (o==this) then
                    set de[this]=0

                    set dn[dl[this]]=dn[0]
                    set dn[0]=this
                endif

                return dv[n]
            debug else
                debug if (dw[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: DATA BUFFER NOT OPEN FOR READING")
                debug endif
                debug if (0==de[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: INVALID ENCODER")
                debug endif
            debug endif
            return 0
        endmethod

        /*************************************************************************************
        *
        *   code
        *       Converts all values in a finalized DataBuffer that is open for writing
        *       into a save/load code and returns that code.
        *
        *       returns:            string
        *
        *************************************************************************************/

        method operator code takes nothing returns string
            local BigInt i          //code as a number
            local integer h         //hash
            local integer n         //node
            local string s=""     //colorized code string
            local string c          //character
            local boolean l         //lowercase
            local Base b

            //make sure
            //  buffer is finalized
            //  buffer is open for writing
            //  buffer is valid
            debug if (df[this] and dw[this] and 0!=de[this]) then
                //create the code integer
                set i=BigInt.create(b10)

                //compress the values into one value
                set n=dl[this]
                loop
                    call i.multiply(rsh[dd[n]])
                    call i.add(dv[n],0)
                    set n=dl[n]
                    exitwhen n==this
                endloop

                //apply checksum
                set h=Checksum(i,eh[de[this]][dp[this]])

                //if        checksum          >          last value
                //                                          range
                if (integer(eh[de[this]][dp[this]])>rsh[dd[dl[this]]]) then
                    //add to front. Have to rebuild the entire number.
                    call i.destroy()
                    set i=BigInt.create(b10)

                    call i.add(h,0)

                    //compress the values into one value
                    set n=dl[this]
                    loop
                        call i.multiply(rsh[dd[n]])
                        call i.add(dv[n],0)
                        set n=dl[n]
                        exitwhen n==this
                    endloop
                else
                    //multiply to back
                    call i.multiply(eh[de[this]][dp[this]])
                    call i.add(h,0)
                endif

                //scramble
                call ApplyScramble(i,dp[this])

                //colorize
                set b=eb[de[this]][dp[this]]
                set i.base=b
                set h=DELIMITER_COUNT
                loop
                    set i=i.previous
                    exitwhen i.end
                    set c=b.char(i.digit)
                    if (0==h) then
                        set h=DELIMITER_COUNT
                        set s=s+DELIMITER_COLOR+DELIMITER
                    endif
                    set l=StringCase(c,false)==c
                    if (c==StringCase(c,true) and l) then
                        if ("0"==c or 0!=S2I(c)) then
                            //number
                            set s=s+NUM_COLOR+c
                        else
                            //special
                            set s=s+SPEC_COLOR+c
                        endif
                    elseif (l) then
                        //lower
                        set s=s+LOWER_COLOR+c
                    else
                        //upper
                        set s=s+UPPER_COLOR+c
                    endif
                    set h=h-1
                endloop

                //close
                call i.destroy()
                set df[this]=false
                set dw[this]=false
                set de[this]=0

                //deallocate
                set dn[dl[this]]=dn[0]
                set dn[0]=this

                return s+"|r"
            debug else
                debug if (not df[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: ATTEMPT TO READ PARTIAL BUFFER")
                debug endif
                debug if (not dw[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: DATA BUFFER NOT OPEN FOR WRITING")
                debug endif
                debug if (0==de[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"DATA BUFFER ERROR: INVALID ENCODER")
                debug endif
            debug endif
            return null
        endmethod
    endstruct

    /*************************************************************************************
    *
    *   Encoder : Link
    *
    *       Used for forming a frame for generating codes
    *
    *   Methods
    *       static method create takes string base, integer minCodeLength, integer maxCodeLength, integer maxHash, integer ev returns Encoder
    *       method toString takes nothing returns string
    *       static method convertString takes string encoderId returns Encoder
    *       method add takes CodeRange range returns nothing
    *       method read takes string s, integer p returns DataBuffer
    *       method write takes integer p returns DataBuffer
    *
    *************************************************************************************/

    struct Encoder extends array
        /*************************************************************************************
        *
        *   create
        *       Creates a new Encoder given a base (characters used in code), a minimum
        *       code length, a maximum code length, a maximum hash (unique codes),
        *       and an encoder version.
        *
        *       string b:           The haracters used
        *                           Must exist
        *       integer u:          Min code length
        *       integer x:          Max code length
        *       integer mh:         The maximum hash the Encoder can have. Bigger is more unique
        *                           and secure codes, but longer codes.
        *                           Must be > 1
        *       integer ev:         The version of the encoder object
        *
        *       returns:            Encoder
        *
        *************************************************************************************/

        static method create takes string b,integer u,integer x,integer mh,integer ev returns thistype
            local integer t=StringLength(b) //the Encoder
            local string s          //Encoder as a string
            local string c          //Encoder string character
            local integer h         //string length of Encoder as string
            local boolean l         //for colorizing (is lower case?)
            local integer i=pn[16]  //for looping through players

            //checksum values
            local integer m         //min checksum
            local integer r         //checksum range

            //base values
            local Base y        //original base
            local BigInt q      //original base int
            local BigInt q2     //new base

            //first ensure that the base and max checsum are valid
            debug if (1<t and 1<mh and x>=u) then
                //checksum values
                set m=R2I(mh*CHECKSUM_VARIANCE)                                 //min checksum
                set r=mh-m                                                      //range

                //base values
                set y=Base[SubString(b,1,2)+SubString(b,0,1)+SubString(b,2,t)]  //original base
                set q=BigInt.convertString(b,y)                                 //original base int

                //instantiate a new Encoder
                set t=Link.allocate()           //create encoder
                set eh[t]=Table.create()        //encoder checksum table (different for each player)
                set eb[t]=Table.create()        //encoder base table (different for each player)

                set ml[t]=u                     //min code length
                set mx[t]=x                     //max code length

                //generate checksums and bases for each player
                loop
                    //generate player base
                    set q2=q.copy()                     //copy original base
                    call Scramble(q2,i,3,y,true)        //scramble it
                    set eb[t][i]=Base[q2.toString()]    //give to player
                    call q2.destroy()                   //clean

                    //generate player checksum
                    //checksum=checksum-checksum/checksumRange*checksumRange+minChecksum
                    set eh[t][i]=ph[i]-ph[i]/r*r+m

                    set i=pn[i]
                    exitwhen -1==i
                endloop
                call q.destroy()            //clean original base int

                //convert the encoder version** into a string
                set ec[ev]=t
                set s=es.convertToString(ev)
                set h=StringLength(s)

                //colorize the string
                loop
                    set h=h-1
                    set c=SubString(s,h,h+1)
                    set l=StringCase(c,false)==c
                    if (c==StringCase(c,true) and l) then
                        if ("0"==c or 0!=S2I(c)) then
                            //number
                            set er[t]=er[t]+NUM_COLOR+c
                        else
                            //special
                            set er[t]=er[t]+SPEC_COLOR+c
                        endif
                    elseif (l) then
                        //lower
                        set er[t]=er[t]+LOWER_COLOR+c
                    else
                        //upper
                        set er[t]=er[t]+UPPER_COLOR+c
                    endif
                    exitwhen 0==h
                endloop

                return t
            debug else
                debug if (x<=u) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(), 0,0,60,"ENCODER ERROR: INVALID VALID CODE RANGE")
                debug endif
                debug if (1>=t) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(), 0,0,60,"ENCODER ERROR: INVALID BASE")
                debug endif
                debug if (1>=mh) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"ENCODER ERROR: INVALID MAX HASH")
                debug endif
            debug endif

            return 0
        endmethod

        /*************************************************************************************
        *
        *   toString
        *       Returns the Encoder as a colorized string in VER_BASE.
        *
        *       returns:            string
        *
        *************************************************************************************/

        method toString takes nothing returns string
            debug if (er[this] !=null) then
                return er[this]
            debug endif
            debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"ENCODER ERROR: INVALID ENCODER")
            debug return null
        endmethod

        /*************************************************************************************
        *
        *   convertSting
        *       Returns an Encoder by converting an Encoder string into an Encoder.
        *
        *       string s:           Encoder id string
        *
        *       returns:            Encoder
        *
        *************************************************************************************/

        static method convertString takes string s returns thistype
            return ec[es.convertToInteger(s)]
        endmethod

        /*************************************************************************************
        *
        *   add
        *       Adds a CodeRange to an Encoder.
        *
        *       CodeRange r:        CodeRange to be added
        *
        *       returns:            nothing
        *
        *************************************************************************************/

        method add takes CodeRange r returns nothing
            debug if (null!=er[this]) then
                call Link(this).point(r)
                set el[this]=r
            debug else
                debug if (null==er[this]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"ENCODER ERROR: INVALID ENCODER")
                debug endif
            debug endif
        endmethod

        /*************************************************************************************
        *
        *   read
        *       Attempts to read values out of a code string.
        *
        *       string s:           Code string to read values out of
        *       integer p:          Player id to read code string for
        *
        *       returns:            DataBuffer
        *                               0 means DataBuffer couldn't be openned
        *
        *************************************************************************************/

        method read takes string s,integer p returns DataBuffer
            local BigInt i          //code integer
            local integer k=StringLength(s)
            local string c          //character
            local string b=""     //filtered code string
            local DataBuffer t      //data buffer
            local integer v         //value
            local integer n         //node
            local integer array o   //original values
            local boolean f

            //first ensure that encoder is valid
            if (null!=er[this] and 0!=k) then
                //remove all DELIMITERs from code
                loop
                    set k=k-1
                    set c=SubString(s,k,k+1)
                    if (c!=DELIMITER) then
                        set b=c+b
                    endif
                    exitwhen 0==k
                endloop

                set n=StringLength(b)
                if (n<ml[this] or n>mx[this]) then
                    return 0
                endif

                //convert string into a BigInt
                set i=BigInt.convertString(b,eb[this][p])

                if (0==i) then
                    return 0
                endif

                //unscramble
                call UnapplyScramble(i,p)

                //retrieve whether the checksum is location at the
                //back or the front
                //  true: front
                //  false: back
                set f=integer(eh[this][p])>rsh[el[this]]
                if (not f) then
                    set i.base=b10
                endif

                //if the stored checksum wasn't equal to the generated checksum, the
                //  code isn't valid. This is if the checksum is in the back.
                                    //checksum stored in code                            //code's actual checksum
                if (not f and i.divide(eh[this][p])!=Checksum(i,eh[this][p])) then
                    call i.destroy()
                    return 0
                endif

                //allocate data buffer
                if (0==dn[0]) then
                    set dc=dc+1
                    set t=dc
                else
                    set t=dn[0]
                    set dn[0]=dn[t]
                endif

                set dn[t]=t
                set dl[t]=t

                //initialize data buffer
                set de[t]=this                                    //data buffer encoder
                set dm[t]=Link(this).start()                      //open the loop

                loop
                    //prepare next slot
                    call t.open()

                    //exit when there are no slots left (finalized)
                    exitwhen df[t]

                    //divide BigInt by shifted high bound of current node of current slot
                    //  this returns the value*
                    set v=i.divide(rsh[dd[dl[t]]])

                    //retrieve node
                    set n=dd[dl[t]]
                    set o[dl[t]]=v

                    //shift the value back to what it originally was
                    if (rf[n]==AN) then
                        set v=-v+rh[n]
                    else
                        set v=v+rl[n]
                    endif

                    //store value into depth pointer id
                    set dm[t].depthPointer.id=v

                    //store value
                    set dv[dl[t]]=v
                endloop

                //unset finalization flag
                set df[t]=false

                //if the checksum was in the front
                if (f) then
                    //first, retrieve the checksum
                    set v=i.toInt()

                    //rebuild the entire number
                    call i.destroy()
                    set i=i.create(b10)
                    set n=dl[t]
                    loop
                        call i.multiply(rsh[dd[n]])
                        call i.add(o[n],0)
                        set n=dl[n]
                        exitwhen n==t
                    endloop

                    //compare the checksum stored in the number to the checksum
                    //that the number actually generates
                    if (v!=Checksum(i,eh[this][p])) then
                        //if they aren't equal, code wasn't valid
                        call i.destroy()

                        set de[t]=0       //data buffer encoder=null

                        //deallocate data buffer
                        set dn[dl[t]]=dn[0]
                        set dn[0]=t

                        //return null
                        return 0
                    endif
                endif

                call i.destroy()

                //code was valid, so return DataBuffer
                set dp[t]=dn[t]       //current node
                set dz[t]=di[dn[t]]   //current link id

                return t
            endif

            return 0
        endmethod

        /*************************************************************************************
        *
        *   write
        *       Attempts to write value into a code string.
        *
        *       integer p:          Player id to write code string for
        *
        *       returns:            DataBuffer
        *                               0 means DataBuffer couldn't be openned
        *
        *************************************************************************************/

        method write takes integer p returns DataBuffer
            local integer t
            //ensure the player is valid
            debug if (0!=ph[p]) then
                //ensure the encoder is valid
                if (null!=er[this]) then
                    //allocate data buffer
                    if (0==dn[0]) then
                        set dc=dc+1
                        set t=dc
                    else
                        set t=dn[0]
                        set dn[0]=dn[t]
                    endif
                    set dn[t]=t
                    set dl[t]=t

                    //initialize the buffer
                    set dp[t]=p                                       //data buffer player
                    set de[t]=this                                    //data buffer encoder
                    set df[t]=false                                   //buffer finalized?
                    set dw[t]=true                                    //open data buffer for writing
                    set dm[t]=Link(this).start()                      //open the loop

                    //open first buffer slot
                    call DataBuffer(t).open()

                    //return the buffer
                    return t
                endif
            debug else
                debug if (0==ph[p]) then
                    debug call DisplayTimedTextToPlayer(GetLocalPlayer(),0,0,60,"ENCODER ERROR: INVALID PLAYER")
                debug endif
            debug endif

            //returning 0 means something was wrong
            return 0
        endmethod
    endstruct

    /*************************************************************************************
    *
    *   Initialization
    *
    *************************************************************************************/

    private module Init
        private static method onInit takes nothing returns nothing
            //Retrieve all human player hashes (StringHash player name)
            local integer i=11
            local player p
            set pn[16]=-1
            loop
                set p=Player(i)
                if (GetPlayerSlotState(p)==PLAYER_SLOT_STATE_PLAYING and GetPlayerController(p)==MAP_CONTROL_USER) then
                    set ph[i]=StringHash(StringCase(GetPlayerName(p)+PLAYER_CHECKSUM_SALT,false))
                    if (0>ph[i]) then
                        set ph[i]=-ph[i]
                    endif
                    set pn[i]=pn[16]
                    set pn[16]=i
                endif
                exitwhen 0==i
                set i=i-1
            endloop
            set p=null

            //initialize base 10, binary, and the global encoder base
            set b10=Base["0123456789"]
            set es=Base[VER_BASE]
        endmethod
    endmodule

    private struct Inits extends array
        implement Init
    endstruct
endlibrary



keywords

save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save load code save


Keywords:
deprecated
Contents

Encoder (Map)

Reviews
Moderator
7th Sep 2011 Bribe: Deprecated in favor of: http://www.hiveworkshop.com/forums/spells-569/save-load-snippets-v1-0-0-7-a-202714/?prev=mmr%3D6
  1. baassee

    baassee

    Joined:
    Nov 14, 2008
    Messages:
    3,220
    Resources:
    17
    Spells:
    14
    Tutorials:
    3
    Resources:
    17
    Read the info and change the values.

  2. NightElf125

    NightElf125

    Joined:
    Feb 17, 2007
    Messages:
    358
    Resources:
    1
    Maps:
    1
    Resources:
    1
    If it's too much work and too complicated to make the GUI functions Nestharus, then forget it, haha. =p I would rather your talent be used on something else that the community needs!

  3. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    Quick note in the demo map: the info on saving and loading order not mattering is wrong. It only doesn't matter with maximal values. With minimal values, you want to put the very biggest one at the end. This means that I might end up going to Encoder 2.0.2.0 to add the checksum add back/front back in and the pointer limitation on the back back in : o. I had deleted them out ;O.

    Probably make the update some time today, I'm hella tired atm ;D.

    5, 10, 15
    10, 15, 20

    1715 (front to back)
    1185 (back to front)

  4. InfernalTater

    InfernalTater

    Joined:
    Jul 12, 2008
    Messages:
    2,970
    Resources:
    36
    Models:
    32
    Icons:
    2
    Packs:
    1
    Tutorials:
    1
    Resources:
    36
    I had simply read his description of the system, which claimed it was capable of saving 4x/5x abilities, which made me wonder why an RPG save/load would save 4 pets yet only 4 abilities...

  5. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    Remember that the demo map is not the system, it is an implementation of the system. The system itself has nothing defined by default, you have to build it all. In the demo map, I built an Encoder that could save 4x/5x abilities, hence why the demo map can do it.

    If you look at the Encoders trigger, you'll see me building it. Also, you can look at the Encoder information.

    If you meant the structure portion of the thread (in the hidden tags), that was explaining the structure of an Encoder object vs and regular save/load system and one of the examples was abilities.


    Encoder Demo != Encoder System. I can't stress enough that the demo is an implementation of the system. People keep saying, why is SPACE a dash or the colors are weird or why is this like that, but that all has to do with the implementation of the system. You can implement it however you like ; ).

    Also, again, I will be releasing 2.0.2.0 some time today which will have the checksum placement at either the back or the front again based on the last value range in the Encoder object. I had taken it out like a fool for 2.0.1.0, rofl ;P. Now I have to add it back in /sad face. It works, still entirely bugless. I'm proud to say that every Encoder version has been 100% bug free, it's all just been feature changes =).

  6. Adiktuz

    Adiktuz

    Joined:
    Oct 16, 2008
    Messages:
    9,674
    Resources:
    23
    Models:
    2
    Packs:
    1
    Maps:
    1
    Spells:
    16
    Tutorials:
    1
    JASS:
    2
    Resources:
    23
    Really nice system...

    pretty tedious to work with but the result is certainly awesome... ^_^

  7. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    Updated to Encoder v2.0.2.0

    Changes-
    Added the dynamic checksum placement back in for minimal codes (was dumb to take it out in the first place)

    Added more documentation to the demo map with a step by step tutorial on how to build an Encoder object =D. Learn about Catalogs before learning about Encoders o-o.

    edit
    updated demo map to have latest UnitStatePercent.

    edit
    Updated demo map to have latest Catalog system. Catalog had a bit of a bug in it with retrieving raw ascii values with catalogs added to catalogs.

    Last edited: Apr 5, 2011
  8. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    So here's a question... has anyone managed to make their own implementation of Encoder yet? I've only been hearing grief at how difficult this is to use and have heard 0 success stories so far.


    For those of you that did or that are trying, did the massive tutorial I wrote help any? I've really been trying to write as much documentation for this as possible to make it as easy to understand as possible.


    If you guys have any questions on how to do something with this, start up a thread on it in World Editor Help Zone. Be sure that you probably aren't the only one with that question :p.

  9. Adiktuz

    Adiktuz

    Joined:
    Oct 16, 2008
    Messages:
    9,674
    Resources:
    23
    Models:
    2
    Packs:
    1
    Maps:
    1
    Spells:
    16
    Tutorials:
    1
    JASS:
    2
    Resources:
    23
    I've been reading it, but haven't tried creating one yet as I have no use for it right now... but I might try in the near future for a future plan...

  10. Black_meoonG

    Black_meoonG

    Joined:
    Sep 1, 2010
    Messages:
    51
    Resources:
    0
    Resources:
    0
    do this work well with Full Screen Inventory.??
    because i have an FSI system that can hold 50+ or 100+ items (maybe^^)..
    and can this system save equiped items at FSI system??
    thank you

  11. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    It can save anything you want it to save so long as that saved value fits in the range of 2^-31 to 2^31

    You should probably check the Demo Map before you ask questions like this ;D. If you look at the Encoder portion of the demo map, you'll see that I built my own little save/load code using the system. You can build your own too ^)^.

  12. Black_meoonG

    Black_meoonG

    Joined:
    Sep 1, 2010
    Messages:
    51
    Resources:
    0
    Resources:
    0
    one more thing..about your system..
    does it's all in 1.??
    like it save everything in 1 save code..(location,equiped items,inventory,spell,pet, etc..)

    and not like?
    Hero code : xxxx-xxxx-xxxx-xxxx-xxxx.....
    Inventory code : xxxx-xxxx-xxxx-xxxx-xxxx.....
    Bank code : xxxx-xxxx-xxxx-xxxx-xxxx.....

  13. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    You can make it do w/e you like. I'll say this again, it's best to just take a look at the demo map. If you want multiple codes, you can do multiple codes. If you don't, you can have it all in one code... I wrote tons of docs and it's not cool to ask questions that are answered in those docs because I really did take a lot of time to write them to answer these questions that you are asking me right now.

    There is even a huge tutorial (virtually a mini book) on how save/load works and how to build catalogs and so on.

    I know it's faster to just ask me questions directly, but you have to understand that when 1000 people ask the exact same question, it can get annoying, especially when the answers to their questions are in the tuts.

    I know I may seem a little unfriendly right now, but you have to understand just how long it took me to write those docs and just how much effort I put into them =).

  14. Adiktuz

    Adiktuz

    Joined:
    Oct 16, 2008
    Messages:
    9,674
    Resources:
    23
    Models:
    2
    Packs:
    1
    Maps:
    1
    Spells:
    16
    Tutorials:
    1
    JASS:
    2
    Resources:
    23
    if you look at the picture, you'll see that its all in one code...

  15. Black_meoonG

    Black_meoonG

    Joined:
    Sep 1, 2010
    Messages:
    51
    Resources:
    0
    Resources:
    0
    That's all i need to know(for now)..

    Thanks for your reply Adiktuz..

    Anyway..great system Nestharus..

    It's reeeaaally helping me..Thanks for your advice

  16. baassee

    baassee

    Joined:
    Nov 14, 2008
    Messages:
    3,220
    Resources:
    17
    Spells:
    14
    Tutorials:
    3
    Resources:
    17
    The info also tells you how to build your own based on the Encoder system.

    I'll probably build one some day in the near future.

  17. thekebecer

    thekebecer

    Joined:
    Jul 22, 2009
    Messages:
    215
    Resources:
    0
    Resources:
    0
    I read a part of the documentation, I'm literally stunned by how well you explain everything. I will probably try to implant Encoder in my project, once I've finish reading documentation and finish some important part of my map. It's look hard to implant but it's look very useful.

  18. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    You'd be surprised. Even with that documentation, a lot of people still have no clue how to implement it into their map, or even how to cnp it into their map. For a lot of people, the documentation is still sorely lacking ;\, but I don't know what I can add... it's possible that the system is just too complicated for a lot of folks.


    Also, the current scramble obsfucation is actually pretty weak ;p, but I doubt anyone will ever code another type of scrambling besides me... I'll eventually get to it so that it really shuffles the code well.

    The scrambling is still the current best, but it sucks, =p.

  19. Nestharus

    Nestharus

    Joined:
    Jul 10, 2007
    Messages:
    6,146
    Resources:
    8
    Spells:
    3
    Tutorials:
    4
    JASS:
    1
    Resources:
    8
    Added a new parameter to Encoder.create for version control : )

    Code (vJASS):

    *           -   integer encoderVersion          Used for version control on encoders. toString returns this value and
    *           -                                   convertString takes the toString value and converts it back into the encoder
    *           -                                   toString() -> encoderVersion
    *           -                                   convertString(encoderVersion)



    edit
    2.0.2.2 fixes a bug Oo

    Don't worry, the bug had to do with more advanced features. I doubt anyone ran into it ; ).

    edit
    I'm like the save/load mastah now >: D. I know like all of the best structures for saving anything, teeheehee... worked on a really hardcore save/load code that blows the demo map away o-o.

    Last edited: Apr 30, 2011
  20. Marcos DAB

    Marcos DAB

    Joined:
    Mar 26, 2011
    Messages:
    1,041
    Resources:
    218
    Models:
    1
    Icons:
    214
    Spells:
    2
    Tutorials:
    1
    Resources:
    218
    Very very useful for RPG projects.
