Approved

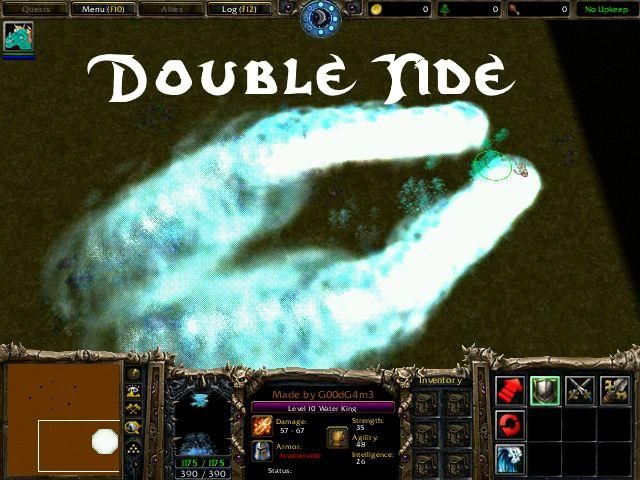

Double Tide Cast
Events
Unit - A unit Starts the effect of an ability
Conditions
(Ability being cast) Equal to Double Tide
Actions
-------- Stores Caster into Variable --------
Set Caster = (Triggering unit)
-------- Finds the Locations of the Caster --------
Set Points[1] = (Position of Caster)
-------- Finds an available target point, which would be not out side the map --------
Set Points[2] = (Target point of ability being cast)
-------- Stores the Range between Caster's location and target point --------
-------- Note 1: You will move to the position of last created item to avoid the pathing problem --------
Set Real[1] = (Distance between Points[1] and Points[2])
-------- Saves the range of the arcing wave into variable --------
-------- Note 2: It will be used in Slide trigger, boosting or increasing it to make an Arcing wave --------
Set Real[2] = 100.00
-------- Saves the Angle in which generally waves will move --------
Set Real[3] = (Angle from Points[1] to Points[2])
-------- Stores Damage to deal with waves --------
Set Real[4] = (100.00 + (50.00 x (Real((Level of Double Tide for Caster)))))
-------- 'Hides' the Caster to make an illiusion it has splitted --------
Animation - Change Caster's vertex coloring to (0.00%, 0.00%, 0.00%) with 100.00% transparency
Animation - Change Caster's size to (1.00%, 1.00%, 1.00%) of its original size
-------- Turns collision off for Caster --------
Unit - Turn collision for Caster Off
-------- Stores the range to slide --------
Hashtable - Save Real[1] as 0 of (Key (Triggering unit)) in Hashtable
-------- Stores the Arcing range --------
Hashtable - Save Real[2] as 1 of (Key (Triggering unit)) in Hashtable
-------- Stores the Angle to slide to --------
Hashtable - Save Real[3] as 2 of (Key (Triggering unit)) in Hashtable
-------- Stores damage to deal --------
Hashtable - Save Real[4] as 3 of (Key (Triggering unit)) in Hashtable
-------- Stores the range at which waves would start going towards each other --------
Hashtable - Save (Real[1] / 2.00) as 4 of (Key (Triggering unit)) in Hashtable
-------- Note 3: Notice that all the information was attached to the Caster --------
-------- Checks if there is any instance of spell already in effect --------
-------- If not, turns the sliding trigger on --------
If ((Casters is empty) Equal to True) then do (Trigger - Turn on Double Tide Slide <gen>) else do (Do nothing)
-------- Adds the Caster into the Casters' group --------
Unit Group - Add Caster to Casters
-------- Clears the leaks --------
Custom script: call RemoveLocation(udg_Points[1])
Custom script: call RemoveLocation(udg_Points[2])
Double Tide Slide
Events
Time - Every 0.04 seconds of game time
Conditions
Actions
Unit Group - Pick every unit in Casters and do (Actions)
Loop - Actions
-------- Stores the Caster into a variable --------
Set Caster = (Picked unit)
-------- Loads the range to slide and reduces it by Speed --------
-------- Note 1: this reducement number has to be equal with the one in the setting Points[4] in the If/then/else part --------
Set Real[1] = (Load 0 of (Key (Picked unit)) from Hashtable)
Set Real[1] = (Real[1] - 56.00)
-------- Loads the range of turning-point --------
Set Real[2] = (Load 4 of (Key (Picked unit)) from Hashtable)
-------- Loads the range at which the SFX will be played --------
Set Real[3] = (Load 1 of (Key (Picked unit)) from Hashtable)
-------- If range-to-slide left is greater than the one of the turning-point, then increases the the Arcing range --------
-------- Else reduces it by equal amount --------
If (Real[1] Greater than or equal to Real[2]) then do (Set Real[3] = (Real[3] + 16.00)) else do (Set Real[3] = (Real[3] - 16.00))
-------- Loads the angle to slide to --------
Set Real[4] = (Load 2 of (Key (Picked unit)) from Hashtable)
-------- Loads the damage to deal if waves collide any enemy --------
Set Real[5] = (Load 3 of (Key (Picked unit)) from Hashtable)
-------- Finds the location of the Caster --------
Set Points[1] = (Position of Caster)
-------- Counts up the locations at which the SFX will be played and which will be the center of enemies checking --------
Set Points[2] = (Points[1] offset by Real[3] towards (Real[4] - 90.00) degrees)
Set Points[3] = (Points[1] offset by Real[3] towards (Real[4] + 90.00) degrees)
-------- Prepares the Integer variable for first wave --------
Set Integer = 2
For each (Integer A) from 1 to 2, do (Actions)
Loop - Actions
-------- Plays the SFX and instantly destroys it --------
Special Effect - Create a special effect at Points[Integer] using Objects\Spawnmodels\Naga\NagaDeath\NagaDeath.mdl
Special Effect - Destroy (Last created special effect)
-------- Finds all enemies which would be 'colliding' the wave (of Points[Integer]) --------
-------- Note 2: it enumerates all enemy ground units, which are not structures, nor mechanicals, neither magic immune, which are alive and visible to the caster --------
-------- Note 3: Doesn't enumerate ones who already have the Slow buff --------
Set Enemies = (Units within 100.00 of Points[Integer] matching (((((Matching unit) is A structure) Not equal to True) and (((Matching unit) has buff Double Tide ) Not equal to True)) and ((((Matching unit) is Mechanical) Not equal to True) and ((((Matching unit) is Magic I
-------- Does the slowing and damaging --------
Unit Group - Pick every unit in Enemies and do (Actions)
Loop - Actions
Unit - Create 1 Dummy Unit for (Owner of Caster) at Points[2] facing Default building facing degrees
Unit - Add a 2.00 second Generic expiration timer to (Last created unit)
Unit - Add Dummy Slow to (Last created unit)
Unit - Order (Last created unit) to Human Sorceress - Slow (Picked unit)
Unit - Cause Caster to damage (Picked unit), dealing Real[5] damage of attack type Spells and damage type Normal
Special Effect - Create a special effect attached to the chest of (Picked unit) using Abilities\Spells\Other\CrushingWave\CrushingWaveDamage.mdl
Special Effect - Destroy (Last created special effect)
-------- Destroys the Enemies' group --------
Custom script: call DestroyGroup(udg_Enemies)
-------- Increases the Integer for Next wave --------
Set Integer = (Integer + 1)
-------- The If/Then/Else part --------
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
If - Conditions
Real[1] Greater than or equal to 0.00
Then - Actions
-------- If the range-to-slide is not 0 or less, then... --------
-------- Finds the Location to which the Caster will be moved --------
Set Points[4] = (Points[1] offset by 56.00 towards Real[4] degrees)
-------- Moves Caster into Points[4], if that point is walkable --------
If ((Terrain pathing at Points[4] of type Walkability is off) Equal to True) then do (Unit - Move Caster instantly to Points[1]) else do (Unit - Move Caster instantly to Points[4])
-------- Updates the range-to-slide left and the Arcing range --------
Hashtable - Save Real[1] as 0 of (Key (Picked unit)) in Hashtable
Hashtable - Save Real[3] as 1 of (Key (Picked unit)) in Hashtable
-------- Clears the leak of last created point --------
Custom script: call RemoveLocation(udg_Points[4])
Else - Actions
-------- Clears the Hashtable --------
Hashtable - Clear all child hashtables of child (Key (Picked unit)) in Hashtable
-------- 'Unhides' the Caster --------
Animation - Change Caster's vertex coloring to (100.00%, 100.00%, 100.00%) with 0.00% transparency
Animation - Change Caster's size to (100.00%, 100.00%, 100.00%) of its original size
-------- Turns collision on for Caster --------
Unit - Turn collision for Caster On
-------- Removes the Caster from the Casters' group --------
Unit Group - Remove (Picked unit) from Casters
-------- Clears the leaks --------
Custom script: call RemoveLocation(udg_Points[1])
Custom script: call RemoveLocation(udg_Points[2])
Custom script: call RemoveLocation(udg_Points[3])
-------- Checks if there is any instance of spell in effect after loop --------
-------- If not, turns this trigger of --------
If ((Casters is empty) Equal to True) then do (Trigger - Turn off (This trigger)) else do (Do nothing)
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
'IF'-Bedingungen
(Casters is empty) Gleich True
(Terrain pathing at Points[2] of type Begehbarkeit is off) Gleich True
'THEN'-Aktionen
Auslöser - Turn on Double Tide Slide <gen>
'ELSE'-Aktionen
It moves like <>, not like /\ ; try targeting ground further than near
