Dialog Bank Storage

Author(s): HellvsHeaven

Tags: System, GUI / Triggers

Size: 32.61 KB

Rating: (0 ratings)

Downloads: 323

Created: Dec 19, 2012

Updated: Dec 29, 2012

Resources: 1

State: Approved

This bundle is marked as recommended. It works and satisfies the submission rules.

View usage Statistics Legacy download

Originally, ap0calypse, made this system for me, so all credits to him. I decided to upload the system because I thought It would be useful to users. Anyway, here are the triggers.

Bank System Setup
- Events
  - Map initialization
- Conditions
- Actions
  - -------- === Setup System === --------
  - -------- There can only be a maximum of 672 stored items for each player --------
  - -------- (which is 84 pages with 8 items/page or 96 pages with 7 items/page) --------
  - Set bankItemsPerPage = 6
  - Set bankPageAmount = 6
  - -------- Item colors (will overwrite default item colors) --------
  - Set bankColor1 = |c00ff8800
  - -------- "Next Page" color --------
  - Set bankColor2 = |c00666fff
  - -------- "Cancel" color --------
  - Set bankColor3 = |c00aa0000
  - -------- === Add Events === --------
  - For each (Integer bankLoop) from 1 to 12, do (Actions)
    - Loop - Actions
      - Custom script: set udg_bankDialog[udg_bankLoop] = DialogCreate()
      - Trigger - Add to Dialog Buttons <gen> the event (Dialog - A dialog button is clicked for bankDialog[bankLoop])
      - Trigger - Add to Esc Pressed <gen> the event (Player - (Player(bankLoop)) skips a cinematic sequence)

Setup Dialogs
- Events
- Conditions
- Actions
  - Dialog - Clear bankDialog[bankPlayerId]
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - bankInt1 Equal to 0
    - Then - Actions
      - -------- === Main Dialog === --------
      - Dialog - Change the title of bankDialog[bankPlayerId] to ((Name of (Player(bankPlayerId))) + 's Bank)
      - Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor1 + Withdraw Items)
      - Set bankDialogButton[(8099 + bankPlayerId)] = (Last created dialog Button)
      - Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor1 + Deposit Items)
      - Set bankDialogButton[(8111 + bankPlayerId)] = (Last created dialog Button)
      - Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor3 + Cancel)
      - Set bankDialogButton[(8087 + bankPlayerId)] = (Last created dialog Button)
    - Else - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankInt1 Equal to 1

        Then - Actions

        -------- === Withdraw Dialog === --------

        -------- Dialog --------

        Dialog - Change the title of bankDialog[bankPlayerId] to ((Name of (Player(bankPlayerId))) + ('s Bank (Page + ((String((bankPlayerCurrentPage[bankPlayerId] + 1))) + ))))

        Set bankInt3 = 0

        For each (Integer bankLoop) from (bankPlayerCurrentPage[bankPlayerId] x bankItemsPerPage) to (((bankPlayerCurrentPage[bankPlayerId] + 1) x bankItemsPerPage) - 1), do (Actions)

        Loop - Actions

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerItems[bankPlayerId] Greater than bankLoop

        Then - Actions

        Set bankInt2 = ((672 x (bankPlayerId - 1)) + ((bankPlayerCurrentPage[bankPlayerId] x bankItemsPerPage) + bankInt3))

        Set bankInt3 = (bankInt3 + 1)

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (((String(bankInt3)) + . ) + (bankColor1 + bankItemName[bankInt2]))

        Set bankDialogButton[bankInt2] = (Last created dialog Button)

        Else - Actions

        Set bankLoop = 700

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerPages[bankPlayerId] Greater than 1

        Then - Actions

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor2 + > Next Page >)

        Set bankDialogButton[(8063 + bankPlayerId)] = (Last created dialog Button)

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor2 + < Previous Page <)

        Set bankDialogButton[(8075 + bankPlayerId)] = (Last created dialog Button)

        Else - Actions

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor3 + Cancel)

        Set bankDialogButton[(8087 + bankPlayerId)] = (Last created dialog Button)

        Else - Actions

        -------- === Deposit Dialog === --------

        Set bankIsDepositing[bankPlayerId] = True

        Dialog - Change the title of bankDialog[bankPlayerId] to ((Name of (Player(bankPlayerId))) + 's Inventory)

        Set bankInt3 = 0

        For each (Integer bankLoop) from 1 to 6, do (Actions)

        Loop - Actions

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Item carried by bankHero[bankPlayerId] in slot bankLoop) Not equal to No item

        Then - Actions

        Set bankInt2 = (((bankPlayerId - 1) x 12) + bankLoop)

        Set bankInt3 = (bankInt3 + 1)

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (((String(bankInt3)) + . ) + (bankColor1 + (Name of (Item carried by bankHero[bankPlayerId] in slot bankLoop))))

        Set bankDialogButton[bankInt2] = (Last created dialog Button)

        Else - Actions

        Dialog - Create a dialog button for bankDialog[bankPlayerId] labelled (bankColor3 + Cancel)

        Set bankDialogButton[(8087 + bankPlayerId)] = (Last created dialog Button)
  - Dialog - Show bankDialog[bankPlayerId] for (Player(bankPlayerId))

Dialog Buttons
- Events
- Conditions
- Actions
  - Set bankPlayerId = (Player number of (Triggering player))
  - -------- === Next Page === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Clicked dialog button) Equal to bankDialogButton[(8063 + bankPlayerId)]
    - Then - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerCurrentPage[bankPlayerId] Equal to (bankPlayerPages[bankPlayerId] - 1)

        Then - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = 0

        Else - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = (bankPlayerCurrentPage[bankPlayerId] + 1)
      - Set bankInt1 = 1
      - Trigger - Run Setup Dialogs <gen> (checking conditions)
      - Skip remaining actions
    - Else - Actions
  - -------- === Previous Page === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Clicked dialog button) Equal to bankDialogButton[(8075 + bankPlayerId)]
    - Then - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerCurrentPage[bankPlayerId] Equal to 0

        Then - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = (bankPlayerPages[bankPlayerId] - 1)

        Else - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = (bankPlayerCurrentPage[bankPlayerId] - 1)
      - Set bankInt1 = 1
      - Trigger - Run Setup Dialogs <gen> (checking conditions)
      - Skip remaining actions
    - Else - Actions
  - -------- === Cancel === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Clicked dialog button) Equal to bankDialogButton[(8087 + bankPlayerId)]
    - Then - Actions
      - Dialog - Hide bankDialog[bankPlayerId] for (Triggering player)
      - Set bankIsDepositing[bankPlayerId] = False
      - Set bankLoop = 13
      - Skip remaining actions
    - Else - Actions
  - -------- === Withdraw Items-menu === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Clicked dialog button) Equal to bankDialogButton[(8099 + bankPlayerId)]
    - Then - Actions
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankRememberPage[bankPlayerId] Equal to False

        Then - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = 0

        Else - Actions

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerCurrentPage[bankPlayerId] Greater than or equal to bankPlayerPages[bankPlayerId]

        Then - Actions

        Set bankPlayerCurrentPage[bankPlayerId] = (bankPlayerCurrentPage[bankPlayerId] - 1)

        Else - Actions
      - Set bankInt1 = 1
      - Trigger - Run Setup Dialogs <gen> (checking conditions)
      - Skip remaining actions
    - Else - Actions
  - -------- === Deposit Items-menu === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - (Clicked dialog button) Equal to bankDialogButton[(8111 + bankPlayerId)]
    - Then - Actions
      - Set bankInt1 = 2
      - Trigger - Run Setup Dialogs <gen> (checking conditions)
      - Skip remaining actions
    - Else - Actions
  - -------- === Withdraw Items === --------
  - If (All Conditions are True) then do (Then Actions) else do (Else Actions)
    - If - Conditions
      - bankIsDepositing[bankPlayerId] Equal to False
    - Then - Actions
      - For each (Integer bankLoop) from 0 to (bankItemsPerPage - 1), do (Actions)

        Loop - Actions

        Set bankInt2 = (((bankPlayerId - 1) x 672) + ((bankPlayerCurrentPage[bankPlayerId] x bankItemsPerPage) + bankLoop))

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Clicked dialog button) Equal to bankDialogButton[bankInt2]

        Then - Actions

        Item - Show bankStoredItem[bankInt2]

        Hero - Give bankStoredItem[bankInt2] to bankHero[bankPlayerId]

        Set bankPlayerItems[bankPlayerId] = (bankPlayerItems[bankPlayerId] - 1)

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerItems[bankPlayerId] Equal to (bankItemsPerPage x (bankPlayerPages[bankPlayerId] - 1))

        Then - Actions

        Set bankPlayerPages[bankPlayerId] = (bankPlayerPages[bankPlayerId] - 1)

        Else - Actions

        Set bankLoop = 20

        Else - Actions
      - -------- Recycle --------
      - For each (Integer bankLoop) from bankInt2 to (bankInt2 + bankPlayerItems[bankPlayerId]), do (Actions)

        Loop - Actions

        Set bankStoredItem[bankLoop] = bankStoredItem[(bankLoop + 1)]

        Set bankItemName[bankLoop] = bankItemName[(bankLoop + 1)]

        Set bankItemCharges[bankLoop] = bankItemCharges[(bankLoop + 1)]
      - Skip remaining actions
    - Else - Actions
  - -------- === Deposit Items === --------
  - For each (Integer bankLoop) from 1 to 6, do (Actions)
    - Loop - Actions
      - Set bankIsDepositing[bankPlayerId] = False
      - Set bankInt2 = (((bankPlayerId - 1) x 672) + bankPlayerItems[bankPlayerId])
      - Set bankInt3 = (((bankPlayerId - 1) x 12) + bankLoop)
      - If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        (Clicked dialog button) Equal to bankDialogButton[bankInt3]

        Then - Actions

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        Or - Any (Conditions) are true

        Conditions

        bankPlayerItems[bankPlayerId] Equal to 672

        bankPlayerItems[bankPlayerId] Equal to (bankItemsPerPage x bankPageAmount)

        Then - Actions

        Game - Display to (All players) the text: |c00ffcc00Error:|r ...

        Skip remaining actions

        Else - Actions

        Set bankPlayerItems[bankPlayerId] = (bankPlayerItems[bankPlayerId] + 1)

        Set bankStoredItem[bankInt2] = (Item carried by bankHero[bankPlayerId] in slot bankLoop)

        Set bankItemName[bankInt2] = (Name of (Item carried by bankHero[bankPlayerId] in slot bankLoop))

        Set bankItemCharges[bankInt2] = (Charges remaining in (Item carried by bankHero[bankPlayerId] in slot bankLoop))

        Hero - Drop the item from slot bankLoop of bankHero[bankPlayerId]

        Item - Hide bankStoredItem[bankInt2]

        If (All Conditions are True) then do (Then Actions) else do (Else Actions)

        If - Conditions

        bankPlayerItems[bankPlayerId] Equal to ((bankItemsPerPage x bankPlayerPages[bankPlayerId]) + 1)

        Then - Actions

        Set bankPlayerPages[bankPlayerId] = (bankPlayerPages[bankPlayerId] + 1)

        Else - Actions

        Set bankLoop = 6

        Else - Actions

Esc Pressed
- Events
- Conditions
- Actions
  - Set bankInt1 = 0
  - Set bankPlayerId = (Player number of (Triggering player))
  - Trigger - Run Setup Dialogs <gen> (checking conditions)

First, gather some items into the standard inventory of your predefined unit. Second, press Esc and when a dialog box opens, choose Deposit. Deposit opens a second dialog, where dialog buttons for every item that your predefined unit carries are shown. Lastly, click any of the dialog buttons, except Cancel, to store an item.

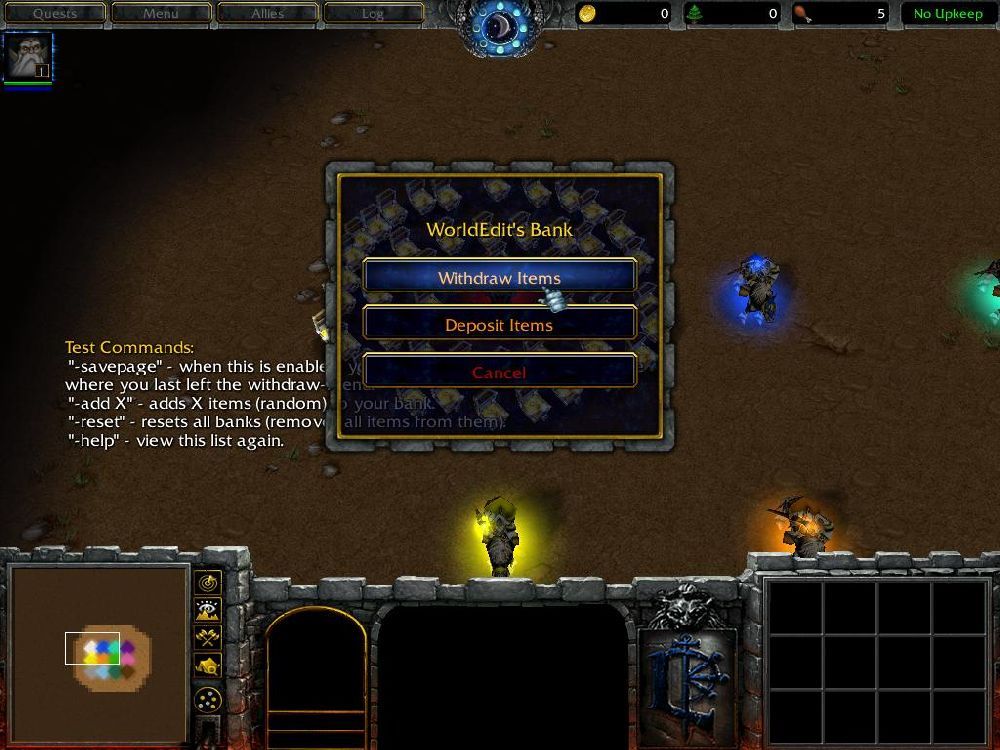

In order to view your stored items or get them back, click Withdraw instead after you press Esc. Then do the same as if you pressed Deposit.

The system no longer destroys or recreates items to work. Instead, it hides items to store and shows the items again to retrieve.

Bug Fixing
1. Fixed item charge glitch

Added New Features:
1. Access to Withdraw and Deposit dialogs via commands for faster access
2. Saves item cooldown

Contents

Dialog Bank Storage (Map)

Author: ap0calypse

Filename: Dialog Bank Storage.w3x

Suggested players: 1

Players: 12

Required game: Warcraft 3

Recommended version: 1.19 - 1.21b

Dimensions: 52x52 (64x64)

Size: 32.61 KB

Uploaded: Dec 19, 2012

Updated: Dec 29, 2012

Map Info View Resources In Use Preview Triggers Download

Reviews

A nice system that could be useful. The system could offer an alternative metod of using it. Bank System Setup leaks one dialog. The system could detect which players are present and create dialogs and register events only for them.

Read full review...

Moderator

M

Moderator

Dec 19, 2012

#2

Reviewed by Maker, Dialog Bank Storage, 29th Dec 2012

A nice system that could be useful.

The system could offer an alternative metod of using it.
Bank System Setup leaks one dialog.
The system could detect which players are present and create
dialogs and register events only for them.

doomhammer99

doomhammer99

Level 11

Dec 19, 2012

#3

The codes are cool.
But you really need to Prove that this works.
(Documentation)
Improve the Description.

Last edited: Dec 20, 2012

HellvsHeaven

HellvsHeaven

Level 3

Dec 19, 2012

#4

So...you want more documentation? To prove the system works, users could test the system in game or I could explain or upload a video.

Last edited: Dec 19, 2012

doomhammer99

doomhammer99

Level 11

Dec 20, 2012

#5

Just explain it please

aaron

aaron

Level 14

Dec 31, 2012

#6

a bank system? Magnificent for MMO/rpg maps.

userid907

userid907

Level 10

Mar 3, 2015

#7

thanks for creating this system bro!!! it is very useful for my map!!!

You must log in or register to reply here.

Similar threads

Locked

Replies: 8

Views: 1K

Locked

Replies: 2

Views: 936

Locked

[Trigger] Bank System!

Replies: 7

Views: 1K

Locked

Replies: 12

Views: 6K

Locked

Bank loading issues

Replies: 0

Views: 643

Share:

Reddit Pinterest Tumblr WhatsApp Email Link

This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
By continuing to use this site, you are consenting to our use of cookies.

Accept Learn more…
