Currently creating a Particle System that is master-slave based.

haven't added the main struct, but works :D

JASS:
library ParticleSystem uses Particle Vector ZLibrary MapBounds
    globals
        private constant real TIMEOUT = 0.03125
    endglobals

    struct ParticleData
        string MODEL = ""

        real PERIOD = TIMEOUT

        real LIFE_SPAN = 0.0
        real LIFE_SPAN_VARIANCE = 0.0

        real START_SIZE = 1.0
        real START_SIZE_VARIANCE = 0.0
        real END_SIZE = 1.0
        real END_SIZE_VARIANCE = 0.0

        real START_ANGLE = 0.0
        real START_ANGLE_VARIANCE = 0.0
        boolean LOCK_ANGLE = false

        real START_Z_ANGLE = 0.0
        real START_Z_ANGLE_VARIANCE = 0.0
        boolean LOCK_Z_ANGLE = false

        real START_DISTANCE = 0.0
        real START_DISTANCE_VARIANCE = 0.0
        real END_DISTANCE = 0.0
        real END_DISTANCE_VARIANCE = 0.0

        real SPEED = 0.0
        real SPEED_VARIANCE = 0.0

        real ACCEL = 0.0
        real ACCEL_VARIANCE = 0.0

        real GRAVITY_ACCEL = 0.0
        real GRAVITY_ANGLE = 0.0
        real GRAVITY_Z_ANGLE = 0.0

        integer START_ALPHA = 255
        integer START_RED = 255
        integer START_GREEN = 255
        integer START_BLUE = 255

        integer START_ALPHA_VARIANCE = 0
        integer START_RED_VARIANCE = 0
        integer START_GREEN_VARIANCE = 0
        integer START_BLUE_VARIANCE = 0

        integer END_ALPHA = 255
        integer END_RED = 255
        integer END_GREEN = 255
        integer END_BLUE = 255

        integer END_ALPHA_VARIANCE = 0
        integer END_RED_VARIANCE = 0
        integer END_GREEN_VARIANCE = 0
        integer END_BLUE_VARIANCE = 0
    endstruct

    private function GetVariance takes real base, real variance returns real
        if variance == 0.0 then
            return base
        endif
        return GetRandomReal(base - variance, base + variance)
    endfunction

    private function GetVariance2 takes integer base, integer variance returns integer
        if variance == 0 then
            return base
        endif
        return GetRandomInt(base - variance, base + variance)
    endfunction

    private function GetAngle3D takes vector v returns real
        local real l2d = SquareRoot(v.x*v.x + v.y*v.y)
        return Atan2(v.z, l2d)
    endfunction

    private function GetVector takes real dist, real angle, real angleZ returns vector
        local real z = dist*Sin(angleZ*bj_DEGTORAD)
        local real sz = dist*Cos(angleZ*bj_DEGTORAD)
        local real x = Cos(angle*bj_DEGTORAD)*sz
        local real y = Sin(angle*bj_DEGTORAD)*sz
        return vector.create(x, y, z)
    endfunction

    struct Particles extends Particle
        private Particle particle
        private vector velocity
        private vector gravity

        private real speed
        private real accel

        private real lifeSpan

        private integer addA
        private integer addR
        private integer addG
        private integer addB
        private real addS

        private real dist

        private boolean anglock
        private boolean zanglock

        private static constant timer t = CreateTimer()
        private static thistype array n
        private static thistype array p

        private method destroy takes nothing returns nothing
            set n[p[this]] = n[this]
            set p[n[this]] = p[this]
            call Particle(this).destroy()

            call velocity.destroy()
            call gravity.destroy()
        endmethod

        private static method period takes nothing returns nothing
            local thistype this = n[0]
            local real tz
            loop
                exitwhen 0 == this
                if lifeSpan > 0 then
                    set lifeSpan = lifeSpan - TIMEOUT
                    if dist > 0 then
                        set dist = dist - speed
                        set x = GetBoundedX(x + velocity.x)
                        set y = GetBoundedY(y + velocity.y)
                        set tz = GetSurfaceZ(x, y)
                        set z = (tz + z + velocity.z) - tz

                        if not anglock then
                            set facing = Atan2(velocity.y, velocity.x)*bj_RADTODEG
                        endif
                        if not zanglock then
                            set pitch = GetAngle3D(velocity)
                        endif
                        set speed = speed + accel
                        call velocity.add(gravity)
                        call velocity.setLength(speed)
                    endif

                    call setColor(alpha + addA, red + addR, green + addG, blue + addB)

                    set scale = scale + addS
                else
                    call destroy()
                endif
                set this = n[this]
            endloop
        endmethod

        static method create takes real tx, real ty, real tz, ParticleData pd returns thistype
            local thistype this
            local real    newLifeSpan    = GetVariance( pd.LIFE_SPAN     , pd.LIFE_SPAN_VARIANCE     )
            local real    newStartSize   = GetVariance( pd.START_SIZE    , pd.START_SIZE_VARIANCE    )
            local real    newEndSize     = GetVariance( pd.END_SIZE      , pd.END_SIZE_VARIANCE      )
            local real    newStartAngle  = GetVariance( pd.START_ANGLE   , pd.START_ANGLE_VARIANCE   )
            local real    newStartZAngle = GetVariance( pd.START_Z_ANGLE , pd.START_Z_ANGLE_VARIANCE )
            local real    newStartDist   = GetVariance( pd.START_DISTANCE, pd.START_DISTANCE_VARIANCE)
            local real    newEndDist     = GetVariance( pd.END_DISTANCE  , pd.END_DISTANCE_VARIANCE  )
            local integer newStartAlpha  = GetVariance2(pd.START_ALPHA   , pd.START_ALPHA_VARIANCE   )
            local integer newStartRed    = GetVariance2(pd.START_RED     , pd.START_RED_VARIANCE     )
            local integer newStartGreen  = GetVariance2(pd.START_GREEN   , pd.START_GREEN_VARIANCE   )
            local integer newStartBlue   = GetVariance2(pd.START_BLUE    , pd.START_BLUE_VARIANCE    )

            local vector v = GetVector(newStartDist, newStartAngle, newStartZAngle)

            set this = Particle.create(pd.MODEL, v.x + tx, v.y + ty, v.z + tz - GetSurfaceZ(v.x + tx, v.y + ty), newStartAngle)

            if pd.LOCK_Z_ANGLE then
                set this.pitch = 0
            else
                set this.pitch = newStartZAngle
            endif
            set anglock = pd.LOCK_ANGLE
            set zanglock = pd.LOCK_Z_ANGLE

            call this.setColor(newStartAlpha, newStartRed, newStartGreen, newStartBlue)

            set this.scale = newStartSize

            set addA = R2I((I2R(GetVariance2(pd.END_ALPHA, pd.END_ALPHA_VARIANCE) - newStartAlpha)*TIMEOUT)/newLifeSpan)
            set addR = R2I((I2R(GetVariance2(pd.END_RED, pd.END_RED_VARIANCE    ) - newStartRed  )*TIMEOUT)/newLifeSpan)
            set addG = R2I((I2R(GetVariance2(pd.END_GREEN, pd.END_GREEN_VARIANCE) - newStartGreen)*TIMEOUT)/newLifeSpan)
            set addB = R2I((I2R(GetVariance2(pd.END_BLUE, pd.END_BLUE_VARIANCE  ) - newStartBlue)*TIMEOUT)/newLifeSpan)
            set addS = ((newEndSize - newStartSize)*TIMEOUT)/newLifeSpan
            set speed = GetVariance(pd.SPEED, pd.SPEED_VARIANCE)*TIMEOUT
            set velocity = GetVector(speed, newStartAngle, newStartZAngle)
            set accel = GetVariance(pd.ACCEL, pd.ACCEL_VARIANCE)*TIMEOUT

            set dist = newEndDist - newStartDist

            set gravity = GetVector(pd.GRAVITY_ACCEL*TIMEOUT,pd.GRAVITY_ANGLE, pd.GRAVITY_Z_ANGLE)

            set lifeSpan = newLifeSpan
            set n[this] = 0
            set p[this] = p[0]
            set n[p[0]] = this
            set p[0] = this

            if p[this] == 0 then
                call TimerStart(t, TIMEOUT, true, function thistype.period)
            endif
            return this
        endmethod
    endstruct


    struct ParticleEmitter
        private timer t
        private real x
        private real y
        private real z
        private real life
        private ParticleData pd

        method destroy takes nothing returns nothing
            call ReleaseTimer(t)

            set x = 0
            set y = 0
            set z = 0
            set life = 0
            set pd = 0
        endmethod

        private static method expire takes nothing returns nothing
            local timer tmp = GetExpiredTimer()
            local thistype this = GetTimerData(tmp)
            if life > 0 then
                call Particles.create(x, y, z, pd)
                set life = life - pd.PERIOD
            else
                call destroy()
            endif
        endmethod

        static method create takes ParticleData p, real tx, real ty, real tz, real duration returns thistype
            local thistype this = allocate()
            set t = NewTimerEx(this)
            set x = tx
            set y = ty
            set z = tz
            set life = duration
            set pd = p
            call TimerStart(t, pd.PERIOD, true, function thistype.expire)
            return this
        endmethod

        method move takes real tx, real ty, real tz returns nothing
            set x = tx
            set y = ty
            set z = tz
        endmethod
    endstruct
endlibrary

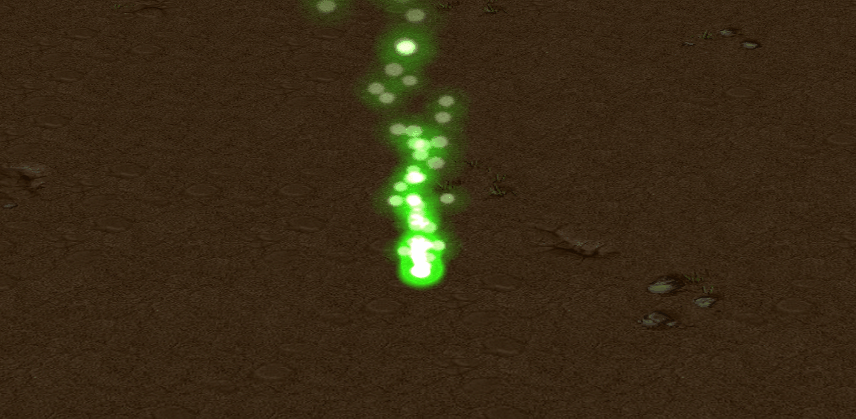

Examples:

JASS:
struct Tester extends array
    private static ParticleData pdata
    private static integer counts = 30
    private static timer t = CreateTimer()
    private static method pd takes nothing returns nothing
        local Particles p = Particles.create(0, 0, 200, pdata)
    endmethod
    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        set pdata.MODEL =  "Abilities\Spells\Other\Parasite\ParasiteMissile.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 10
        set pdata.ACCEL = 9.6
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 9.6
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 90
        set pdata.START_ALPHA = 255
        set pdata.END_ALPHA = 0
        call SetCameraPosition(0, 0)
        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct

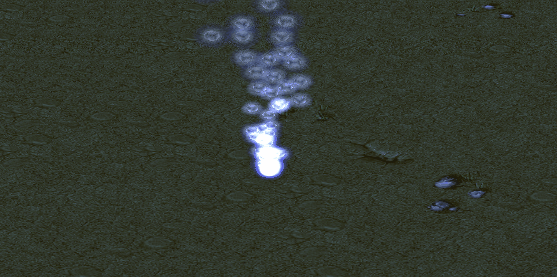

JASS:
struct Tester extends array
    private static ParticleData pdata
    private static integer counts = 30
    private static timer t = CreateTimer()
    private static method pd takes nothing returns nothing
        local Particles p = Particles.create(0, 0, 200, pdata)
    endmethod
    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        set pdata.MODEL = "Abilities\\Spells\\Undead\\Possession\\PossessionTarget.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 10
        set pdata.ACCEL = 9.6
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 4.8
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 270
        set pdata.START_ALPHA = 255
        set pdata.END_ALPHA = 0
        call SetCameraPosition(0, 0)
        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct

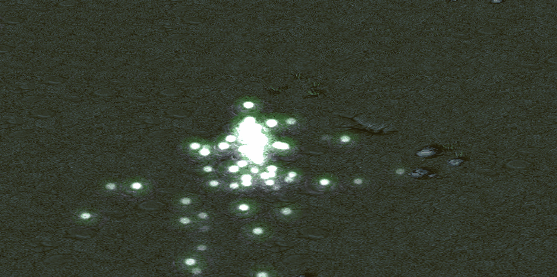

JASS:
struct Tester extends array
    private static ParticleData pdata
    private static integer counts = 30
    private static timer t = CreateTimer()
    private static method pd takes nothing returns nothing
        local Particles p = Particles.create(0, 0, 200, pdata)
    endmethod
    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        set pdata.MODEL = "Abilities\\Weapons\\BloodElfMissile\\BloodElfMissile.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 5
        set pdata.ACCEL = 9.6
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 4.8
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 270
        set pdata.START_ALPHA = 255
        set pdata.END_ALPHA = 0
        call SetCameraPosition(0, 0)
        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct

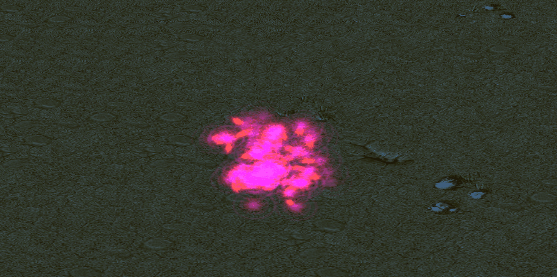

JASS:
struct Tester extends array
    private static ParticleData pdata
    private static integer counts = 30
    private static timer t = CreateTimer()
    private static method pd takes nothing returns nothing
        local Particles p = Particles.create(0, 0, 200, pdata)
    endmethod
    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        set pdata.MODEL = "Abilities\\Weapons\\WitchDoctorMissile\\WitchDoctorMissile.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 100
        set pdata.ACCEL = 0
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 9.6
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 90
        set pdata.START_ALPHA = 255
        set pdata.END_ALPHA = 0
        set pdata.START_GREEN = 0
        set pdata.END_GREEN = 0
        call SetCameraPosition(0, 0)
        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct



JASS:
struct Tester extends array
    private static ParticleData pdata
    private static integer counts = 30
    private static timer t = CreateTimer()
    private static method pd takes nothing returns nothing
        local Particles p = Particles.create(0, 0, 200, pdata)
    endmethod
    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        set pdata.MODEL = "Abilities\\Spells\\Human\\ManaFlare\\ManaFlareTarget.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 10
        set pdata.ACCEL = 9.6
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 9.6
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 90
        set pdata.START_ALPHA = 255
        set pdata.END_ALPHA = 0
        call SetCameraPosition(0, 0)
        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct

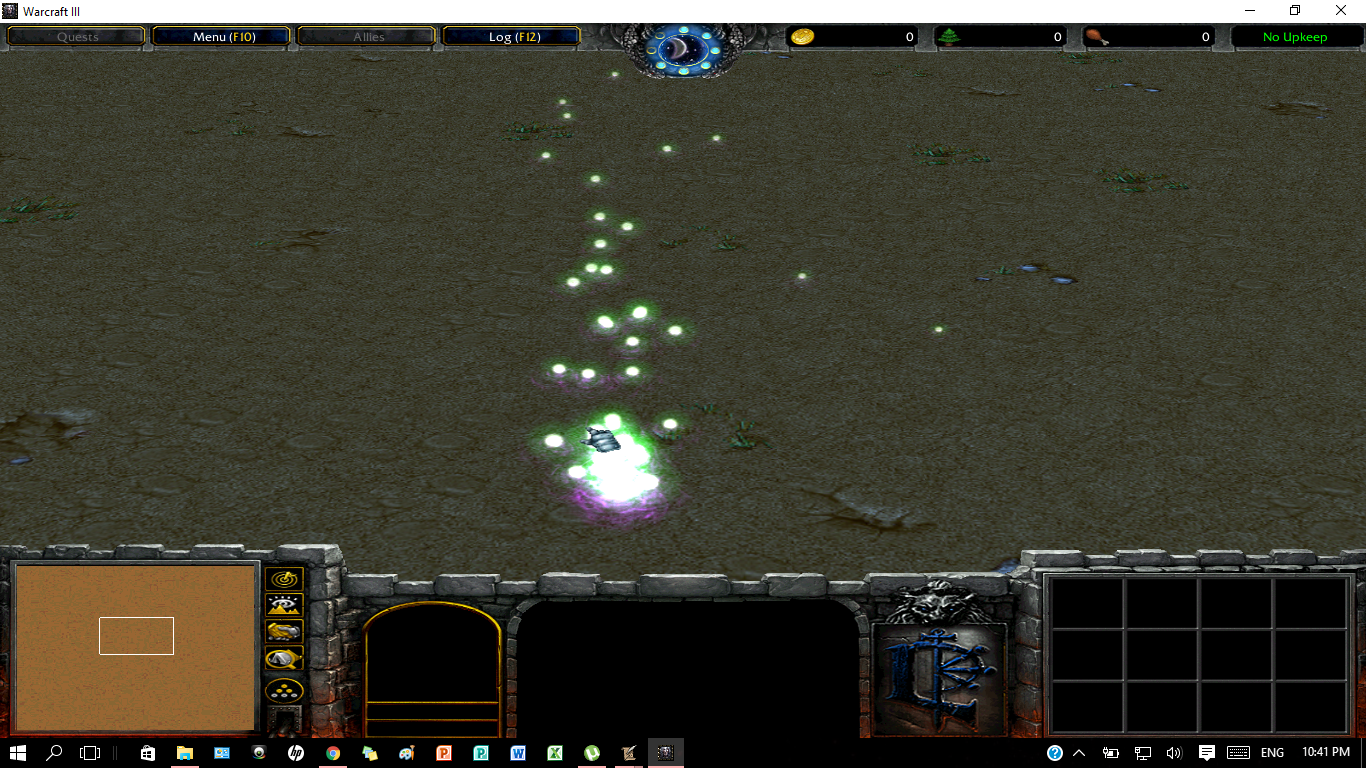

TestMap

Last edited:

Almia

Almia

Almia

Level 33
Joined
Apr 24, 2012
Messages
5,113
Updated.
Added ParticleEmitter struct with lifespan :D

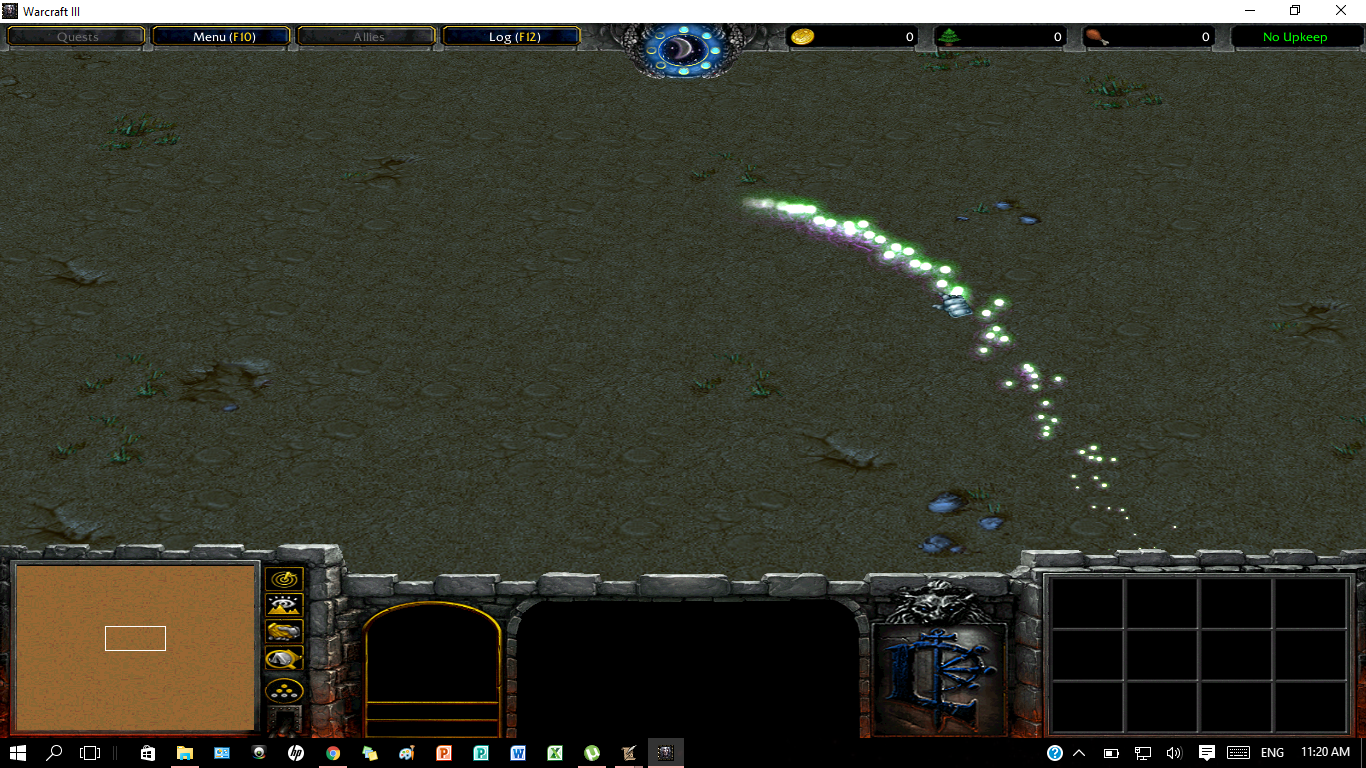

Here is some pixie dust:
JASS:
struct Tester extends array
    private static ParticleData pdata
    private static timer t = CreateTimer()

    private static real dist = 512
    private static real angle = 0
    private static real aspeed = (bj_PI/4)*0.03125
    private static ParticleEmitter rotate
    private static method pd takes nothing returns nothing
        set angle = angle + aspeed
        call rotate.move(dist*Cos(angle), dist*Sin(angle), 250)
    endmethod

    private static method onInit takes nothing returns nothing
        call FogEnable(false)
        call FogMaskEnable(false)
        set pdata = ParticleData.create()
        //set pdata.PERIOD = 0.1
        set pdata.MODEL = "Abilities\\Spells\\Undead\\Possession\\PossessionTarget.mdl"
        set pdata.LIFE_SPAN = 2.0
        set pdata.SPEED = 10
        set pdata.ACCEL = 9.6
        set pdata.START_DISTANCE = 0
        set pdata.END_DISTANCE = 100000
        set pdata.START_Z_ANGLE = 90
        set pdata.START_Z_ANGLE_VARIANCE = 180
        set pdata.START_ANGLE = 90
        set pdata.START_ANGLE_VARIANCE = 180
        set pdata.GRAVITY_ACCEL = 9.6
        set pdata.GRAVITY_ANGLE = 0
        set pdata.GRAVITY_Z_ANGLE = 270

        set pdata.START_SIZE = 1.0
        set pdata.END_SIZE =0.0
        call SetCameraPosition(0, 0)

        //call ParticleEmitter.create(pdata, 0, 0, 250, 10)
        //call ParticleEmitter.create(pdata, 256, 0, 250, 10)
        set rotate = ParticleEmitter.create(pdata, -256, 0, 250, 20)

        call TimerStart(t, 0.03125, true, function thistype.pd)
    endmethod
endstruct

attachment.php


Attachments

  • huehue.png
    1.6 MB · Views: 160

Almia

Almia

Almia

Level 33
Joined
Apr 24, 2012
Messages
5,113
Spellbound said:
Fancy. Is each particle a unit?
Click to expand...
Yes.



Frotty said:
I did something like this some time ago - and while it's neat, it doesn't really serve much purpose. For any effect like this, that is purely visual (no collision or acting forces) you would simply create it as a model to save/gain 99% performance.
looks sweet nonetheless.
Click to expand...

I agree to your point, creating the model saves a lot, but modders like me who doesn't know how to create models, we tend to use such things like this :D

Thanks for the feedbacks :D


Spellbound

Spellbound

Spellbound

Level 31
Joined
Jan 9, 2005
Messages
2,118
Almia said:
I agree to your point, creating the model saves a lot, but modders like me who doesn't know how to create models, we tend to use such things like this :D
Click to expand...

This is the logic behind my first mod. Nothing but a ton of dummy units and an excessive amount of trial and error until I got the dummy in the right position at the right height. I don't recommended this practice :p

Status
Not open for further replies.

Similar threads

IcemanBo
  • Locked
List Unit Abilities
Replies
27
Views
3K
Bribe
Bribe
JC Helas
  • Locked
CUSTOM POLAR PROJECTION
Replies
1
Views
783
Dr Super Good
Dr Super Good
Almia
  • Locked
[WIP]DummyCaster
Replies
10
Views
966
Almia
Almia
Almia
  • Locked
[System] Cooldown
Replies
20
Views
3K
pred1980
pred1980
Kazeon
  • Locked
UI Utils (one-stop solution for UI business)
Replies
48
Views
10K
Kazeon
Kazeon
Top
