So I created my own bar system (it's more like a casting bar or timed bar).
This creates a bar over an unit and runs out in a time, selected by the user (also the user has some other options to select.)
Of course it's MUI
Requires:
JNGP
Main Script:
NewBarSystem:
here an example usage:

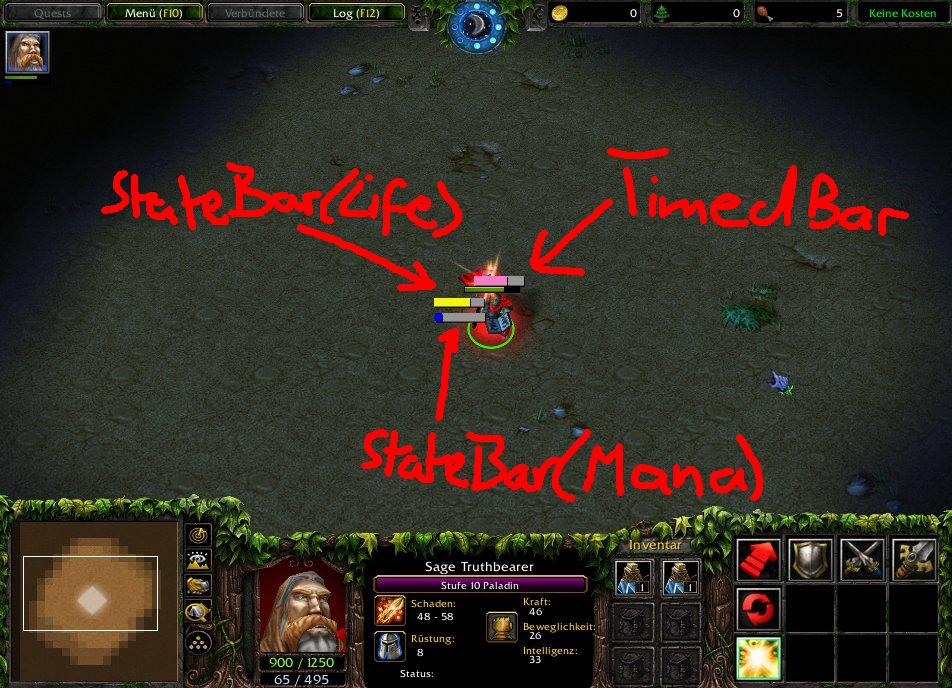

For the TimedBar:
For the StateBar:
if the last part is true the bar will update from right to left, else from left to right
credits to Hanky for Interface System
please give credits to me and hanky if you use this one
Test Map Attatched
And also give commands pls
version 1.1
version 1.2
version 1.3
This creates a bar over an unit and runs out in a time, selected by the user (also the user has some other options to select.)
Of course it's MUI
Requires:
JNGP
Main Script:
JASS:
//! textmacro CostumInterface takes Loop,End,path,periodic
library CostumInterface$path$ initializer init
interface $path$Loop
boolean active=false
boolean paused=false
method $Loop$ takes nothing returns nothing
method $End$ takes nothing returns nothing
endinterface
globals
private $path$Loop array $path$_loopObject
private integer $path$_size=0
private trigger $path$_loop
constant real $path$_periodic=$periodic$
endglobals
function AddObjectTo$path$ takes $path$Loop loopObject returns integer
set $path$_loopObject[$path$_size]=loopObject
set $path$_loopObject[$path$_size].active=true
set $path$_size=$path$_size+1
if not IsTriggerEnabled($path$_loop) then
call EnableTrigger($path$_loop)
endif
return $path$_size
endfunction
private function Loop$path$ takes nothing returns nothing
local integer index=0
loop
exitwhen index==$path$_size
if $path$_loopObject[index].active and not $path$_loopObject[index].paused then
call $path$_loopObject[index].$Loop$.execute()
set index=index+1
elseif $path$_loopObject[index].paused then
set index=index+1
else
call $path$_loopObject[index].$End$()
set $path$_size=$path$_size-1
set $path$_loopObject[index]=$path$_loopObject[$path$_size]
endif
endloop
if $path$_size<=0 then
call DisableTrigger($path$_loop)
endif
endfunction
private function init takes nothing returns nothing
set $path$_loop=CreateTrigger()
call TriggerRegisterTimerEvent($path$_loop,$path$_periodic,true)
call TriggerAddAction($path$_loop,function Loop$path$)
call DisableTrigger($path$_loop)
endfunction
endlibrary
//! endtextmacro
//! runtextmacro CostumInterface("update","endupdate","Update","0.03")NewBarSystem:
JASS:
//===========================================================================
//===========================================================================
//===========================New=Bar=System=v1.3=============================
//===========================================================================
//==============================By xD.Schurke================================
//===========================================================================
//===========================================================================
library NewBarSystem
globals
private constant string ONE_BAR = "|" //For Bar Update (The style of the bar, also can use other chars, but would look ugly)
private constant integer LOOP_NUMBER = 101 //for loop reasons ;)
private constant integer STANDARD_LENGTH = 1 //standard: how many new single bars in a bar are added
private constant integer BAR_LENGTH = 100 //the bar length
//the following three integers are for color reasons. The color of the background bar (grey)
private constant integer BACKGROUND_BAR_RED = 150
private constant integer BACKGROUND_BAR_GREEN = 150
private constant integer BACKGROUND_BAR_BLUE = 150
private constant real OFFSET = 150. //the offset of the texttags
private constant real STATE_LIFE_OFFSET = 80. //the offset of the State_Life_Texttag
private constant real STATE_MANA_OFFSET = 30. //the offset of the State_Mana_Texttag
private constant real BAR_SIZE = 0.023 //the size of the texttags
private constant real STATE_BAR_SIZE = 0.020 //DO NOT CHANGE
private constant real RBSIZE = 7//Change for barsize (Bigger then 7 will make the bars look ugly)
private constant real REAL_SIZE = (RBSIZE * BAR_SIZE / 10)//DO NOT CHANGE
private constant real REAL_SIZE_STATE = (RBSIZE * STATE_BAR_SIZE / 10)//DO NOT CHANGE
private constant real X_CORRECTION = -30. //for the bar position: change if you want the bar to be slide along the x-axis
private constant real Y_CORRECTION = 0. //change if you want the bar to be slide along the y-axis
private constant real STATE_X_CORRECTION = -100. //for the bar position: change if you want the bar to be slide along the x-axis
private constant real STATE_Y_CORRECTION = 0. //change if you want the bar to be slide along the y-axis
private constant real CORRECTION = 0.01 //for correction reasons in method update (the bar should update each 0.03 seconds, but there are numbers which are not a divisor of 0.03 so i have to correct those by 0.01)
private constant real TIME = 3. //the standard time. the system functions in another way if the user explicide time is over 3 seconds
private constant real TIME_UPDATE = .03 //the method update is called each 0.03 seconds (Always has to be TIME/100) if you change go into Main Script and change this line: //! runtextmacro CostumInterface("update","endupdate","Update","NEW TIME"), where NEW TIME is written, you have to enter the new number which has to be TIME/100
//The following part is only for the call of the StateBar.create()
constant integer BAR_UNIT_STATE_LIFE = 0
constant integer BAR_UNIT_STATE_MANA = 1
endglobals
//====================DO NOT CHANGE THE FOLLOWING PART===============================
//the following two functions are another little system (credits to WaterKnight) it rounds a number, needed if the user enters a decimal number as the time)
private function RoundTo_GetDifference takes real dividend, real divisor returns real
return RAbsBJ( dividend - R2I( dividend / divisor ) * divisor )
endfunction
private function RoundTo takes real base, real interval returns real
local real difference1
local real difference2
if ( interval == 0 ) then
return 0.
endif
set difference1 = RoundTo_GetDifference( base, interval )
set difference2 = RAbsBJ( interval ) - difference1
if ( difference2 < difference1 ) then
return ( base + RSignBJ( interval ) * difference2 )
endif
return ( base - RSignBJ( interval ) * difference1 )
endfunction
struct TimedBar extends UpdateLoop
unit tar //the target where the bar should appear
texttag te = CreateTextTag() //background texttag
texttag tt = CreateTextTag() //the counting texttag
string tttext = "" //the text of tt
real time = 0 //only important if the time selected by the user is bigger then TIME
real timeup = 0 // also only important if the time selected by the user is bigger then TIME
integer barup //only important if the time selected by the user is less then TIME
boolean b = false //is for checking if the bar should update from left to right, or downgrade from right to left (true = downgrade)
boolean a = false //true if the time selected by the player is bigger then TIME
integer barlength = 0 //barlength if b == true then 0 else 100
method update takes nothing returns nothing
local integer i = 0
local integer int = 1
local boolean b = false
call SetTextTagPos(.te,GetUnitX(.tar)+X_CORRECTION,GetUnitY(.tar)+Y_CORRECTION,OFFSET)
call SetTextTagPos(.tt,GetUnitX(.tar)+X_CORRECTION,GetUnitY(.tar)+Y_CORRECTION,OFFSET)
if .a then
set .timeup = .timeup + TIME_UPDATE
loop
exitwhen b == true or int >= LOOP_NUMBER
if .timeup == .time * int or .timeup == (.time * int) + CORRECTION or .timeup == (.time * int) - CORRECTION then
if .b then
set .tttext = SubString(.tttext,0,StringLength(.tttext)- STANDARD_LENGTH)
call SetTextTagText(.tt,.tttext,REAL_SIZE)
if StringLength(.tttext) <= .barlength or GetUnitState(.tar,UNIT_STATE_LIFE) <= 0 then
set .active = false
endif
set b = true
else
set .tttext = .tttext + ONE_BAR
call SetTextTagText(.tt,.tttext,REAL_SIZE)
if StringLength(.tttext) >= .barlength or GetUnitState(.tar,UNIT_STATE_LIFE) <= 0 then
set .active = false
endif
set b = true
endif
endif
set int = int + 1
endloop
set int = 0
else
if .b then
set .tttext = SubString(.tttext,0,StringLength(.tttext)-.barup)
call SetTextTagText(.tt,.tttext,REAL_SIZE)
if StringLength(.tttext) <= .barlength+1 or GetUnitState(.tar,UNIT_STATE_LIFE) <= 0 then
set .active = false
endif
else
loop
exitwhen i >= .barup
set .tttext = .tttext + ONE_BAR
set i = i + 1
endloop
call SetTextTagText(.tt,.tttext,REAL_SIZE)
if StringLength(.tttext) >= .barlength or GetUnitState(.tar,UNIT_STATE_LIFE) <= 0 then
set .active = false
endif
endif
endif
endmethod
method endupdate takes nothing returns nothing
call DestroyTextTag(.te)
call DestroyTextTag(.tt)
set .te = null
set .tt = null
set .tar = null
call .destroy()
endmethod
static method create takes unit u, real t,integer red, integer green, integer blue, boolean b returns TimedBar
local TimedBar Dat = TimedBar.allocate()
local string text = ""
local integer i = 0
if t > TIME then
set Dat.time = RoundTo(t/BAR_LENGTH,TIME_UPDATE)
set Dat.a = true
else
set Dat.barup = R2I(((TIME_UPDATE*BAR_LENGTH)/t)+.5)
endif
set Dat.barlength = BAR_LENGTH
loop
exitwhen i >= BAR_LENGTH
set text = text + ONE_BAR
set i = i + 1
endloop
set i = 0
if b then
set Dat.b = true
set Dat.barlength = 0
loop
exitwhen i >= BAR_LENGTH
set Dat.tttext = Dat.tttext + ONE_BAR
set i = i + 1
endloop
endif
set Dat.tar = u
call SetTextTagText(Dat.te,text, REAL_SIZE)
call SetTextTagPos(Dat.te, GetUnitX(u)+X_CORRECTION, GetUnitY(u)+Y_CORRECTION, OFFSET)
call SetTextTagColor(Dat.te, BACKGROUND_BAR_RED, BACKGROUND_BAR_GREEN, BACKGROUND_BAR_BLUE, 255)
call SetTextTagVisibility(Dat.te, true)
call SetTextTagPermanent(Dat.te, true)
call SetTextTagText(Dat.tt,Dat.tttext, REAL_SIZE)
call SetTextTagPos(Dat.tt, GetUnitX(u)+X_CORRECTION, GetUnitY(u)+Y_CORRECTION, OFFSET)
call SetTextTagColor(Dat.tt, red, green, blue, 255)
call SetTextTagVisibility(Dat.tt, true)
call SetTextTagPermanent(Dat.tt, true)
call AddObjectToUpdate(Dat)
return Dat
endmethod
endstruct
struct StateBar extends UpdateLoop
unit tar
texttag te = CreateTextTag()
texttag tt = CreateTextTag()
string tttext = ""
real maxstate = 0
real stateper = 0
integer curper = 0
boolean statebol = false
integer state = 0
integer maxstateint = 0
integer red = 0
integer green = 0
integer blue = 0
method update takes nothing returns nothing
local integer i = 0
local integer per = 0
local integer dif = 0
local boolean b = false
local real offset
set .maxstate = GetUnitState(.tar,ConvertUnitState(.maxstateint))
set .stateper = .maxstate/100
set per = R2I(GetUnitState(.tar,ConvertUnitState(.state))/.stateper+.5)
if .statebol then
set offset = STATE_MANA_OFFSET
else
set offset = STATE_LIFE_OFFSET
endif
call SetTextTagPos(.te,GetUnitX(.tar)+STATE_X_CORRECTION,GetUnitY(.tar)+STATE_Y_CORRECTION,offset)
call SetTextTagPos(.tt,GetUnitX(.tar)+STATE_X_CORRECTION,GetUnitY(.tar)+STATE_Y_CORRECTION,offset)
if per > .curper then
set dif = per-.curper
set b = true
elseif per < .curper then
set dif = .curper - per
elseif per == .curper then
set dif = 0
endif
if b then
loop
exitwhen i >= dif
set .tttext = .tttext + ONE_BAR
set i = i + 1
endloop
else
loop
exitwhen i >= dif
set .tttext = SubString(.tttext,0,StringLength(.tttext)-STANDARD_LENGTH)
set i = i + 1
endloop
endif
call SetTextTagText(.tt,.tttext, REAL_SIZE_STATE)
if .statebol != true then
if per >= 81 then
set .green = 255
set .red = 0
set .blue = 0
elseif per <=80 and per >= 51 then
set .green = 249
set .red = 242
set .blue = 0
elseif per <= 50 and per >= 21 then
set .green = 128
set .red = 255
set .blue = 0
elseif per <= 20 and per >= 0 then
set .green = 0
set .red = 255
set .blue = 0
endif
endif
call SetTextTagColor(.tt,.red,.green,.blue, 255)
if GetUnitState(.tar,UNIT_STATE_LIFE) <= 0 then
set .active = false
endif
set .curper = per
endmethod
method endupdate takes nothing returns nothing
call DestroyTextTag(.te)
call DestroyTextTag(.tt)
set .te = null
set .tt = null
set .tar = null
call .destroy()
endmethod
static method create takes unit u, integer state returns StateBar
local StateBar Dat = StateBar.allocate()
local string text = ""
local integer i = 0
local real offset
if state == BAR_UNIT_STATE_LIFE then
set Dat.green = 255
set Dat.maxstate = GetUnitState(u,UNIT_STATE_MAX_LIFE)
set Dat.stateper = Dat.maxstate/100
set Dat.curper = R2I(GetUnitState(u,UNIT_STATE_LIFE)/Dat.stateper+.5)
set offset = STATE_LIFE_OFFSET
set Dat.state = 0
set Dat.maxstateint = 1
elseif state == BAR_UNIT_STATE_MANA then
set Dat.blue = 255
set Dat.maxstate = GetUnitState(u,UNIT_STATE_MAX_MANA)
set Dat.stateper = Dat.maxstate/100
set Dat.curper = R2I(GetUnitState(u,UNIT_STATE_MANA)/Dat.stateper+.5)
set offset = STATE_MANA_OFFSET
set Dat.statebol = true
set Dat.state = 2
set Dat.maxstateint = 3
elseif state > 1 then
call StateBar.destroy(Dat)
debug call BJDebugMsg("Incorrect Value!")
return 0
endif
loop
exitwhen i >= BAR_LENGTH
set text = text + ONE_BAR
set i = i + 1
endloop
set i = 0
loop
exitwhen i >= Dat.curper
set Dat.tttext = Dat.tttext + ONE_BAR
set i = i + 1
endloop
call SetTextTagText(Dat.te,text,REAL_SIZE_STATE)
call SetTextTagPos(Dat.te, GetUnitX(u)+STATE_X_CORRECTION, GetUnitY(u)+STATE_Y_CORRECTION, offset)
call SetTextTagColor(Dat.te, BACKGROUND_BAR_RED, BACKGROUND_BAR_GREEN, BACKGROUND_BAR_BLUE, 255)
call SetTextTagVisibility(Dat.te, true)
call SetTextTagPermanent(Dat.te, true)
call SetTextTagText(Dat.tt,Dat.tttext, REAL_SIZE_STATE)
call SetTextTagPos(Dat.tt, GetUnitX(u)+STATE_X_CORRECTION, GetUnitY(u)+STATE_Y_CORRECTION, offset)
call SetTextTagColor(Dat.tt, Dat.red, Dat.green, Dat.blue, 255)
call SetTextTagVisibility(Dat.tt, true)
call SetTextTagPermanent(Dat.tt, true)
set Dat.tar = u
call AddObjectToUpdate(Dat)
return Dat
endmethod
method onDestroy takes nothing returns nothing
endmethod
endstruct
endlibraryhere an example usage:
For the TimedBar:
call TimedBar.create(udg_t,9.643,255,255,0,true)call TimedBar.create(<unit>,<time>,<redcolor>,<greencolor>,<bluecolor>,<false/true>)For the StateBar:
call StateBar.create(udg_t,BAR_UNIT_STATE_LIFE)call StateBar.create(<unit>,<BAR_UNIT_STATE_LIFE/BAR_UNIT_STATE_MANA>)if the last part is true the bar will update from right to left, else from left to right
credits to Hanky for Interface System
please give credits to me and hanky if you use this one
Test Map Attatched
And also give commands pls
version 1.1
- Added StateBar
- Reworked some constants
version 1.2
- Fixed a bug with the downcounting bar
version 1.3
- Reworked some values for a better look
Attachments
Last edited:
