Escape Leap v0.02
- Author(s)
- BUP
- Tags
- No Target, GUI / Triggers, Spell
- Size
- 27.01 KB
- Rating
- Downloads
- 886
- Created
- Nov 20, 2012
- Updated
- Dec 9, 2012
- Resources
- 1
- State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
Spell Info
=================================

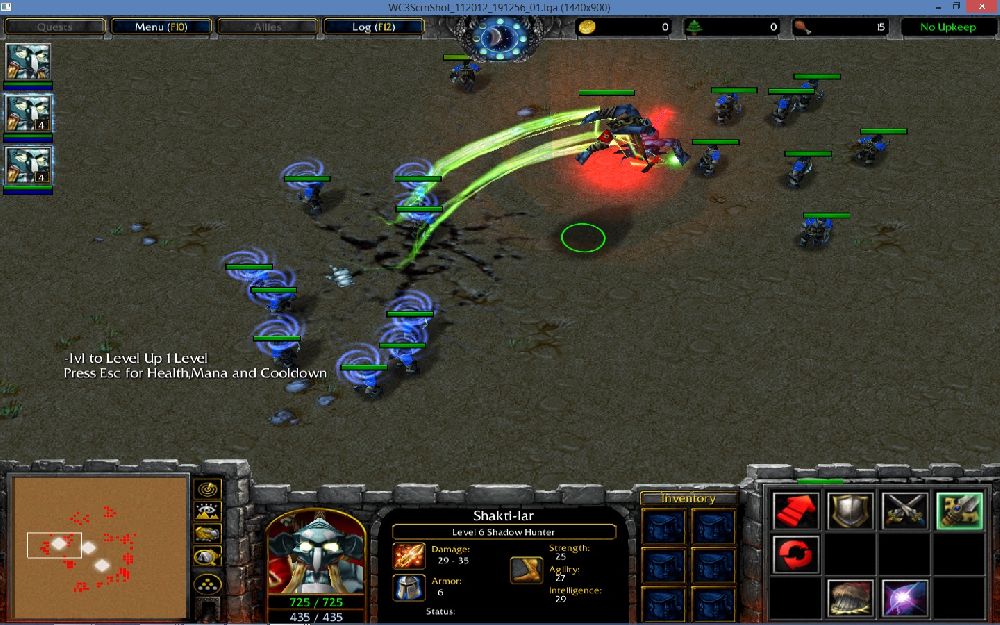

Escape Leap [Q]
Leaps backwards out from combat or enemies.
Slams the area of 300 to stun the enemies for 2 seconds so that (the caster can escape freely)
Reach the maximum escape range in 2 seconds.
Level 1 - Escape Range 1000
Level 2 - Escape Range 1400
Level 3 - Escape Range 1800
Cooldown - 0 seconds. (For MUI Test)
=================================
v0.02 Triggers
Please reply and rate the spell after viewing/testing.
Keywords:
GUI,MUI,Trigger,Escape,Shaman,Animation,Backwards Moving
=================================
Escape Leap [Q]
Leaps backwards out from combat or enemies.
Slams the area of 300 to stun the enemies for 2 seconds so that (the caster can escape freely)
Reach the maximum escape range in 2 seconds.
Level 1 - Escape Range 1000
Level 2 - Escape Range 1400
Level 3 - Escape Range 1800
Cooldown - 0 seconds. (For MUI Test)
=================================
v0.02 Triggers
-
EsL Config
-
Events
-
Map initialization
-
-
Conditions
-
Actions
-
-------- Is the caster alive?? --------
-
Set EsL_Condition_Config[0] = True
-
-------- Detemines the maximum range escaped backwards per level --------
-
Set EsL_Escape_Range[1] = 1000.00
-
Set EsL_Escape_Range[2] = 1400.00
-
Set EsL_Escape_Range[3] = 1800.00
-
-------- Detemines the time of escaping finish --------
-
Set EsL_Escaping_Time = 2.00
-
-------- Detemines the escaping speed per level --------
-
Set EsL_Escape_Speed[1] = (EsL_Escape_Range[1] x (0.03 / EsL_Escaping_Time))
-
Set EsL_Escape_Speed[2] = (EsL_Escape_Range[2] x (0.03 / EsL_Escaping_Time))
-
Set EsL_Escape_Speed[3] = (EsL_Escape_Range[3] x (0.03 / EsL_Escaping_Time))
-
-------- Detemines the maximum height jumped while escaping --------
-
Set EsL_Max_Height = 300.00
-
-------- Detemines the quantity that used in saving the backwards angle --------
-
Set EsL_Angle_Add_Quantity = 180.00
-
-------- Detemines the animation name --------
-
Set EsL_Spell_Animation = victory
-
-------- Detemines the animation speed --------
-
Set EsL_Animation_Speed = 140.00
-
-------- Detemines the locations of special effect model files created on the caster --------
-
Set EsL_Effect_Model[1] = Abilities\Weapons\IllidanMissile\IllidanMissile.mdl
-
Set EsL_Effect_Model[2] = Abilities\Weapons\IllidanMissile\IllidanMissile.mdl
-
-------- Detemines the attachments of the special effects created on the caster --------
-
Set EsL_Attachment[1] = right hand
-
Set EsL_Attachment[2] = left hand
-
Set EsL_Spell = Escape Leap
-
-
-
EsL Cast
-
Events
-
Unit - A unit Starts the effect of an ability
-
-
Conditions
-
(Ability being cast) Equal to EsL_Spell
-
-
Actions
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
EsL_Index_Listener Equal to 0
-
-
Then - Actions
-
Trigger - Turn on EsL Loop <gen>
-
-
Else - Actions
-
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
EsL_Recycle_Size Greater than 0
-
-
Then - Actions
-
Set EsL_Recycle_Size = (EsL_Recycle_Size - 1)
-
Set EsL_Current_Index = EsL_Recycle_Container[EsL_Recycle_Size]
-
-
Else - Actions
-
Set EsL_Current_Index = EsL_Index_Size
-
Set EsL_Index_Size = (EsL_Index_Size + 1)
-
-
-
Set EsL_Caster[EsL_Current_Index] = (Triggering unit)
-
Set EsL_Start_Point[EsL_Current_Index] = (Position of EsL_Caster[EsL_Current_Index])
-
Set EsL_Level = (Level of EsL_Spell for EsL_Caster[EsL_Current_Index])
-
Set EsL_Backward_Angle[EsL_Current_Index] = ((Facing of EsL_Caster[EsL_Current_Index]) + EsL_Angle_Add_Quantity)
-
Custom script: call PauseUnit(udg_EsL_Caster[udg_EsL_Current_Index], true)
-
Unit - Turn collision for EsL_Caster[EsL_Current_Index] Off
-
Animation - Play EsL_Caster[EsL_Current_Index]'s EsL_Spell_Animation animation
-
Animation - Change EsL_Caster[EsL_Current_Index]'s animation speed to EsL_Animation_Speed% of its original speed
-
Special Effect - Create a special effect attached to the EsL_Attachment[1] of EsL_Caster[EsL_Current_Index] using EsL_Effect_Model[1]
-
Set EsL_SE_1[EsL_Current_Index] = (Last created special effect)
-
Special Effect - Create a special effect attached to the EsL_Attachment[2] of EsL_Caster[EsL_Current_Index] using EsL_Effect_Model[2]
-
Set EsL_SE_2[EsL_Current_Index] = (Last created special effect)
-
Custom script: if UnitAddAbility(udg_EsL_Caster[udg_EsL_Current_Index],'Amrf') then
-
Custom script: call UnitRemoveAbility(udg_EsL_Caster[udg_EsL_Current_Index],'Amrf')
-
Custom script: endif
-
Set EsL_Index_Container[EsL_Index_Listener] = EsL_Current_Index
-
Set EsL_Index_Listener = (EsL_Index_Listener + 1)
-
-
-
EsL Loop
-
Events
-
Time - Every 0.03 seconds of game time
-
-
Conditions
-
Actions
-
For each (Integer EsL_Loop) from 0 to (EsL_Index_Listener - 1), do (Actions)
-
Loop - Actions
-
Set EsL_Current_Index = EsL_Index_Container[EsL_Loop]
-
Set EsL_Caster_Point = (Position of EsL_Caster[EsL_Current_Index])
-
Set EsL_Distance_Tavelled[EsL_Current_Index] = (Distance between EsL_Start_Point[EsL_Current_Index] and EsL_Caster_Point)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
(EsL_Caster[EsL_Current_Index] is alive) Equal to EsL_Condition_Config[0]
-
EsL_Distance_Tavelled[EsL_Current_Index] Less than or equal to EsL_Escape_Range[EsL_Level]
-
-
Then - Actions
-
Set EsL_Height_Formula[EsL_Current_Index] = (((4.00 x EsL_Max_Height) / EsL_Escape_Range[EsL_Level]) x ((EsL_Escape_Range[EsL_Level] - EsL_Distance_Tavelled[EsL_Current_Index]) x (EsL_Distance_Tavelled[EsL_Current_Index] / EsL_Escape_Range[EsL_Level])))
-
Animation - Change EsL_Caster[EsL_Current_Index] flying height to EsL_Height_Formula[EsL_Current_Index] at 0.00
-
Unit - Make EsL_Caster[EsL_Current_Index] face EsL_Start_Point[EsL_Current_Index] over 0.00 seconds
-
Custom script: call SetUnitX(udg_EsL_Caster[udg_EsL_Current_Index],GetUnitX(udg_EsL_Caster[udg_EsL_Current_Index]) + udg_EsL_Escape_Speed[udg_EsL_Level] * Cos(udg_EsL_Backward_Angle[udg_EsL_Current_Index] * bj_DEGTORAD))
-
Custom script: call SetUnitY(udg_EsL_Caster[udg_EsL_Current_Index],GetUnitY(udg_EsL_Caster[udg_EsL_Current_Index]) + udg_EsL_Escape_Speed[udg_EsL_Level] * Sin(udg_EsL_Backward_Angle[udg_EsL_Current_Index] * bj_DEGTORAD))
-
-
Else - Actions
-
Custom script: call RemoveLocation(udg_EsL_Start_Point[udg_EsL_Current_Index])
-
Custom script: call PauseUnit(udg_EsL_Caster[udg_EsL_Current_Index], false)
-
Unit - Order EsL_Caster[EsL_Current_Index] to Stop
-
Unit - Turn collision for EsL_Caster[EsL_Current_Index] On
-
Special Effect - Destroy EsL_SE_1[EsL_Current_Index]
-
Special Effect - Destroy EsL_SE_2[EsL_Current_Index]
-
Animation - Reset EsL_Caster[EsL_Current_Index]'s animation
-
Set EsL_Index_Listener = (EsL_Index_Listener - 1)
-
Set EsL_Index_Container[EsL_Loop] = EsL_Index_Container[EsL_Index_Listener]
-
Set EsL_Recycle_Container[EsL_Current_Index] = EsL_Current_Index
-
Set EsL_Recycle_Size = (EsL_Recycle_Size + 1)
-
Set EsL_Loop = (EsL_Loop - 1)
-
If (All Conditions are True) then do (Then Actions) else do (Else Actions)
-
If - Conditions
-
EsL_Index_Listener Equal to 0
-
-
Then - Actions
-
Trigger - Turn off EsL Loop <gen>
-
-
Else - Actions
-
-
-
-
Custom script: call RemoveLocation(udg_EsL_Caster_Point)
-
-
-
-
Please reply and rate the spell after viewing/testing.
Keywords:
GUI,MUI,Trigger,Escape,Shaman,Animation,Backwards Moving
Contents
Reviews
- Joined
- Dec 5, 2011
- Messages
- 368
Congratulations my SON.
Your spell is approved again
Your spell is approved again
Last edited:
- Joined
- Mar 26, 2011
- Messages
- 1,280
Very similar to my last spell in the form of organizing the triggers.
- Joined
- Sep 2, 2011
- Messages
- 349
Wow, you're just killing it. Creating spells right after another. I suggest in fixing some previous spells though. Good job on this spell.
- Joined
- Apr 24, 2012
- Messages
- 5,113
EDIT: and Add Some Documentation on how It works, Ok?
Instead of Using thisyou can use this:
then you will destroy it like this
Note: You don't to need to add some arrays to these
--->EsL_SE_1[udg_EsL_Current_Index]
--->EsL_SE_2[udg_EsL_Current_Index]
Or
call DestroyEffect(AddSpecialEffectTarget(udg_EsL_Effect_Model[2], udg_EsL_Caster[EsL_Current_Index], udg_EsL_Attachment[2])
Also doomhammer was right,this doesnt need to be array
- Joined
- Sep 9, 2012
- Messages
- 172
Where's the moderator???
- Joined
- Apr 24, 2012
- Messages
- 5,113
Please just contact them in the mod staff.
Also please be patient,every person is busy
Also please be patient,every person is busy
- Joined
- Aug 13, 2013
- Messages
- 1,696
Backward Leap, pausing unit is bad, maybe try setting the unit's propwindow to 0.
