Arrow Shower v1.1

Author(s)
Blightsower
Tags
vJASS, Target Ground, Spell
Size
80.02 KB
Rating

(1 ratings)

Downloads
163
Created
Oct 11, 2024
Updated
Oct 22, 2024
Resources
1
State
Approved
This bundle is marked as recommended. It works and satisfies the submission rules.
View usage Statistics Legacy download
  • Like
  • Love
Reactions: Gnuoy, Kam, dirtycopgangsta and 7 others

Description

Code

How to Import


Description

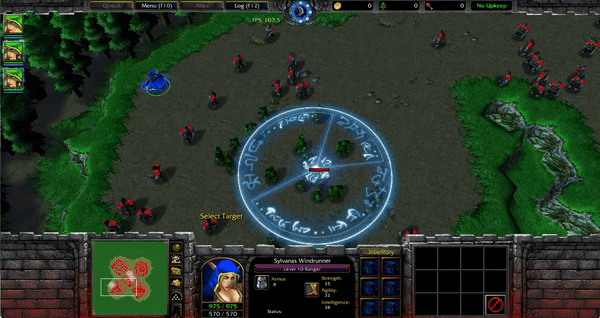

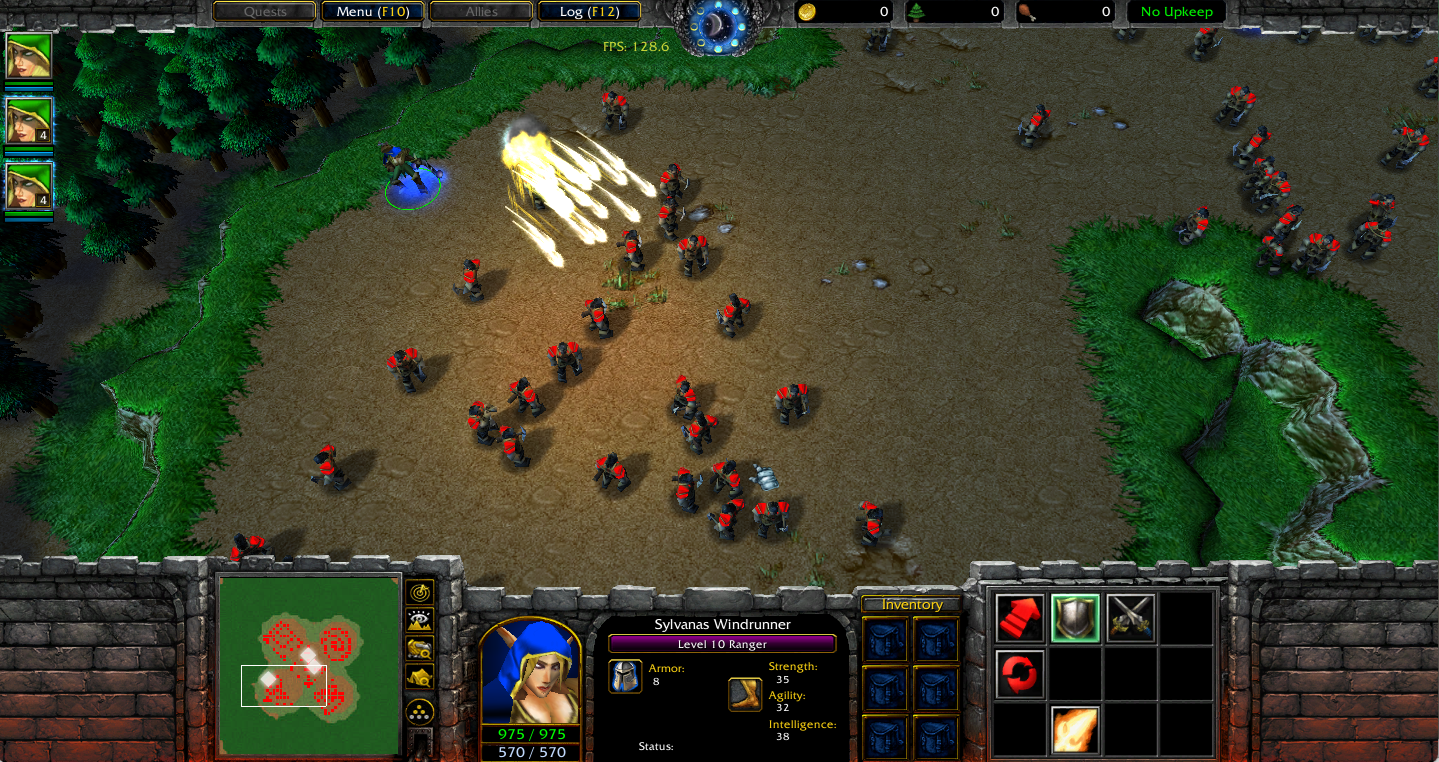

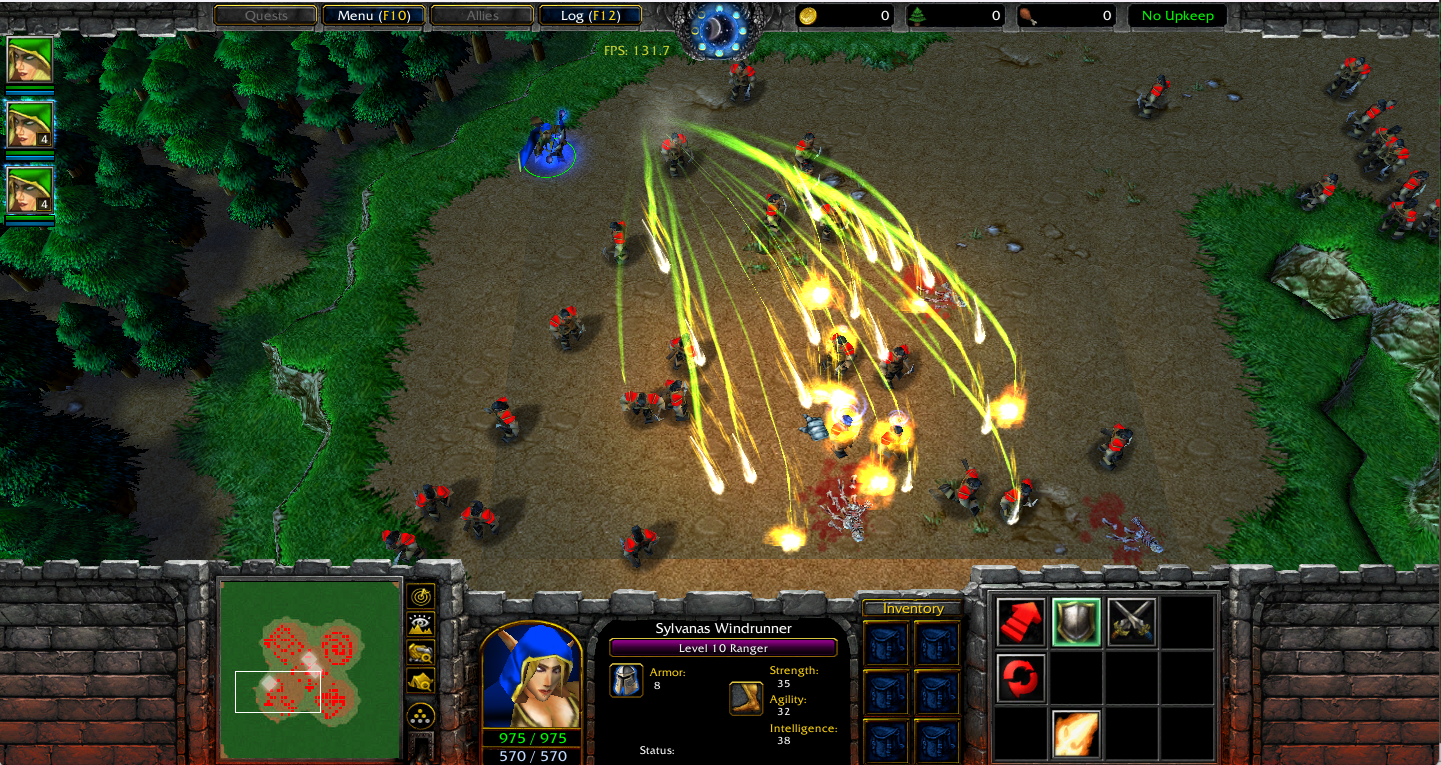

Fires an arrow that explodes into multiple arrows, raining down upon the target area, dealing damage and inflicting a brief stun on affected enemies.

Effect
Level 1 - arrow count 10, damage per arrow 60
Level 2 - arrow count 15, damage per arrow 70
Level 3 - arrow count 20, damage per arrow 80
Level 4 - arrow count 25, damage per arrow 90

Others
Area of Effect:200/250/300/350
Stun Duration: 0.1 seconds


JASS:
library ArrowShower requires TreeDestruction,Preload, DummyCaster
    //---------------------------------------------------------------
    // Arrow Shower v1.2
    // Author: Blightsower
    //
    // Description - Fires an arrow that explodes into multiple arrows,
    // raining down upon the target area, dealing damage and inflicting a
    // brief stun on affected enemies.
    //---------------------------------------------------------------
    // Requirements:
    //  * Enable JassHelper
    //
    // How to enable JassHelper
    //  * In the Trigger Editor window, look for the menu labeled JassHelper
    //    and click Enable JassHelper
    //-------------------------------------------------------------------------
    // How to Import:
    // 1. Copy and paste the objects from this map to your map namely:
    //    * Arrow Shower
    //    * Arrow Shower (Ministun)
    // 2. Copy and paste the Arrow Shower Category into your map
    // 3. Configure the spell so that everything points to the correct
    //    variables. Additional information about the variables are
    //    provided for clarity.
    //-------------------------------------------------------------------------
    // Note:
    // This spell includes some optional libraries to handle tree destruction, dummy casting
    // and preloading. The spell is arranged so that you can easily get rid of those libraries without
    // going into the code. You might want to get rid of those libraries if you already have a system
    // that handles those functionalities or you just feel like writing your own. Should you choose to keep
    // the libraries, there are a few things that you need to configure to fit your needs. Check the libraries
    // individually to have the variables point to the correct objects.
    //
    // How to remove optional libraries:
    // To remove DummyCaster:
    //     Remove DummyCaster from the requires and delete whats inside the onDummyCast function found
    //     at the bottom of configurables. Delete DummyCaster script
    // To remove TreeDestruction:
    //     Remove TreeDestrcution from the requires and delete whats inside the onDestroyTree
    //     function found at the bottom of configurables. Delete TreeDestruction script
    // To remove Preload:
    //     Remove Preload from the requires and delete whats inside the onPreload function found
    //     at the bottom of configurables. Delete Preload script
    //-------------------------------------------------------------------------

    //-------------------------------------------------------------------------
    // CONFIGURABLES
    //-------------------------------------------------------------------------
    globals
        //-------------------------------------------------------------------------
        // TIMER SPEED - usually you dont touch it. It is the interval which the spell
        // uses to update the arrows
        //-------------------------------------------------------------------------
        private constant real TIMER_SPEED = 0.03
    endglobals
    native UnitAlive takes unit id returns boolean
    module ArrowShowerConfiguration
        //-------------------------------------------------------------------------
        // ABILITY_ID - it should point to the id of Arrow Shower. Use ctrl + d to find out
        // the id of your objects
        //-------------------------------------------------------------------------
        readonly static constant integer ABILITY_ID = 'A000'

        //-------------------------------------------------------------
        // MODELS
        //-------------------------------------------------------------

        //-------------------------------------------------------------------------
        // ARROW_INITIAL_MODEL - model used by the main arrow fired by the spell
        // under it is the function that controls the size
        //-------------------------------------------------------------------------
        readonly static constant string ARROW_INITIAL_MODEL = "Abilities\\Weapons\\BallistaMissile\\BallistaMissile.mdl"
        static constant method getArrowInitialModelSize takes integer level returns real
            return 1.
        endmethod

        //-------------------------------------------------------------------------
        // ARROW_INITIAL_DEATH_MODEL - model used when the main arrow gets destroyed
        // under it is the function that controls the size
        //-------------------------------------------------------------------------
        readonly static constant string ARROW_INITIAL_DEATH_MODEL = "Abilities\\Spells\\Human\\FlakCannons\\FlakTarget.mdl"
        static constant method getArrowInitialDeathModelSize takes integer level returns real
            return 1.
        endmethod

        //-------------------------------------------------------------------------
        // ARROW_RAIN_MODEL - model for the arrows hitting the  ground
        // under it is the function that controls the size
        //-------------------------------------------------------------------------
        readonly static constant string ARROW_RAIN_MODEL = "Abilities\\Weapons\\SearingArrow\\SearingArrowMissile.mdl"
        static constant method getArrowRainModelSize takes integer level returns real
            return 1.
        endmethod

        //-------------------------------------------------------------------------
        // ARROW_RAIN_IMPACT_MODEL - model used when the arrows hit the ground
        // under it is the function that controls the size
        //-------------------------------------------------------------------------
        readonly static constant string ARROW_RAIN_IMPACT_MODEL = "Abilities\\Spells\\Items\\AIfb\\AIfbSpecialArt.mdl"
        static constant method getArrowRainImpactModelSize takes integer level returns real
            return 1.
        endmethod

        //-------------------------------------------------------------------------
        // ARROW_RAIN_IMPACT_MODEL - model used when the arrows damages an enemy unit
        // under it is the function that controls the size
        //-------------------------------------------------------------------------
        readonly static constant string ARROW_RAIN_HIT_MODEL = "Abilities\\Spells\\Items\\AIfb\\AIfbSpecialArt.mdl"
        readonly static constant string ARROW_RAIN_HIT_ATTACHMENT = "chest"
        static constant method getHitModelSize takes integer level returns real
            return 1.
        endmethod

        //-------------------------------------------------------------
        // BEHAVIOR
        //-------------------------------------------------------------

        //-------------------------------------------------------------
        // INITIAL_ARROW_START_ROLL - the starting angle of the arrow when it first spawns
        //-------------------------------------------------------------
        readonly static constant real INITIAL_ARROW_START_ROLL = 270. * bj_DEGTORAD

        //-------------------------------------------------------------
        // INITIAL_ARROW_END_ROLL - the final angle of the arrow when it reaches the maximum height
        //-------------------------------------------------------------
        readonly static constant real INITIAL_ARROW_END_ROLL = 360. * bj_DEGTORAD

        //-------------------------------------------------------------
        // RAIN_ARROW_START_ROLL - the starting angle of the arrow when it starts to go down
        //-------------------------------------------------------------
        readonly static constant real RAIN_ARROW_START_ROLL = 360. * bj_DEGTORAD

        //-------------------------------------------------------------
        // RAIN_ARROW_END_ROLL - the final angle of the arrow when it reaches the ground
        //-------------------------------------------------------------
        readonly static constant real RAIN_ARROW_END_ROLL = 450. * bj_DEGTORAD

        //-------------------------------------------------------------
        // getInitialArrowDuration - returns how fast the main arrow will take in seconds
        // to reach the maximum height
        //-------------------------------------------------------------
        static constant method getInitialArrowDuration takes integer level returns real
            return .85
        endmethod

        //-------------------------------------------------------------
        // getRainArrowDuration - returns how fast the rain of arrows will take in seconds
        // to reach the ground
        //-------------------------------------------------------------
        static constant method getRainArrowDuration takes integer level returns real
            return .5
        endmethod

        //-------------------------------------------------------------
        // getRainArrowDuration - returns the upper limit of how much delay each arrows of the
        // rain of arrows will take. Its random between 0 and the the number returned by this
        // function
        //-------------------------------------------------------------
        static constant method getRainArrowDurationPenalty takes integer level returns real
            return 1.25
        endmethod

        //-------------------------------------------------------------
        // Arrow starting height and max height
        //-------------------------------------------------------------
        readonly static constant real ARROW_STARTING_HEIGHT = 50.
        static constant method getMaxHeight takes integer level returns real
            return 500.
        endmethod

        //-------------------------------------------------------------
        // DAMAGE
        // Hint:
        // 1.0 = 100% of the attribute
        //-------------------------------------------------------------
        readonly static attacktype ATTACK_TYPE = ATTACK_TYPE_NORMAL
        readonly static damagetype DAMAGE_TYPE = DAMAGE_TYPE_NORMAL
        readonly static weapontype WEAPON_TYPE = null
        static constant method getAbsoluteDamage takes integer level returns real
            return 50. + (10*level)
        endmethod
        static constant method getStrengthDamage takes integer level returns real
            return 0. + (0*level)
        endmethod
        static constant method getAgilityDamage takes integer level returns real
            return 0. + (0.15*level)
        endmethod
        static constant method getIntelligenceDamage takes integer level returns real
            return 0. + (0*level)
        endmethod
        static constant method getArrowCount takes integer level returns integer
            return 5 + (5*level)
        endmethod

        //-------------------------------------------------------------
        // AREA OF EFFECT
        //-------------------------------------------------------------
        //-------------------------------------------------------------
        // getCastAoe - returns the area of effect of the spell. usually the same area
        // as the spell from the object editor
        //-------------------------------------------------------------
        static constant method getCastAoe takes integer level returns real
            return 150. + (50*level)
        endmethod

        //-------------------------------------------------------------
        // getArrowAoe - returns the area of effect per arrow
        //-------------------------------------------------------------
        static constant method getArrowAoe takes integer level returns real
            return 100.
        endmethod

        //-------------------------------------------------------------
        // API
        //-------------------------------------------------------------
        //-------------------------------------------------------------
        // onDamage - is the damage event of the spell.
        // unit caster - is the caster of the spell
        // unit target - is the enemy about to get damaged by the spell
        // real damage - is the amount of damage about to be dealt
        // attacktype attackType - attacktype of the spell
        // damagetype damageType - damagetype of the spell
        // weapontype weaponType - weapontype of the spell
        //-------------------------------------------------------------
        static method onDamage takes unit caster, unit target, real damage, attacktype attackType, damagetype damageType, weapontype weaponType returns nothing
            call UnitDamageTarget(caster, target, damage, true, false, attackType, damageType, weaponType)
        endmethod

        //-------------------------------------------------------------
        // isShowerable - is the damage filter of the spell.
        // unit u - is the unit in question
        // player p - is the owner of the spell
        // Original Conditions:
        //  - u is alive
        //  - u is not a structure
        //  - u is not magic immune
        //  - u is is an enemy of player p
        //-------------------------------------------------------------
        static method isShowerable takes unit u, player p returns boolean
            return UnitAlive(u) and not(IsUnitType(u, UNIT_TYPE_STRUCTURE)) and not(IsUnitType(u, UNIT_TYPE_MAGIC_IMMUNE)) and IsUnitEnemy(u,p)
        endmethod

    //-------------------------------------------------------------
        // onDestroyTree - function called by the spell when destroying trees
        // (x, y) - landing point of the arrows
        // aoe - radius of the destruction
        // uses the ClearTrees function from the optional library
        //-------------------------------------------------------------
        readonly static constant boolean DESTROYS_TREES = true
        static method onDestroyTree takes real x, real y, real aoe returns nothing
            call ClearTrees(x, y, aoe)
        endmethod

        //-------------------------------------------------------------
        // onDummyCast - is the ministun event of the spell
        // unit u - target of the ministun
        // integer l - level of the ministun
        // uses the OrderCaster function from the optional library
        //-------------------------------------------------------------
        readonly static constant boolean USES_DUMMY_CASTER = true
        readonly static constant integer DUMMY_ABILITY_ID = 'A001'    // must point to Arrow Shower (Ministun)
        readonly static constant integer DUMMY_ABILITY_ORDER = 852095 // storm bolt
        static method onDummyCast takes unit u, integer l returns nothing
            call OrderCaster(u, l, DUMMY_ABILITY_ID, DUMMY_ABILITY_ORDER)
        endmethod

        //-------------------------------------------------------------
        // onPreload - runs at map initialization
        // uses the preload function from the optional library
        //-------------------------------------------------------------
        static method onPreload takes nothing returns nothing
            call Initialize.preloadAbility(ABILITY_ID)
            call Initialize.preloadAbility(DUMMY_ABILITY_ID)
            call Initialize.preloadEffect(ARROW_INITIAL_MODEL)
            call Initialize.preloadEffect(ARROW_INITIAL_DEATH_MODEL)
            call Initialize.preloadEffect(ARROW_RAIN_MODEL )
            call Initialize.preloadEffect(ARROW_RAIN_IMPACT_MODEL)
            call Initialize.preloadEffect(ARROW_RAIN_HIT_MODEL)
        endmethod

    endmodule
    //-------------------------------------------------------------------------
    // END OF CONFIGURABLES
    //-------------------------------------------------------------------------

    //-------------------------------------------------------------------------
    // START OF THE SPELL
    //-------------------------------------------------------------------------
    scope ArrowShower


        // helper modules
        private module SinglyLinkedList
            thistype next
            thistype prev

            static method insertAtHead takes thistype this returns nothing
                set this.next = 0
                set this.prev = thistype(0).prev
                set thistype(0).prev.next = this
                set thistype(0).prev = this
            endmethod

            static method pop takes thistype this returns nothing
                set this.next.prev = this.prev
                set this.prev.next = this.next
            endmethod
        endmodule

        private module Transformer
            readonly real x1
            readonly real y1
            readonly real z1
            readonly real x2
            readonly real y2
            readonly real z2
            readonly real x3
            readonly real y3
            readonly real z3
            readonly real t=0
            private location loc = Location(0,0)

            method quadraticBezier takes real t, real p1, real p2, real p3 returns real
                return Pow((1-t),2)*p1 + 2*(1-t)*t*p2 + Pow(t,2)*p3
            endmethod

            method lerp takes real a, real b, real t returns real
                return a + (b - a) * t
            endmethod

            method setStartingArc takes real startX, real startY, real endX, real endY returns nothing
                // first point of the spell is the position of the caster
                set .x1 = startX
                set .y1 = startY
                set .z1 = ARROW_STARTING_HEIGHT

                // second point is same as the first but higher
                set .x2 = .x1
                set .y2 = .y1
                set .z2 = getMaxHeight(.level)

                // last point is the middle point between the caster and the target area
                // z is the same as point 2
                set .x3 = lerp(startX, endX, .5)
                set .y3 = lerp(startY, endY, .5)
                set .z3 = .z2
            endmethod

            method setEndingArc takes real startX, real startY, real endX, real endY, real r returns nothing
                // generates the random offset for x and y
                local real randomRadius = r * SquareRoot(GetRandomReal(0, 1))
                local real angle = GetRandomDirectionDeg() * bj_DEGTORAD

                // first point is where the last point of the first arrow ends
                set .x1 = startX
                set .y1 = startY
                set .z1 = getMaxHeight(.level)

                // second point is random radius from the target point of the spell
                // maintains the height
                set .x2 = endX + randomRadius * Cos(angle)
                set .y2 = endY + randomRadius * Sin(angle)
                set .z2 = .z1

                // third point is the landing point of the spell
                // account for elevation
                call MoveLocation(.loc, .x2, .y2)
                set .x3 = .x2
                set .y3 = .y2
                set .z3 = GetLocationZ(loc)
            endmethod

            // computes the appropriate yaw of the projectiles in radian
            method calculateYaw takes real startX, real startY, real endX, real endY returns real
                local real dx = endX - startX
                local real dy = endY - startY
                return Atan2(dy, dx)
            endmethod

        endmodule

        struct ArrowShower
            implement ArrowShowerConfiguration
            implement SinglyLinkedList
            implement Transformer

            private static string ARROW_INITIAL = "INITIAL_ARROW"
            private static string ARROW_RAIN = "ARROW_RAIN"
            private static group g = CreateGroup()
            private static timer arrowTimer = CreateTimer()
            private static integer index = 0

            private real targetX
            private real targetY
            private real aoe
            private real damage
            private unit caster
            private player owner
            private integer level
            private real duration
            private string arrowType
            private effect arrow
            private real yaw
            private real rollStart
            private real rollEnd

            // damage calculation
            private static method getDamageFromAttribute takes unit u, real s, real a, real i returns real
                local real damage_agi = I2R(GetHeroStatBJ(bj_HEROSTAT_AGI, u, true)) * a
                local real damage_str = I2R(GetHeroStatBJ(bj_HEROSTAT_STR, u, true)) * s
                local real damage_int = I2R(GetHeroStatBJ(bj_HEROSTAT_INT, u, true)) * i
                return damage_agi + damage_str + damage_int
            endmethod

            private method clear takes nothing returns nothing
                call this.deallocate()
                call pop(this)

                set .caster = null
                set .owner = null
                call DestroyEffect(.arrow)

                set index = index - 1
                if index == 0 then
                    call PauseTimer(arrowTimer)
                endif
            endmethod

            private method update takes nothing returns boolean
                local real roll = lerp(.rollStart, .rollEnd, .t)

                // positionof the projectile
                local real x = quadraticBezier(.t, .x1, .x2, .x3)
                local real y = quadraticBezier(.t, .y1, .y2, .y3)
                local real z = quadraticBezier(.t, .z1, .z2, .z3)

                // set z = .z1 + 500 * t + 0.5*(9.81) * Pow(.t,2)

                call BlzSetSpecialEffectPosition(.arrow, x, y, z)
                // applies the correct pitch
                call BlzSetSpecialEffectPitch(.arrow, roll)

                set .t = .t + 1/(.duration/TIMER_SPEED)
                return .t > 1.
            endmethod

            private static method onEffect takes nothing returns nothing
                local thistype this = thistype(0).next
                local effect e
                local unit u
                local integer i = 1
                loop
                    exitwhen this == 0
                        if update() then

                            // if the arrow type is the main arrow
                            if .arrowType == ARROW_INITIAL then
                                set e = AddSpecialEffect(ARROW_INITIAL_DEATH_MODEL, .x3, .y3)
                                call BlzSetSpecialEffectScale(e, getArrowInitialDeathModelSize(.level))
                                call BlzSetSpecialEffectZ(e, .z3)
                                call BlzSetSpecialEffectYaw(e, .yaw)

                                call DestroyEffect(e)
                                loop
                                    exitwhen i > getArrowCount(.level)
                                    call ArrowShower.createArrow(.x3, .y3, .targetX, targetY, .caster, .owner, .level, ARROW_RAIN)
                                    set i = i + 1
                                endloop
                                call this.clear()

                            // if the arrow type is the rain of arrows
                            else
                                set .damage = getAbsoluteDamage(.level) + getDamageFromAttribute(.caster, getStrengthDamage(.level), getAgilityDamage(.level), getIntelligenceDamage(.level))

                                if ArrowShower.DESTROYS_TREES then
                                    call onDestroyTree(.x2, .y2, .getArrowAoe(.level))
                                endif

                                call GroupEnumUnitsInRange(g, .x3, .y3, .getArrowAoe(.level), null)
                                loop
                                    set u = FirstOfGroup(g)
                                    exitwhen u == null

                                    if isShowerable(u, .owner) then

                                        // hit special effects
                                        set e = AddSpecialEffectTarget(ARROW_RAIN_HIT_MODEL, u, ARROW_RAIN_HIT_ATTACHMENT)
                                        call BlzSetSpecialEffectScale(e, getHitModelSize(.level))
                                        call DestroyEffect(e)

                                        // damage
                                        call onDamage(.caster, u, .damage, ATTACK_TYPE, DAMAGE_TYPE, WEAPON_TYPE)

                                        // dummy caster
                                        if USES_DUMMY_CASTER then
                                            call onDummyCast(u, .level)
                                        endif
                                    endif

                                    call GroupRemoveUnit(g,u)
                                endloop

                                // impact sfx
                                set e = AddSpecialEffect(ARROW_RAIN_IMPACT_MODEL, .x3, .y3)
                                call BlzSetSpecialEffectScale(e, getArrowRainImpactModelSize(.level))
                                call DestroyEffect(e)
                                call this.clear()
                            endif
                        endif
                    set this = this.next
                endloop
            endmethod

            // creates the arrows
            static method createArrow takes real startX, real startY, real endX, real endY, unit caster, player owner, integer level, string arrowType returns nothing
                local thistype this = thistype.allocate()
                call insertAtHead(this)

                set .targetX = endX
                set .targetY = endY
                set .caster = caster
                set .owner = owner
                set .level = level
                set .aoe = getCastAoe(.level)

                // main arrow properties
                if arrowType == ARROW_INITIAL then
                    call .setStartingArc(startX, startY, .targetX, .targetY)
                    set .arrowType = ARROW_INITIAL
                    set .rollStart = INITIAL_ARROW_START_ROLL
                    set .rollEnd = INITIAL_ARROW_END_ROLL
                    set .duration = getInitialArrowDuration(.level)
                    set .arrow = AddSpecialEffect(ARROW_INITIAL_MODEL, startX, startY)
                    call BlzSetSpecialEffectScale(.arrow, getArrowInitialModelSize(.level))

                // rain of arrows properties
                else
                    call .setEndingArc(startX, startY, .targetX, .targetY, .aoe)
                    set .arrowType = ARROW_RAIN
                    set .rollStart = RAIN_ARROW_START_ROLL
                    set .rollEnd = RAIN_ARROW_END_ROLL
                    set .duration = getRainArrowDuration(.level) + GetRandomReal(0, getRainArrowDurationPenalty(.level))
                    set .arrow = AddSpecialEffect(ARROW_RAIN_MODEL, startX, startY)
                    call BlzSetSpecialEffectScale(.arrow, getArrowRainModelSize(.level))
                endif

                // applies the yaw
                set .yaw = calculateYaw(startX, startY, .targetX, .targetY)
                call BlzSetSpecialEffectYaw(.arrow, .yaw)

                set index = index + 1
                if index == 1 then
                    call TimerStart(arrowTimer, TIMER_SPEED, true, function thistype.onEffect)
                endif
            endmethod

            private static method onCast takes nothing returns nothing
                local real unitX
                local real unitY
                local real targetX
                local real targetY
                local unit caster
                local player owner
                local integer level

                if GetSpellAbilityId() == ABILITY_ID then

                    set caster = GetTriggerUnit()
                    set owner = GetTriggerPlayer()
                    set level = GetUnitAbilityLevel(caster, ABILITY_ID)
                    set unitX = GetUnitX(caster)
                    set unitY = GetUnitY(caster)
                    set targetX = GetSpellTargetX()
                    set targetY = GetSpellTargetY()

                    call ArrowShower.createArrow(unitX, unitY, targetX, targetY, caster, owner, level, ARROW_INITIAL)

                    set caster = null
                    set owner = null
                endif
            endmethod

            static method onInit takes nothing returns nothing
                local trigger t = CreateTrigger()
                call onPreload()
                call TriggerRegisterAnyUnitEventBJ(t, EVENT_PLAYER_UNIT_SPELL_EFFECT)
                call TriggerAddAction(t, function thistype.onCast)
                set t = null
            endmethod
        endstruct
    endscope
endlibrary

How to Import:
1. Copy and paste the objects from this map to your map namely:
* Arrow Shower
* Arrow Shower (Ministun)
2. Copy and paste the Arrow Shower Category into your map
3. Configure the spell so that everything points to the correct
variables. Additional information about the variables are
provided for clarity.

Credits: Vexorian for the dummy.mdx
Previews
Contents

Blightsower Arrow Shower v1.2 (Map)

Author
Blightsower
Filename
Blightsower Arrow Shower v1.2.w3m
Suggested players
Any
Players
1
Required game
Warcraft 3: Reforged
Recommended version
1.36
Dimensions
52x52 (64x64)
Size
80.02 KB
Uploaded
Oct 11, 2024
Updated
Oct 22, 2024
Map Info View Resources In Use Preview Triggers Download
Reviews
Antares
Antares
readonly static constant string ARROW_INITIAL_MODEL = "Abilities\\Weapons\\BallistaMissile\\BallistaMissile.mdl" A constant is readonly by definition ;). call BlzSetSpecialEffectX(.arrow, x) call BlzSetSpecialEffectY(.arrow, y) call...
Read full review...

Antares

Antares

Antares

Spell Reviewer
Level 32
Joined
Dec 13, 2009
Messages
983
vJASS:
readonly static constant string ARROW_INITIAL_MODEL = "Abilities\\Weapons\\BallistaMissile\\BallistaMissile.mdl"
A constant is readonly by definition ;).

vJASS:
call BlzSetSpecialEffectX(.arrow, x)
call BlzSetSpecialEffectY(.arrow, y)
call BlzSetSpecialEffectZ(.arrow, z)
Use BlzSetSpecialEffectPosition here. It is much faster.

vJASS:
if DESTROYS_TREES then
This can be a static if. Other similar ones as well.

A bezier curve is not really suitable for an arrow trajectory. The arrows appear to be slowing down greatly before they are hitting the ground. What I think you should be using is a parabolic (ballistic) curve. The arrows' z-position would be:
vJASS:
z(t) = zStart + zVelocityStart * t + 0.5*gravity * t^2
And the arrow x- and y-positions would simply progress linearly.

The arrows' orientation does not seem to reflect their movement direction completely accurately. Their orientations are all linked, so their individual differences in movement direction are not taken into account.

The config is well-structured and everything is configurable, although I don't really see the point in constant functions. Overall, the spell looks great and it's nice to have a spell for a change that doesn't just fit for a hero's ultimate. Could see a HQ rating if the arrow curve and orientation is improved.

Approved

You must log in or register to reply here.

Similar threads

reason 3
Elune's Arrow v1.1
Replies
28
Views
23K
Oljin
Oljin
iAyanami
Spectrum Shower v1.2
Replies
11
Views
12K
iAyanami
iAyanami
BlackHawk
Star Shower v1.06
Replies
15
Views
24K
Oljin
Oljin
jim7777
  • Locked
Spell Request - Arrow Spells
Replies
3
Views
938
jim7777
jim7777
shedinja
Forsaken Arrow
Replies
3
Views
2K
shedinja
shedinja
Top
